The Radium Engineering fuel vent charcoal canister purifies odors that emit from the fuel tank vent system. It is designed for both EFI and carbureted fuel systems.

TESTING

• To test for a restrictive pressure drop through the charcoal canister, a quick flow Radium Engineering dry break dump can was used. Results showed a negligible difference between a charcoal canister installed or not installed on the fuel vent.
• Fuel vapor measurements were taken with a combustible gas detector which detects 50 ppm to 10,000 ppm.
• All probe testing was measured inside the atmospheric exit of the fuel tank vent
• Without the charcoal canister installed, the gas detector maxed out over 10,000 ppm of fuel vapor.
• With the charcoal canister installed, the gas detector did not measure any fuel vapor (<50 ppm).

Gas leak tester used

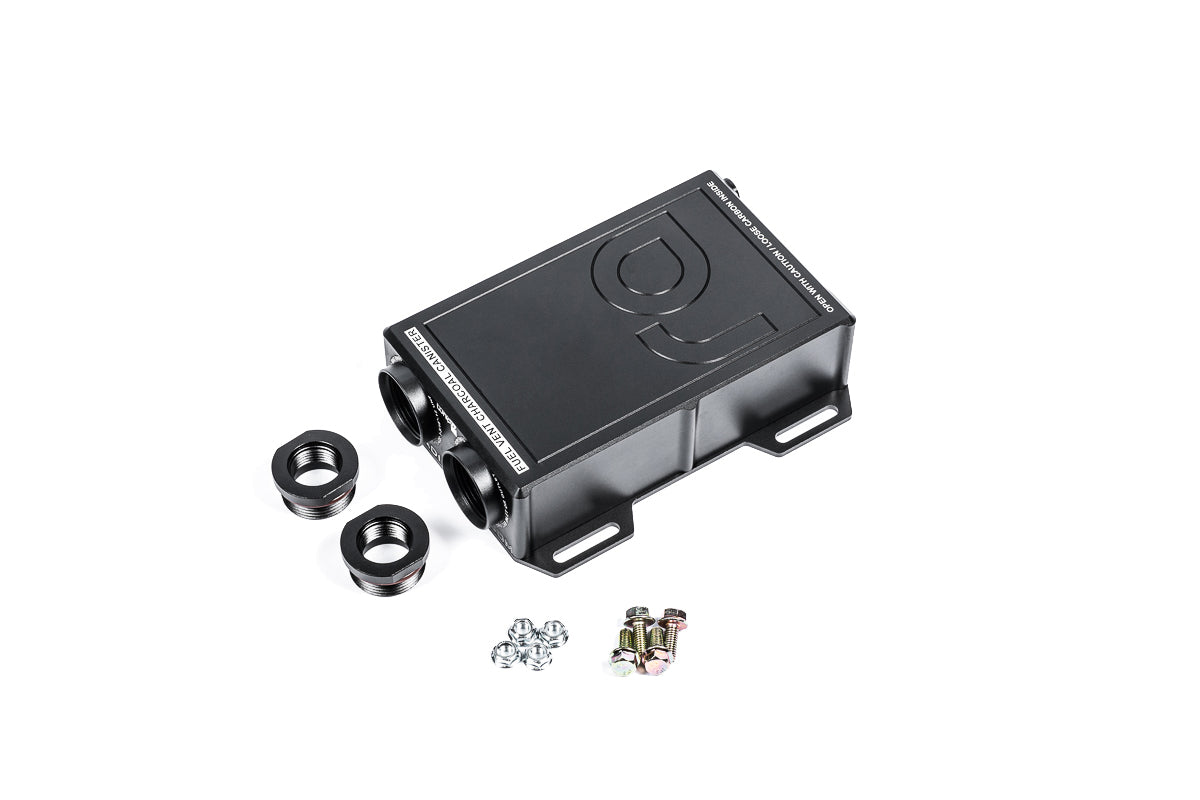

20-1828-00 FUEL VENT CHARCOAL CANISTER, UNIVERSAL

This universal kit includes two 16AN ORB male to 10AN ORB female couplers. For classic cars, most fuel tanks use either 1/4" (6mm), 5/16" (8mm), or a 3/8" (10mm) vent line.

• For a large selection of 10AN ORB adapter fittings specific to your vehicle, click HERE
• For 16AN ORB adapter fittings, click HERE
• For fuel hose specific to your vehicle, click HERE
• For a 3/4" air filter, click HERE

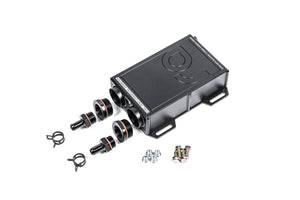

20-1828-08 FUEL VENT CHARCOAL CANISTER, FOR 1/2IN HOSE

This standard flow kit is designed to use 1/2" fuel vent hose. When used in combination with this vent kit (20-0484-08) found HERE, it can be integrated seamlessly with a Radium Engineering fuel cell surge tank.

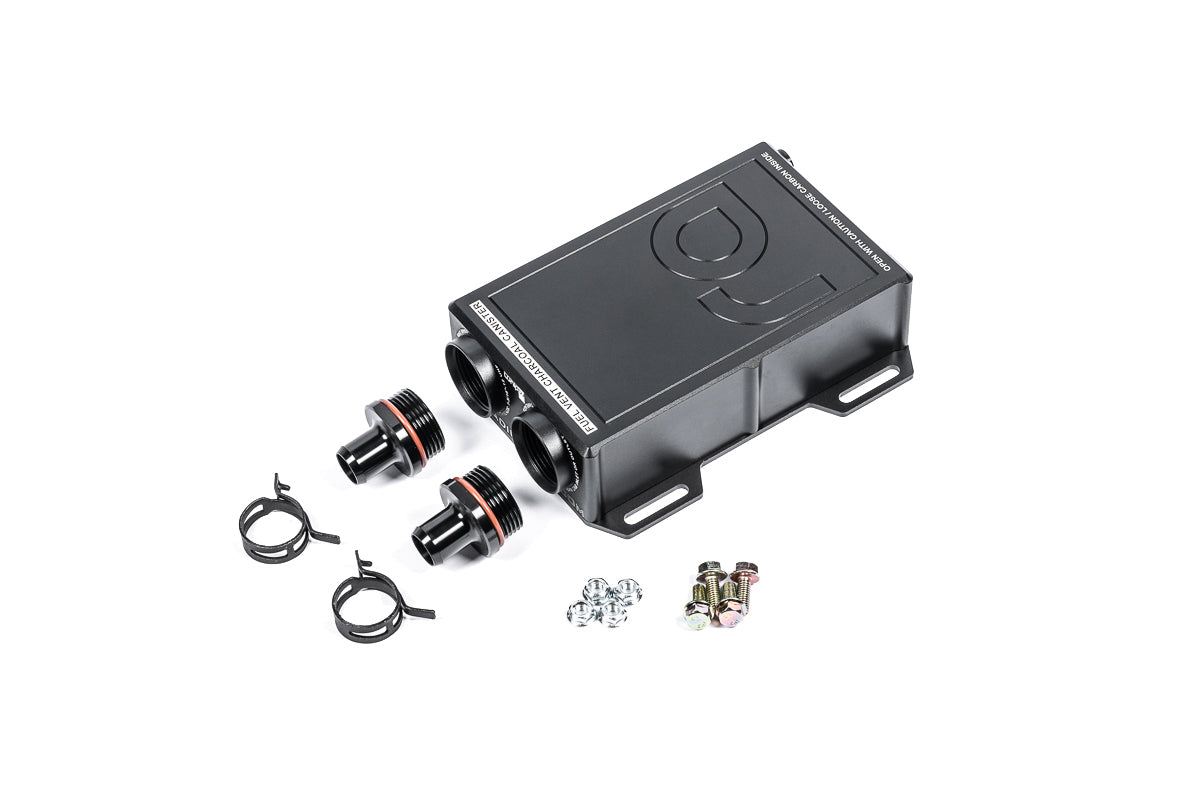

20-1828-12 FUEL VENT CHARCOAL CANISTER, FOR 3/4IN HOSE

This high flow kit is designed to use 3/4" fuel vent hose. When used in combination with this vent kit (20-0484-12) found HERE. it can be integrated seamlessly with a Radium Engineering fuel cell surge tank. For a 3/4" air filter that will attach directly to one of the barbs, click HERE.

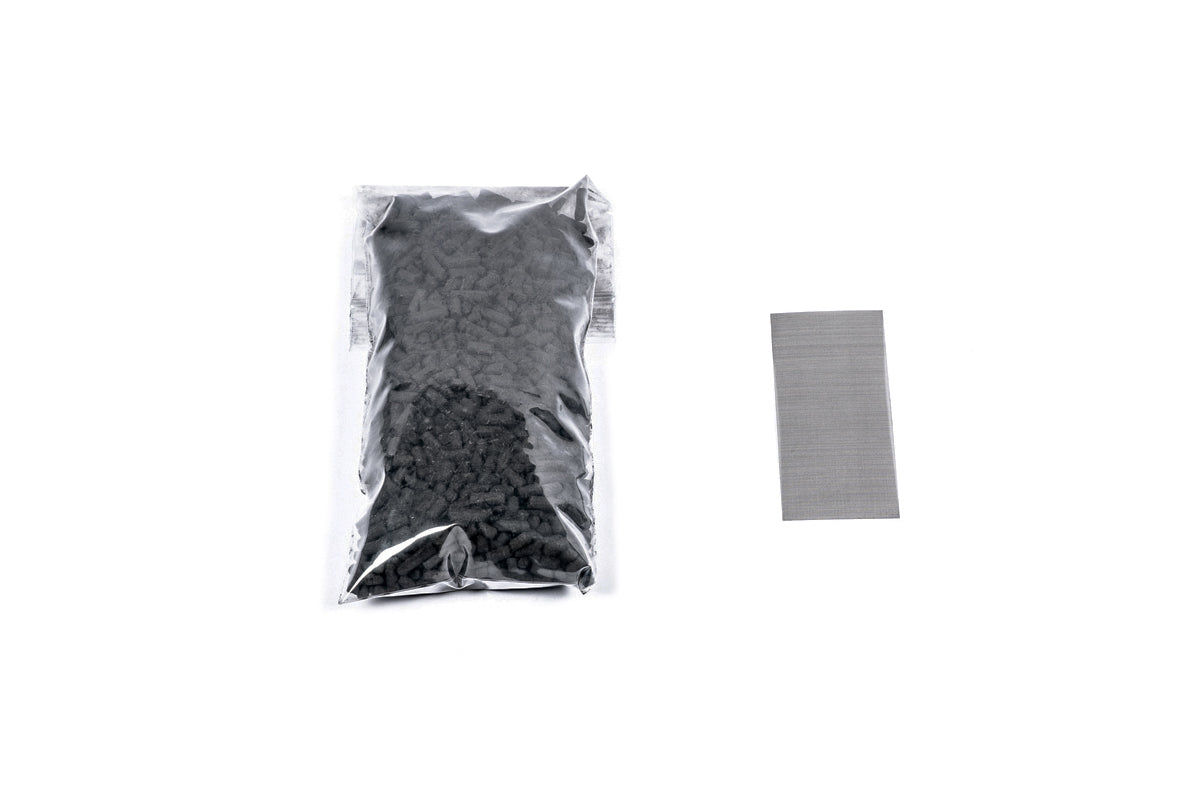

20-1828-SK SERVICE KIT FOR FUEL VENT CHARCOAL CANISTER

Recharging the fuel vent charcoal canister will not be a frequent occurrence but will depend on usage. For instance, if the internal carbon becomes overly saturated, filtration efficiency will be reduced.

Fortunately, the canister can be disassembled and recharged with fresh activated carbon and a new 150 micron strainer using this service kit.

The fuel vent charcoal canisters are CNC machined from 6061 aluminum. They are type-II anodized for corrosion resistance.

The preassembled vibratory-packed activated carbon resides inside a 150 micron strainer and an anodized aluminum baffle. This prevents any loose carbon media debris from escaping the canister.

For high flow fuel venting, 16AN ORB (1-5/16"-12) female ports are featured on all fuel vent charcoal canister kits. These ports can be used interchangeably as the inlet or outlet.

To drain any unwanted fuel from the canister, two 4AN ORB (7/16"-20) female ports are machined at the bottom with preinstalled plugs. Depending on mounting orientation, one of these ports can be used if a Petcock Drain Kit is installed.

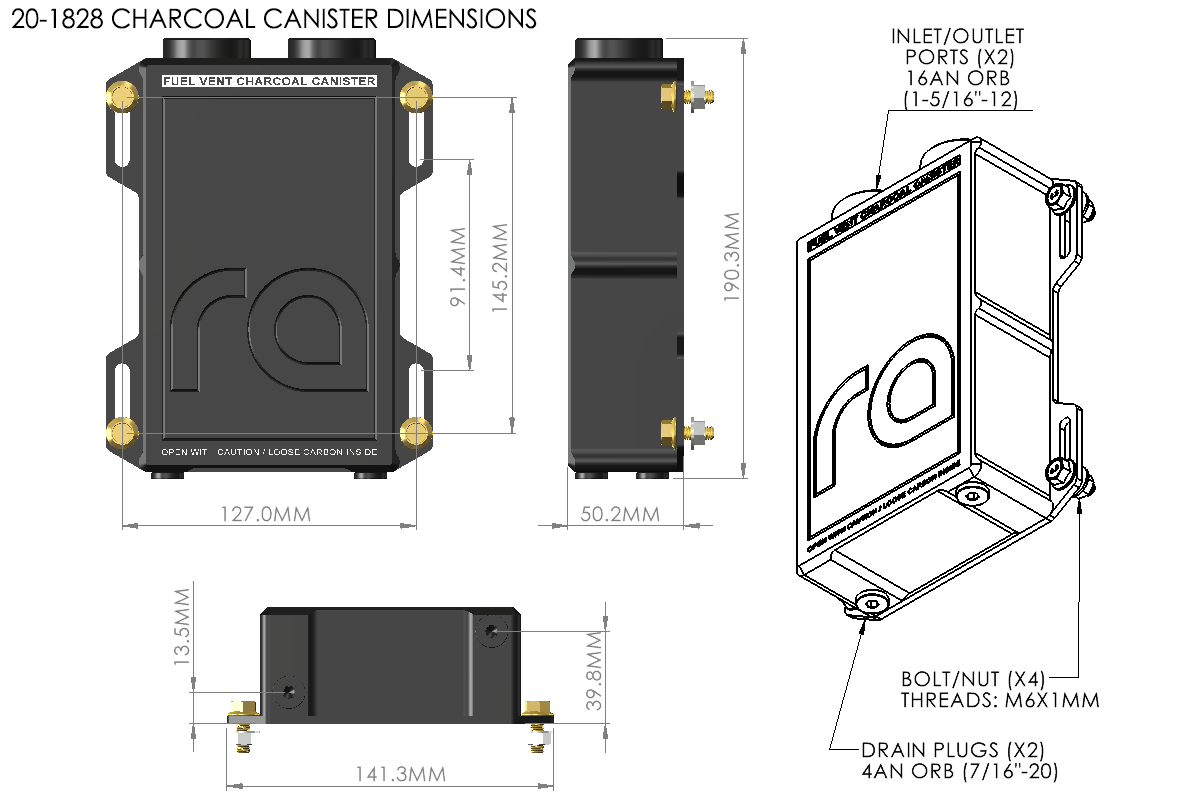

DIMENSIONS

The dimensions shown below are the same for all fuel vent charcoal canisters.

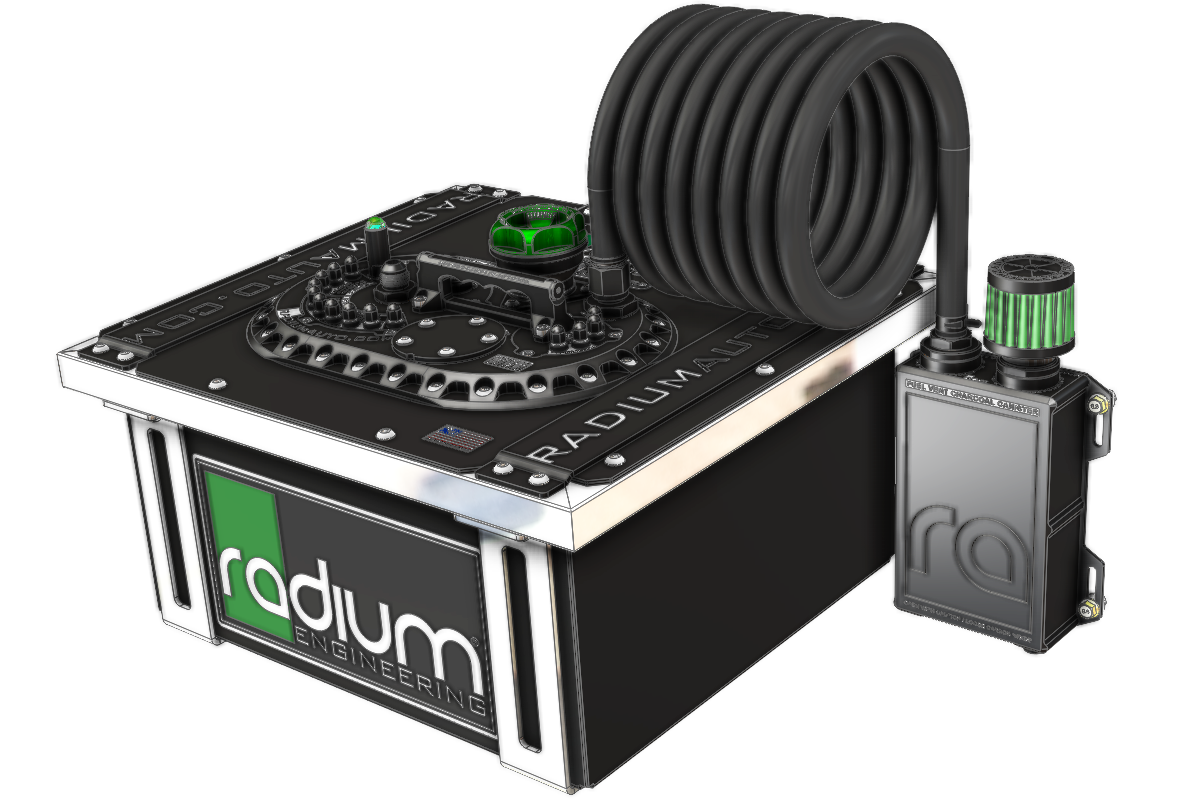

Designed to be used in conjunction with Radium Engineering Fuel Cell Vent Kits.

NOTES:
1. A section of vent hose, upstream of the air filter, must be positioned higher than the fuel filler.
2. It is recommended to mount the air filter at the rear of the vehicle, away from the exhaust system.
3. With the 3/4" barb fitting in the 20-1828-12 kit, the air filter can be installed directly to the fuel vent charcoal canister.
