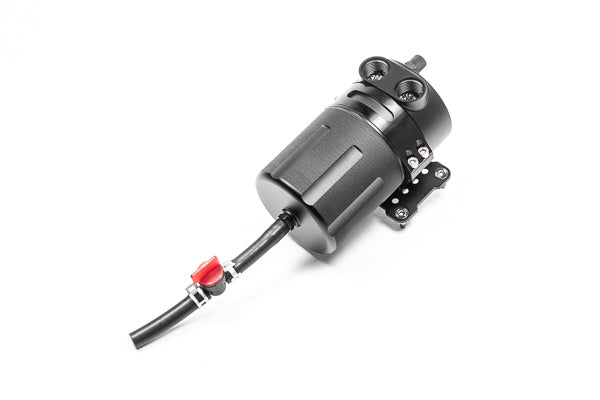

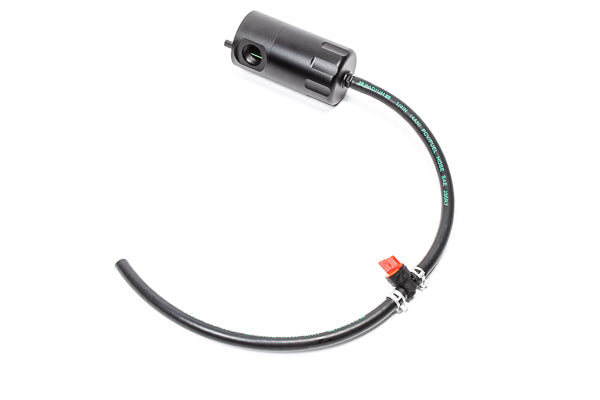

This kit adds a ball valve to the bottom port of your catch can to allow for quick access to remotely drain any of the Radium Engineering catch cans without the need to unscrew the canister body.

• All Fluid Lock and non-FL standard catch cans
• VTE Competition Catch Cans
• VTA Competition Catch Cans
• Any can or reservoir with a 4AN ORB drain port

Vehicle specific catch cans have to be examined to make sure there is space to install and locate the hose and valve. Many kits will not have space for the drain kit.

• The included 4AN ORB to barb fitting installs into the bottom of the catch can where the 4AN plug was originally installed.
• Cut the hose between the catch can and the valve to length based on the desired location of the petcock valve.
• Cut the hose after the valve to length based on the desired location of the draining point under the car.
• Secure both hoses to the valve with the included spring clamps.
• No hose clamp is needed at the catch can barb.

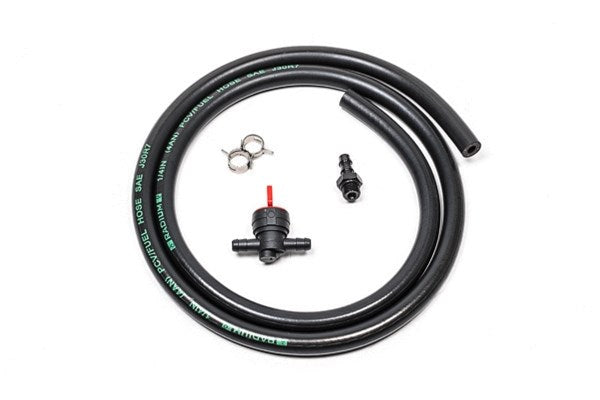

• Anodized 4AN ORB Barbed Adapter Fitting, Black
• Ball Valve with 1/4" Barbs, 125psi @ 140F
• 4 feet of Radium 1/4" PCV Hose
