OVERVIEW

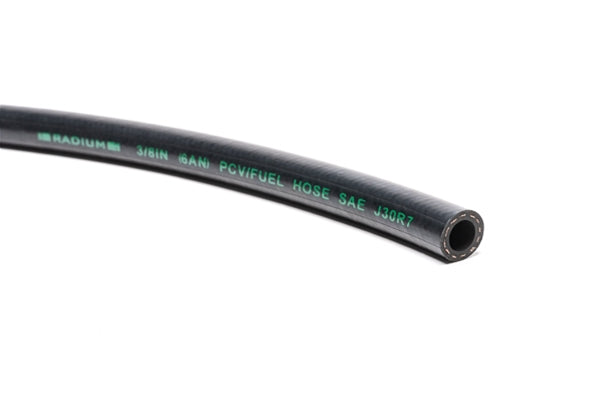

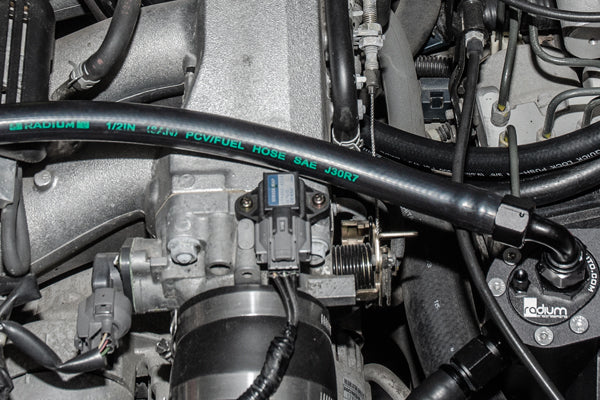

Radium PCV/Fuel hose is found in Radium oil catch can systems. Unlike heater hose, PCV/Fuel hose resists engine oil, gasoline, diesel fuel, ethanol fuel (including E85), etc. This hose can easily be identified by the green labeling printed directly on the hose.

NOTE: PCV/Fuel hose should not be used for all applications.

• For permeation resistant EFI fuel hose, go HERE.
• For submersible rubber fuel hose, go HERE.
• For submersible PTFE fuel tubing, go HERE


CONSTRUCTION

• Tube Material: Black Chemigum (NBR)
• Reinforcement: 1-Layer Textile Braid
• Cover: Black Chloroprene Neoprene
• Temperature Range: -40F to 257F
• Specifications: Exceeds SAE J30R7

DIMENSIONS

	1/4" PCV/Fuel Hose This hose can also be used to make 4AN hoses with Pushlok hose ends. Inside Diameter: 0.25" ID Outside Diameter: 0.53" OD Working Pressure: 400-psi Burst Pressure: 1600-psi Vacuum: 24-inHg
	5/16" PCV/Fuel Hose This hose can also be used to make 5AN hoses with Pushlok hose ends. Inside Diameter: 0.31" ID Outside Diameter: 0.58" OD Working Pressure: 400-psi Burst Pressure: 1600-psi Vacuum: 24-inHg
	3/8" PCV/Fuel Hose This hose can also be used to make 6AN hoses with Pushlok hose ends. Inside Diameter: 0.38" ID Outside Diameter: 0.65" OD Working Pressure: 400-psi Burst Pressure: 1600-psi Vacuum: 24-inHg
	1/2" PCV/Fuel Hose This hose can also be used to make 8AN hoses with Pushlok hose ends. Inside Diameter: 0.50" ID Outside Diameter: 0.80" OD Working Pressure: 400-psi Burst Pressure: 1600-psi Vacuum: 24-inHg
	5/8" PCV/Fuel Hose This hose can also be used to make 10AN hoses with Pushlok hose ends. Inside Diameter: 0.63" ID Outside Diameter: 0.95" OD Working Pressure: 350-psi Burst Pressure: 1440-psi Vacuum: 24-inHg
	3/4" PCV/Fuel Hose This hose can also be used to make 12AN hoses with Pushlok hose ends. Inside Diameter: 0.75" ID Outside Diameter: 1.17" OD Working Pressure: 305-psi Burst Pressure: 1218-psi Vacuum: 24-inHg

HOW TO ORDER

First select the hose I.D. that you need from the radio buttons. Next, enter the amount of 'feet' required in the Quantity box. Round to the nearest foot (decimals not allowed). Units Conversion: 1ft = 305mm

Note: Please allow +/- 2"(50 mm) tolerance. Order excess length if exact cut length is critical.

Examples
Quantity: 1, Radium Engineering will provide 1 foot of hose in the size selected.
Quantity: 6, Radium Engineering will provide 6 continuous feet of hose in the size selected.

NOTE: HOSE IS NOT ELIGIBLE FOR EXCHANGE OR RETURN
