Description

COMPATIBILITY

  • Engine Oil
  • Gasoline
  • Diesel Fuel
  • Ethanol Fuel (E85)

EFI Fuel hose is not submersible. Do not use inside fuel pump hangers or in fuel tanks.

OVERVIEW

This EFI Fuel hose is found in Radium Engineering fuel systems (starting late 2024). Unlike heater hose, EFI fuel hose resists engine oil, gasoline, diesel fuel, ethanol fuel (including E85), etc. Unlike PCV hose, EFI fuel hose uses an internal PA liner that protects from fuel permeation and has a higher temperature tolerance.

EFI Hose is sold by the foot.

CONSTRUCTION

  • Tube Material: Black Chemigum (NBR)
  • Reinforcement: 1-Layer Aramid Fiber Braid
  • Cover: Black Chloroprene Neoprene
  • Temperature Range: -40F to 302F

AVAILABLE SIZES

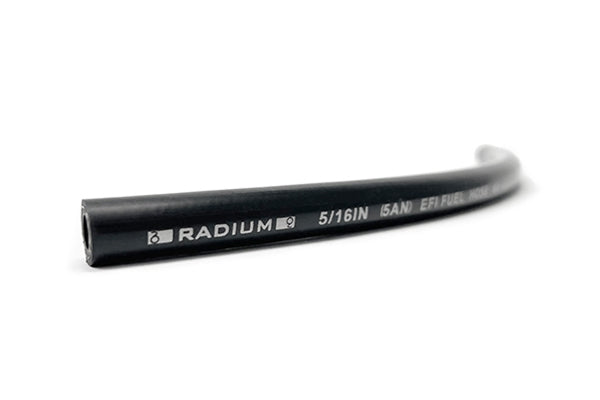

5/16" EFI Fuel Hose
Inside Diameter: 0.31" ID
Outside Diameter: 0.58" OD
Working Pressure: 400-psi
Burst Pressure: 1600-psi
Vacuum: 24-inHg 		  3/8" EFI Fuel Hose
Inside Diameter: 0.38" ID
Outside Diameter: 0.65" OD
Working Pressure: 400-psi
Burst Pressure: 1600-psi
Vacuum: 24-inHg
1/2" EFI Fuel Hose
Inside Diameter: 0.50" ID
Outside Diameter: 0.80" OD
Working Pressure: 400-psi
Burst Pressure: 1600-psi
Vacuum: 24-inHg

HOW TO ORDER

First select the hose I.D. that you need from the radio buttons. Next, enter the amount of "feet" required in the Quantity box. Round to the nearest foot (decimals not allowed). Units Conversion: 1ft = 305mm

Note: Please allow +/- 2"(50 mm) tolerance. Order excess length if exact cut length is critical.

Examples
Quantity: 1, Radium Engineering will provide 1 foot of hose in the size selected.
Quantity: 6, Radium Engineering will provide 6 continuous feet of hose in the size selected.

NOTE: HOSE IS NOT ELIGIBLE FOR EXCHANGE OR RETURN

EFI Rubber Hose, By The Foot

$0.00
Shipping calculated at checkout.
