Name: Convoluted Submersible Fuel Tubing
Brand: Radium Engineering
Availability: OutOfStock

OVERVIEW

These fuel tubing kits are commonly used for plumbing in-tank submerged fuel pumps. The flexible convoluted tubing is manufactured from polyamide nylon and is therefore resistant to all fuel types including alcohol blends such as E85 and suitable for EFI fuel pressure.

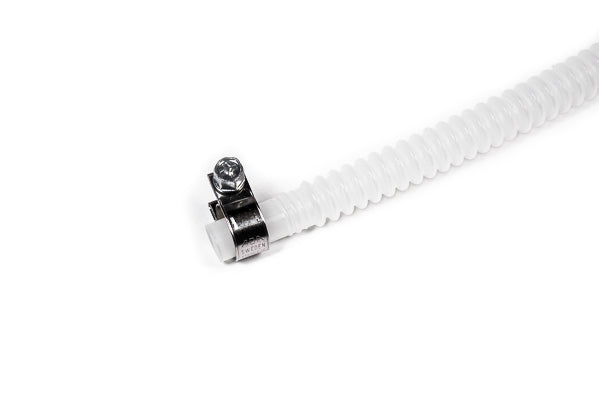

There are 2 inner diameter sizes available including 5/16" (8mm) and 3/8" (10mm). When installing, run hot water over the ends first to loosen the material. This allows the tubing to fit snugly over the barb. Next, torque the reusable stainless steel SAE J1508 clamps to 13.3 in-lbs. These clamps provide a 360 degree seal with rolled edges to protect the tubing.

COMPATIBILITY

These hoses are fuel submersible and dompatible with all fuel types including alcohol mixtures such as E85 and methanol.

5/16" ID TUBING KITS

All 5/16" ID tubing is compatible with any fuel pump or fuel fitting with a 5/16" or 8.5mm barb fitting including, but not limited to the following fuel pumps:

Walbro GSS341 255LPH
Walbro GSS342 255LPH
AEM 50-1000 Gas
AEM 50-1200 E85
AEM 50-1220 E85
Aeromotive 340R 11141
Aeromotive 340R 11142
Deatschwerks 9-301-1000

3/8" ID TUBING KITS COMPATIBLE PUMPS

All 3/8" ID tubing is compatible with any fuel pump or fuel fitting with a 3/8" or 10mm barb fitting including, but not limited to the following fuel pumps:

Walbro F9000262 Gas
Walbro F9000267 E85
Walbro F9000273 Gas
Walbro F9000274 E85
Walbro F9000285 E85
Walbro F9000295 E85
Bosch Motorsports BR540
Deatschwerks DW400
Deatschwerks DW440 Brushless
Ti Automotive E5LM Brushless

SPECIFICATIONS

Tested working pressure: 300psi
Burst pressure: 450psi

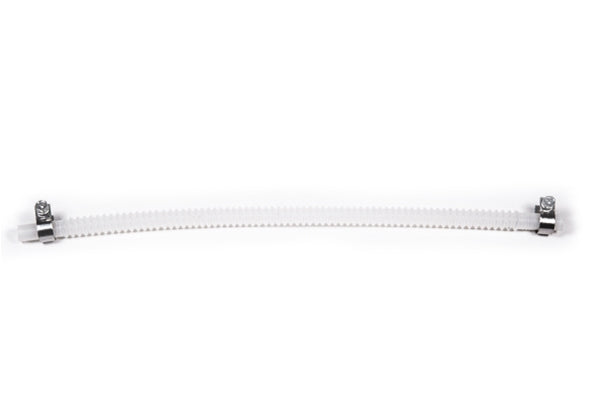

20-0175 Submersible Fuel Tubing 5/16in x 12.8in

Inner diameter: 5/16" (8mm)
Length: 12.8" (325mm)
Clamps: SAE J1508 Stainless steel #11 EFI hose clamps
Color: Translucent white

20-0195 Submersible Fuel Tubing 3/8in x 12.8in

Inner diameter: 3/8" (9.5mm)
Length: 12.8" (325mm)
Clamps: SAE J1508 Stainless steel #12 EFI hose clamps
Color: Translucent white

20-0375 Submersible Fuel Tubing 5/16in x 6.5in

Inner diameter: 5/16" (8mm)
Length: 6.5" (165mm)
Clamps: SAE J1508 Stainless steel #11 EFI hose clamps
Color: Translucent white

20-0395 Submersible Fuel Tubing 3/8in x 6.5in

Inner diameter: 3/8" (9.5mm)
Length: 6.5" (165mm)
Clamps: SAE J1508 Stainless steel #12 EFI hose clamps
Color: Translucent white

20-0775 Submersible Fuel Tubing 5/16in x 17.7in

Inner diameter: 5/16" (8mm)
Length: 6.5" (450mm)
Clamps: SAE J1508 Stainless steel #11 EFI hose clamps
Color: Translucent white

20-0795 Submersible Fuel Tubing 3/8in x 17.7in

Inner diameter: 3/8" (9.5mm)
Length: 6.5" (450mm)
Clamps: SAE J1508 Stainless steel #12 EFI hose clamps
Color: Translucent white

20-0875 Submersible Fuel Tubing 5/16in x 8.2in

Inner diameter: 5/16" (8mm)
Length: 8.2" (208mm)
Clamps: SAE J1508 Stainless steel #11 EFI hose clamps
Color: Opaque Black

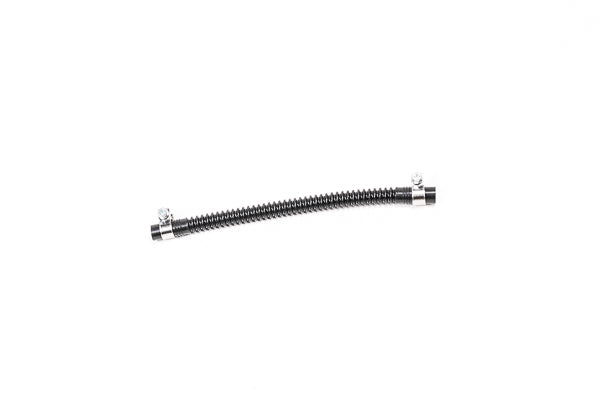

20-0895 Submersible Fuel Tubing 3/8in x 8.2in

Inner diameter: 3/8" (9.5mm)
Length: 8.2" (208mm)
Clamps: SAE J1508 Stainless steel #12 EFI hose clamps
Color: Opaque Black

INSTALLATION

For ease of installation we recommend lubricating the barb fitting with petroleum jelly or motor oil. Use hot water or a heat gun to warm the ends of the tubing to make them more pliable. Be careful not to overheat the tube as it will melt and deform.

INCLUDED

PA Nylon Convoluted Tubing
Stainless Steel EFI Tube Clamps (x2)
