COMPATIBILITY

• This tubing can be submerged in fuel for use inside fuel tanks when connecting pumps.
• Safe for all common fuel types such as gasoline, E85 and diesel.

OVERVIEW

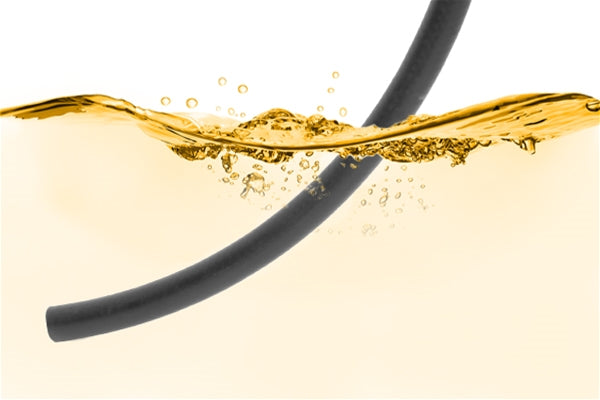

This Fluoroelastomer (FKM) rubber hose is designed specifically to handle gasoline, alcohol fuels (including E85), and diesel fuel in fully immersed, mobile, stationary, and marine applications. Unlike typical EFI hose, this is engineered for constant contact with liquid petroleum distillates on the inside and outside of this hose. It is excellent for fuel pumps mounted in gas tanks and has great flexibility to work with barbs and hose clamps.

NOTE: although described as "8mm ID" and "10mm ID", these are not the true inner dimensions (actual is smaller). Instead, each hose is designed to be compatible with a 8mm (5/16") barb and a 10mm (3/8") barb, respectively.

8mm (inner diameter is not 8mm) is great for 5/16" barbs such as those found on Walbro 255 style fuel pumps. 10mm (inner diameter is not 10mm) is great for 3/8" barbs such as the Walbro F90000267 and F90000274 (E85) fuel pumps. Compatible hose clamps can be found HERE.

If the connection between your pump and top hat is a more straight shot and does not involve any bends in the hose, Radium suggests using Submersible Plastic Fuel Tubing as an alternative. This tubing it more durable and has shown to be more reliable over time versus hose.

SPECIFICATIONS

• Specifications: SAE J30R10
• Max Temperature: 302F (150C)
• Working Pressure: 300psi
• Burst Pressure: 500psi

HOW TO ORDER

Enter the amount of feet required in the 'quantity' box. Please round to the nearest foot (decimals not allowed).

Units Conversion: 1ft = 12in = 30.5cm = 305mm

EXAMPLES

• Quantity 1: Radium will provide 1 foot of fuel tube/hose in the size you have selected.
• Quantity 6: Radium will provide 6 feet of fuel tube/hose in the size you have selected.

NOTE: HOSE IS NOT ELIGIBLE FOR EXCHANGE OR RETURN
