OVERVIEW

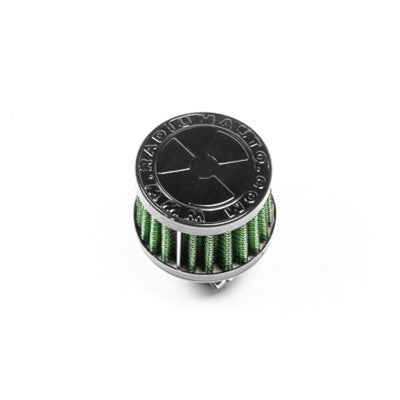

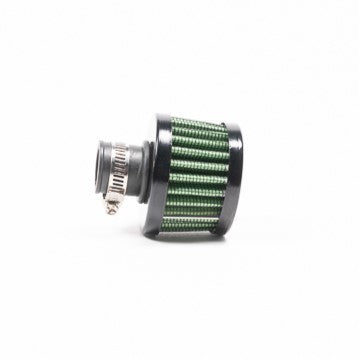

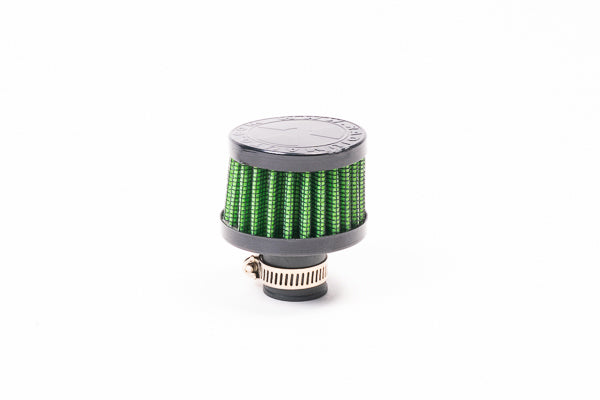

The Radium Engineering air filter is commonly used for venting engine crankcase vapors, fuel cells, etc. It mounts to any 3/4" hose barb and is sold in two additional versions with fittings for attachment into 10AN ORB female ports commonly found on Radium baffled oil caps and catch cans, and onto 12AN male ports commonly found on fuel cell vents.
Legal in California for off-road use only.
COMPATIBILITY
Universal air filter can be mounted to any 3/4" barb and secured with the included hose clamp
SPECIFICATIONS
- Straight Cylinder Design
- Green Dyed Non-Woven Synthetic Media
- Pre-Oiled and Washable
- Inner Diameter: 0.75in (19mm)
- Outer Diameter Bottom: 2.2in
- Outer Diameter Top: 2.0in
- Filter Height: 2.4in (total)
- Polyurethane Filter Inlet
- Stainless Steel End Caps
- Embossed Radium Logo
- Black Zinc-Plated Finish
- Stainless Steel Clamp
INCLUDED
18-0042 Air Filter 0.75in ID
- Air filter
- Hose Clamp

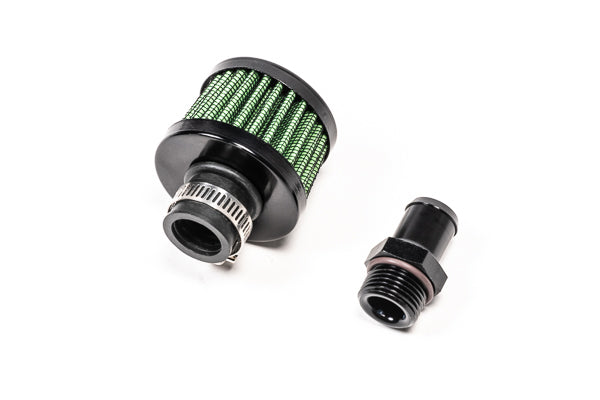

20-0050 10AN ORB Fitting to Air Filter
- Air filter
- Hose Clamp
- 10AN ORB to 3/4" Barb Fitting
20-0485 12AN Female Fitting to Air Filter
- Air filter
- Hose Clamp
- 12AN Female to 3/4" Barb Fitting
ADDITIONAL IMAGES
