OVERVIEW

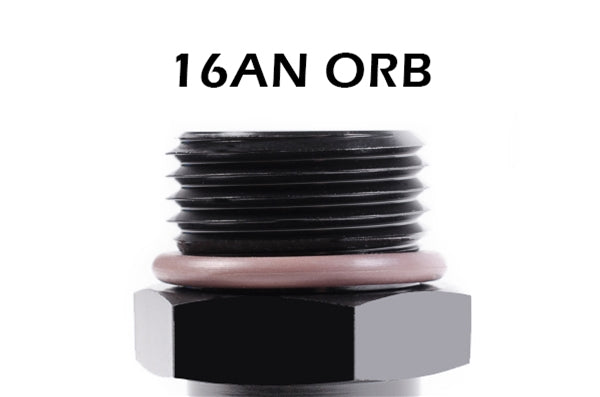

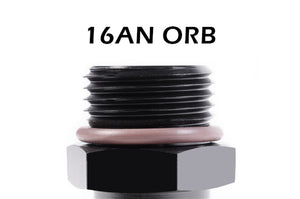

The 1-5/16"-12 threaded adapter fittings are compatible with 16AN ORB (O-ring boss) ports. Because the threads on these fittings are not used for sealing, PTFE paste or thread sealant is not required. The FKM O-ring should be lubricated with engine oil, o-ring lube, or petroleum jelly before installation.
ORB ports are an industry standard and found on many automotive plumbing products, including most Radium products. All fittings include FKM O-rings.
SPECS & FEATURES

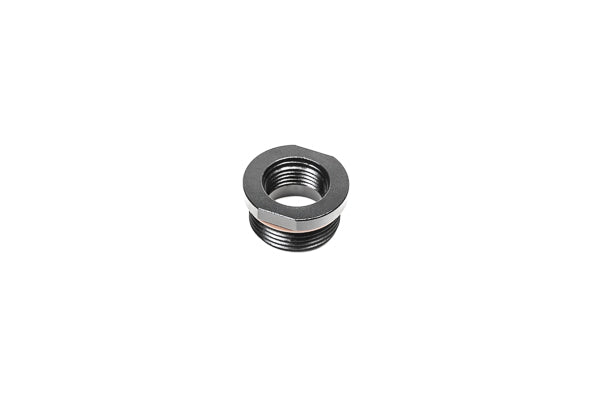

14-0698 16AN ORB Male to 10AN ORB Female Coupler
- Side 1: 16AN ORB male
- Side 2: 10AN ORB female
- Material: anodized aluminum

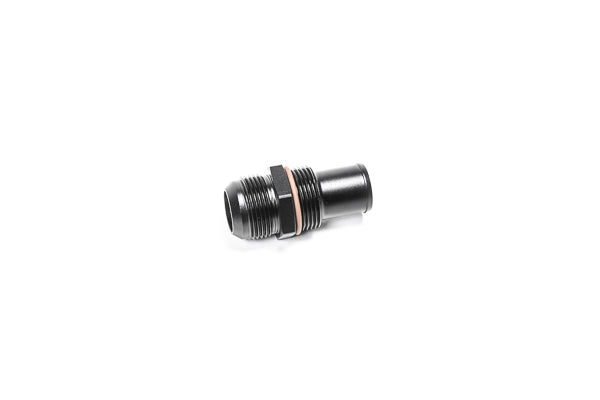

14-0699 16AN ORB with 1in Barb to 16AN Male Bulkhead
- Side 1: 16AN male flare
- Side 2a: 16AN ORB male
- Side 2b: 1" hose barb
- Material: anodized aluminum

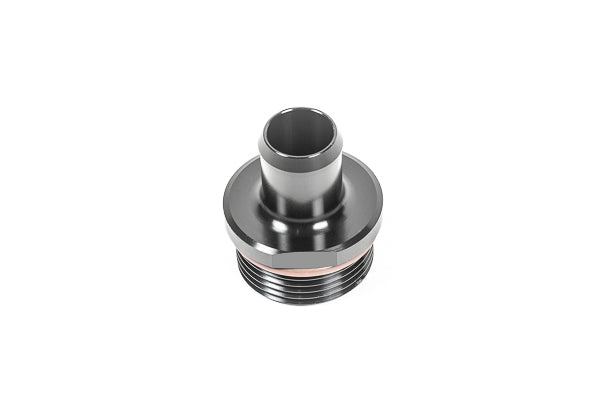

14-1194 16AN ORB to 3/4in Hose Barb
- Side 1: 16AN ORB male
- Side 2: 3/4" hose barb
- Material: anodized aluminum
INSTALLATION NOTES
O-ring fittings should be installed with lubrication on the o-rings to avoid damage and ensure a smooth installation. Common acceptable lubricants include o-ring lube, petroleum jelly, and motor oil.
INCLUDED
Each item includes one fitting and an FKM o-ring.
ADDITIONAL IMAGES
