Description

OVERVIEW

These universal oil catch can kits are designed for installation in cars that are experiencing oil build-up from the crankcase ventilation system. Radium Engineering offers bolt-in oil catch can kits for many different applications. For vehicles that are not covered, these universal kits are the next best option. Each kit includes Radium Engineering's patented universal Fluid Lock® oil catch can with universal mounting bracket, a length of PCV hose, a selection of adapter fittings and hose-ends.

A variety of adapter fittings and hose-ends are provided so optimum hose routing can be achieved. Some fittings will not be used. Additional fittings can be purchased from Radium Engineering. To select the correct kit, simply measure the fitting diameters on the engine. For example, if installing the catch can kit on the PCV valve hose and the diameter of the hose barb measures 10mm, select the 6AN version of the kit. 10mm is very close to 3/8" (6AN) size. 8AN is for 1/2" ID hose, and 10AN is for 5/8" ID hose.

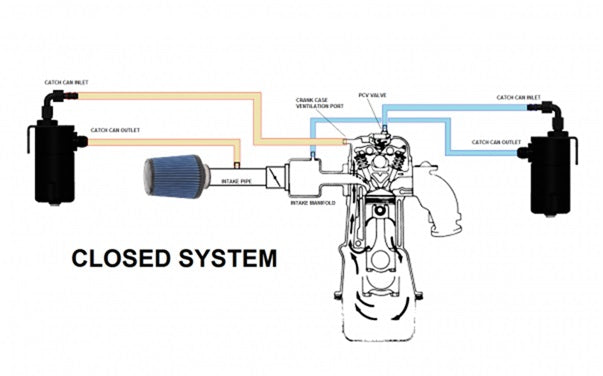

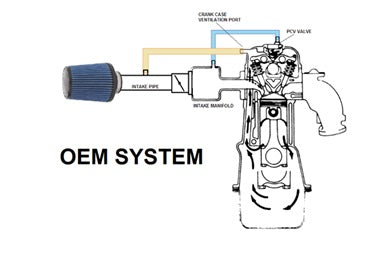

Shown below are examples of a common OEM breather system (PCV and CCV) and the same system with catch cans installed.

Radium strongly recommends reviewing our technical article on catch cans to help better understand these breather systems and how they work. Click HERE to open it.

20-1806-FL SINGLE CATCH CAN, 6AN KIT, FLUID LOCK

This catch can kit is perfect for custom applications. It is designed for engines that use 3/8" (10mm) lines for the crankcase ventilation system. It is recommended to measure the engine vent lines first prior to ordering.

INCLUDES

Fluid Lock catch can
Two 10AN ORB to 6AN Male low profile swivel fittings
Two 10AN ORB to 6AN Male Fittings
Two 6AN PushLok, Straight Hose Ends
Two 6AN PushLok, 45 Degree Hose Ends
Two 6AN PushLok, 90 Degree Hose Ends
10ft PCV Hose, 3/8" ID
Two Spring Clamps For 3/8" Hose
Aluminum Mounting Bracket
Stainless M6x1mm Bolts
Flanged M6x1mm Nuts
Service Interval Decal

20-1808-FL SINGLE CATCH CAN, 8AN KIT, FLUID LOCK

This catch can kit is perfect for custom applications. It is designed for engines that use 1/2" (13mm) lines for the crankcase ventilation system. It is recommended to measure the engine vent lines first prior to ordering.

INCLUDES

Fluid Lock catch can
Two 10AN ORB to 8AN Male low profile swivel fittings
Two 10AN ORB to 8AN Male Fittings
Two 8AN PushLok, Straight Hose Ends
Two 8AN PushLok, 45 Degree Hose Ends
Two 8AN PushLok, 90 Degree Hose Ends
10ft PCV Hose, 1/2" ID
Two Spring Clamps For 1/2" Hose
Aluminum Mounting Bracket
Stainless M6x1mm Bolts
Flanged M6x1mm Nuts
Service Interval Decal

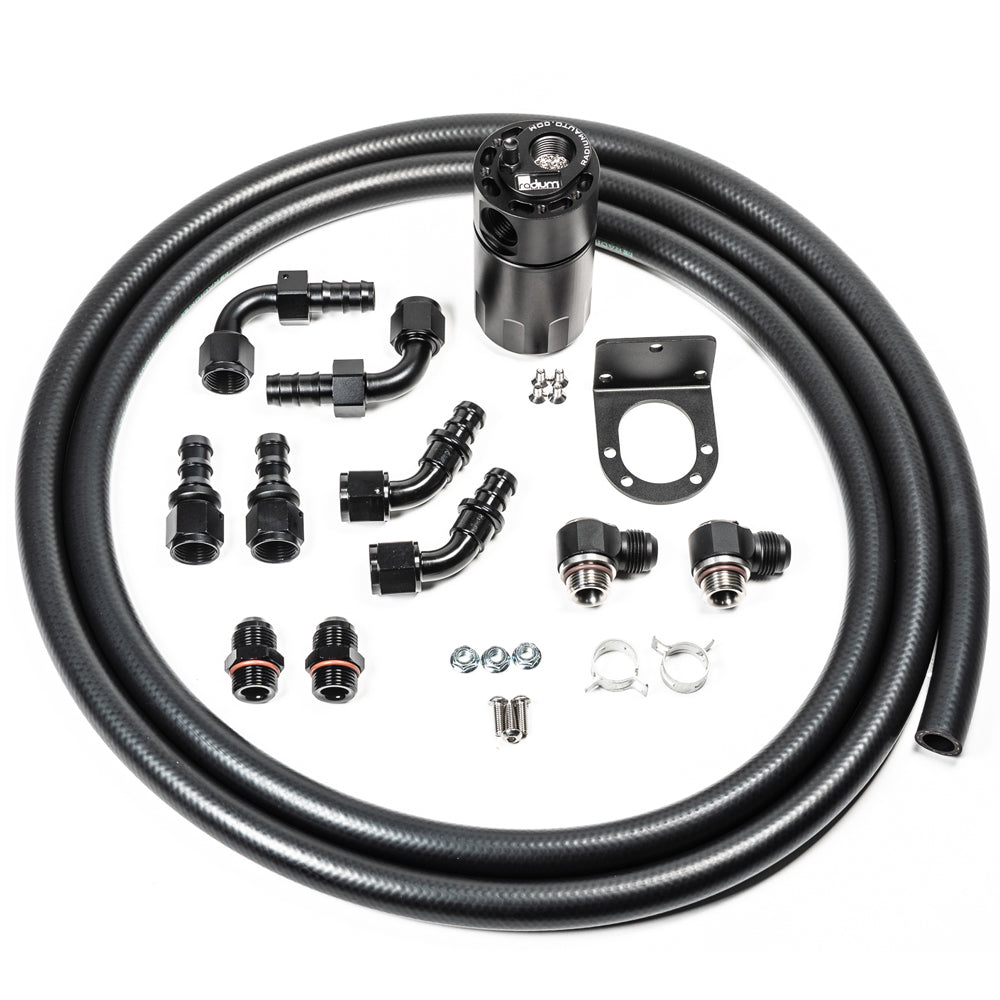

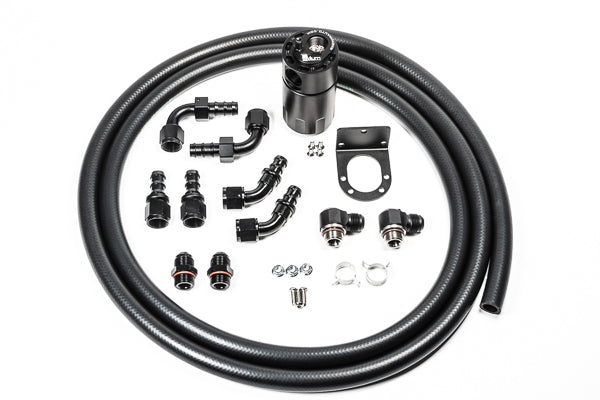

20-1810-FL SINGLE CATCH CAN, 10AN KIT, FLUID LOCK

This catch can kit is perfect for custom applications. It is designed for engines that use 5/8" (16mm) lines for the crankcase ventilation system. It is recommended to measure the engine vent lines first prior to ordering.

INCLUDES

Fluid Lock catch can
Two 10AN ORB to 10AN Male Banjos
Two 10AN ORB to 10AN Male Fittings
Two 10AN PushLok, Straight Hose Ends
Two 10AN PushLok, 60 Degree Hose Ends
Two 10AN PushLok, 90 Degree Hose Ends
10ft PCV Hose, 5/8" ID
Two Spring Clamps For 5/8" Hose
Aluminum Mounting Bracket
Stainless M6x1mm Bolts
Flanged M6x1mm Nuts
Service Interval Decal

FLUID LOCK® CATCH CANS

In 2022, Radium Engineering implemented a revolutionary design change to the 7 fluid ounce standard catch can. An inherent problem always existed with typical catch cans when not serviced regularly. The fluid contaminants will eventually leave the reservoir pouring into the air intake system causing poor engine performance. To resolve this issue, Radium created the Fluid Lock® Catch Can. This contains a patented mechanism that prevents the reservoir from overfilling and traps the collected fluids until it is emptied.

NOTES

Depending on the PCV system design, some engines may require multiple catch cans.
Catch cans are NOT designed to be used with aftermarket crankcase vacuum pumps.
For PCV valves that secure to Radium Engineering catch cans, click HERE.

FEATURES

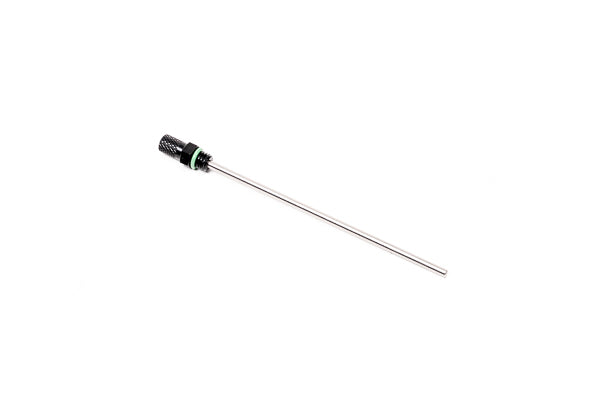

These catch cans are used in Radium Engineering application-specific catch can kits. They are machined from solid 6061 aluminum. The 2 halves and all ports are O-ring sealed, thus safe for pressurized (forced induction) applications. The main inlet and outlet ports are 10AN ORB (7/8" female threads. integrated m8x1.25mm threaded dipstick below unscrews for a quick way to check oil level.

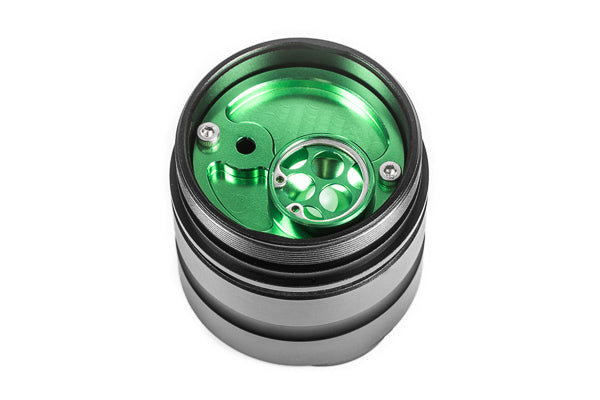

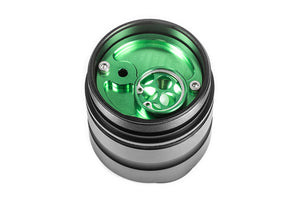

These catch cans feature advanced air/oil separation. As shown below, there is an integrated stainless steel baffle plate.

This is a secondary baffle that prevents contaminants from exiting the catch can. Additionally, there are 2 internal stainless steel air/oil separators. One on the inlet and one on the outlet. These are easily washable and can be reused.

SERVICING

These catch cans feature Radium Engineering's patent pending Fluid Lock® technology. if the catch can fills up and is not emptied, an internal valve closes eliminates contaminants from exiting entering engine. Furthermore it maintains normal venting through prohibiting engine damage.

For draining, there are a couple options depending on the application. If there is space, the lower half of the body that holds all of the contaminants simply unscrews. However, if there is no room to remove the lower half of the catch can, there is a 4AN ORB (7/16"-20) female threaded drain port. A 4AN ORB plug (shown below) is provided.

For remote draining, consider this petcock drain kit HERE.
