COMPATIBILITY
The straight PCV valves listed below are compatible with all versions of Radium catch cans and Radium PCV baffle plates. They will thread into any other 10AN ORB female port as well.
- 20-0530
- 20-0561
- 20-0683
- 20-0688
The Swiveling PCV valves listed below are not compatible with standard catch cans and standard Fluid Lock® catch cans due to depth. They are compatible with all Radium Competition Catch Cans and Radium PCV baffle plates. They will thread into any other 10AN ORB female port as well, but that port must have an extra 0.26 inches of clearance after the threads.
- 20-1000-1006-PCV
- 20-1000-1010B-PCV
- 20-1000-1010S-PCV
- 20-1000-10313-PCV
- 20-1000-10375-PCV
- 20-1000-1065-PCV
- 20-1000-1085-PCV
OVERVIEW

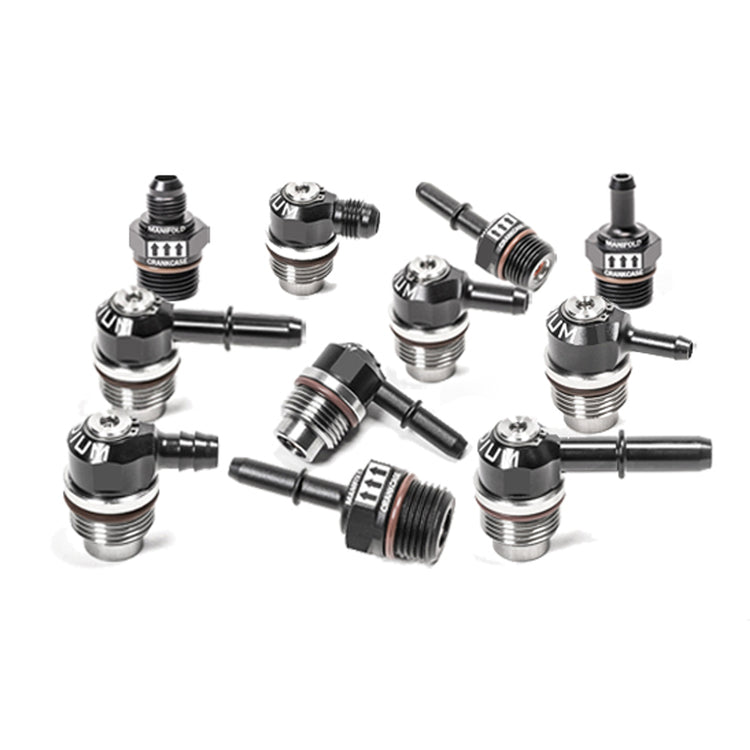

Radium Engineering universal PCV (positive crankcase ventilation) valves. These are used when the OEM PCV is removed, needs to be moved to the catch can outlet, or for engines that may not already have a PCV system.
HOW IT WORKS

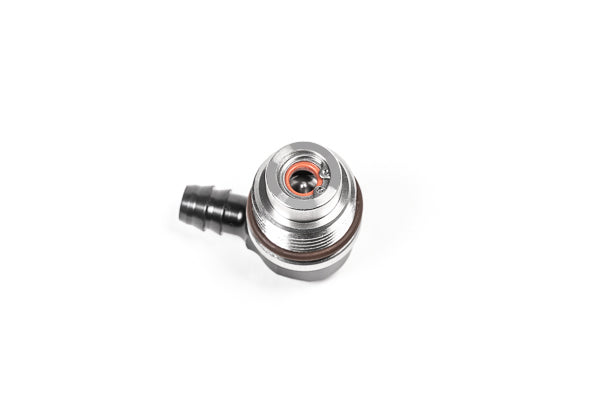

Just like an OEM PCV valve, the Radium PCV valve's internal plunger dynamically meters the appropriate amount of crankcase vent airflow based on the engine load. Proper PCV valves prevent the vacuum leak that a check valve would create at low loads. In the event of a intake manifold backfire, the PCV valve closes preventing combustible vapors from igniting in the crankcase. In turbocharged and supercharged applications, the PCV valve will close in boost to prevent positive pressure from the intake manifold from entering the crankcase.
SPECS & FEATURES
20-0530 SPECIFICATIONS
- Aluminum: 6061 Type-II Anodized
- Sealing O-rings: FKM and Silicone
- Inlet: 10AN ORB (7/8"-14 threads)
- Outlet: 3/8" Barb (9.5mm)
20-0561 SPECIFICATIONS
- Aluminum: 6061 Type-II Anodized
- Sealing O-rings: FKM and Silicone
- Inlet: 10AN ORB (7/8"-14 threads)
- Outlet: 6AN Male
20-0683 SPECIFICATIONS
- Aluminum: 6061 Type-II Anodized
- Sealing O-rings: FKM and Silicone
- Inlet: 10AN ORB (7/8"-14 threads)
- Outlet: 5/16" SAE Quick Connect Male
20-0688 SPECIFICATIONS
- Aluminum: 6061 Type-II Anodized
- Sealing O-rings: FKM and Silicone
- Inlet: 10AN ORB (7/8"-14 threads)
- Outlet: 10mm SAE Quick Connect Male
20-1000-1006-PCV SPECIFICATIONS
- Quick Connect Material: Anodized Aluminum
- 10AN ORB Material: Stainless Steel
- Sealing O-rings: FKM and Silicone
- Inlet: 10AN ORB (7/8"-14 threads)
- Outlet: 6AN Male
- Feature: Low Profile 90 Degree Swivel
- Requires an extra 0.26" (6.7mm) clearance for the O-ring to properly seat.
20-1000-1010B-PCV SPECIFICATIONS
- Quick Connect Material: Anodized Aluminum
- 10AN ORB Material: Stainless Steel
- Sealing O-rings: FKM and Silicone
- Inlet: 10AN ORB (7/8"-14 threads)
- Outlet: 10mm Barb
- Feature: Low Profile 90 Degree Swivel
- Requires an extra 0.26" (6.7mm) clearance for the O-ring to properly seat.
20-1000-1010S-PCV SPECIFICATIONS
- Quick Connect Material: Anodized Aluminum
- 10AN ORB Material: Stainless Steel
- Sealing O-rings: FKM and Silicone
- Inlet: 10AN ORB (7/8"-14 threads)
- Outlet: 10mm SAE Quick Connect Male
- Feature: Low Profile 90 Degree Swivel
- Requires an extra 0.26" (6.7mm) clearance for the O-ring to properly seat.
20-1000-10313-PCV SPECIFICATIONS
- Quick Connect Material: Anodized Aluminum
- 10AN ORB Material: Stainless Steel
- Sealing O-rings: FKM and Silicone
- Inlet: 10AN ORB (7/8"-14 threads)
- Outlet: 5/16" SAE Quick Connect Male
- Feature: Low Profile 90 Degree Swivel
- Requires an extra 0.26" (6.7mm) clearance for the O-ring to properly seat.
20-1000-10375-PCV SPECIFICATIONS
- Quick Connect Material: Anodized Aluminum
- 10AN ORB Material: Stainless Steel
- Sealing O-rings: FKM and Silicone
- Inlet: 10AN ORB (7/8"-14 threads)
- Outlet: 3/8" SAE Quick Connect Male
- Feature: Low Profile 90 Degree Swivel
- Requires an extra 0.26" (6.7mm) clearance for the O-ring to properly seat.
20-1000-1065-PCV SPECIFICATIONS
- Quick Connect Material: Anodized Aluminum
- 10AN ORB Material: Stainless Steel
- Sealing O-rings: FKM and Silicone
- Inlet: 10AN ORB (7/8"-14 threads)
- Outlet: 6.5mm Barb
- Feature: Low Profile 90 Degree Swivel
- Requires an extra 0.26" (6.7mm) clearance for the O-ring to properly seat.
20-1000-1085-PCV SPECIFICATIONS
- Quick Connect Material: Anodized Aluminum
- 10AN ORB Material: Stainless Steel
- Sealing O-rings: FKM and Silicone
- Inlet: 10AN ORB (7/8"-14 threads)
- Outlet: 8.5mm Barb
- Feature: Low Profile 90 Degree Swivel
- Requires an extra 0.26" (6.7mm) clearance for the O-ring to properly seat.
INCLUDED
PCV valves come fully assembled and include a 10AN ORB FKM o-ring preinstalled.
