Description

COMPATIBILITY

Nissan S13 240SX (All models/trims/RHD/LHD)
Nissan S13 Silvia (All models/trims/RHD/LHD, excluding CA18DET)
Nissan S13 180SX (All models/trims/RHD/LHD, excluding CA18DET)
Nissan S13 200SX (All models/trims/RHD/LHD, excluding CA18DET)

OVERVIEW

The catch can draws out oil and water condensation from the crankcase gasses that would otherwise be drawn into the intake manifold. This prevents oil buildup in the intake, intercooler system walls, throttle body, and intake manifold. This effectively raises the octane, can increase engine performance from cleaner inlet air, and can lower hydrocarbon emissions. The closed system prevents unwanted oil vapors from entering into the cabin. Catch can kits include everything needed for a complete installation.

FLUID LOCK® CATCH CANS

In 2022, Radium Engineering implemented a revolutionary design change to the 7 fluid ounce standard catch can. An inherent problem always existed with typical catch cans when not serviced regularly. The fluid contaminants will eventually leave the reservoir pouring into the air intake system causing poor engine performance. To resolve this issue, Radium created the Fluid Lock® Catch Can. This contains a patented mechanism that prevents the reservoir from overfilling and traps the collected fluids until it is emptied.

FEATURES

Direct fitment with no drilling required
Large 10AN ORB inlet and outlet ports
4AN ORB drain port
2-step oil separation baffling
O-ring sealed dipstick
7 fluid ounce capacity
Patented Fluid Lock® system

COLLECTION & EMPTYING

The rate that your catch cans will collect oil and moisture contaminants will vary from one individual vehicle to the next, so there is no set emptying interval. PCV catch cans tend to collect more than CCV catch cans. You should check the level of your catch can using the integrated dipstick starting at 3-4 weeks of driving and repeat as needed to determine how often they should be emptied based on what you see.

Catch cans can be emptied by unscrewing the lower reservoir and removing it from the vehicle to dump out, or in cases where there is available space under the catch can, the Petcock Drain Kit can be installed and used to drain them.

In cases where oil collection is excessive you may have to address an issue with the engine. The reasons a catch can will collect an excess of oil include

Excessive blowby from engine damage
Crankcase windage from an over-full oil level
Poor placement of breather ports and/or poor baffling inside breather ports
PCV valve not closing and leaking under heavy load

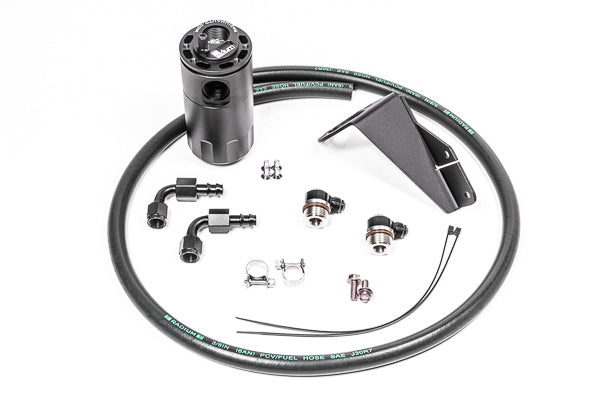

20-0725-FL CATCH CAN KIT, PCV, NISSAN S13

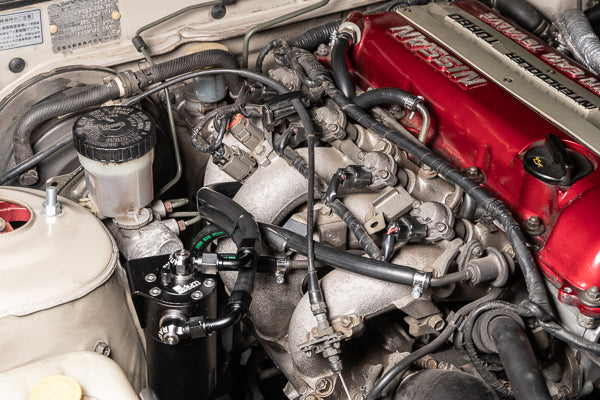

The PCV catch can kit runs inline between the PCV valve and the intake manifold. It mounts to threaded bosses on the RH strut tower just clear of the fuel filter.
When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes and, thus, this hose experiences no flow. Conversely, the PCV hoses will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run.

INCLUDES

Baffled oil catch can
Nissan specific mounting bracket
AN adapter fittings and hose ends
Stainless steel hardware
Radium PCV hose

NOTES

The PCV catch can kit is compatible and recommended to be used with the CCV catch can kit. See 20-0726 below.
No extra inline check valve is required since Radium catch cans are pressure sealed.

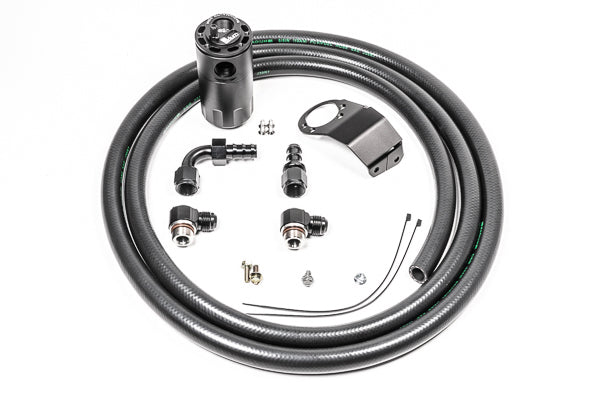

20-0726-FL CATCH CAN KIT, CCV, NISSAN S13

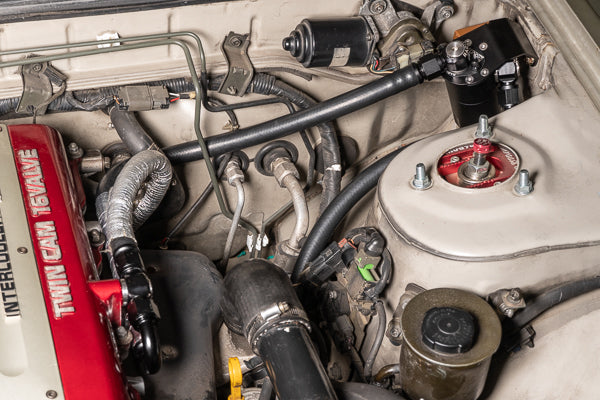

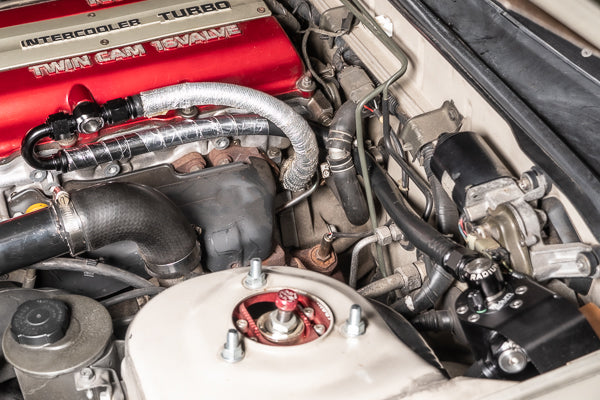

The CCV catch can mounts to 2 holes in the LH side of the unibody near the firewall. It was designed specifically to clear the windshield wiper motor (RHD) and the master cylinders (LHD).

To retain factory functionality, the CCV catch can runs inline between the crankcase vent (CCV) port and the intake pipe. At low loads, it experiences atmospheric pressure. However, when the engine is at high load (WOT), the line will experience high flow from the crankcase into the intake system. This would normally lead to oil and sludge accumulation in the air filter intake pipe. This oil accumulation would spread and be found in the intercooler which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance. The CCV catch can captures this and promotes clean filtered air back into the intake.

INCLUDES

-Baffled oil catch can
-Nissan specific mounting bracket
-AN adapter fittings and hose ends
-Stainless steel hardware
-Radium PCV hose

NOTES:

The CCV catch can kit does NOT address blow-by from the PCV valve side of the crankcase.
The CCV catch can kit is compatible and recommended to be used with the PCV catch can kit. See 20-0725 above.
The kit is designed to connect the provided hose to the OEM valve cover barb. However, an add-on a la carte option (not included) for the SR20DET is outlined below. Nothing else is required.
1x 20-0811 10AN Press-In Fitting
1x 14-0215 10AN Hose End, 180deg
1x 14-0211 10AN Hose End, Straight
