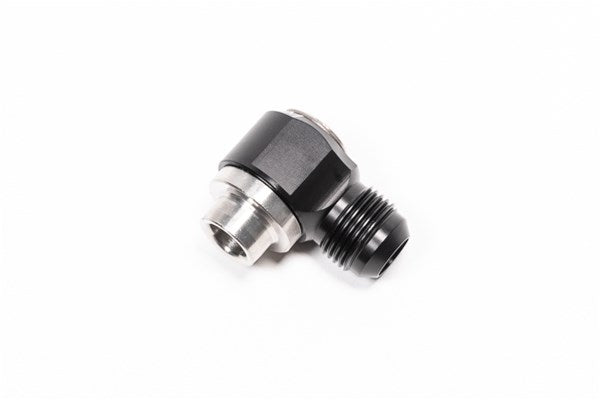

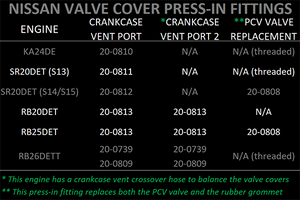

20-0808 10AN Male Press-Fit RB25DET SR20DET S14/S15 Intake

This low profile 10AN fitting is a direct replacement for the PCV valve on the intake side of the valve cover.

COMPATIBILITY

• Nissan Skyline RB25DET
• Nissan Skyline RB25DET NEO
• Nissan Silvia SR20DET (S14 and S15 Only)
• Nissan Silvia Primera SR20DE (S14, S15, P11 Only)
• Nissan Bluebird Primera Wingroad SR20VE
• Nissan X-Trail SR20VET
• Nisssan GT-R VR38DETT (07-08 Only)

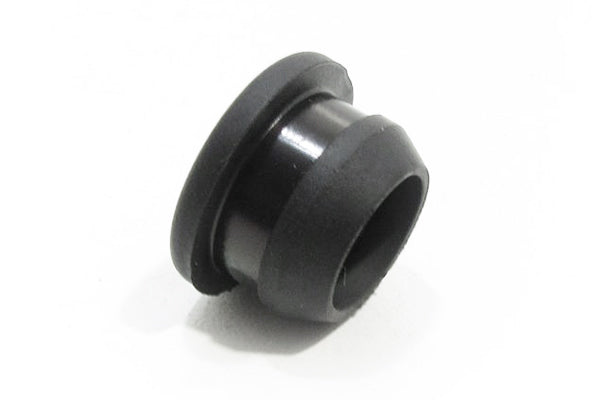

NOTE: 20-0808 will work in many Nissan/Infiniti models, some are listed below. If the PCV valve is mounted with rubber grommet P/N: 11812-41B00, than Radium P/N: 20-0808 will work with the grommet removed.

Below is a list of other compatible Nissan engines:

• CG10DE
• CG13DE
• CGA3DE
• CR12DE
• CR14DE
• GA15DE
• GA16DE
• HR12DDR
• HR12DE
• HR15DE
• HR16DE
• KA24DE (99-01 Bassara Only)
• QG13DE
• QG15DE
• QG18DD
• QG18DE
• RB20DE
• RB25DE
• RB25DET
• SR16VE
• SR18DE
• SR20DE (S14, S15, P11, N30 Only)
• SR20DET (S14 and S15 Only)
• SR20VE
• SR20VET
• TB48DE
• VQ20DE
• VQ30DE
• VQ30DET
• VR38DETT (07-08 Only, Mounted to Separator)

SPECIFICATIONS

• Hose Connection: 10AN Male Fitting
• Installed Height: 1.184"
• Press-in Diameter: 0.713"
• Press-in Depth: 0.365"

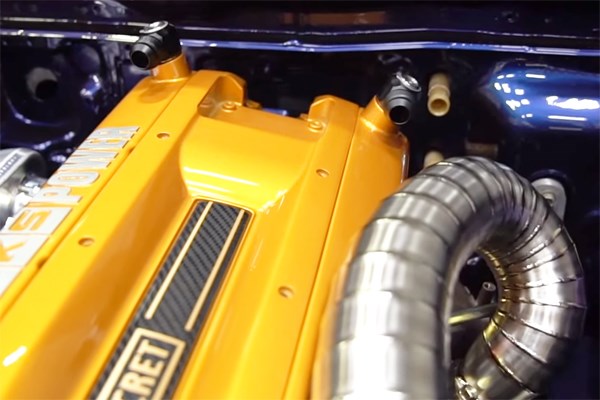

20-0809 12AN Male Press-Fit RB26DETT Intake or Exhaust

This low profile 12AN fitting is a direct replacement for both Nissan RB26DETT valve cover fittings.

SPECIFICATIONS

• Hose Connection: 12AN Male Fitting
• Installed Height: 1.159"
• Press-in Diameter: 0.855"
• Press-in Depth: 0.925"

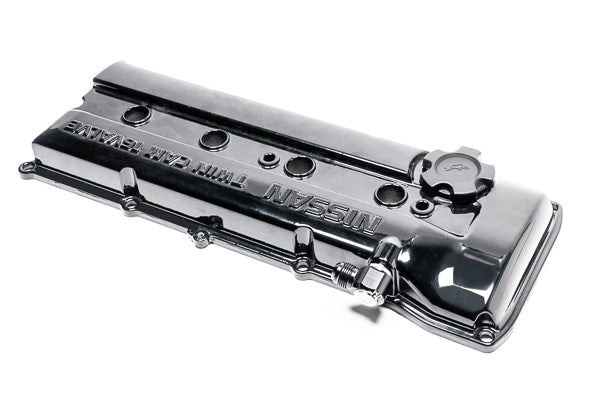

20-0810 10AN Male Press-Fit KA24DE Intake

This low profile 10AN fitting is a direct replacement for the valve cover barb found on the intake side of the Nissan KA24DE S13/S14 valve cover.

This fitting has a slight angle on the flange in an attempt to match the casting draft angle on the KA24DE valve cover. It is normal for there to be a slight gap after installing. When installing into the valve cover, the flat spot (shown in blue) should be facing upwards.

SPECIFICATIONS

• Hose Connection: 10AN Male Fitting
• Installed Height: 1.159"
• Press-in Diameter: 0.631"
• Press-in Depth: 0.783" (angled)

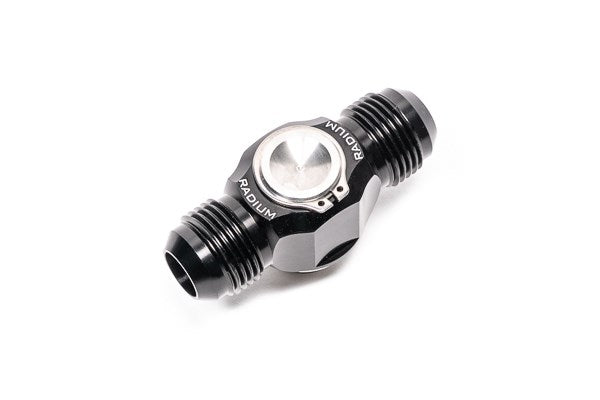

20-0811 10AN Male Press-Fit SR20DET S13 Exhaust

This low profile double ended 10AN banjo fitting is a direct replacement for the valve cover barbs found on the exhaust side of the Nissan SR20DET S13 valve cover.

SPECIFICATIONS

• Hose Connection: 10AN Male Fitting
• Installed Height: 1.144"
• Press-in Diameter: 0.631"
• Press-in Depth: 0.400"

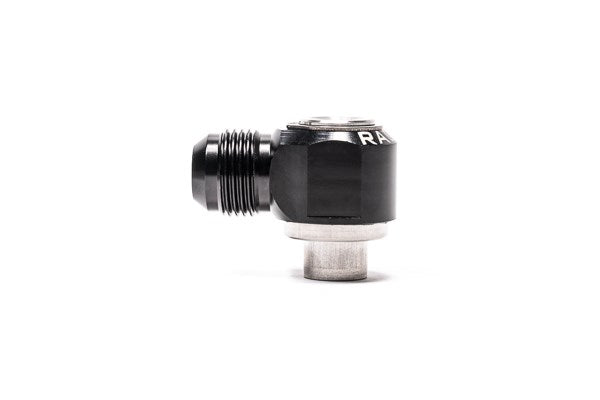

20-0812 10AN Male Press-Fit SR20DET S14/S15 Exhaust

This low profile 10AN banjo fitting is a direct replacement for the valve cover barb found on the exhaust side of the Nissan SR20DET S14/S15 valve cover.

SPECIFICATIONS

• Hose Connection: 10AN Male Fitting
• Installed Height: 1.144"
• Press-in Diameter: 0.631"
• Press-in Depth: 0.400"

20-0813 10AN Male Press-Fit RB20DET RB25DET Intake or Exhaust

This low profile 10AN banjo fitting is a direct replacement for the intake and exhaust crankcase fittings found on Nissan RB20DET and all RB25DET valve covers (NEO and non NEO). These ports are located on top of the valve covers towards the front.

NOTES

• To replace the PCV valve that connects on the side of the RB25DET intake valve cover, use 20-0808.

SPECIFICATIONS

• Hose Connection: 10AN Male Fitting
• Installed Height: 1.144"
• Press-in Diameter: 0.631"
• Press-in Depth: 0.400

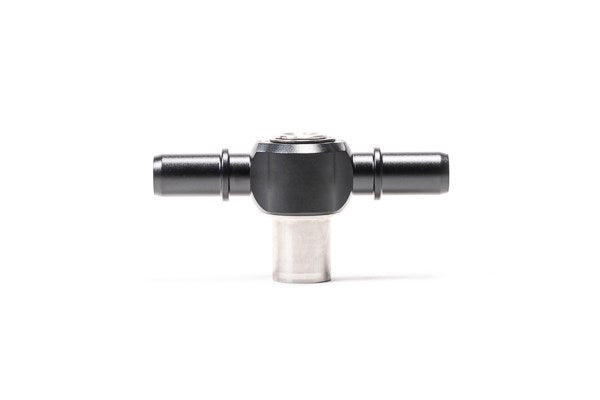

20-0739 Double SAE Male Swivel to Press-Fit RB26DETT Intake or Exhaust

This double-ended 16mm SAE quick connect fitting is a direct replacement for Nissan RB26DETT valve cover fittings.

These are perfect for balancing the intake and exhaust valve cover vent ports. Compatible with Radium Engineering SAE quick connect hose ends 14-0627 and 14-0628.

NOTES

• There is one on the intake valve cover and one on the exhaust valve cover.
• If replacing both OEM fittings, quantity 2 must be purchased.

SPECIFICATIONS

• Hose Connection: 16mm SAE Quick Connect Male
• Installed Height: 1.159"
• Press-in Diameter: 0.855"
• Press-in Depth: 0.925"
