COMPATIBILITY

• 2022+ Subaru WRX (VB)

OVERVIEW

The catch can draws out oil and water condensation from the crankcase gasses that would otherwise be drawn into the intake manifold. This prevents oil buildup in the intake, intercooler system walls, throttle body, and intake manifold. This effectively raises the octane, can increase engine performance from cleaner inlet air, and can lower hydrocarbon emissions. The closed system prevents unwanted oil vapors from entering into the cabin. Catch can kits include everything needed for a complete installation.

FLUID LOCK® CATCH CANS

In 2022, Radium Engineering implemented a revolutionary design change to the 7 fluid ounce standard catch can. An inherent problem always existed with typical catch cans when not serviced regularly. The fluid contaminants will eventually leave the reservoir pouring into the air intake system causing poor engine performance. To resolve this issue, Radium created the Fluid Lock® Catch Can. This contains a patented mechanism that prevents the reservoir from overfilling and traps the collected fluids until it is emptied.

FEATURES

• Direct fitment with no drilling required
• Large 10AN ORB inlet and outlet ports
• 4AN ORB drain port
• 2-step oil separation baffling
• O-ring sealed dipstick
• 7 fluid ounce capacity
• Patented Fluid Lock® system

COLLECTION & EMPTYING

The rate that your catch cans will collect oil and moisture contaminants will vary from one individual vehicle to the next, so there is no set emptying interval. PCV catch cans tend to collect more than CCV catch cans. You should check the level of your catch can using the integrated dipstick starting at 3-4 weeks of driving and repeat as needed to determine how often they should be emptied based on what you see.

Catch cans can be emptied by unscrewing the lower reservoir and removing it from the vehicle to dump out, or in cases where there is available space under the catch can, the Petcock Drain Kit can be installed and used to drain them.

In cases where oil collection is excessive you may have to address an issue with the engine. The reasons a catch can will collect an excess of oil include

• Excessive blowby from engine damage
• Crankcase windage from an over-full oil level
• Poor placement of breather ports and/or poor baffling inside breather ports
• PCV valve not closing and leaking under heavy load

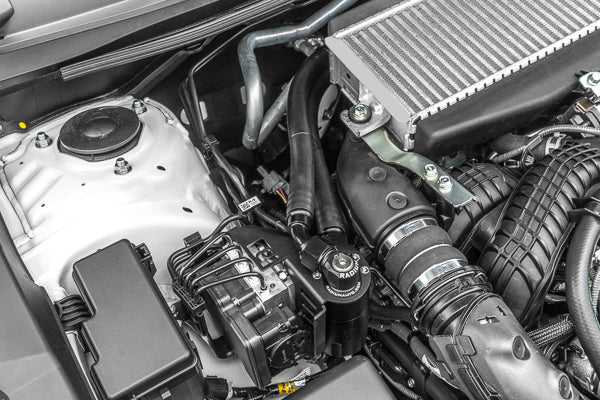

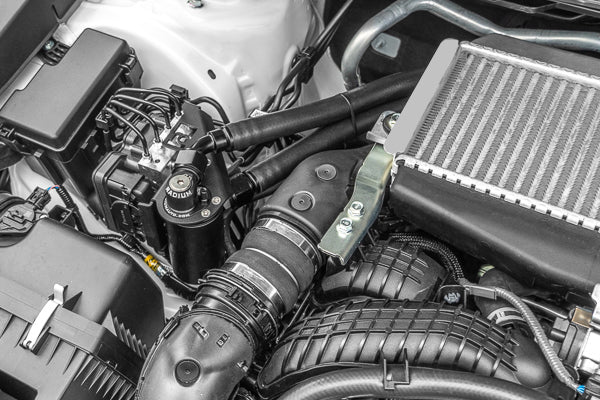

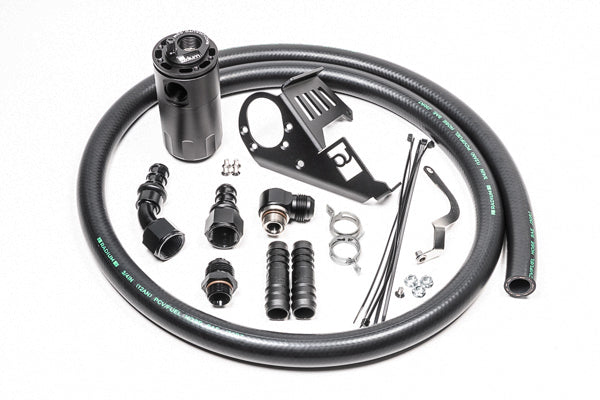

	20-0754-FL CATCH CAN KIT, PCV, SUBARU WRX VB, FLUID LOCK The PCV catch can kit runs inline between the PCV valve and the intake manifold and promotes clean filtered air back into the engine. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV 'check' valves close and, thus, this hoses experience no flow. Conversely, the PCV hoses will experience 'metered' vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run.  The catch can mounts to threaded bosses on the ABS unit.   INCLUDES Baffled oil catch can WRX VB specific mounting bracket 12AN adapter fittings and hose ends Stainless steel hardware 3/4" PCV hose NOTES The PCV catch can kit is compatible and recommended to be used with the CCV catch can kit. See 20-0755-FL below. No extra inline check valve is required since Radium catch cans are pressure sealed.

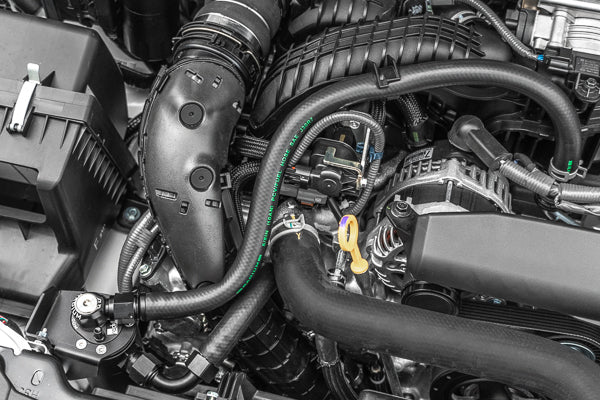

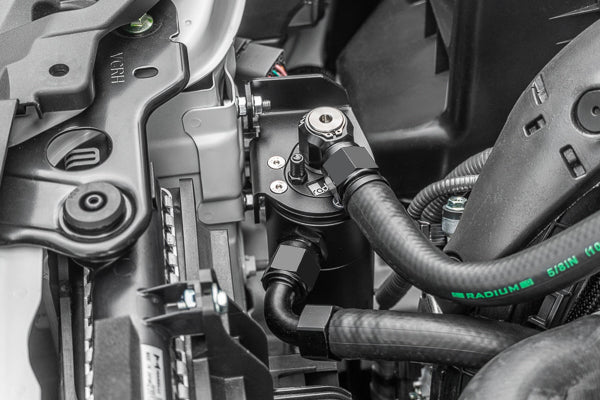

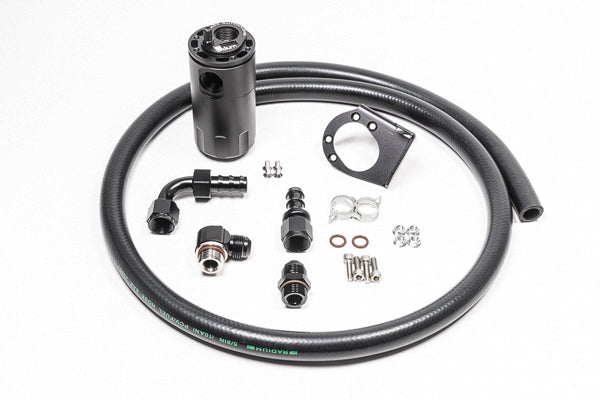

	20-0755-FL CATCH CAN KIT, CCV, SUBARU WRX VB, FLUID LOCK Without making any permanent modifications, the CCV catch can mounts underneath the OEM air intake duct. To retain factory functionality, the CCV catch can runs inline between the crankcase vent (CCV) port and the turbo inlet pipe. At low loads, it experiences atmospheric pressure. However, when the engine is at high load (WOT), the line will experience high flow from the crankcase into the intake system. This would normally lead to oil and sludge accumulation in the air filter intake pipe. The CCV catch can captures this and promotes clean filtered air back into the intake. This kit is compatible with the OEM air duct (not shown).   INCLUDES Baffled oil catch can WRX VB specific mounting bracket 10AN adapter fittings and hose ends Stainless steel hardware 5/8" PCV hose NOTES The CCV catch can kit does NOT address blow-by from the PCV side of the crankcase. The CCV catch can kit is compatible and recommended to be used with the PCV catch can kit. See 20-0754-FL above.

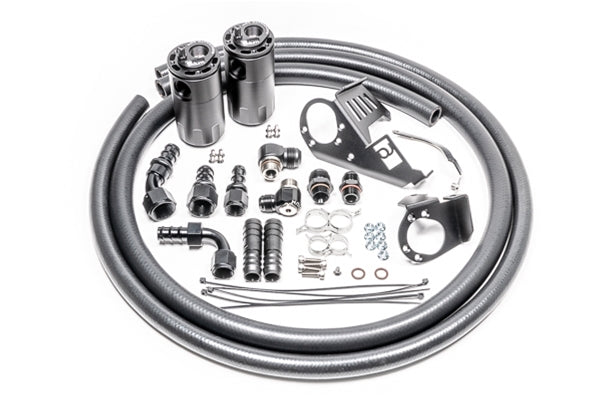

	20-0756-FL DUAL CATCH CAN KIT, SUBARU WRX VB, FLUID LOCK For the ultimate in engine protection, Radium recommends 20-0756-FL Dual Catch Can Kit, SUBARU WRX VB, FLUID LOCK. This kit utilizes both  PCV and CCV  catch can kits detailed above.
