Description

COMPATIBILITY

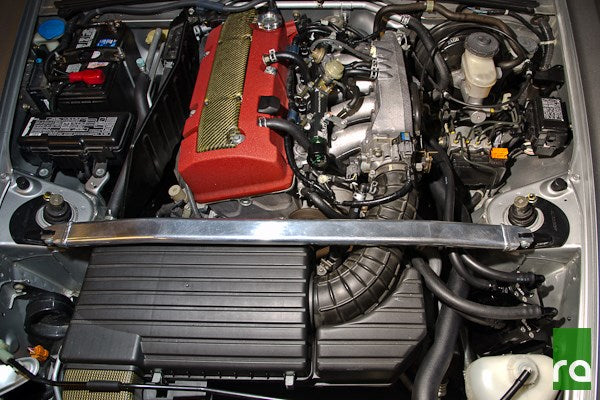

06-09 Honda S2000, LHD
06-09 Honda S2000, RHD

Can be used on 00-05 S2000 LHD with cruise control module removed

OVERVIEW

The catch can draws out oil and water condensation from the crankcase gasses that would otherwise be drawn into the intake manifold. This prevents oil buildup in the intake, intercooler system walls, throttle body, and intake manifold. This effectively raises the octane, can increase engine performance from cleaner inlet air, and can lower hydrocarbon emissions. The closed system prevents unwanted oil vapors from entering into the cabin. Catch can kits include everything needed for a complete installation.

FLUID LOCK® CATCH CANS

In 2022, Radium Engineering implemented a revolutionary design change to the 7 fluid ounce standard catch can. An inherent problem always existed with typical catch cans when not serviced regularly. The fluid contaminants will eventually leave the reservoir pouring into the air intake system causing poor engine performance. To resolve this issue, Radium created the Fluid Lock® Catch Can. This contains a patented mechanism that prevents the reservoir from overfilling and traps the collected fluids until it is emptied.

FEATURES

Direct fitment with no drilling required
Large 10AN ORB inlet and outlet ports
4AN ORB drain port
2-step oil separation baffling
O-ring sealed dipstick
7 fluid ounce capacity
Patented Fluid Lock® system

COLLECTION & EMPTYING

The rate that your catch cans will collect oil and moisture contaminants will vary from one individual vehicle to the next, so there is no set emptying interval. PCV catch cans tend to collect more than CCV catch cans. You should check the level of your catch can using the integrated dipstick starting at 3-4 weeks of driving and repeat as needed to determine how often they should be emptied based on what you see.

Catch cans can be emptied by unscrewing the lower reservoir and removing it from the vehicle to dump out, or in cases where there is available space under the catch can, the Petcock Drain Kit can be installed and used to drain them.

In cases where oil collection is excessive you may have to address an issue with the engine. The reasons a catch can will collect an excess of oil include

Excessive blowby from engine damage
Crankcase windage from an over-full oil level
Poor placement of breather ports and/or poor baffling inside breather ports
PCV valve not closing and leaking under heavy load

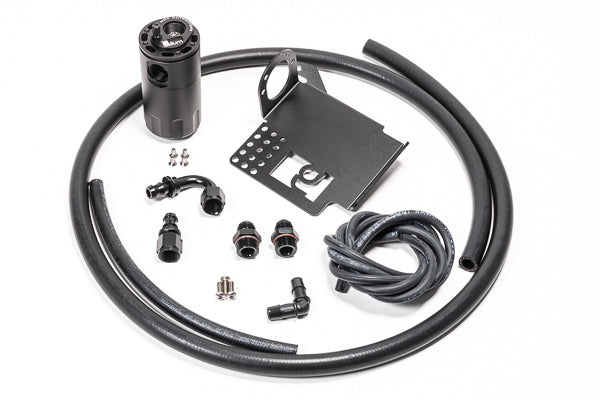

20-0097-FL Crankcase Catch Can Kit, 06-09 S2000

The CCV kit installs inline with the 1/2" valve cover breather port. At low loads it experiences atmospheric pressure, but when the engine is at high load (WOT), this hose will experience vacuum and would normally be drawing unwanted crankcase vapors, unspent fuel, and oil sludge into the air filter intake pipe. If the engine is turbocharged or supercharged and you are finding oil accumulation stuck in the intercooler, this catch can is a necessity as oil will lower the thermal efficiency properties of the heat exchange process.

INCLUDES

Radium billet oil catch can with integrated condenser and dipstick
Radium S2000-specific laser cut powder coated mounting bracket
Anodized aluminum 8AN hose ends and adapter fittings
Enough 1/2" PCV rubber hose to mate to custom applications
Vacuum and heater hose to eliminate OEM metal hard tube loom
Stainless steel mounting hardware

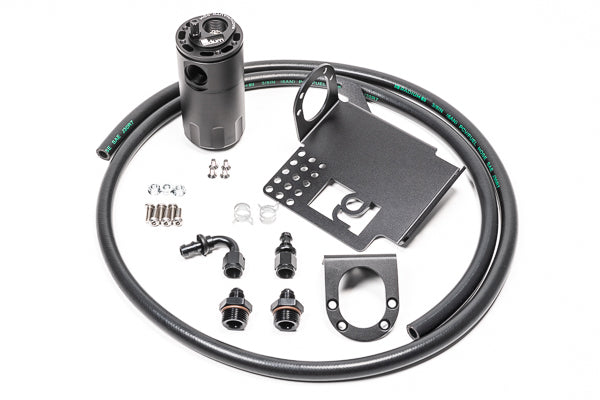

20-0098-FL PCV Catch Can Kit, 06-09 S2000

The PCV kit comes with 2 mounting brackets. One bracket will be disregarded depending if the crankcase vent kit will also be used. This catch can runs inline with the 3/8" PCV (positive crankcase ventilation) valve. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV valve closes and, thus, this hose experiences no flow. Conversely, the PCV hose will experience 'metered' vacuum when the engine is idling, low load cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run. Note: Because the Radium catch cans are pressure sealed, they are great for boosted applications as well so connecting to the intake manifold is permitted.

INCLUDES
