OVERVIEW

A remote mounted fuel filler is NOT located directly on the fuel tank or fuel cell, but rather somewhere else on the vehicle, such as the fender.

It is made up of 3 main components:

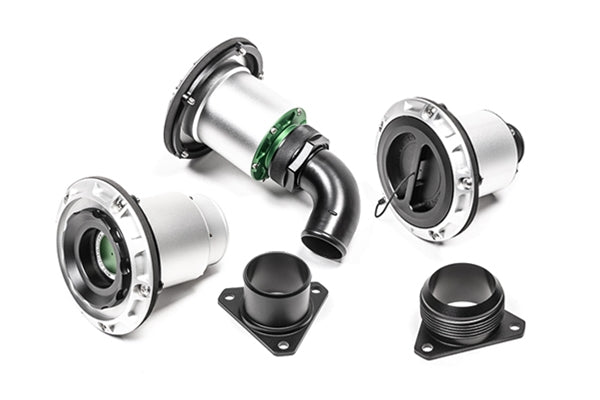

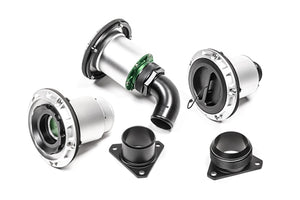

1. Remote filler. This is the filler housing and cap that attaches to the exterior of the vehicle.
2. Remote fill neck. This is the barbed or AN connection that attaches to the FCST or fuel cell.
3. Filler hose. This is the black or clear hose attaching #1 and #2 on this list.

PRODUCT VIDEO

REMOTE MOUNT FILLERS

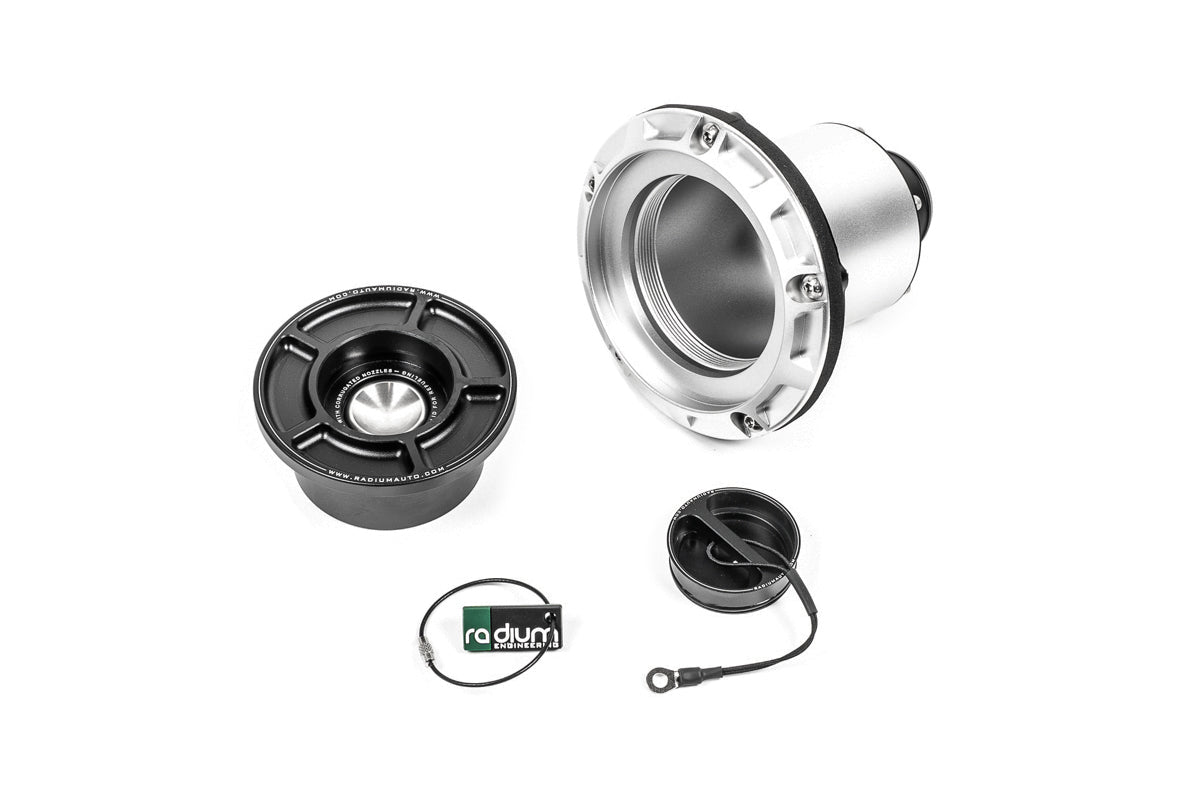

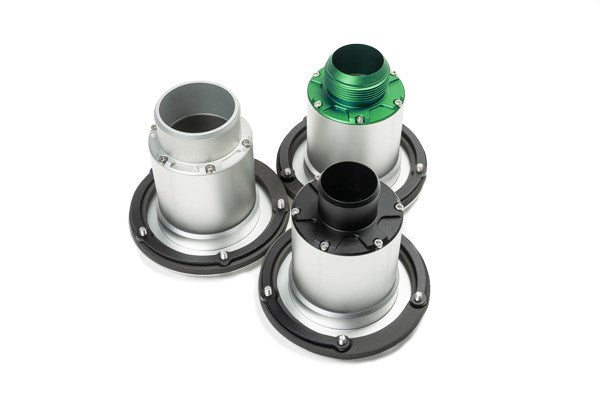

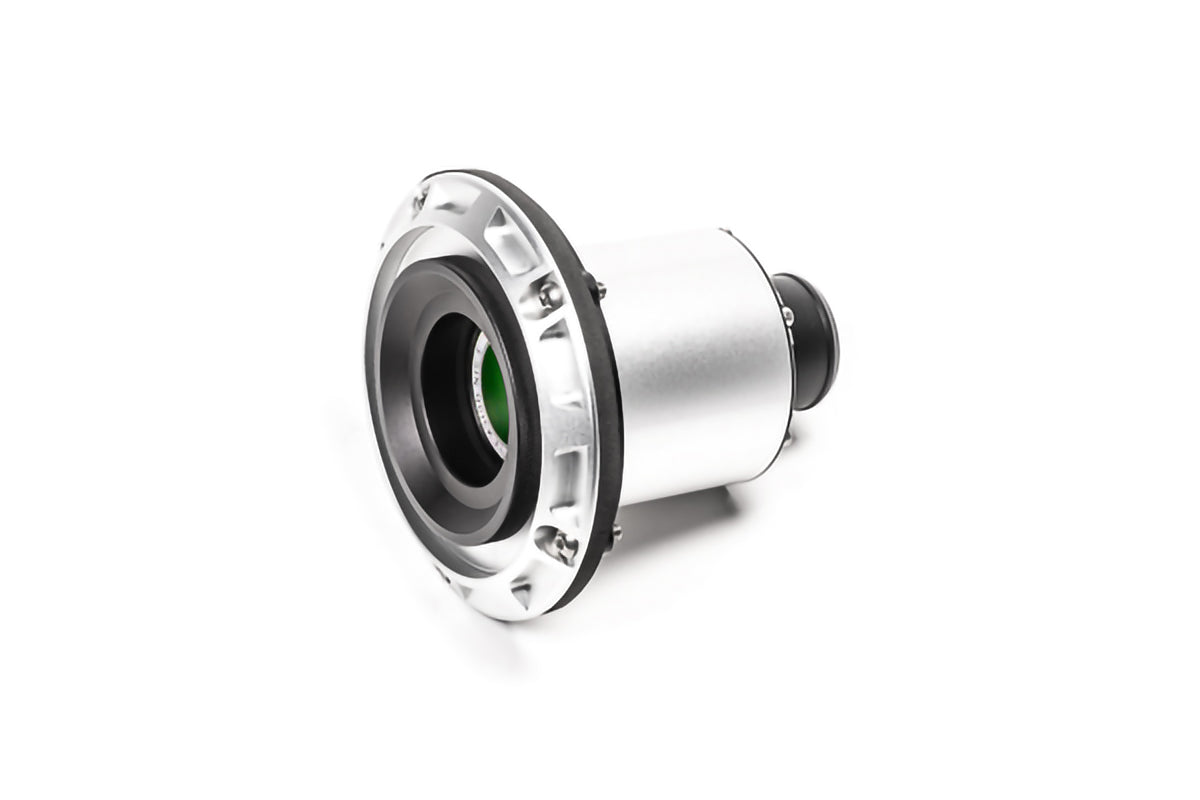

	20-1004-V REMOTE MOUNT, VENTED FEMALE DRY BREAK, 1.5IN Designed for remote mounting to an external surface such as a fender. Requires a 77mm (3.03") hole to be fabricated. Includes a 1.5in female dry break as well as a gasket, stainless steel hardware, an aluminum housing and aluminum nut ring. The vented fuel cap has roll-over protection in case the vehicle ever becomes inverted. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.). The o-ring sealed 1.5" barbed outlet is interchangeable. By simply removing 6 screws, a different outlet adapter (sold separately) can be installed. SPECIFICATIONS Filler Hose Requirement: 1.5" Flange Outer Diameter: 4.75" Bolt Circle Diameter: 4.25" PCD Height: 4.08" (Dry Break to Barb) Mate: 20-0996 or 20-0496 Dry Break

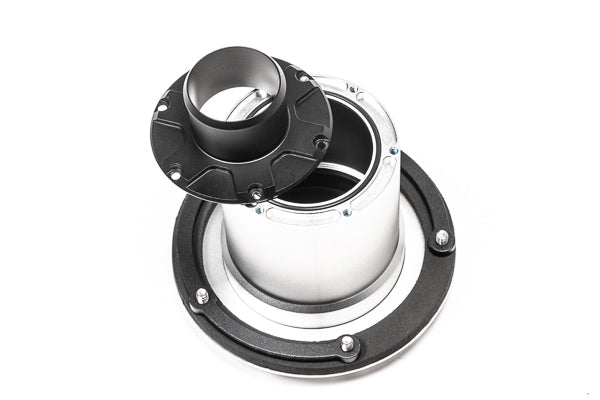

	20-1005-V REMOTE MOUNT, VENTED STANDARD FILLER, 1.5IN The fuel filler typically secures to the vehicle body. The vented fuel cap has roll-over protection if the vehicle ever becomes inverted. The fill neck has a machined hose barb connection for 1.5in filler hose (available HERE). The outer diameter is 4.75in and uses 4.25in P.C.D for the five M5 bolts. Total height is 4.1in. Requires a 77mm (3.03in) hole to be fabricated. The o-ring sealed 1.5in barbed outlet is interchangeable. By simply removing 6 screws, a different outlet adapter (sold separately) can be installed. If needed, a tether is also provided, as shown below. INCLUDES Vented Cap with Roll-Over Protection Flanged Fill Neck for 1.5in ID Hose Ozone/Flame Resistant Gasket Anodized Aluminum Nut Ring Stainless Steel M5 Bolts Tether Components NOTES Does not include accessories to connect to the fuel tank. Can be upgraded later to a dry break using Radium 20-0549-V.

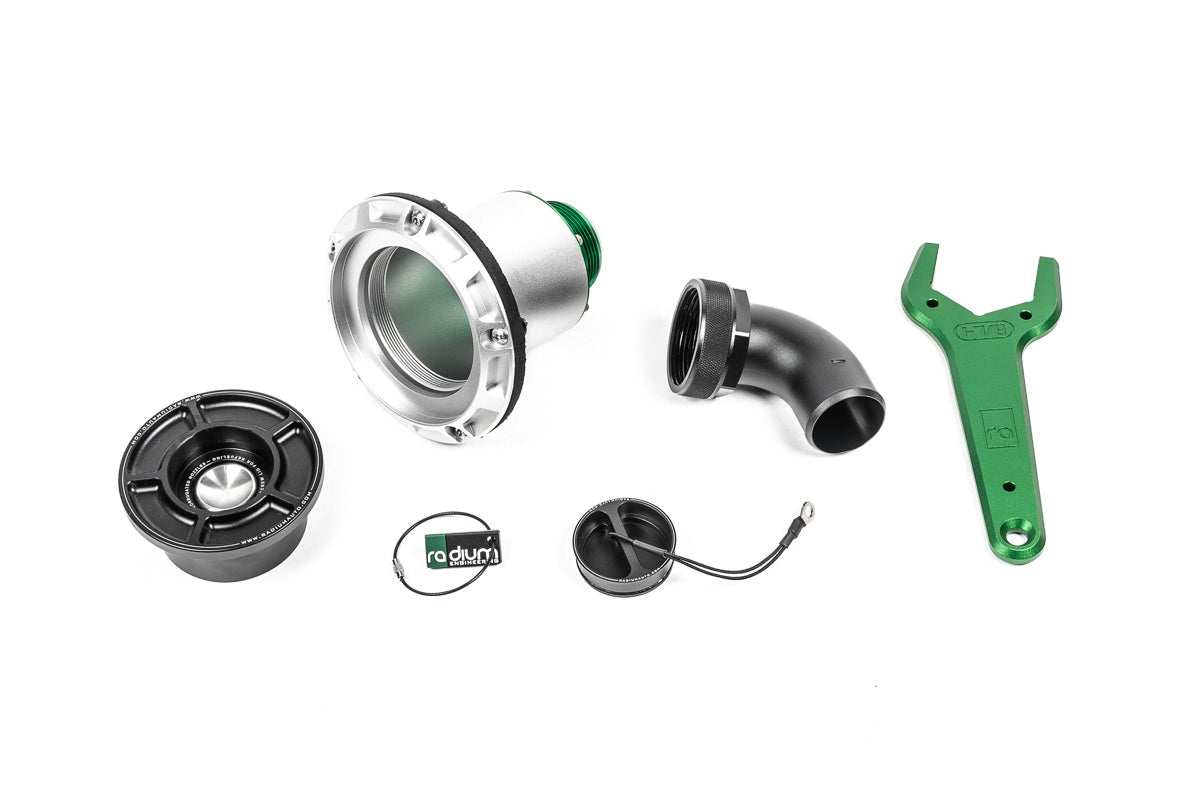

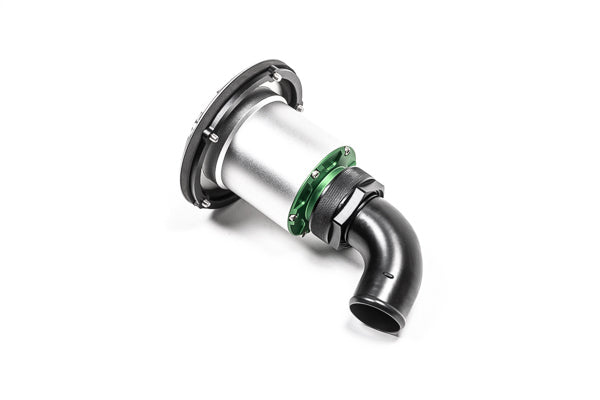

	20-1104-V REMOTE MOUNT, VENTED FEMALE DRY BREAK, 1.5IN ELBOW Designed for remote mounting to an external surface such as a fender. Requires a 77mm (3.03") hole to be fabricated. Includes a 1.5in female dry break as well as a gasket, stainless steel hardware, an aluminum housing and aluminum nut ring. Also, an aluminum 75 degree 24AN hose end and a 1-7/8" wrench. The vented fuel cap has roll-over protection in case the vehicle ever becomes inverted. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.). SPECIFICATIONS Filler Hose Requirement: 1.5" Flange Outer Diameter: 4.75" Bolt Circle Diameter: 4.25" PCD Hose End Connection: 24AN Hose End Angle: 75 degree Mate: 20-0996 or 20-0496 Dry Break
	20-1105-V REMOTE MOUNT, VENTED STANDARD FILLER, 1.5IN ELBOW Designed for remote mounting to an external surface such as a fender. Requires a 77mm (3.03") hole to be fabricated. Includes a gasket, stainless steel hardware, an aluminum housing, aluminum nut ring and a tether. Also, an aluminum 1-7/8" wrench and a 75 degree 24AN elbow with a 1.5in barb. The vented fuel cap has roll-over protection in case the vehicle ever becomes inverted. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.). SPECIFICATIONS Filler Hose Requirement: 1.5" Flange Outer Diameter: 4.75" Bolt Circle Diameter: 4.25" PCD Hose End Connection: 24AN Hose End Angle: 75 degree NOTES Does not include accessories to connect to the fuel tank. Can be upgraded later to a dry break using Radium 20-0549-V.

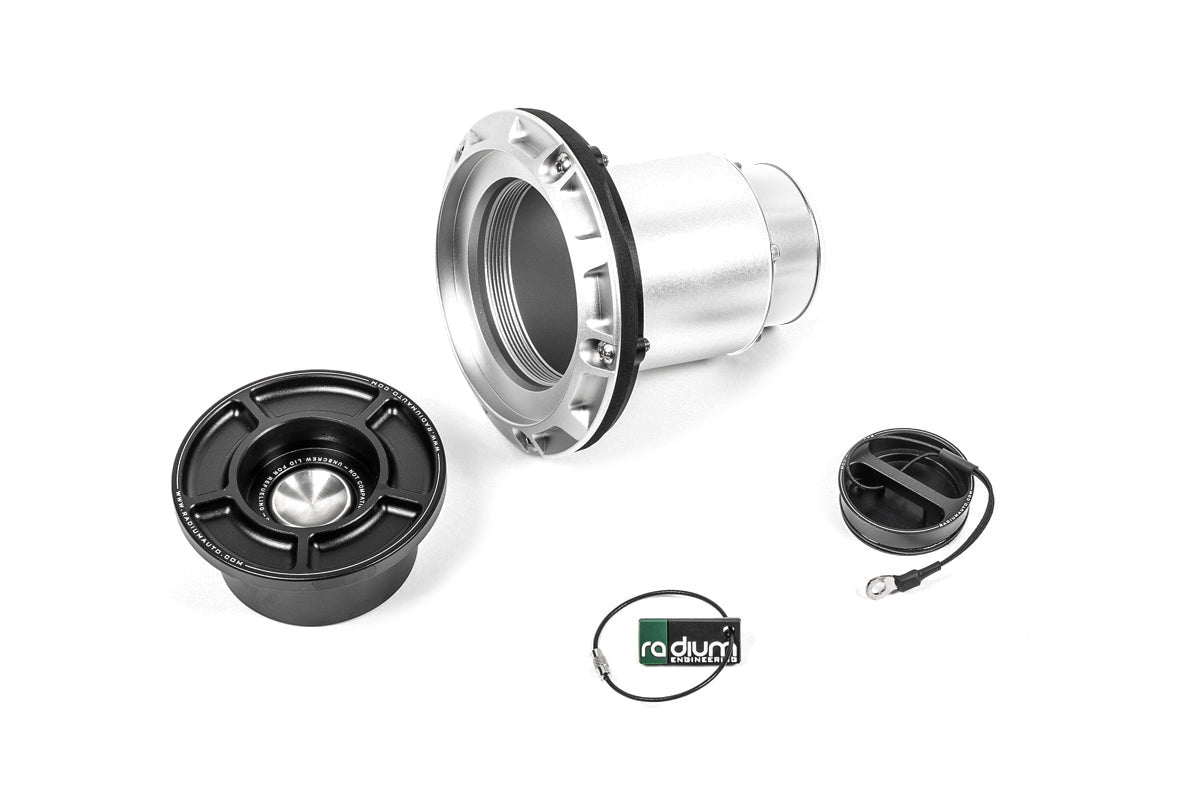

	20-1204-V REMOTE MOUNT, VENTED FEMALE DRY BREAK, 2.25IN Designed for remote mounting to an external surface such as a fender. Requires a 77mm (3.03") hole to be fabricated. Includes 20-0549-V Dry Break, 1.5in, Female, Vented as well as a gasket, stainless steel hardware, an aluminum housing and aluminum nut ring. The vented fuel cap has roll-over protection in case the vehicle ever becomes inverted. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.). The fill neck has a machined hose barb connection for 2.25in filler hose. The outer diameter is 4.75in and uses 4.25in P.C.D for the five M5 bolts. Total height is 4.1in. Requires a 77mm (3.03in) hole to be fabricated. SPECIFICATIONS Filler Hose Requirement: 2.25" Flange Outer Diameter: 4.75" Bolt Circle Diameter: 4.25" PCD Height: 4.08" (Dry Break to Barb) Mate: 20-0996 or 20-0496 Dry Break
	20-1205-V REMOTE MOUNT, VENTED STANDARD FILLER, 2.25IN The fuel filler typically secures to the vehicle body. The vented fuel cap has roll-over protection if the vehicle ever becomes inverted. The fill neck has a machined hose barb connection for 2.25in filler hose. The outer diameter is 4.75in and uses 4.25in P.C.D for the five M5 bolts. Total height is 4.1in. Requires a 77mm (3.03in) hole to be fabricated. INCLUDES Vented Cap with Roll-Over Protection Flanged Fill Neck for 2.25in ID Hose Ozone/Flame Resistant Gasket Anodized Aluminum Nut Ring Stainless Steel M5 Bolts Tether Components NOTES Does not include accessories to connect to the fuel tank. Can be upgraded later to a dry break using Radium 20-0549-V.

REMOTE FILLER NECKS

20-0527 FCST 6-Bolt Remote Mount Fill Neck Straight 1.5in Barb

FITS FCST ONLY

This fill neck is specific to the following FCSTs ONLY: 20-014X-XX, 20-049X-XX, 20-069X-XX, and 20-099X-XX. Remote mount fill necks for the newer FCST-X (20-199X-XX) can be found below.

This fill neck is primarily used with a body-mounted remote filler (not included). The fill neck has a machined hose barb connection for 1.5in filler hose. The fill neck features a flapper check valve for rollover protection.

INCLUDES

Flanged Fill Neck for 1.5in ID Hose
FKM Gasket Flange Seal
FKM Flapper Valve
Stainless Steel Hardware

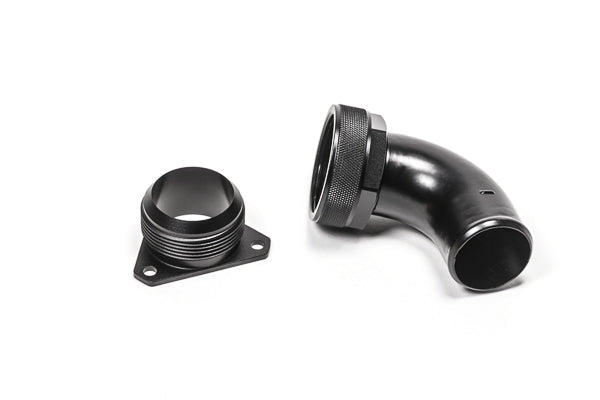

20-1047 FCST-X 3-Bolt, Remote Mount Fill Neck, 24AN Elbow, 1.5in Barb

FITS FCST-X ONLY

This fill neck is specific to the FCST-X ONLY (20-1990-XX, 20-1991-00, 20-1992-XX, 20-1993-00, 20-1995-00). Remote mount fill necks for the older FCST (20-014X-XX, 20-049X-XX, 20-069X-XX, and 20-099X-XX) can be found above. The remote mount fill necks do not require a flapper valve. The roll over valve is integrated into the FCST-X.

This fill neck is primarily used with a body-mounted remote filler (see 20-0505-V). The 24AN fill neck mates to a 24AN hose end capable of 360 degree rotation. It features a 75 degree elbow and uses a 1.5in barb. A bespoke 1-7/8in aluminum wrench is provided for tightening the B-nut and prevent marring. The fill neck features a flapper check valve for rollover protection.

20-1027 FCST-X 3-Bolt, Remote Mount Fill Neck, Straight, 1.5in Barb

FITS FCST-X ONLY

This fill neck is primarily used with a body-mounted remote filler (not included). The fill neck has a machined hose barb connection for 1.5in filler hose (available HERE). The fill neck features a flapper check valve for rollover protection.

INCLUDES

Flanged Fill Neck for 1.5in ID Hose
FKM O-ring Seal
Stainless Steel Hardware

FILLER HOSE

20-0597 Fuel Fill Neck Hose Kit, 1.5in

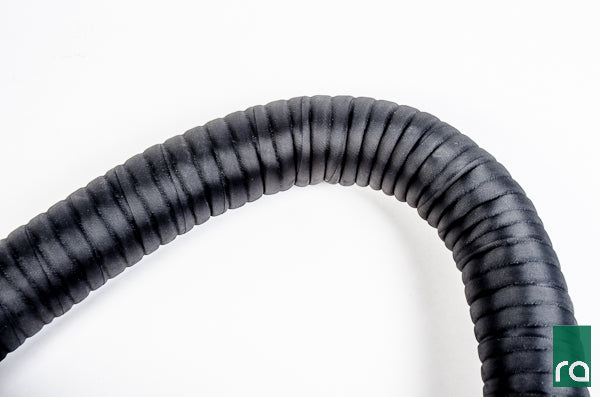

This hose is convoluted permitting tight bends, as depicted below. The helical wires resist hose kinking. It is compatible with all fuel types and has a long life span.

SPECIFICATIONS

Inner Diameter: 1.5in (38mm)
Wall Thickness: 0.176in (4.47mm)
Length: 3 feet (914mm)
Working Pressure: 20-psi maximum
Burst Pressure: 90-psi minimum
Bend Radius: 5in minimum
Tube Construction: Nitrile
Reinforcement: Synthetic Fabric
Flex: Two Embedded Helical Wires
Cover: Neoprene Coated Fabric
Temperature Range: -40F to 212F
Standards: SAE 30R5
Made in USA

20-0602 Fuel Fill Neck Hose Kit, 1.5in, Clear

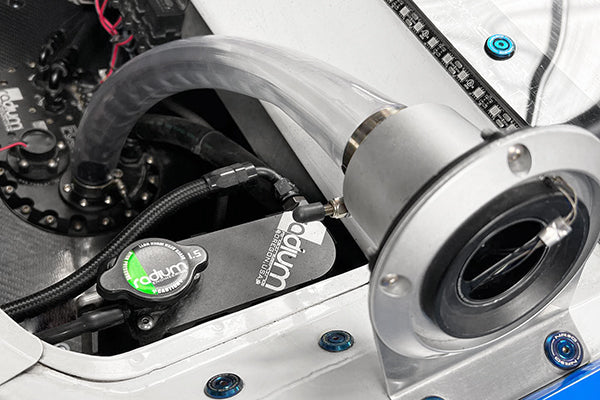

This fill hose is perfect for applications that need a visualization of the fuel dynamically filling. Depending on the fuel type used, the clear hose may become cloudy and translucent overtime. Unlike the black reinforced filler hose, this clear hose should be inspected occasionally and replaced if needed.

OPTIONAL PARTS

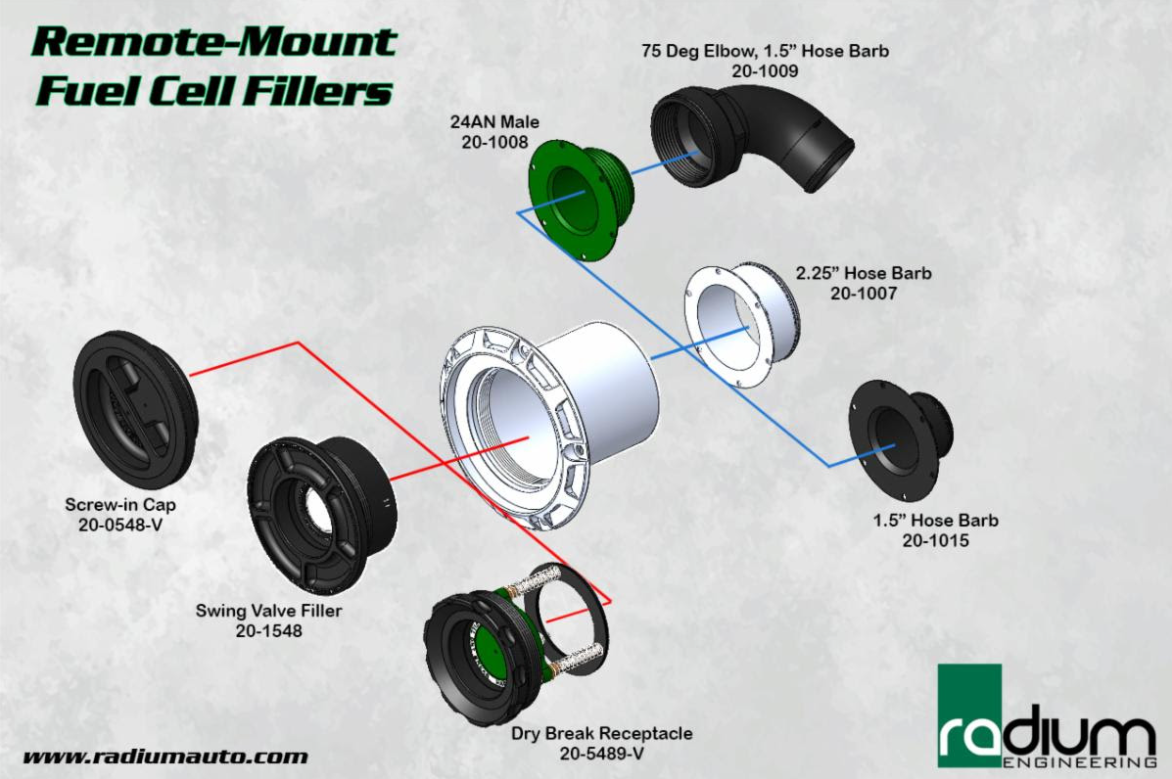

	20-1007 Remote Mount Filler Adapter 2.25in If you already have a remote mount filler adapter and need to change the adapter end to a different size/configuration, you can purchase the end adapter individually and swap it out quickly by removing the 6 bolts holding it in place. COMPATIBILITY 20-1004-V 20-1005-V 20-1104-V 20-1105-V 20-1204-V 20-1205-V Not compatible with 20-0504-V and 20-0505-V
	20-1008 Remote Mount Filler Adapter 24AN If you already have a remote mount filler adapter and need to change the adapter end to a different size/configuration, you can purchase the end adapter individually and swap it out quickly by removing the 6 bolts holding it in place. COMPATIBILITY 20-1004-V 20-1005-V 20-1104-V 20-1105-V 20-1204-V 20-1205-V Not compatible with 20-0504-V and 20-0505-V
	20-1015 Remote Mount Filler Adapter 1.5in If you already have a remote mount filler adapter and need to change the adapter end to a different size/configuration, you can purchase the end adapter individually and swap it out quickly by removing the 6 bolts holding it in place. COMPATIBILITY 20-1004-V 20-1005-V 20-1104-V 20-1105-V 20-1204-V 20-1205-V Not compatible with 20-0504-V and 20-0505-V
	20-1060 FCST-X Fill Neck Block-Off Kit This kit blocks off the filler hole on the Radium FCST-X units. INCLUDES Anodized 1/8in (3mm) Aluminum Plate FKM O-ring Gasket Seal Stainless Steel Hardware

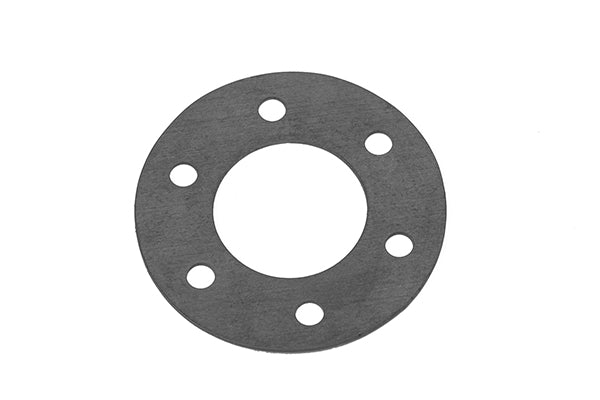

	18-0019 FCST 6-Bolt Gasket Fill Neck 2.18in This gasket is used for Radium fuel cell fill necks. The 1/16in thick material is a premium quality variation of FKM. It uses 6 equally-spaced holes with a 2.18in bolt center.
	20-0360 FCST 6-Bolt Fill Neck Block-Off Kit This kit blocks off the filler hole on the Radium FCST units. INCLUDES Anodized 1/8in (3mm) Aluminum Plate FKM Gasket Flange Seal Nylon Sealing Washers Stainless Steel Hardware

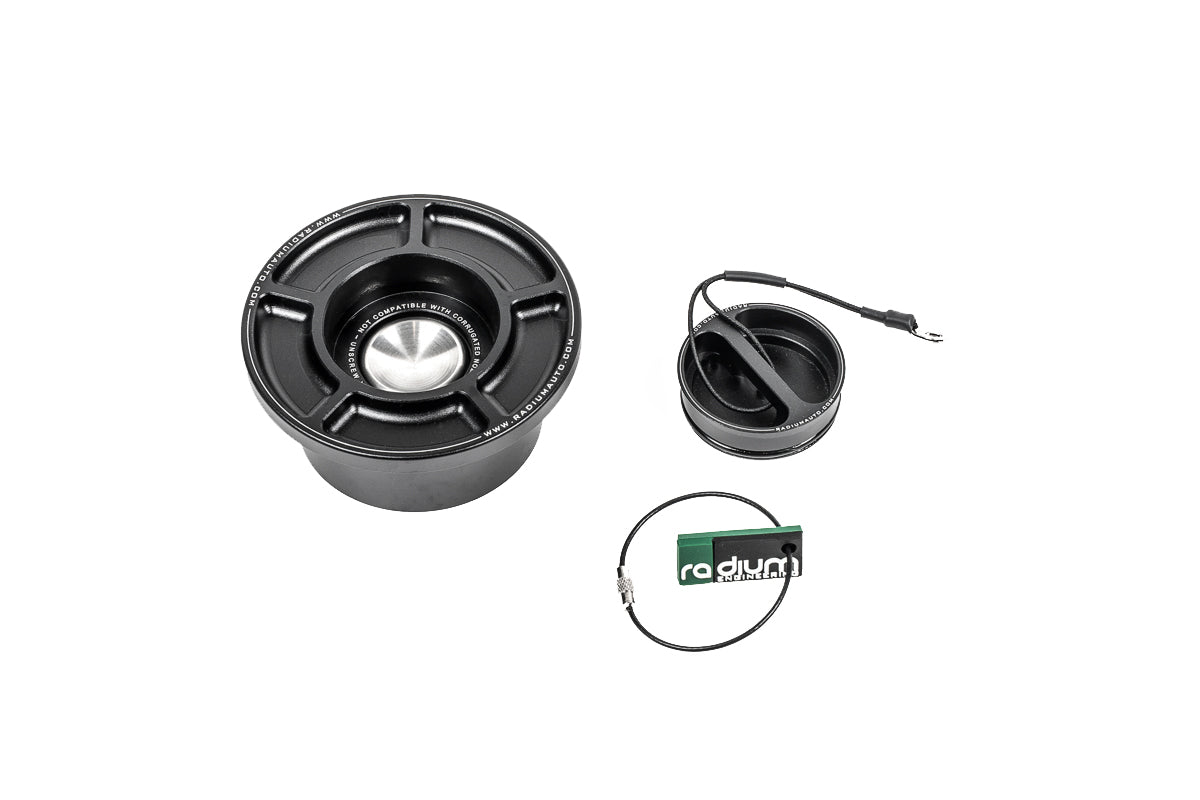

	20-0548-V Fuel Cap Remote Mount Vented This is replacement vented fill cap. This is included with 20-0505-V and is compatible with 20-0504-V.
