Description

OVERVIEW

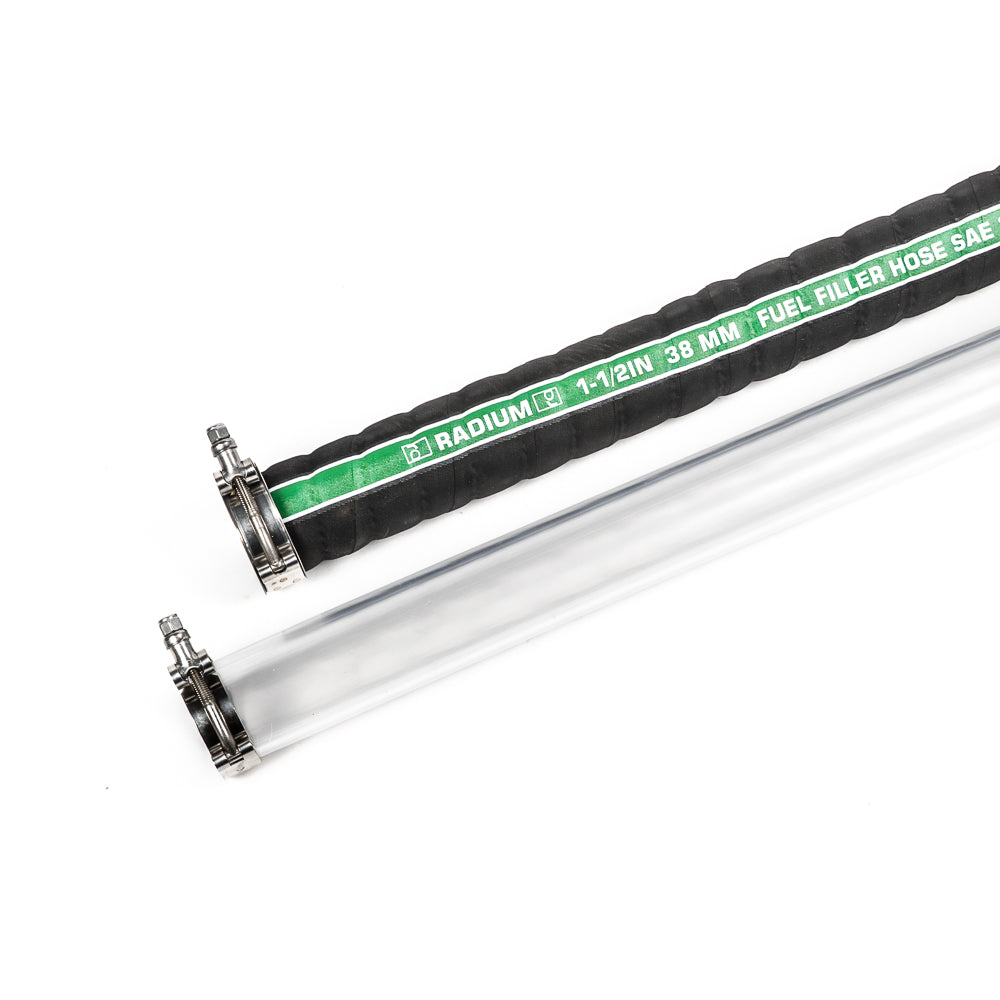

Radium fuel filler hoses are 1.5" ID and compatible with all Radium fuel filler systems. They come in 36" length and can be cut down for custom installations. Two T-bolt clamps are included with each hose.

The black hose is wire-reinforced which makes it idea for tight-radius bending.
The clear hose is ideal when there is a need to monitor fuel filling.

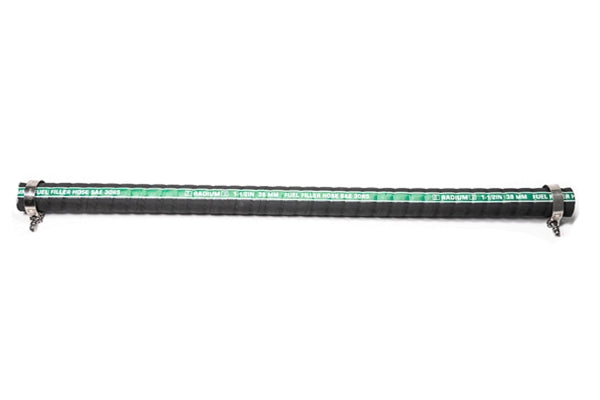

20-0597 Fuel Fill Neck Hose Kit, 1.5in

This hose is convoluted permitting tight bends, as depicted below. The helical wires resist hose kinking. It is compatible with all fuel types and has a long life span.

SPECIFICATIONS

  • Inner Diameter: 1.5" (38mm)
  • Wall Thickness: 0.176" (4.47mm)
  • Length: 3 feet (914mm)
  • Working Pressure: 20-psi maximum
  • Burst Pressure: 90-psi minimum
  • Bend Radius: 5" minimum
  • Tube Construction: Nitrile
  • Reinforcement: Synthetic Fabric
  • Flex: Two Embedded Helical Wires
  • Cover: Neoprene Coated Fabric
  • Temperature Range: -40F to 212F
  • Standards: SAE 30R5
  • Made in USA

CAUTION: Be careful as the internal helical wires at the cut ends can be sharp.

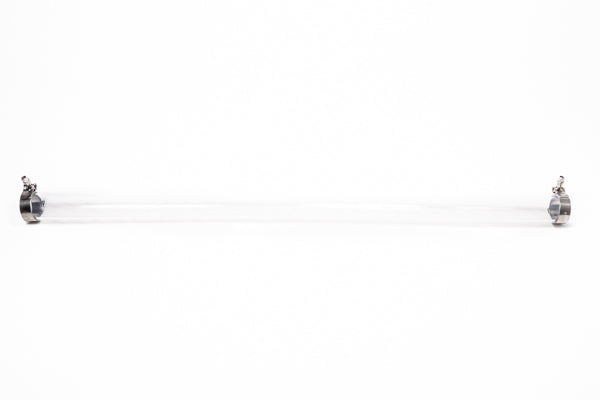

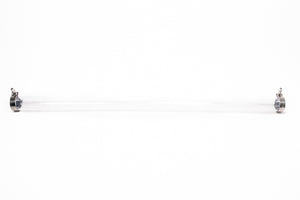

20-0602 Fuel Fill Neck Hose Kit, 1.5in, Clear

This fill hose is perfect for applications that need a visualization of the fuel dynamically filling. Depending on the fuel type used, the clear hose may become cloudy and translucent overtime. Unlike the black reinforced filler hose, this clear hose should be inspected occasionally and replaced if needed.

SPECIFICATIONS

  • Inside Diameter: 1.5" (38mm) ID
  • Wall Thickness: 0.2" (5mm)
  • Length: 3 feet (914mm)
  • Max Pressure: 20-psi @ 72F
  • Bend Radius: 8" minimum
  • Temperature: -20F to 160F
