Description

OVERVIEW

Dump cans are used in motorsports when quick refueling pit stops are essential. Depending on the configurations below, these dump cans can fill up to 14 times faster than a standard fuel jug.

The main difference between a "dump can" and a common "fuel jug" is the vent architecture. For quick filling, air entering the can must replace the exiting fuel at the same rate. If not, a vacuum will create a flow restriction and produce a "gurgle" or "chug" effect. These Radium Engineering dump cans are designed with a large 1.675" OD vent tube that comes from the bottom, minimizing refueling leaks and maximizing non restrictive air flow for quick-filling.

NOTE: The large vent tube can also be used for re-filling the dump can.

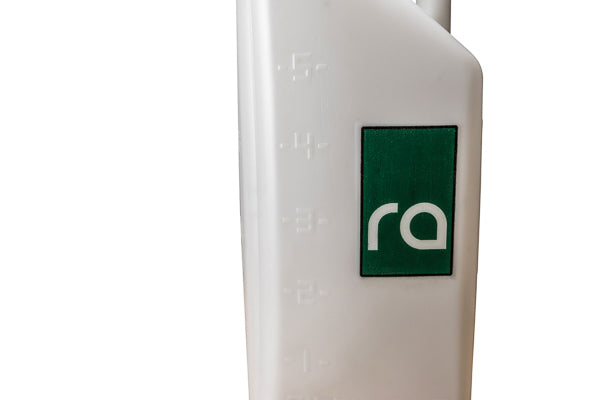

Accurate graduation marks are molded in "US GALLONS" on one side, and "LITERS" on the opposite side.

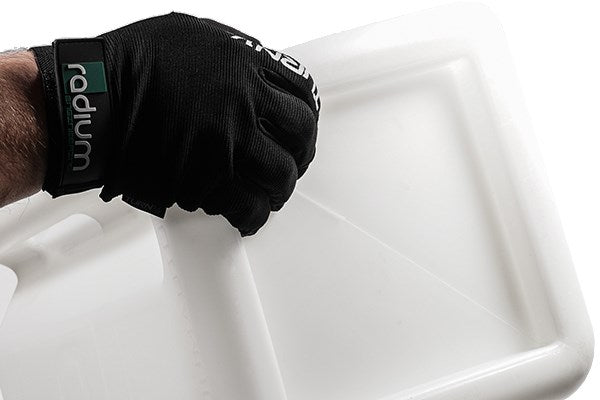

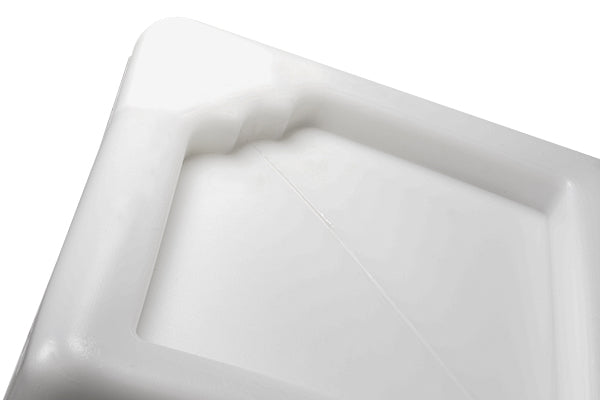

The dump cans are molded from a durable polymer safe for all fuel types (leaded gas, unleaded gas, diesel, AV gas, methanol, ethanol, E15, E85, etc.). The external rectangular shape was designed to match the common fuel jug industry standard (9.5" x 9.5"). This allows for easy securing and storing with other fuel jugs. The integrated vent handle has finger grips for comfort. In addition, a similar ergonomic feature is molded into the bottom (shown below) for ease of handling when the dump can is inverted.

SPECIFICATIONS

Volume: 5 Gallons (19 Liters)
Height: 25.25" (641mm)
Width: 9.5" (241mm)
Depth: 9.5" (241mm)
Vent OD: 1.675" (43mm)
Vent ID: 1.375" (35mm)
Pour Spout OD (if cut): 2.5" or 3"
Flow Rate (standard fill): 5.86gpm (max)
Flow Rate (dry break): 25.75gpm (max)
Color: Semitransparent White

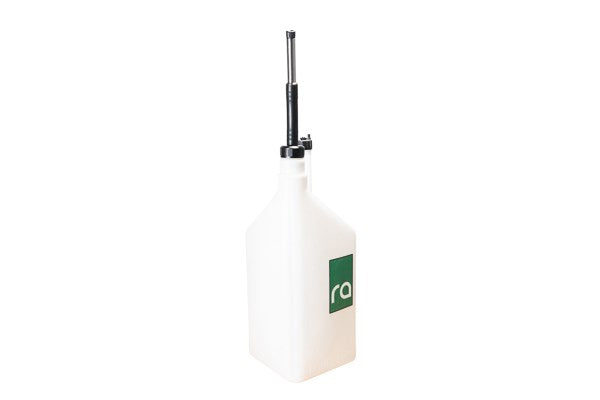

20-0697-00 QUICK FILL DUMP CAN, STANDARD FILLER

This dump can assembly has all the features mentioned above and is configured for 'standard filling' (non-dry break). This is ideal for all types of motorsports.

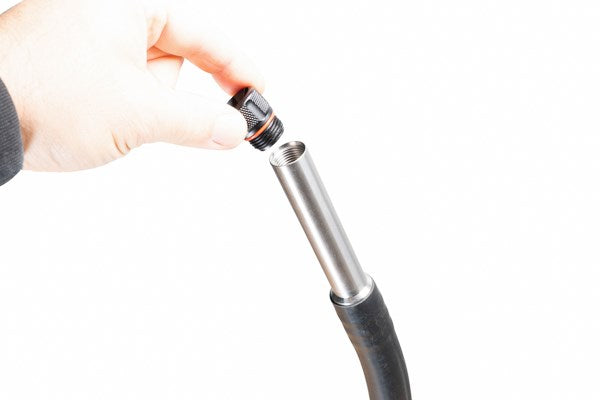

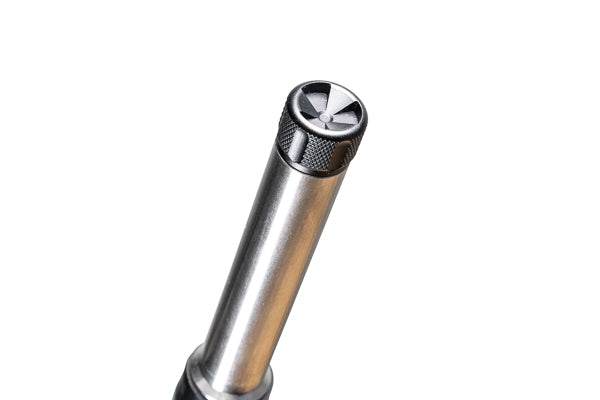

The dump can features knurled aluminum pour and vent caps. The inner flow diameter of the stainless steel spout is maximized yet still compatible with all OEM fuel fillers. For ergonomics, the anodized aluminum plug also features knurled machining.

To vent while filling, the plastic flip cap can be simply unlatched. For quicker filling, the entire vent cap can be unscrewed. Use this method with caution.

FLOW RATES

RADIUM Dump Can (standard fill) = 5.86gpm (vent cap ON/flip cap open)
RADIUM Dump Can (standard fill) = 6.70gpm (vent cap OFF)
GENERIC BRAND X Fuel Jug = 1.86gpm (flip cap open)

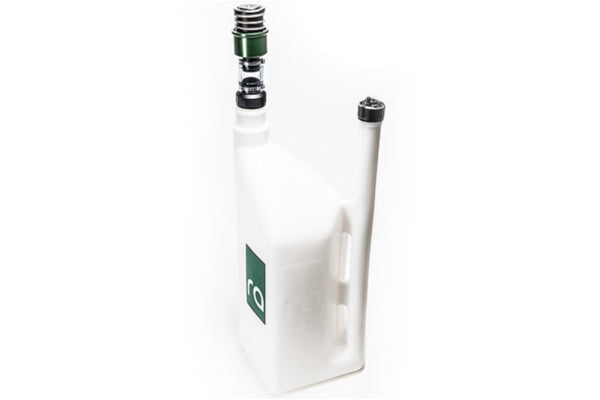

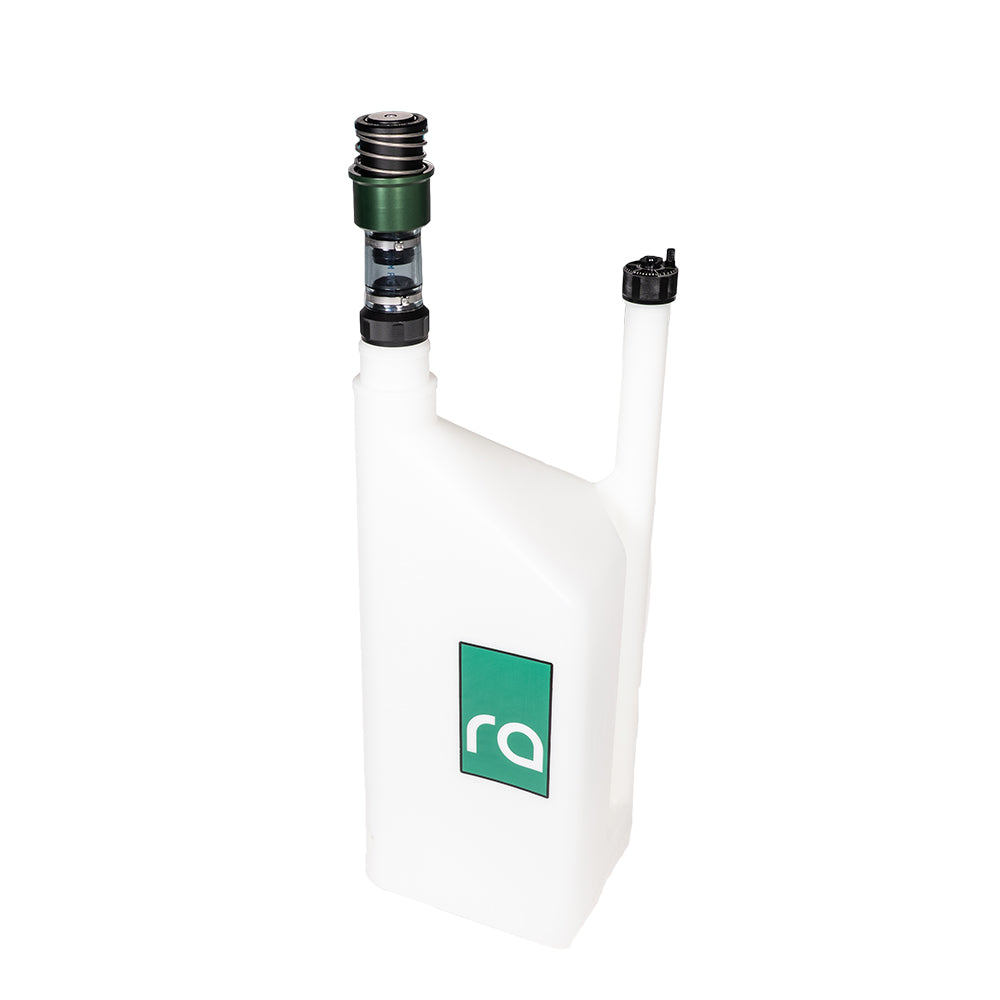

20-0697-01 QUICK FILL DUMP CAN, 1.5IN DRY BREAK

This dump can assembly includes a Radium Engineering dry break probe compatible with 1.5" dry break receptacles. As shown below, the short tube is clear for fuel fill monitoring.

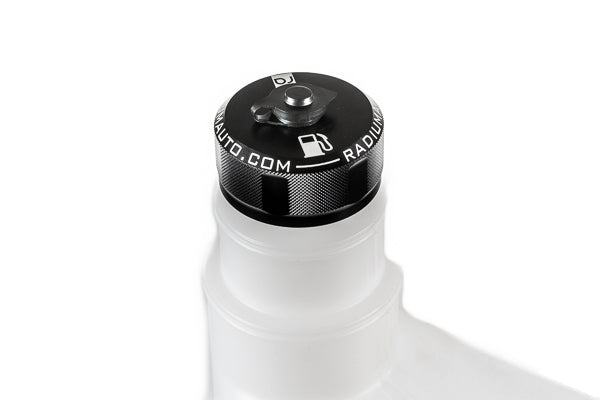

This dump can features knurled aluminum pour and vent caps. And because these unscrew, filling the dump can is a quick efficient process.

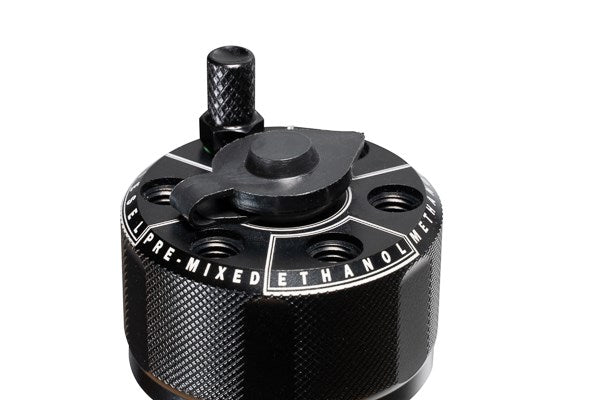

The vent cap features 6 different fuel type indicators: (UNLEADED, LEADED, METHANOL, ETHANOL, PRE-MIXED, DIESEL). The small knob can be screwed into the appropriate threaded hole to mark the fuel type inside. For a slower and more controlled filling, the plastic flip cap (shown) can be simply unlatched. For quicker filling, the entire vent cap can be unscrewed. Use this method with caution.

NOTES

The plastic pour spout can be cut to suit 2.5' and 3' dry breaks
For maximum flow efficiency, the fuel tank (or fuel cell) should have a large vent (see Radium P/N: 20-0535)

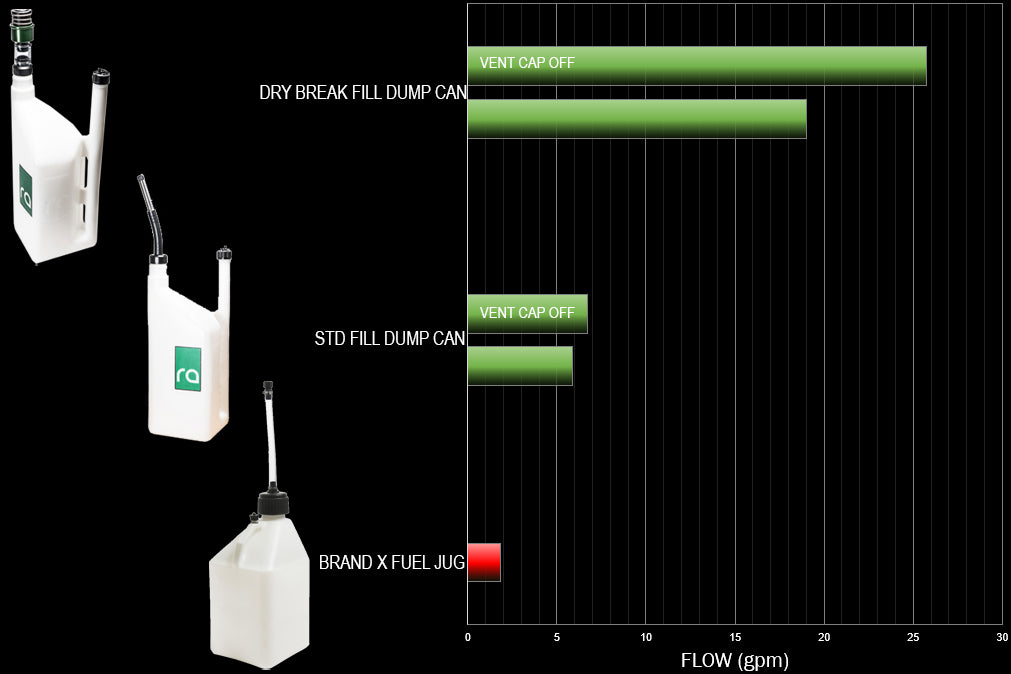

FLOW RATES

RADIUM Dump Can (dry break) = 19.02gpm (vent cap ON/flip cap open)
RADIUM Dump Can (dry break) = 25.75gpm (vent cap OFF)
GENERIC BRAND X Fuel Jug = 1.86gpm (flip cap open)

20-0687-00 DUMP CAN CAP ASSEMBLY, STANDARD FILLER

Commonly used as a replacement part or for transfering fuel from a dry break to a simple container.

COMPATIBILITY

20-0697-00 QUICK FILL DUMP CAN, STANDARD FILLER
20-0697-01 QUICK FILL DUMP CAN, 1.5IN DRY BREAK

Note: This filler is not compatible with discontinued 20-0497-00, 20-0497-01, or 20-0697-EDC dump cans.

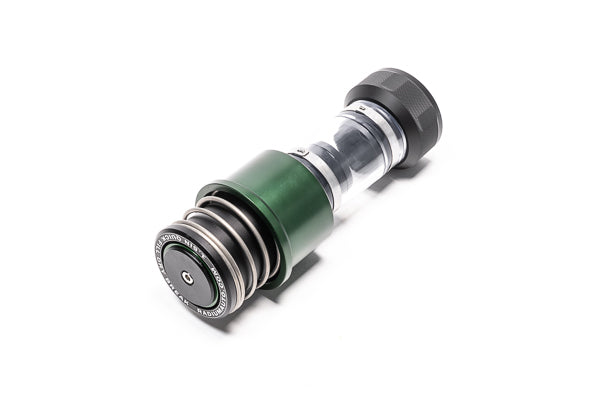

20-0687-01 DUMP CAN CAP ASSEMBLY, DRY BREAK

Commonly used to convert a standard filler dump can to a dry break.

20-0997 DUMP CAN FUEL FILLER CAP

Threads directly on the filler side of the 5 gallon Radium Engineering dump can. These are typically used when storing or transporting multiple dump cans.

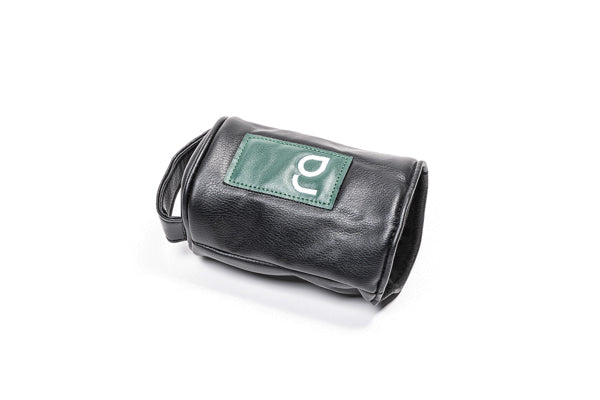

15-0004 DRY BREAK PROBE COVER

Designed to protect dirt and debris from contaminating the dynamic elements of a 1.5" dry break probe. Because it is manufactured from polyurethane leather, it does not dry out or absorb water making it easy to clean.

The internal elastic band prevents the cover from falling off in high winds. Radium Engineering logo embroidery on 2 sides.

To install, simply spread the cover over the probe like a sock. To uninstall, simply pull the integrated handle upwards.

COMPATIBILITY
