Description

COMPATIBILITY

2021+ Toyota GR Yaris
2023+ Toyota GR Corolla

OVERVIEW

Manufactured with 0.6' large internal bores, the Radium Engineering fuel rails can support all necessary engine power requirements. The 2 end ports are 3/4'-16 threaded (8AN ORB). The upper area of the engine is very narrow so the 2 top ports are 9/16'-18 threaded (6AN ORB).

FUEL INJECTORS

There are two type of fuel rails made by Radium: upgrade rails and top feed conversion rails. Upgrade rails only upgrade the rail and the OEM fuel injectors can be reused. If an upgrade to the injectors is desired, they must be equivalent to the OEM injector, meaning they must be the same height and the upper & lower o-rings must match the OEM diameters and styles. Top feed conversion rails are used to convert a vehicle that has side feed (or sometimes air-assist) injectors over to a top feed injector.

This fuel rail is an upgrade rail. OEM or OEM equivalent injectors must be used.

Radium does not make fuel injector recommendations.

Consult your tuner for injector brand or flow rate recommendations.
Consult the injector manufacturer for a part number that has the correct dimensions.

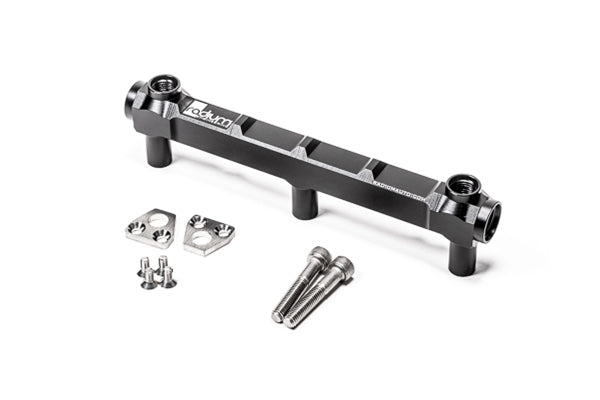

20-0766 Fuel Rail Toyota G16E-GTS

Includes the fuel rail and all of the necessary mounting hardware. This is ideal for those wanting to make a custom fuel system.

PORTS AND FITTINGS

The fuel rail ports are tapped for 6AN ORB and 8AN ORB.

6AN ORB Adapter Fittings can be found HERE
8AN ORB Adapter Fittings can be found HERE
8AN ORB Fuel Pulse Dampers can be found HERE
Fuel Pressure Gauge Adapters can be found HERE
Direct Mount Regulators can be found HERE

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

FEATURES

Anodized surface finish for wear and corrosion resistance
Lightweight aluminum construction
Inner bore diameter: 0.6 inch
Can be converted to a pressure regulated return system
No special tools required for installation

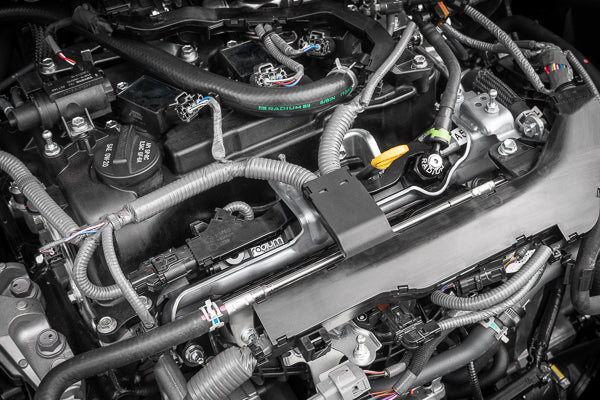

Fits under the factory engine cover

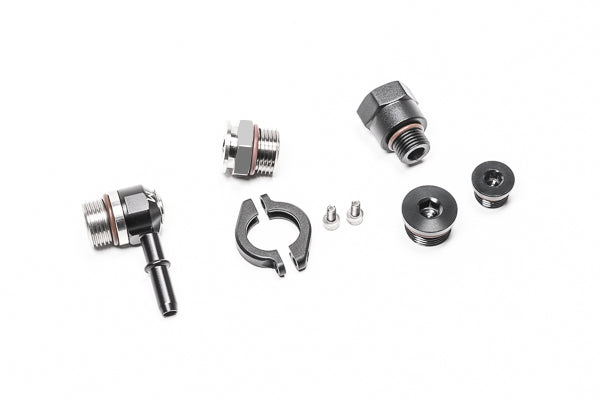

20-0766-PK Fuel Rail Plumbing Kit Toyota G16E-GTS

When used in conjunction with he 20-0766 fuel rail, the 20-0766-PK add-on plumbing kit permits a plug and play connection to the factory G16E-GTS fuel system. This kit includes all fittings needed for installation.
