OVERVIEW

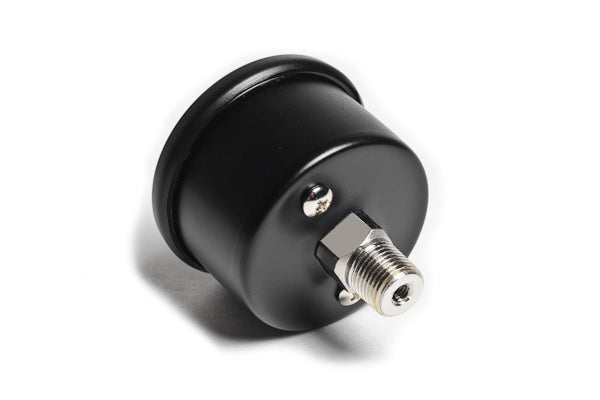

This high-accuracy fuel pressure gauge is suitable for all fueling applications. It features an acrylic lens with a silicone filled dial that reads from 0 to 100psi (0 to 6.9 BAR) with +/- 2% accuracy. The silicone fluid prevents the needle from vibrating for easy pressure readings. The internal bubble is normal. Rugged stainless 1-5/8" OD steel case (1-3/4" OD bezel) with nickel plated male 1/8" NPT fitting. Available with black bezel and housing only.

NOTES

• The internal silicone fluid bubble is normal
• Over pressurizing can permanently misalign the needle calibration
• PTFE thread sealant paste should always be used on NPT threads

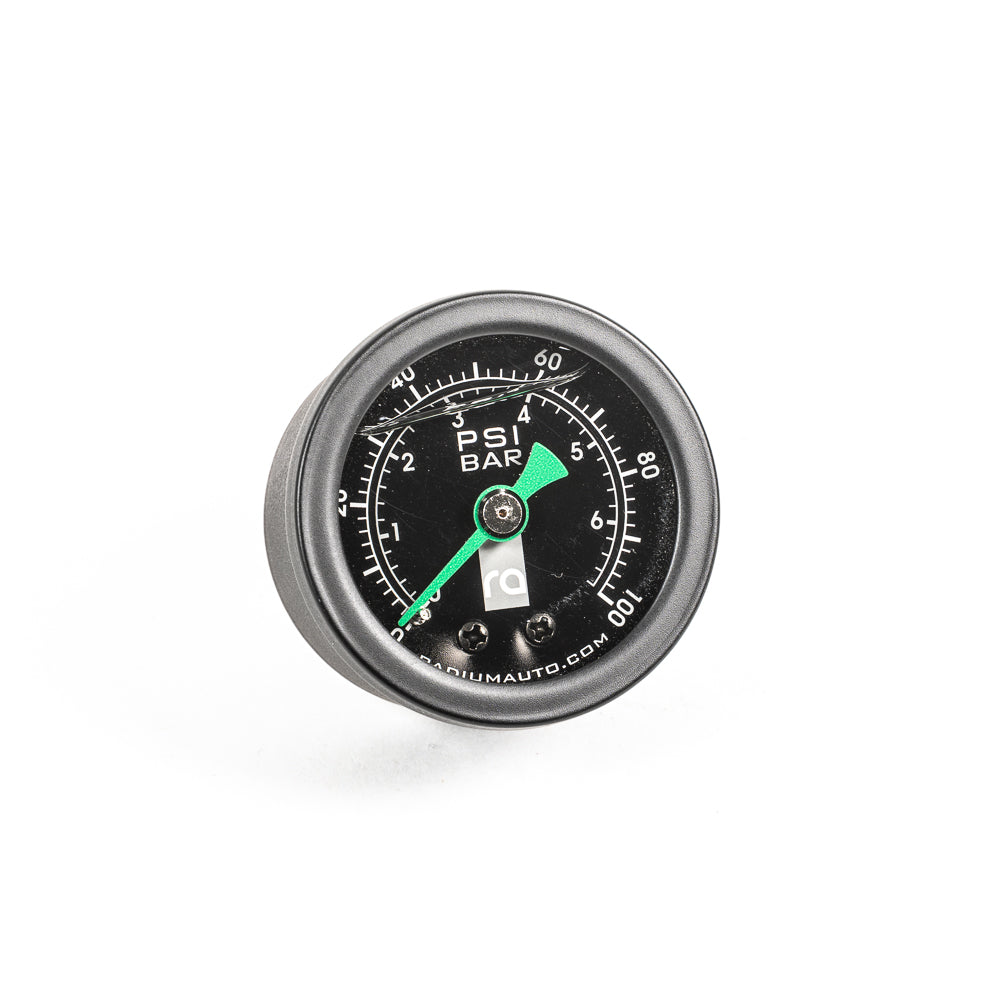

	20-0029 Fuel Pressure Gauge 0-100psi INCLUDES 0-100psi gauge

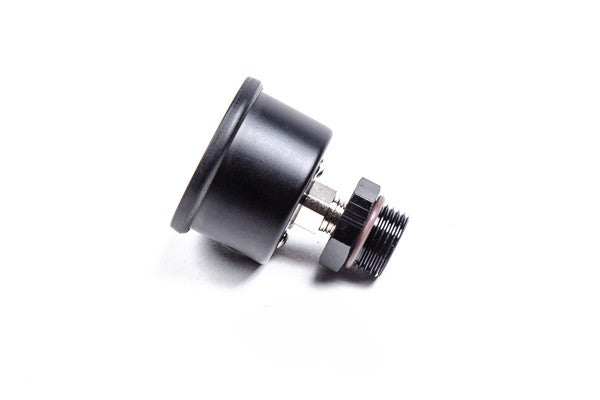

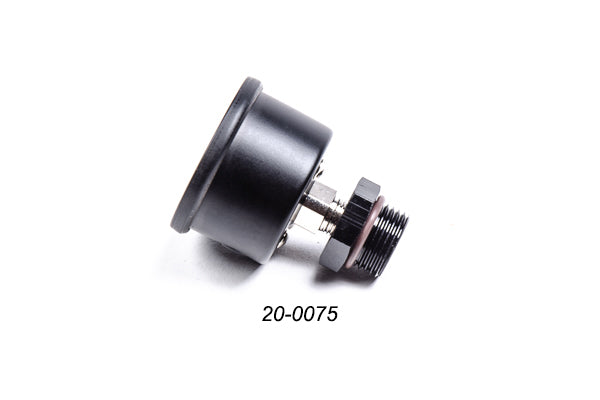

	20-0075 Fuel Pressure Gauge with 8AN ORB Adapter INCLUDES 0-100psi gauge

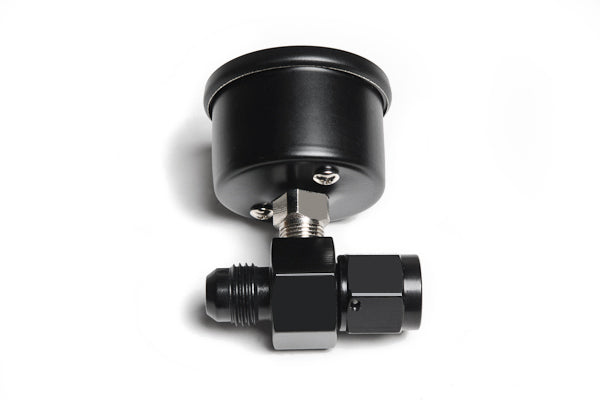

	20-0152 Fuel Pressure Gauge with 6AN Inline Adapter INCLUDES 0-100psi gauge 6AN inline tee fitting

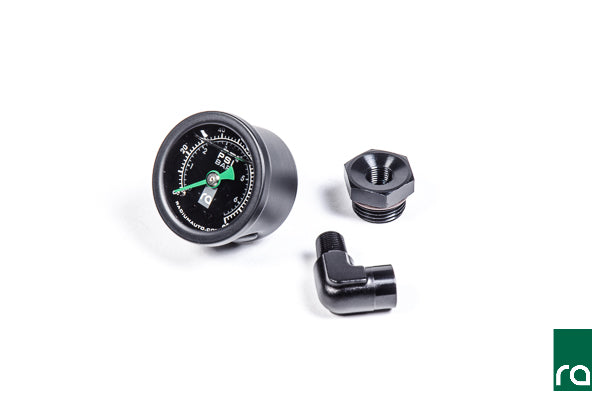

	20-0386 Fuel Pressure Gauge with 8AN ORB Adapter INCLUDES 0-100psi gauge 8AN ORB to 1/8" NPT fitting 90 degree 1/8" NPT male to 1/8" NPT female fitting

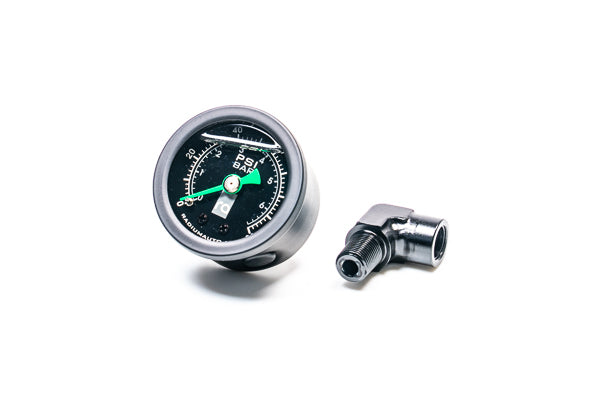

	20-0407 Fuel Pressure Gauge with 90deg Adapter INCLUDES 0-100psi gauge 90 degree 1/8" NPT male to 1/8" NPT female fitting
