Name: Fuel Rails, GM Vortec 8100 L18 Big Block
Brand: Radium Engineering
SKU: NULL
Availability: OutOfStock

COMPATIBILITY

01-02 GMC C3500HD
01-02 Chevrolet C3500HD
01-06 GMC Yukon XL 2500
01-06 Chevrolet Suburban XL 2500
01-07 GMC Sierra 2500HD
01-07 GMC Sierra 3500HD
01-07 Chevrolet Silverado 2500HD
01-07 Chevrolet Silverado 3500HD
01-10 GMC Topkick
01-10 Chevrolet Kodiak
02-06 Chevrolet Avalanche 2500
Workhorse Class A W20 Motorhome
Workhorse Class A W22 Motorhome
Workhorse Class A W24 Motorhome
Workhorse Class A W25 Motorhome
T-98 Kombat Armored Vehicle
Malibu Wakesetter 23 LSV Boat
Malibu Wakesetter 25 LSV Boat
Malibu Wakesetter 247 LSV Boat
Mastercraft X-45 Boat
Mastercraft ProStar 197 Boat
Mastercraft ProStar 214 Boat

FUEL INJECTORS

There are two type of fuel rails made by Radium: upgrade rails and top feed conversion rails. Upgrade rails only upgrade the rail and the OEM fuel injectors can be reused. If an upgrade to the injectors is desired, they must be equivalent to the OEM injector, meaning they must be the same height and the upper & lower O-rings must match the OEM diameters and styles. Top feed conversion rails are used to convert a vehicle that has side feed (or sometimes air-assist) injectors over to a top feed injector.

This fuel rail is an upgrade rail. OEM or OEM equivalent injectors must be used.

Radium does not make fuel injector recommendations.

Consult your tuner for injector brand or flow rate recommendations.
Consult the injector manufacturer for a part number that has the correct dimensions.

OVERVIEW

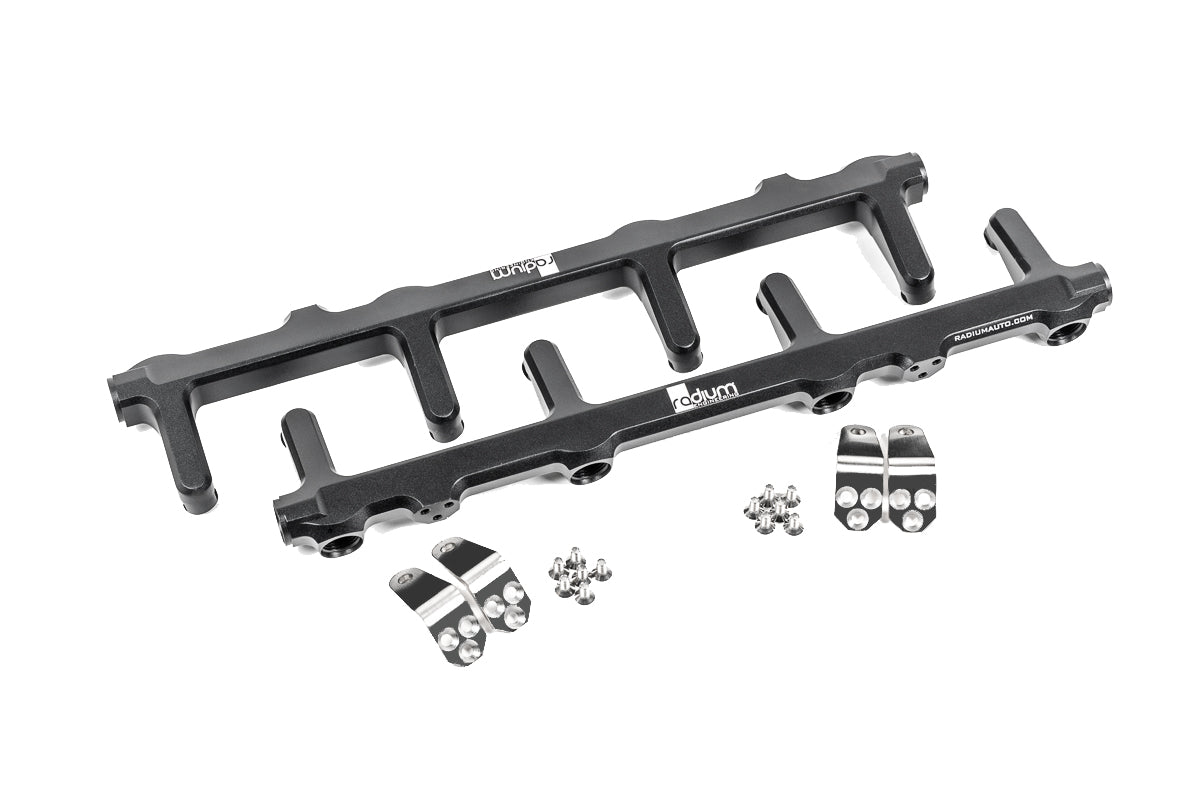

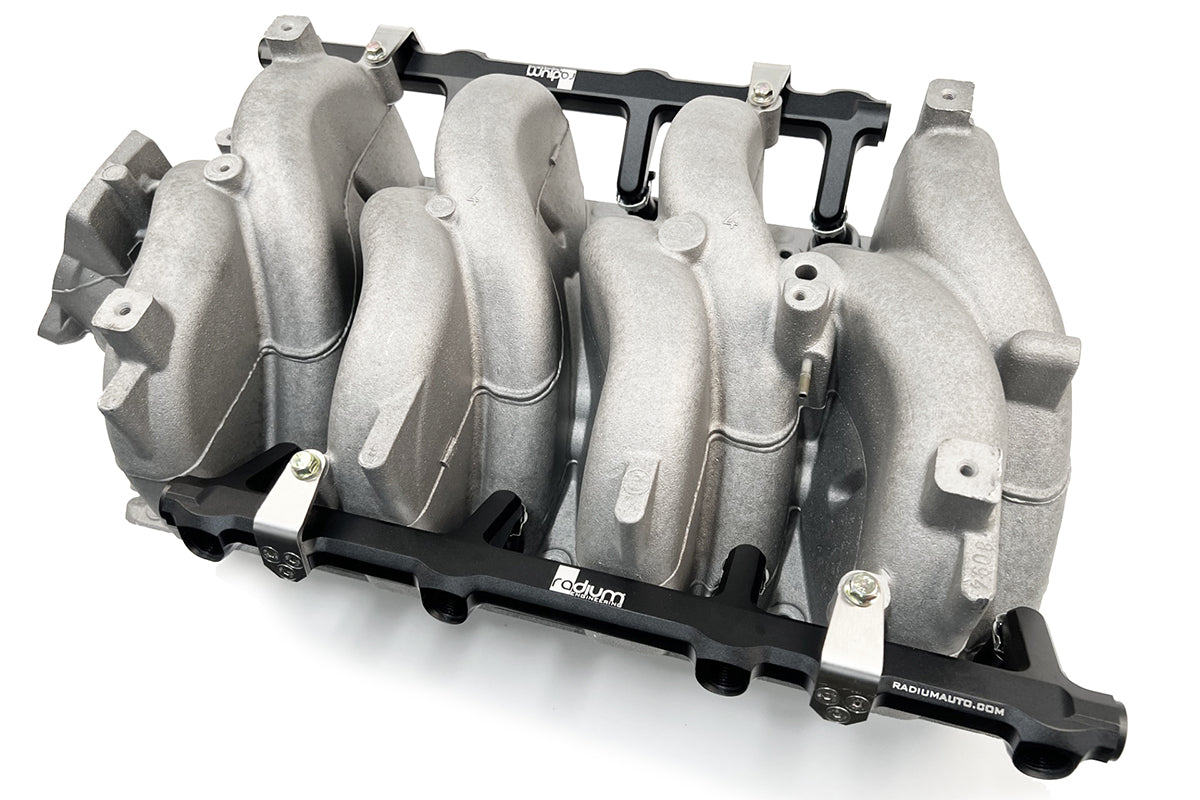

20-0862 Fuel Rails GM Vortec 8100 L18 Big Block

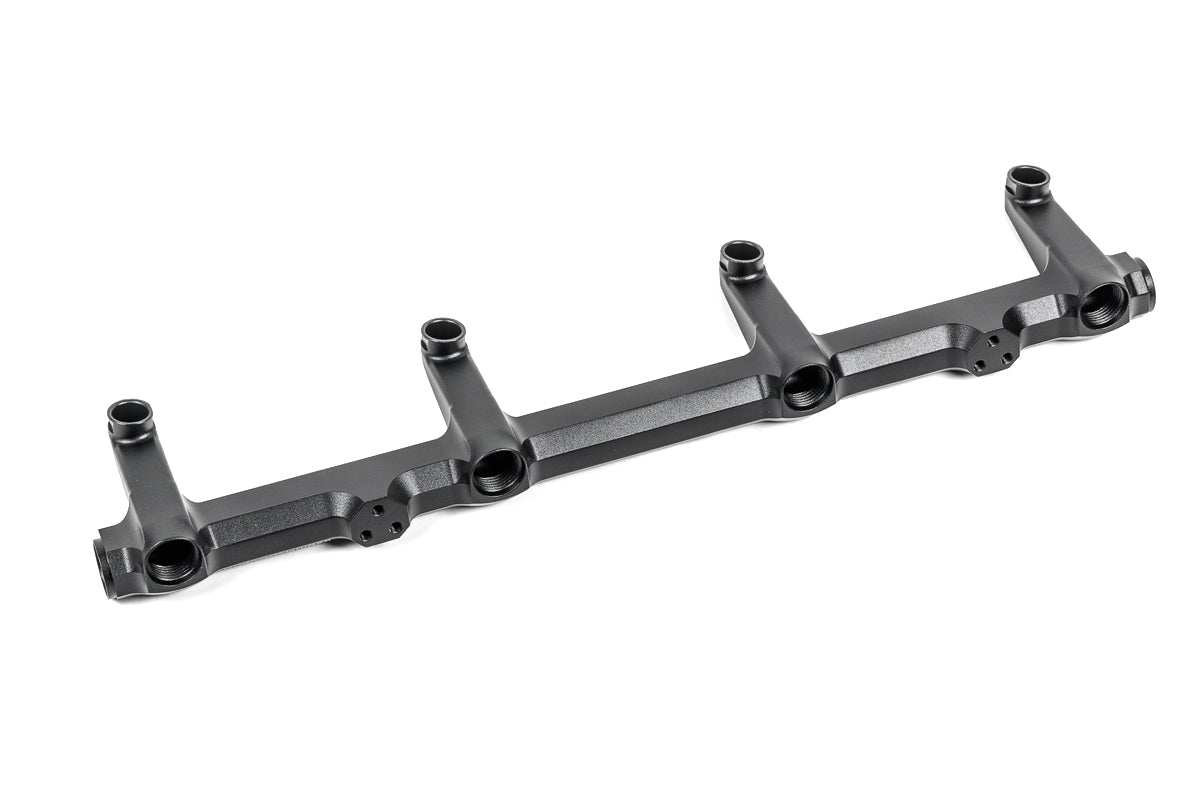

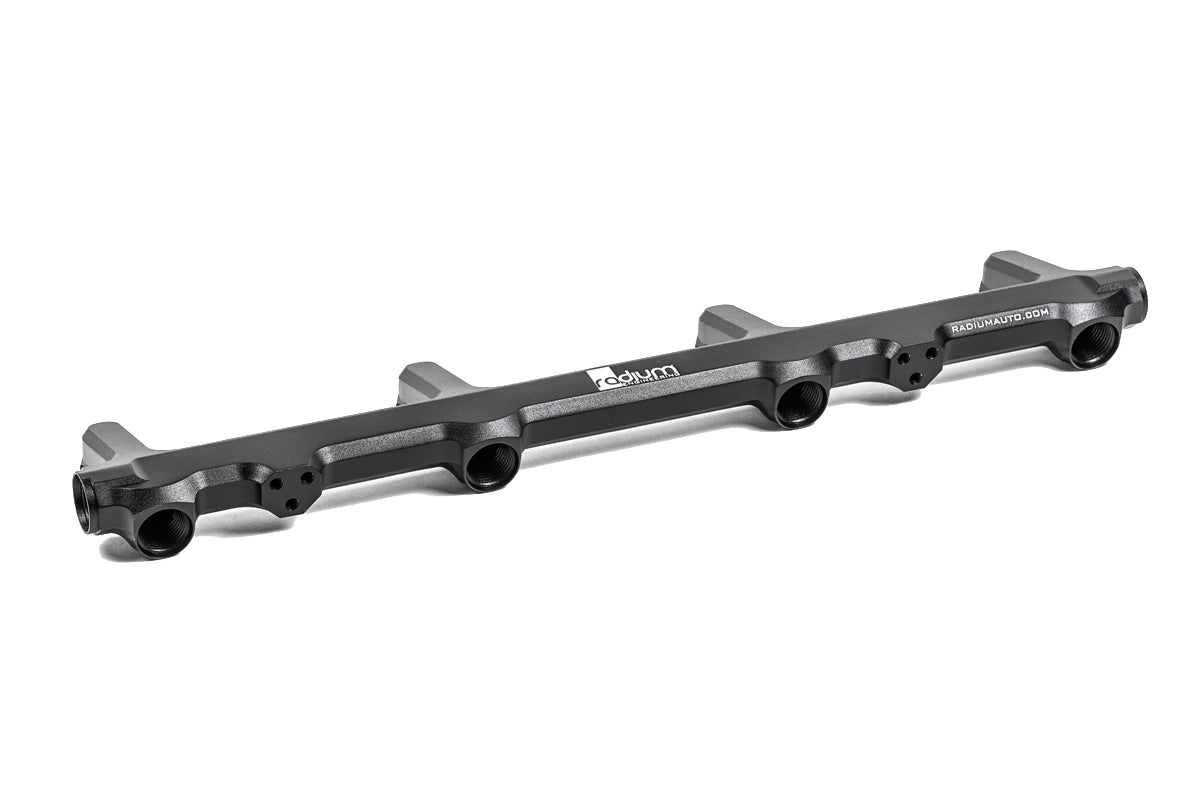

The fuel rails are CNC machined from 6061 aluminum, black anodized, and laser etched for a high quality surface finish. Each fuel rail has six 8AN ORB ports, twelve ports in all.

There are 6 ports on each fuel rail (12 total). These ports are 3/4"-16 tapped for 8AN ORB fittings.

8AN ORB Adapter Fittings can be found HERE
8AN ORB Direct Mount Regulators can be found HERE
8AN ORB Fuel Pulse Dampers can be found HERE
Fuel Pressure Gauge Adapters can be found HERE

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

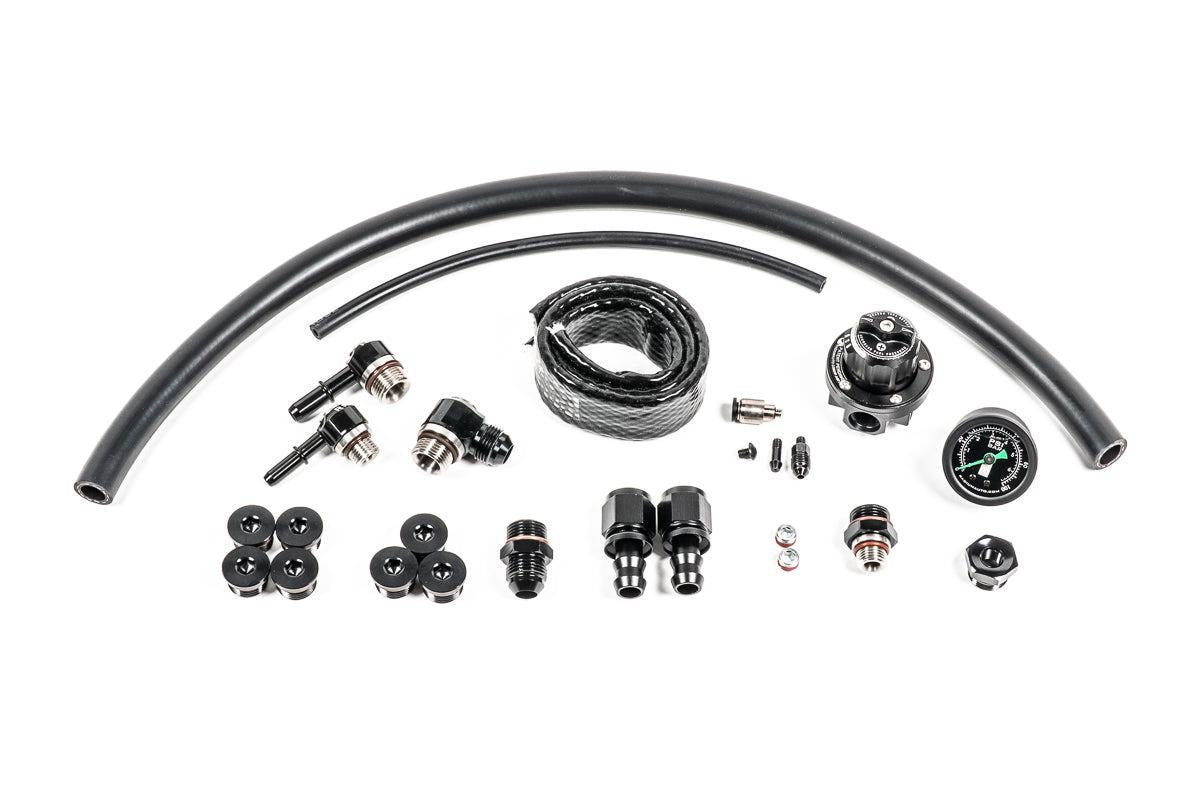

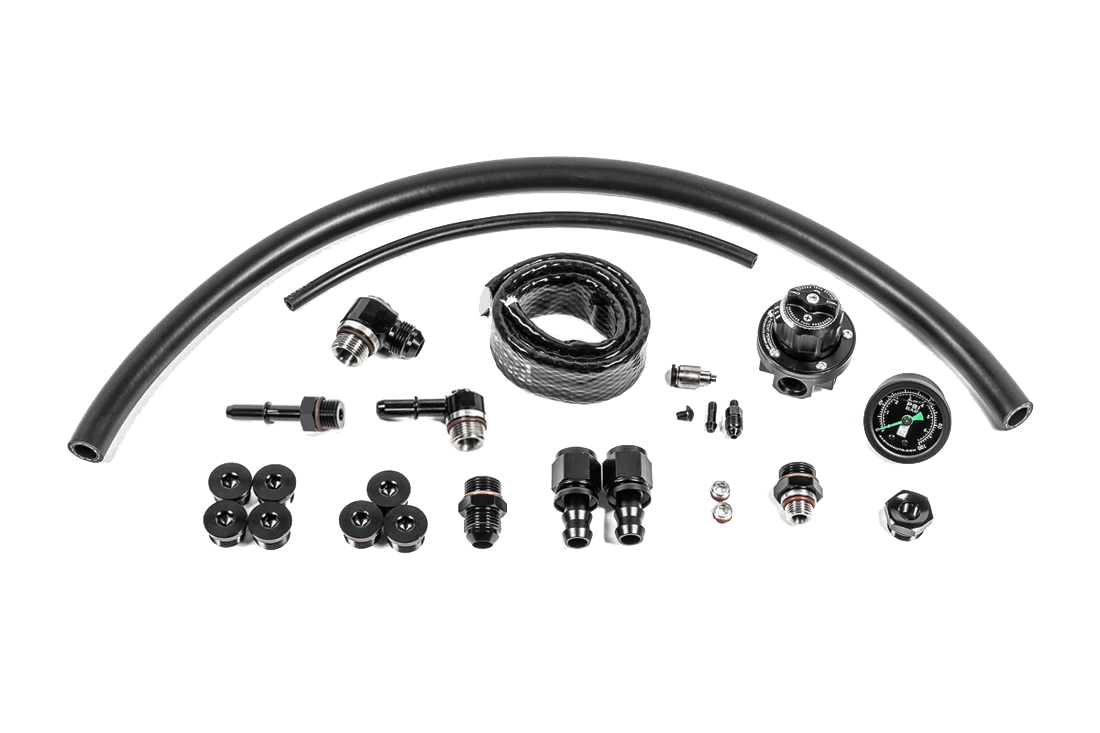

20-1062 Fuel Rail Plumbing Kit, GM Vortec 8100 L18 Big Block, 01-03

This kit includes all the necessary plumbing hardware to permit a plug and play affair with the 20-0862 fuel rails in 01-03 vehicles with a return style fuel system.

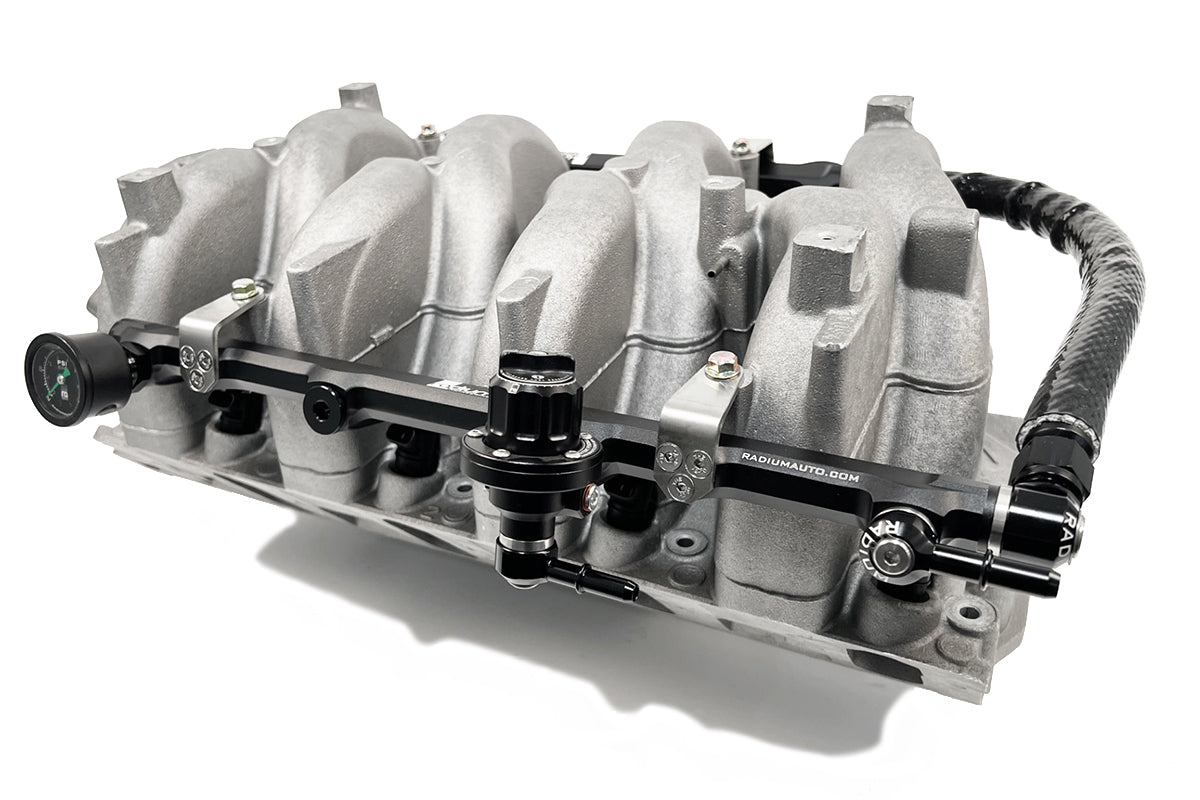

An SAE quick connect adapts to the OEM feed line. An 8AN crossover fuel line routes around the rear of the engine and connects both fuel rails. A fuel pressure gauge and adjustable fuel pressure regulator mount directly to the LH fuel rail. The OEM return SAE quick connector attaches directly to the regulator outlet fitting. 8AN ORB plugs are included for all unused ports. Nothing else is required.

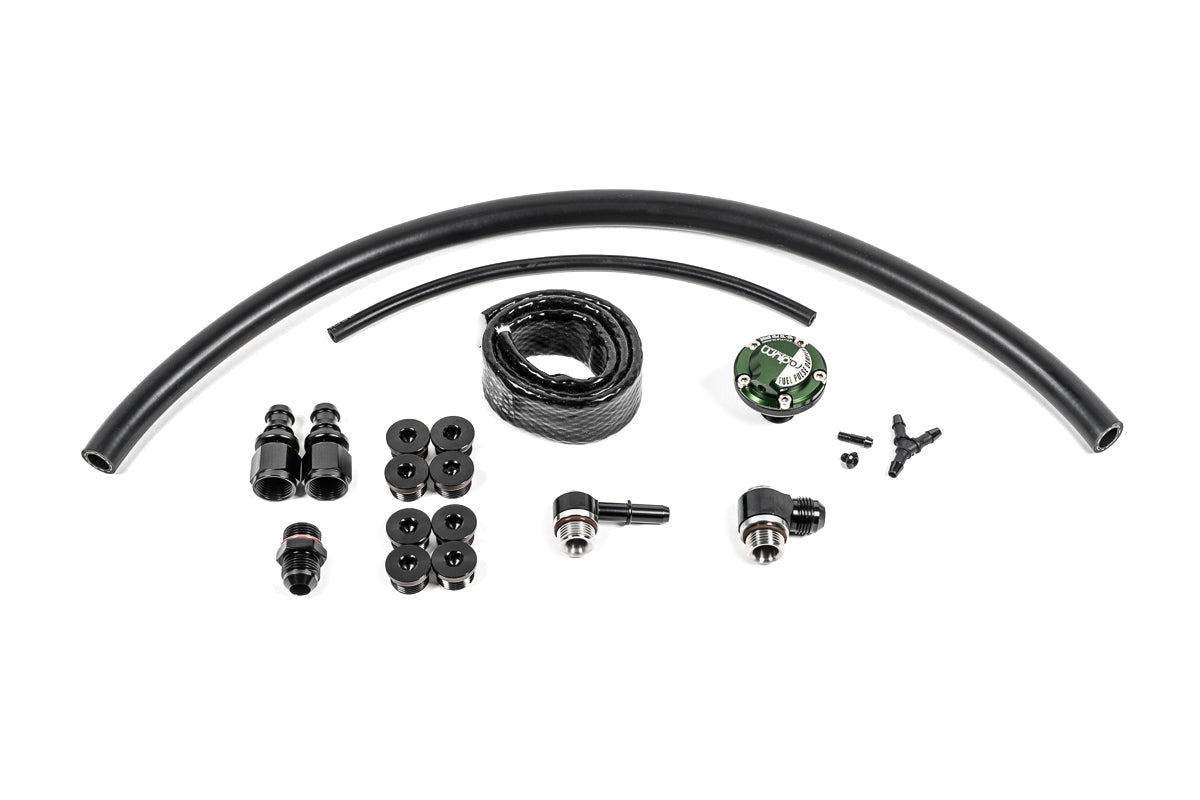

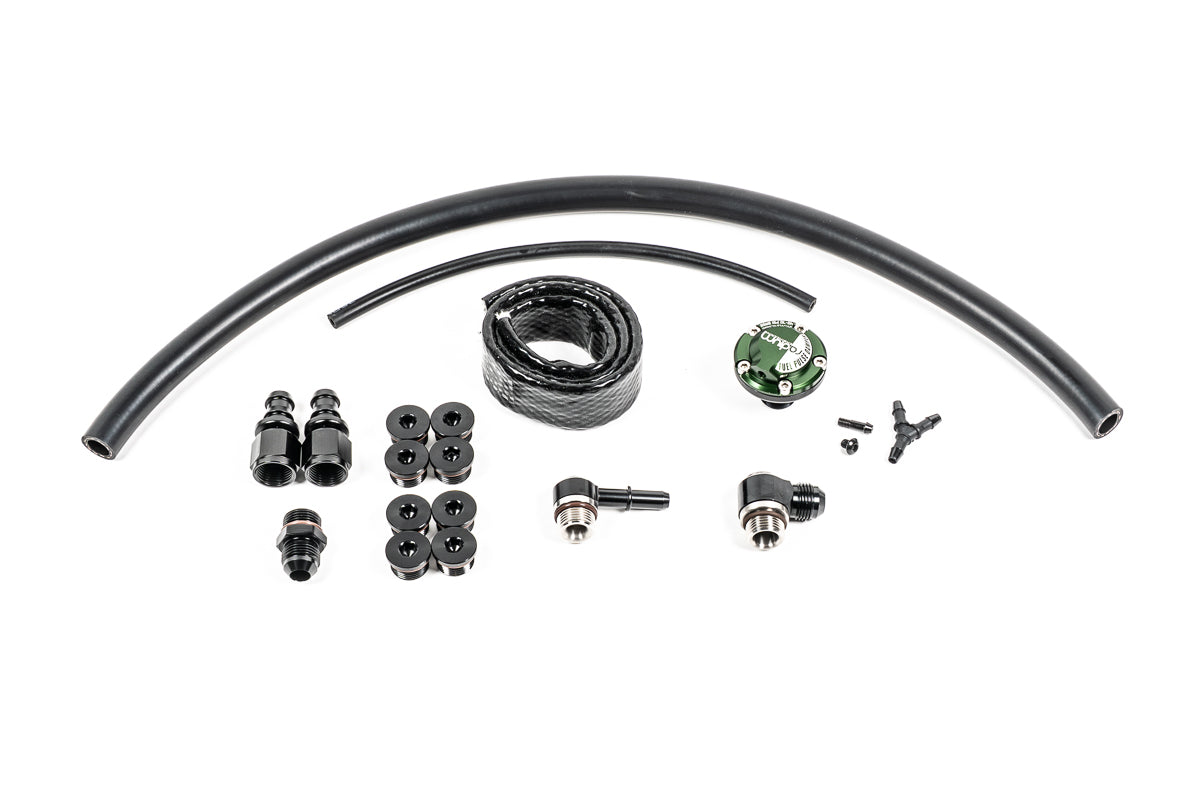

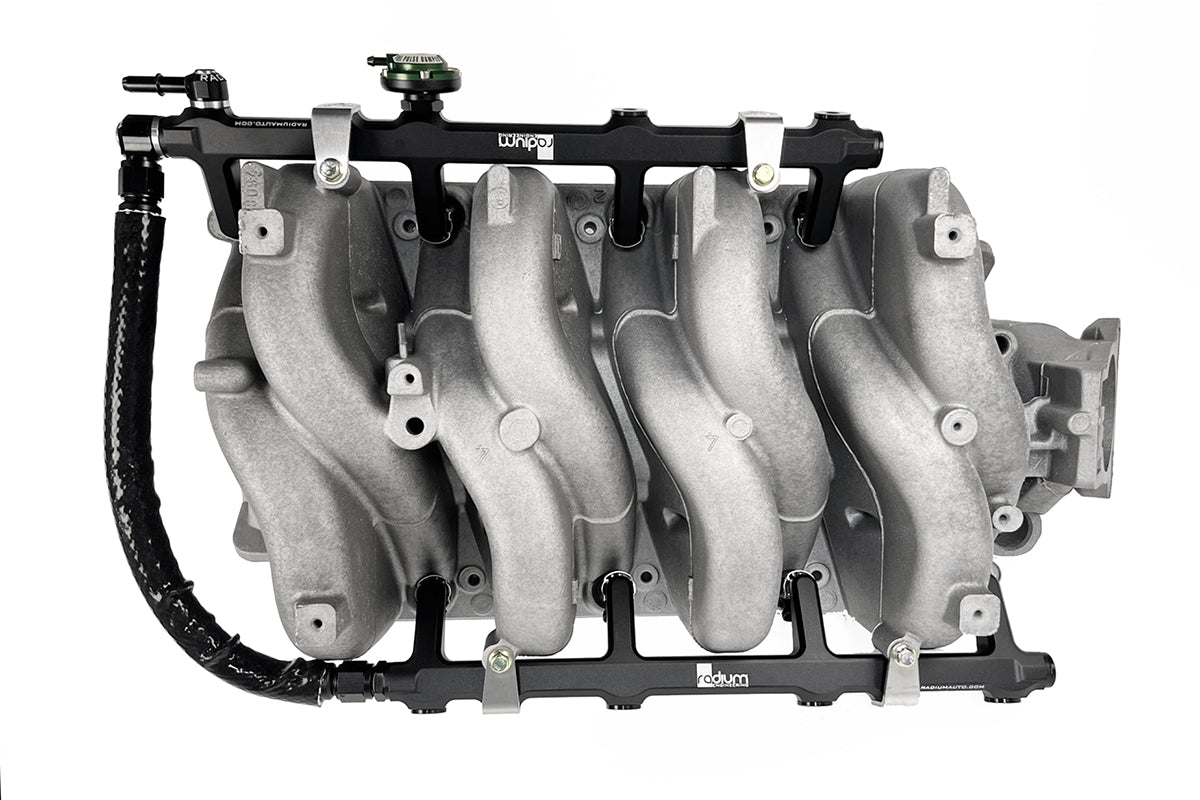

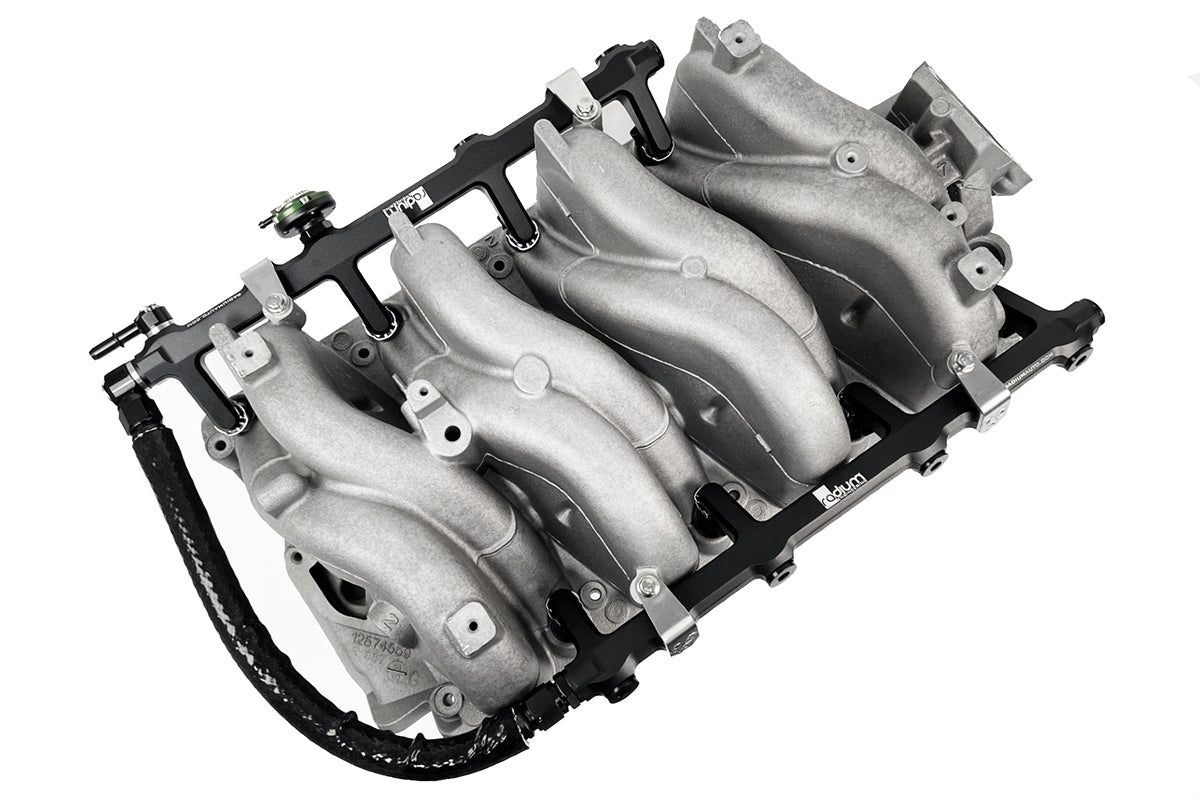

20-1162 Fuel Rail Plumbing Kit, GM Vortec 8100 L18 Big Block, 04-10

This kit includes all the necessary plumbing hardware to permit a plug and play affair with the 20-0862 fuel rails in 04-10 vehicles with a returnless style fuel system.

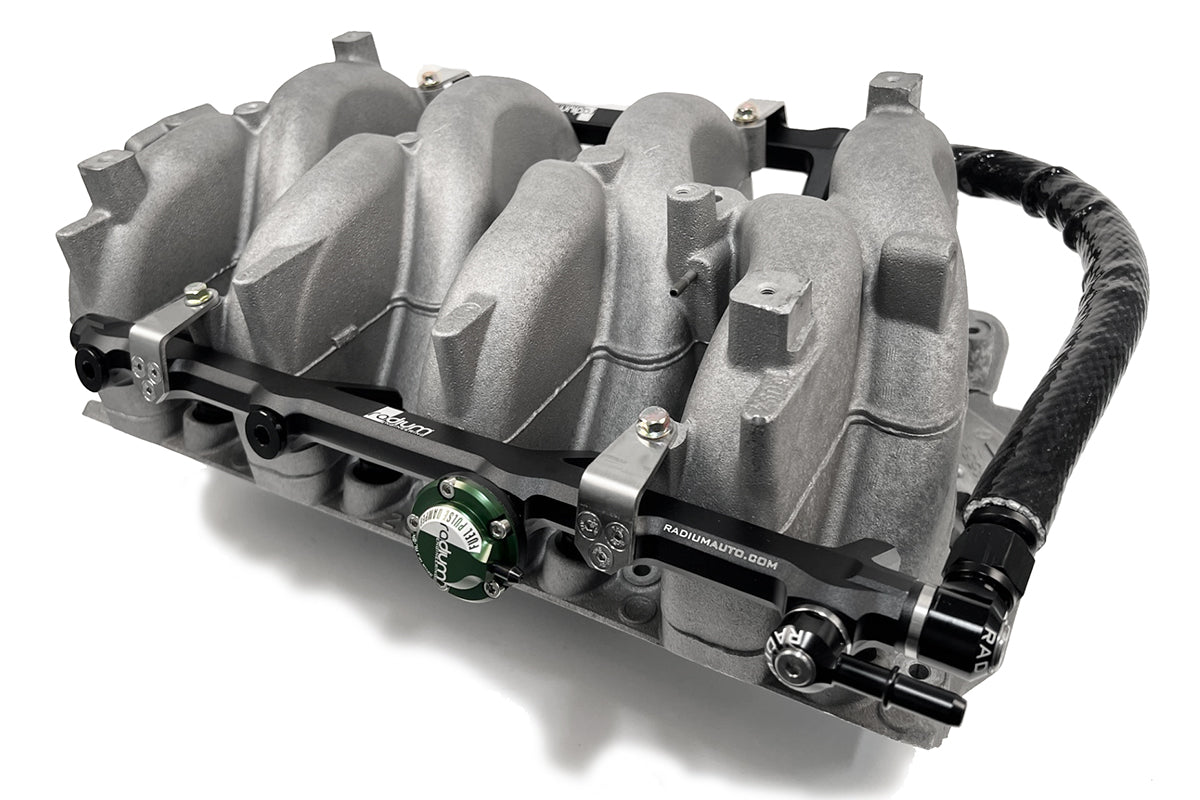

An SAE quick connect adapts to the OEM feed line. An 8AN crossover fuel line routes around the rear of the engine and connects both fuel rails. An improved fuel pulse damper mounts directly to the LH fuel rail to stabilize fuel pressure. 8AN ORB plugs are included for all unused ports. Nothing else is required.
