OVERVIEW

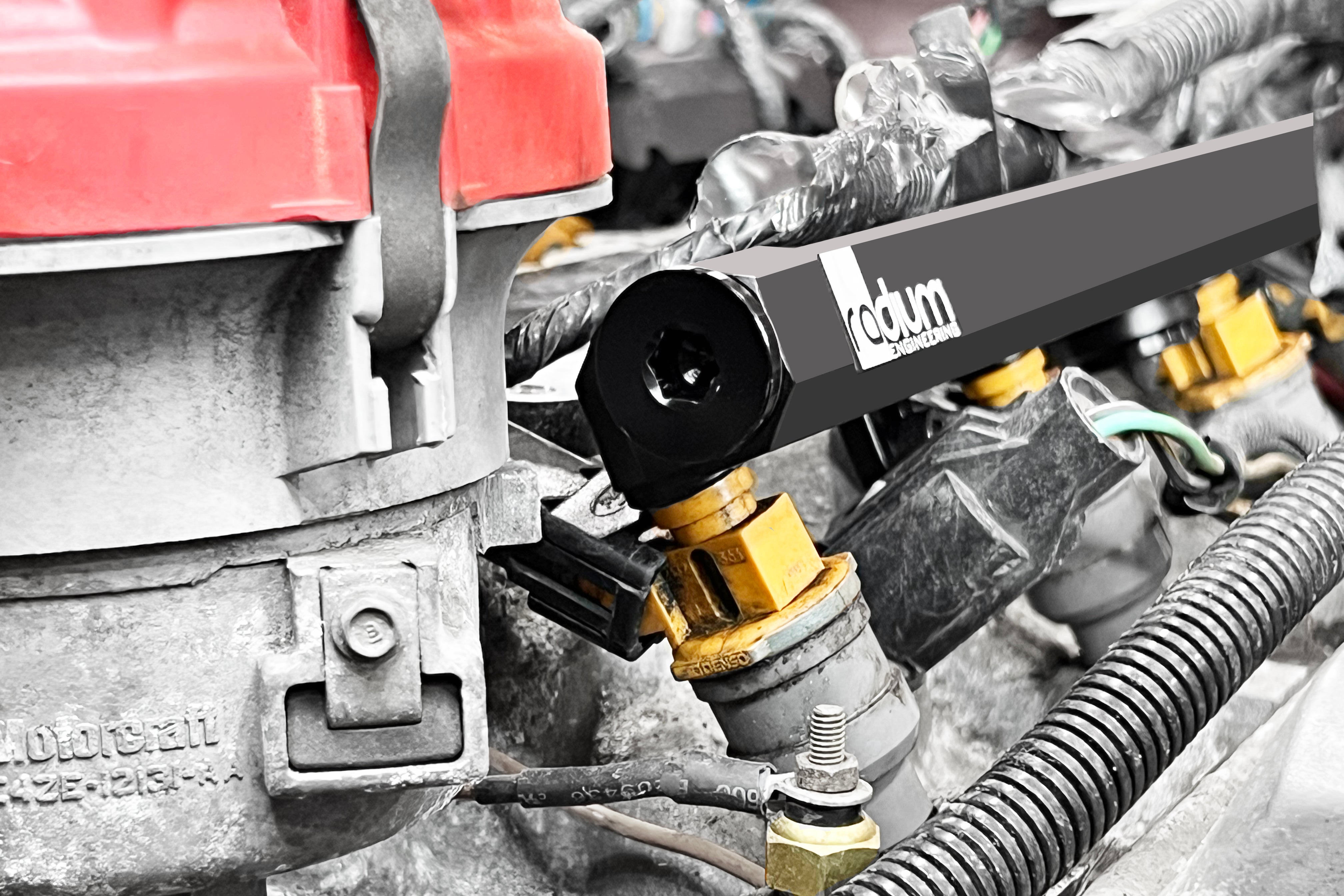

Manufactured with large 5/8" internal bores, the fuel rails can support all necessary engine power requirements. They are CNC machined from 6061 aluminum, black anodized, and laser etched for a high quality surface finish. Each fuel rail has 3 (6 total) 8AN ORB threads. The physical profile features maximized clearance with the distributor, while supporting maximum flow.

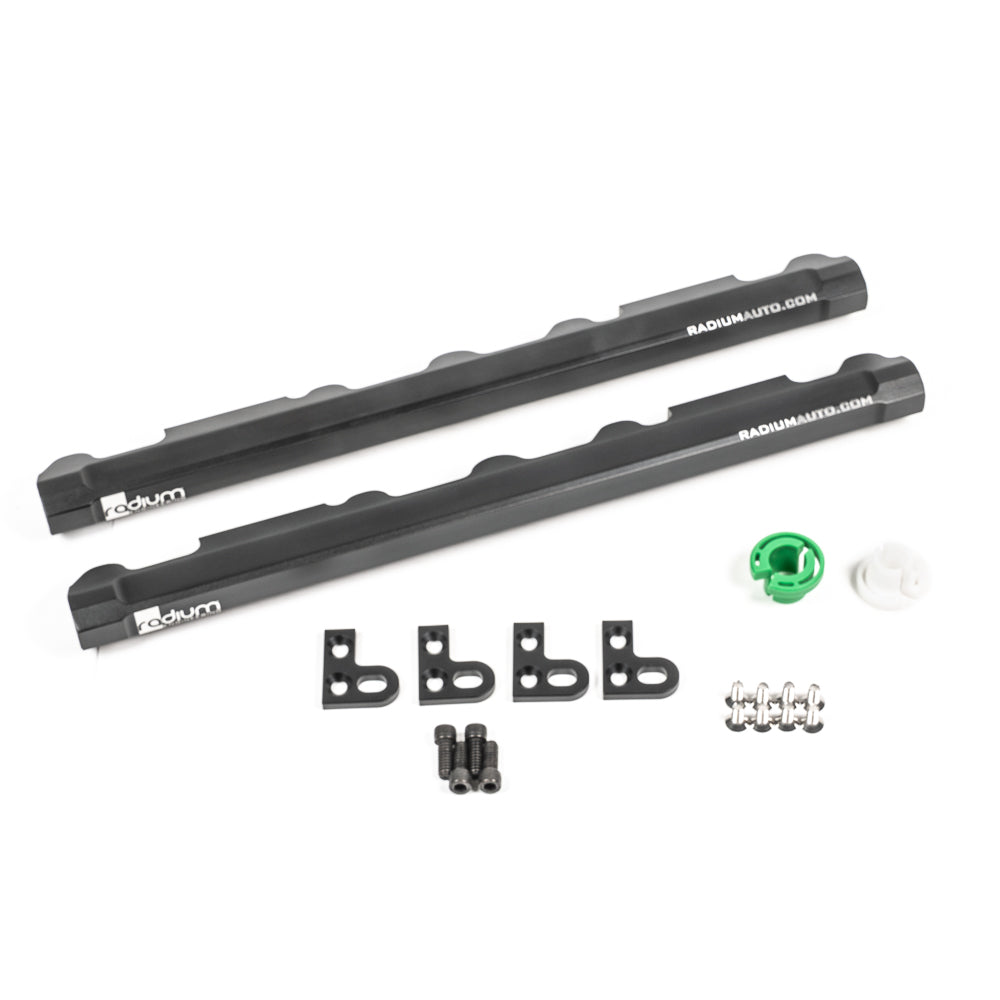

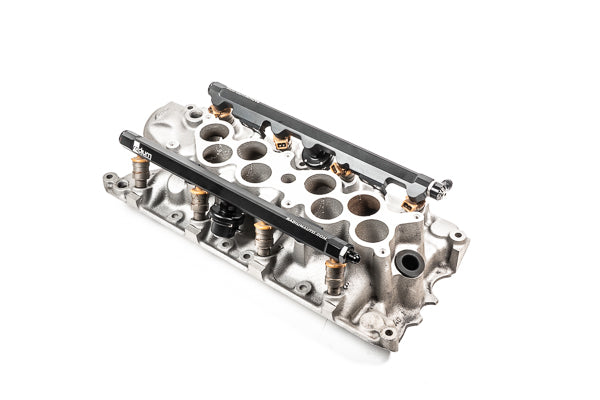

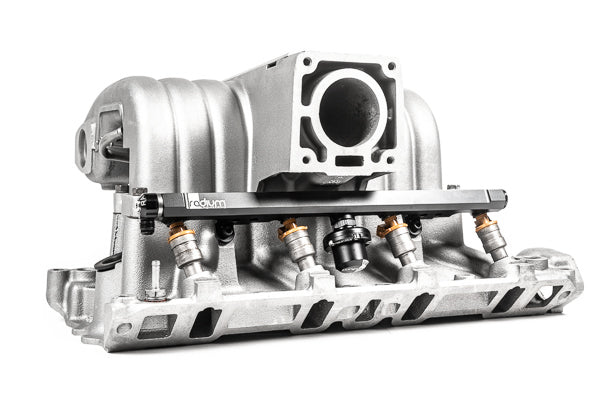

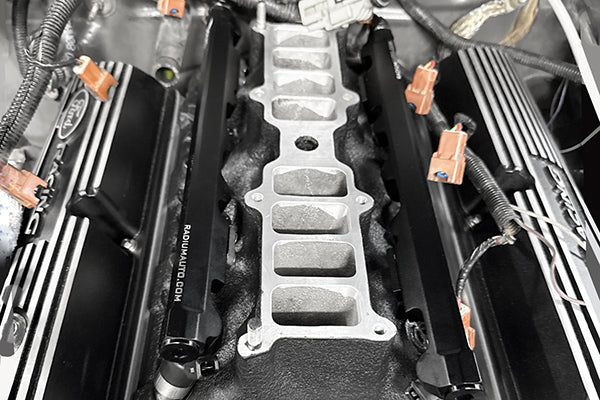

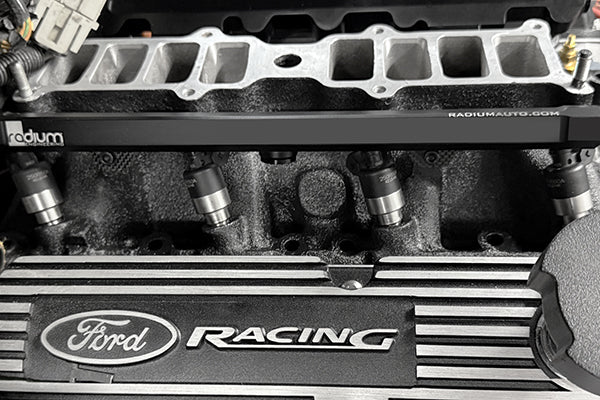

20-1302 Ford 302/351 Windsor Fuel Rails

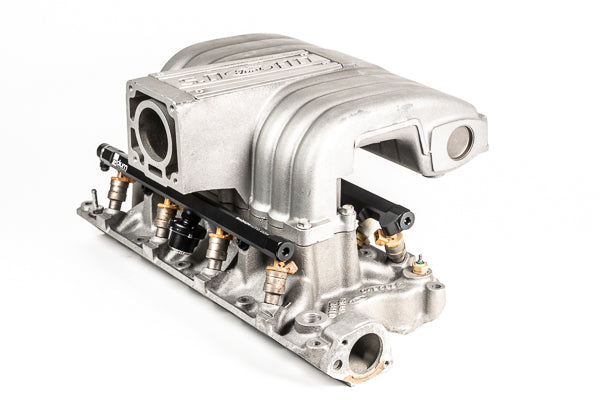

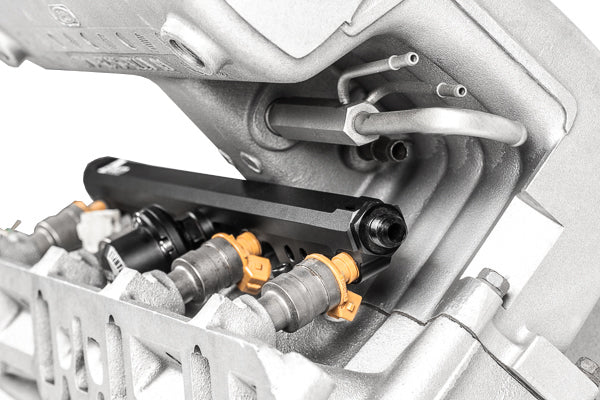

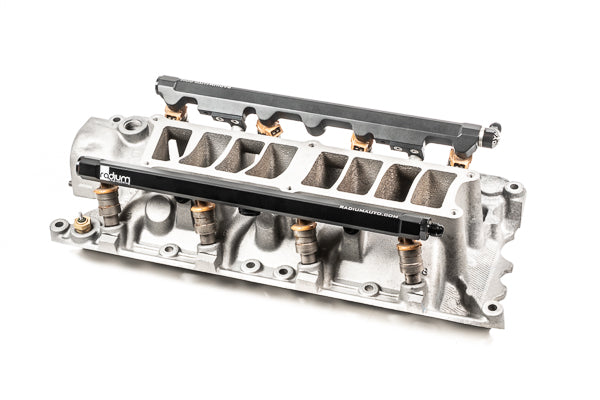

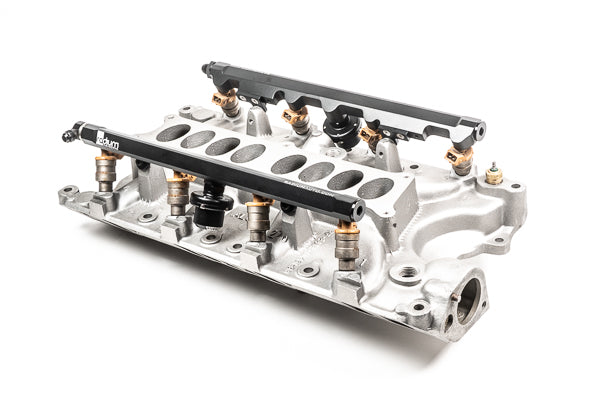

Manufactured with large 5/8' internal bores, the fuel rails can support all necessary engine power requirements. They are CNC machined from 6061 aluminum, black anodized, and laser etched for a high quality surface finish. Each fuel rail has 3 (6 total) 8AN ORB threads. The physical profile features maximized clearance with the distributor, while supporting maximum flow. Because of this innovative design, the fuel injectors are installed in an exact perpendicular orientation with respect to the LIM injector seats, exactly like OEM. No spacers required. These fuel rails are compatible with all fuel types including popular alcohol mixtures such as E85.

COMPATIBILITY

88-96 Ford Bronco
88-96 Ford E-Series
96-01 Ford Explorer
91-02 Ford Fairlane
91-02 Ford Falcon
88-97 Ford F-Series
88-91 Ford LTD Crown Victoria
86-95 Ford Mustang
93-95 Ford Mustang Cobra
93-95 Ford Mustang Cobra R
91-93 Ford Thunderbird
87-92 Lincoln Mark VII
1986 Mercury Capri
88-91 Mercury Colony Park
91-93 Mercury Cougar
88-91 Mercury Marquis
97-01 Mercury Mountaineer
90-96 Panoz Roadster

COMPATIBLE MANIFOLDS

302 HO
302 Truck
351 Windsor Lightning
Explorer
Cobra
GT40

FUEL INJECTOR COMPATIBILITY

Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Aftermarket injectors must match the OEM height and o-ring dimensions. Radium Engineering cannot specify any further injector dimensions other than stating "OEM equivalent".

INCLUDES

Black Anodized Laser Etched Aluminum Fuel Rails
Black Anodized Aluminum Fuel Rail Mounts
Black Oxide Stainless Steel 1/4'-20 Screws
Stainless Steel M5x0.8mm Screws

PORTS AND FITTINGS

The fuel rail ports are tapped for 8AN ORB and 1/8 NPT fittings.

8AN ORB Adapter Fittings can be found HERE
8AN ORB Direct Mount Regulators can be found HERE
8AN ORB Fuel Pulse Dampers can be found HERE

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

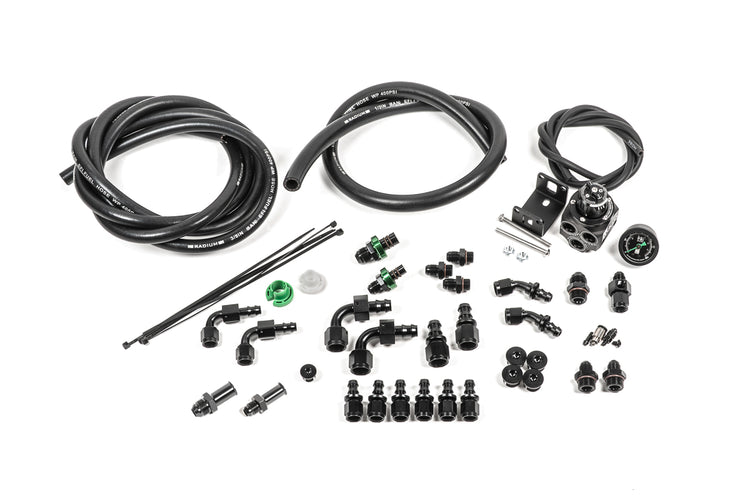

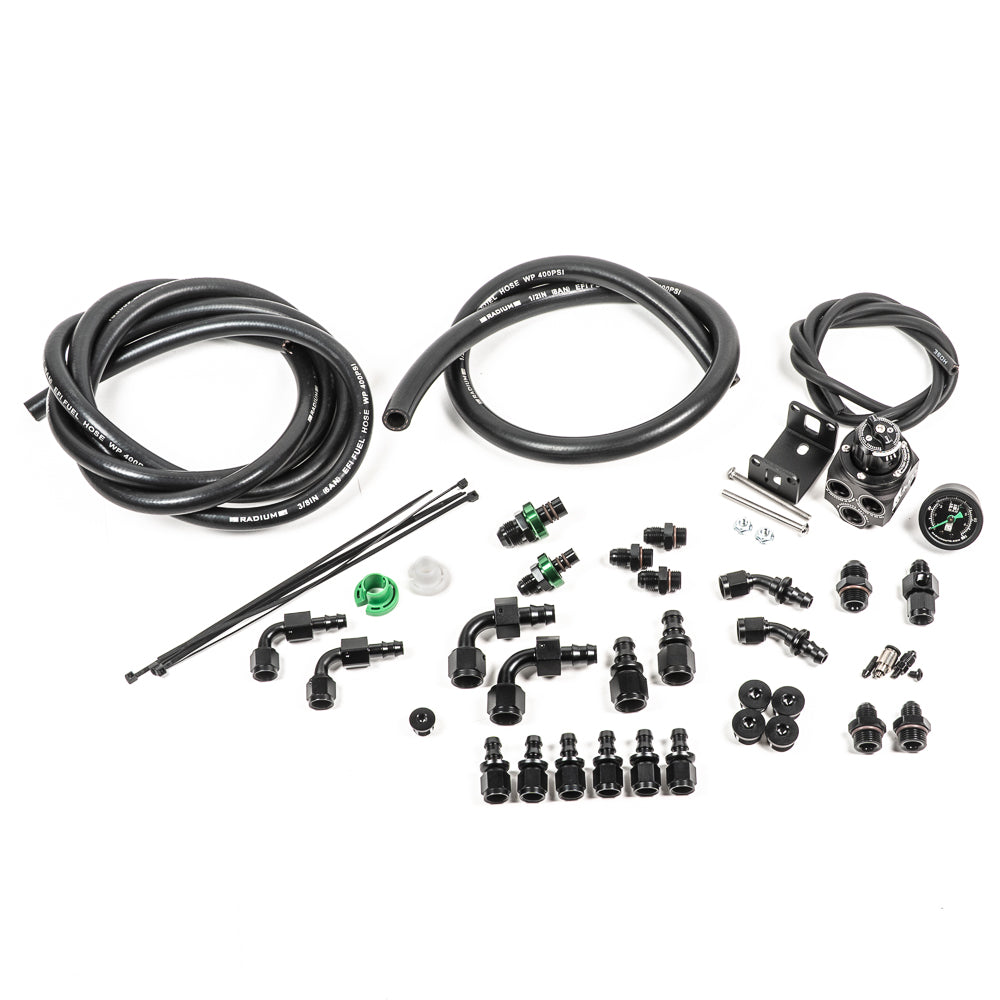

20-1302-PK Fuel Rail Plumbing Kit, Ford 302/351 Windsor

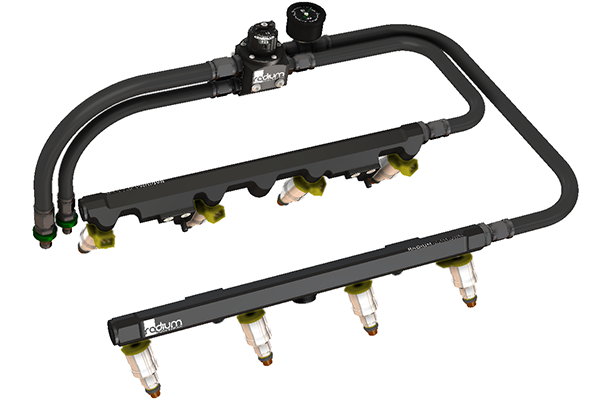

Using an assortment of PushLok hose ends with EFI hose, the fuel rail plumbing kit can be customized to any vehicle using the 20-1302 302/351 Windsor fuel rails. It replaces all OEM components downstream of the OEM spring lock fuel lines. Through a high flowing dead head Radium Engineering multiport regulator (MPR-RA), the fuel rails are ran in parallel for even fuel distribution.

With the provided 1:1 fuel pressure regulator and gauge, fuel pressure can be easily calibrated and kept in check. The EFI hoses are compatible will all fuel types including E85. Plugs are included for all unused ports.
