Description

COMPATIBILITY

Spring-Lock couplers are commonly found in many vehicle hard lines including Ford, GM, Chrysler, Toyota, Honda, Nissan, etc.

Specific to fitment on fuel lines, the following vehicles have been confirmed

88-96 Ford Bronco
88-96 Ford E-Series
96-01 Ford Explorer
91-02 Ford Fairlane
91-02 Ford Falcon
88-97 Ford F-Series
93-95 Ford Lightning
88-91 Ford LTD Crown Victoria
86-95 Ford Mustang
93-95 Ford Mustang Cobra
93-95 Ford Mustang Cobra R
91-93 Ford Thunderbird
87-92 Lincoln Mark VII
1986 Mercury Capri
88-91 Mercury Colony Park
91-93 Mercury Cougar
88-91 Mercury Marquis
97-01 Mercury Mountaineer
90-96 Panoz Roadster

Specific to fitment on A/C systems, the following vehicles have been confirmed

02-09 Nissan 350Z

OVERVIEW

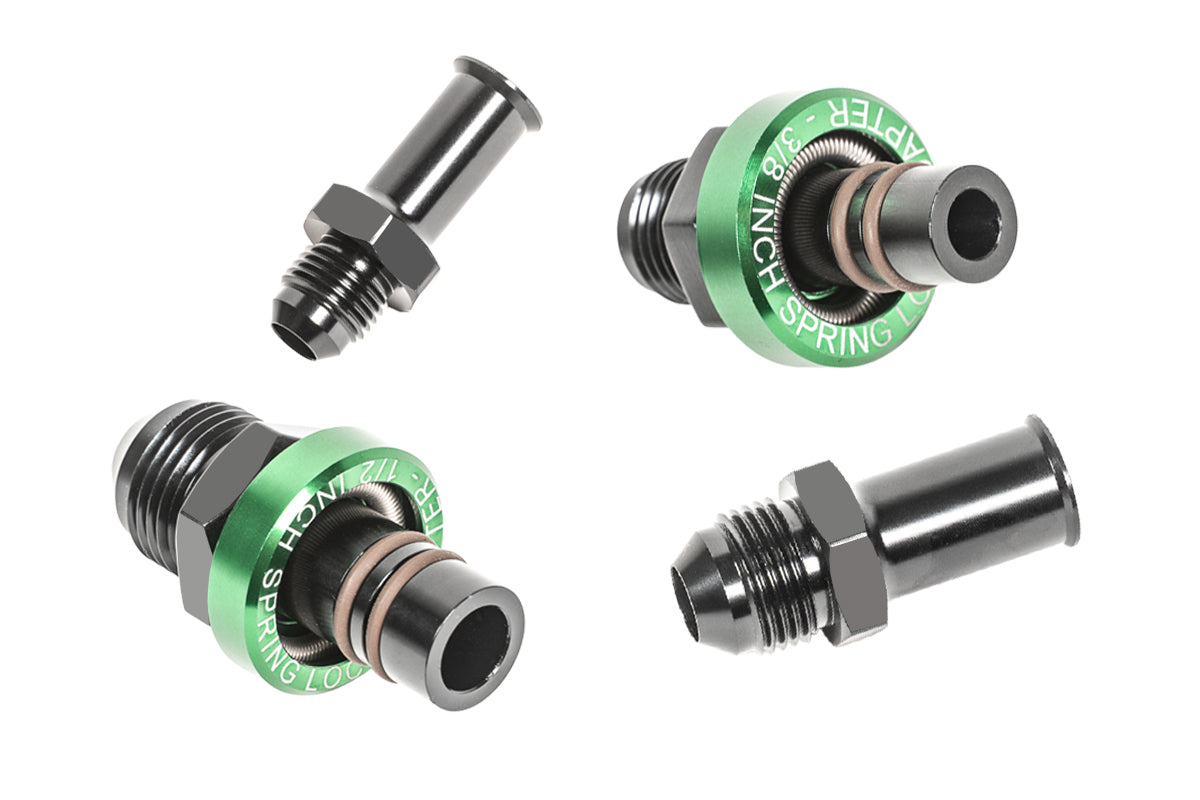

These fittings are machined from 6061 aluminum and anodized for corrosion resistance. The integrated O-rings are FKM making the fittings compatible with gasoline and alcohol fuels, such as E85.

For separating, a Spring-Lock disconnect tool is required. Slide the tool along the female fitting and push it into the male fitting. While holding the inserted tool in place, an internal spring releases the lock and the fittings can be disengaged.

When making the connection, first be sure the O-rings on the male fitting are well lubricated. Simply insert the male fitting into the female fitting until an audible "click" is heard. To confirm they have properly locked together, apply tension to the connection by giving it a tug.

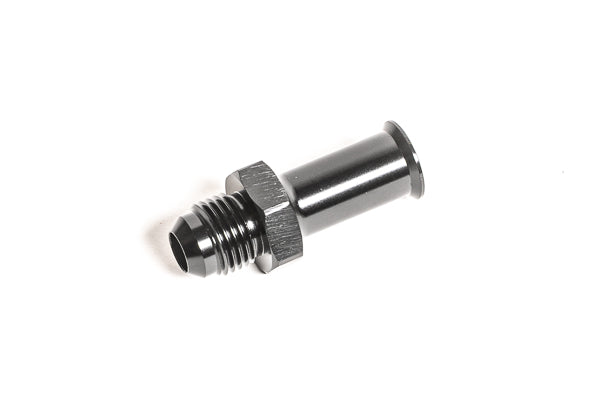

	14-0766 6AN Male to 3/8in Spring Lock Female Converts a 3/8" male spring lock line to 6AN male

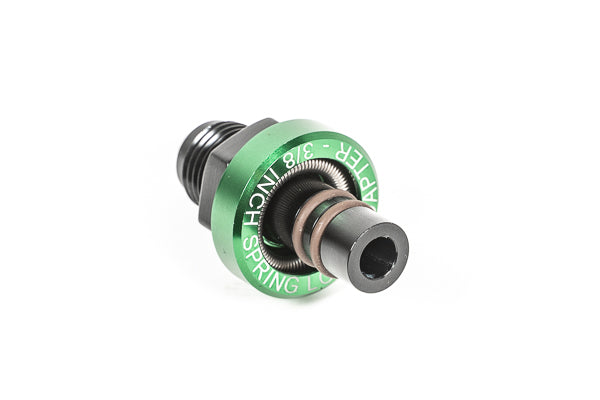

	20-1766 6AN Male to 3/8in Spring Lock Male Converts a 3/8" female spring lock line to 6AN male

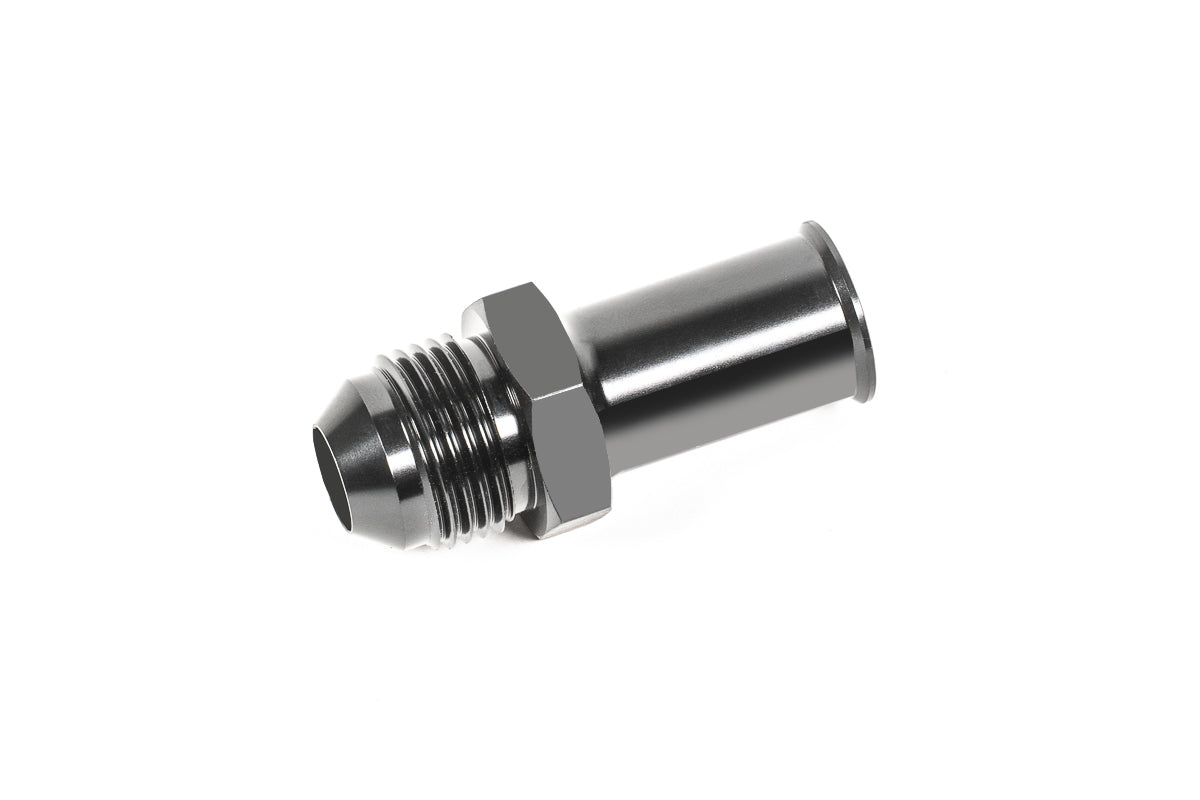

	14-0767 8AN Male to 1/2in Spring Lock Female Converts a 1/2" male spring lock line to 8AN male

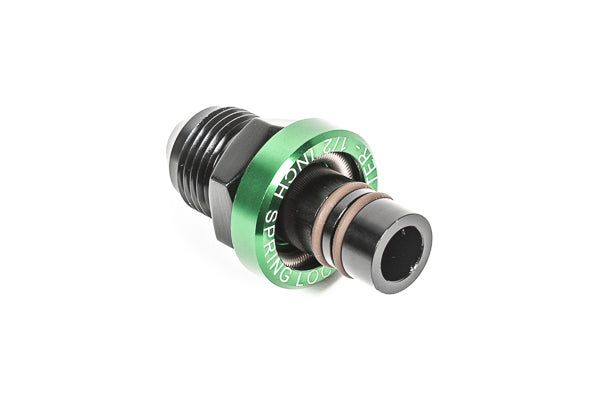

	20-1767 8AN Male to 1/2in Spring Lock Male Converts a 1/2" female spring lock line to 8AN male
