Description

COMPATIBILITY

1991-1998 Nissan 240SX KA24DE
1997-2000 Nissan R'nessa KA24DE
1998-2001 Nissan Presage U30 KA24DE
1999-2001 Nissan Bassara U30 KA24DE
1993-1997 Nissan Bluebird KA24DE

When using with an Xcessive intake manifold, please note that the fuel rail may need to be shimmed to the proper height depending on fuel injectors used. Also, the injector seats included in the kit will not be used.

OVERVIEW

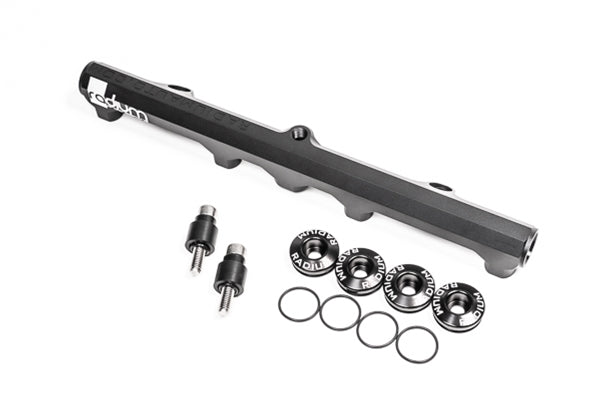

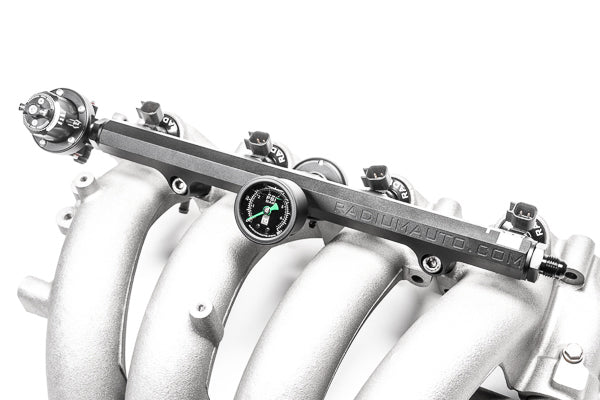

This Radium Engineering fuel rail is a direct bolt-on with all twin cam Nissan KA24DE engines. Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed allowing the use of high flow 14mm O-ring fuel injectors.

The rail is CNC machined from solid 6061 aluminum and black anodized making it compatible with all fuel types including E85.

FUEL INJECTOR COMPATIBILITY

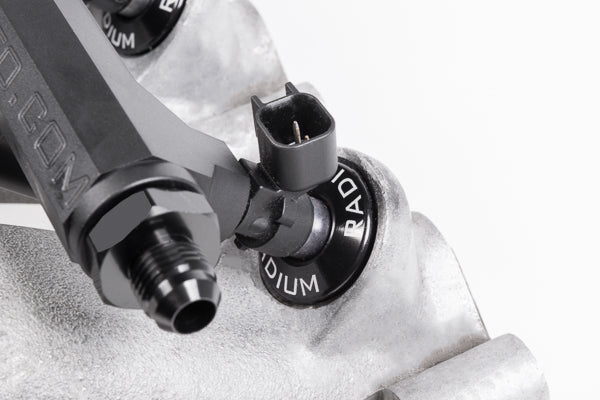

The kit includes thermal insulating spacers to suit 34mm height universal injectors. Injectors must have 14mm O-rings top and bottom and must match the 34mm height dimensions shown below.

Many injector manufacturers will have applications with these dimensions. Here are a few examples of applicable injector part number from Injector Dynamics:

Injector Dynamics ID1050-XDS-34-14-14
Injector Dynamics ID1300-XDS-34-14-14
Injector Dynamics ID1700-XDS-34-14-14
Injector Dynamics ID2600-XDS-34-14-14

Fuel Injectors are NOT included and must be purchased elsewhere.

PORTS AND FITTINGS

This fuel rail features three ports that are tapped for 8AN ORB (ends and bottom)
It also has one 1/8 NPT port (top)

8AN ORB Adapter Fittings can be found HERE
8AN ORB Direct Mount Regulators can be found HERE
8AN ORB Fuel Pulse Dampers can be found HERE
1/8 NPT Adapter Fittings can be found HERE
Fuel Pressure Gauge Adapters can be found HERE

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
