Name: Fuel Rail, Mazda MZR and Ford Duratec
Brand: Radium Engineering
SKU: NULL
Availability: OutOfStock

COMPATIBILITY

2.0L Mazda MZR (DOHC Inline-4) commonly found in 05-15 Mazda MX-5 NC
2.0L Ford Duratec (DOHC Inline-4) commonly found in Ford Focus
2.3L Ford Duratec (DOHC Inline-4) commonly found in Ford Focus

FUEL INJECTORS

There are two type of fuel rails made by Radium: upgrade rails and top feed conversion rails. Upgrade rails only upgrade the rail and the OEM fuel injectors can be reused. If an upgrade to the injectors is desired, they must be equivalent to the OEM injector, meaning they must be the same height and the upper & lower O-rings must match the OEM diameters and styles. Top feed conversion rails are used to convert a vehicle that has side feed (or sometimes air-assist) injectors over to a top feed injector.

This fuel rail is an upgrade rail. OEM or OEM equivalent injectors must be used.

Radium does not make fuel injector recommendations.

Consult your tuner for injector brand or flow rate recommendations.
Consult the injector manufacturer for a part number that has the correct dimensions.

OVERVIEW

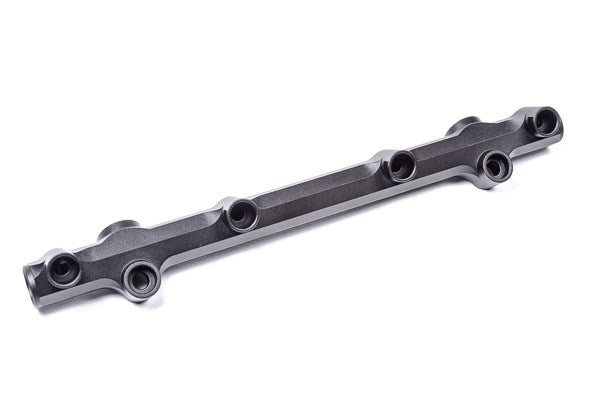

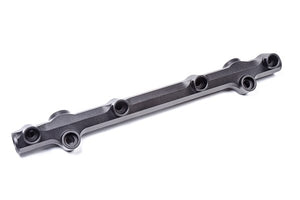

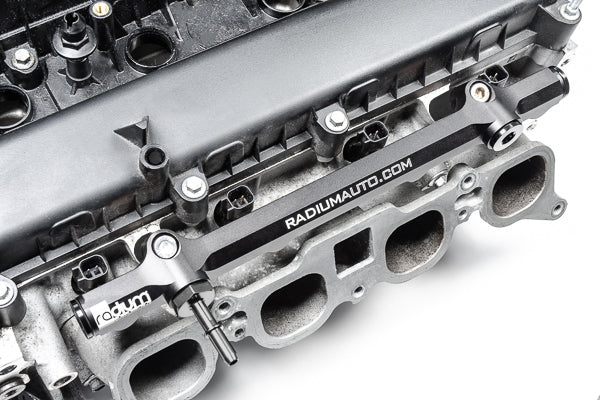

20-0503-02 Fuel Rail, Mazda MZR and Ford Duratec

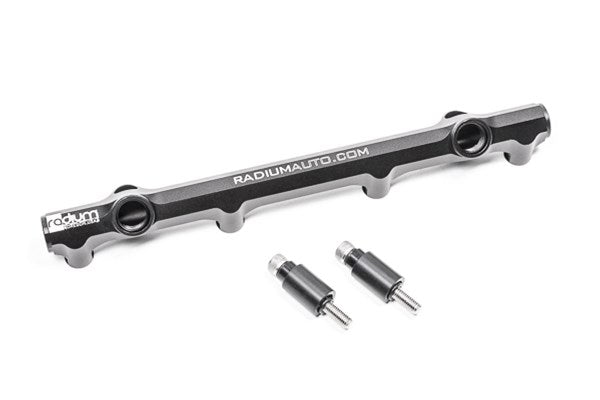

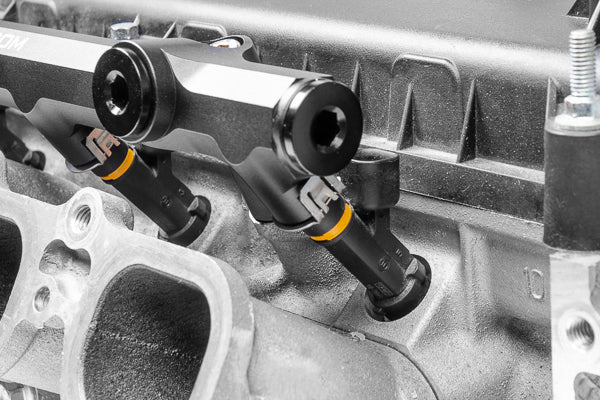

This Radium Engineering fuel rail is CNC machined from extruded 6063 aluminum, black anodized, and laser etched for a high quality surface finish. Like the original fuel rails, the injector bores are 14mm ID so factory injectors are permitted. Provisions for the OEM injector retaining clips are implemented as well. The rails are compatible with all fuel types including popular alcohol mixtures such as E85. Spacers and washers are included to thermally insulate the fuel rail from the cylinder head.

The fuel rail ports are tapped for 8AN ORB fittings.

8AN ORB Adapter Fittings can be found HERE
8AN ORB Direct Mount Regulators can be found HERE
8AN ORB Fuel Pulse Dampers can be found HERE
Fuel Pressure Gauge Adapters can be found HERE

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

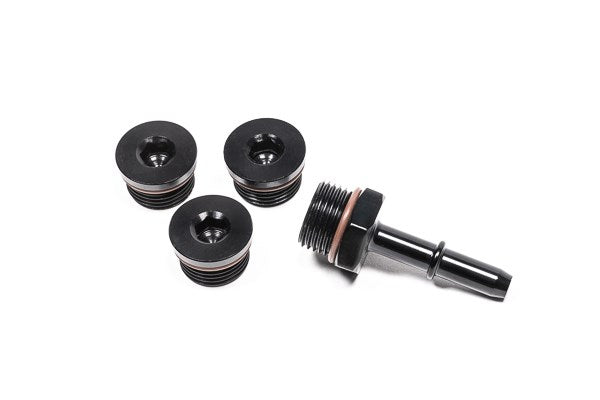

20-0503-PK Fuel Rail Plumbing, Mazda MZR and Ford Duratec

This kit includes all of the necessary adapters making the 20-0503-02 fuel rail a direct OEM fuel rail replacement. NOTE: For early Duratec engines, see below.

20-1303 Ford Sensor Adapter 8AN ORB 16mm Bore 41mm Offset Spacing M5

COMPATIBILITY

05-09 Ford Focus

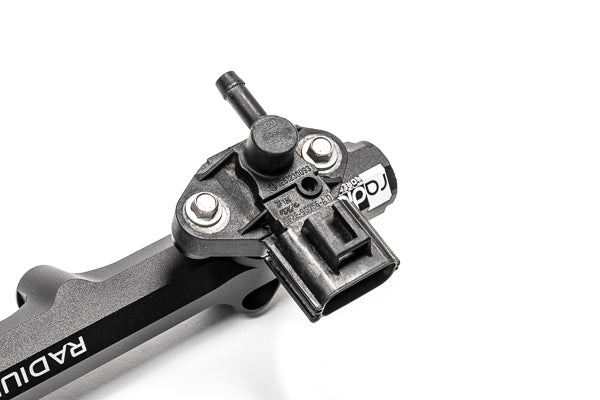

05-08 Ford Escape
