Description

COMPATIBILITY

Ford Falcon BA Turbo Barra
Ford Falcon BF Turbo Barra
Ford Falcon FG Turbo Barra
Ford Falcon FG Non Turbo Barra

Compatible with all fuel types including popular alcohol mixtures such as E85

OVERVIEW

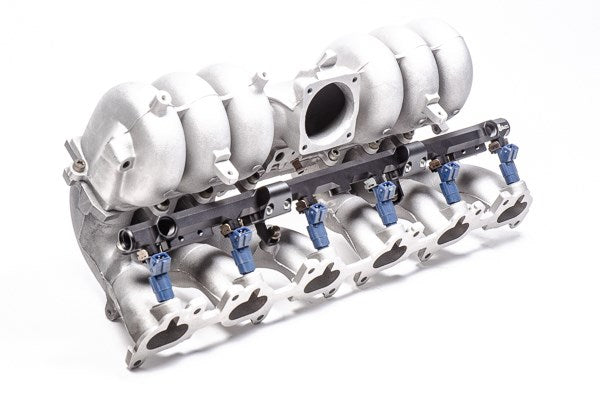

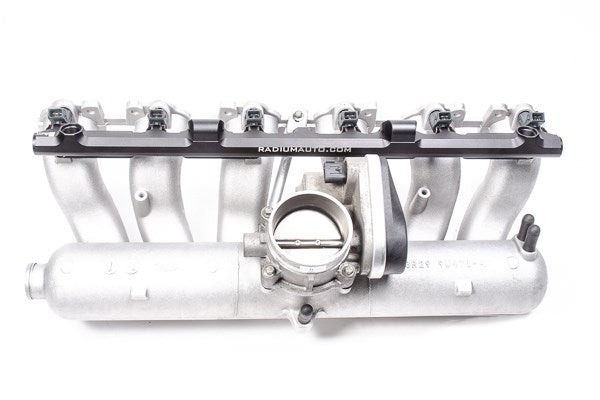

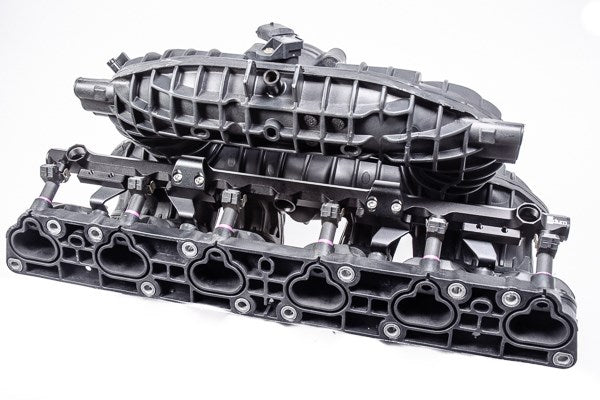

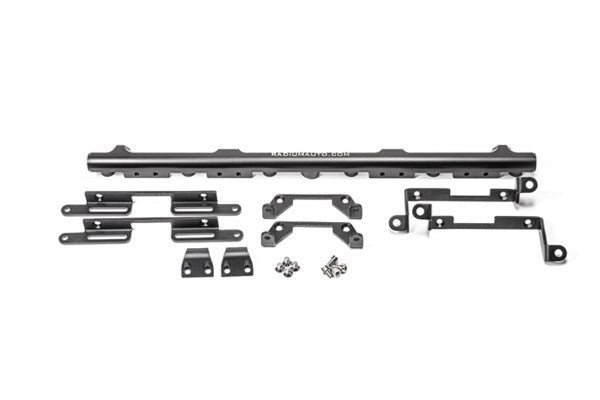

This Radium Engineering fuel rail is CNC machined from extruded 6063 aluminum, black anodized, and laser etched for a high quality surface finish. It features a large 0.69' center bore for optimal flow.

FUEL INJECTORS

There are two type of fuel rails made by Radium: upgrade rails and top feed conversion rails. Upgrade rails only upgrade the rail and the OEM fuel injectors can be reused. If an upgrade to the injectors is desired, they must be equivalent to the OEM injector, meaning they must be the same height and the upper & lower o-rings must match the OEM diameters and styles. Top feed conversion rails are used to convert a vehicle that has side feed (or sometimes air-assist) injectors over to a top feed injector.

This fuel rail is an upgrade rail. OEM or OEM equivalent injectors must be used.

Radium does not make fuel injector recommendations.

Consult your tuner for injector brand or flow rate recommendations.
Consult the injector manufacturer for a part number that has the correct dimensions.

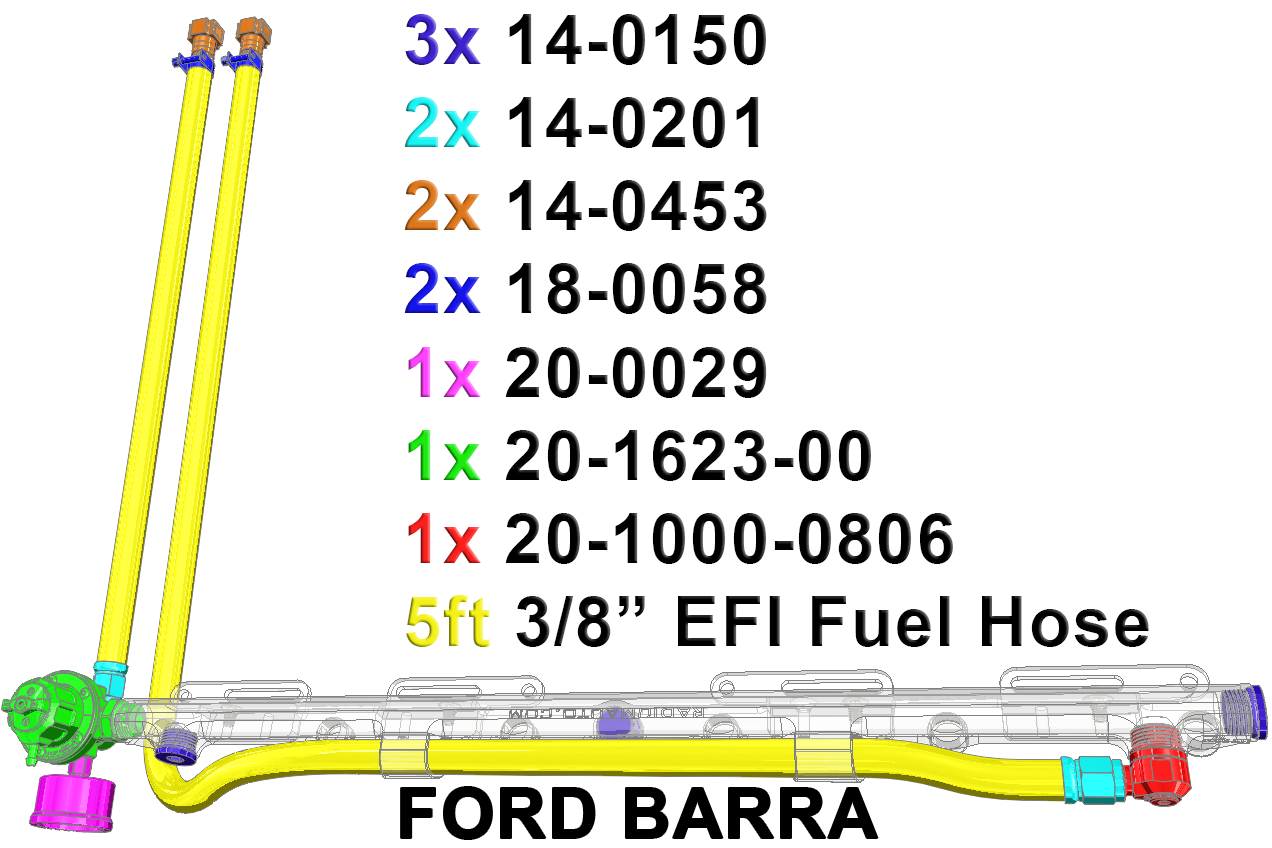

PORTS AND FITTINGS

The fuel rail ports are tapped for 8AN ORB.

8AN ORB Adapter Fittings can be found HERE.
8AN ORB Direct Mount Regulators can be found HERE.
8AN ORB Fuel Pulse Dampers can be found HERE.
Fuel Pressure Gauge Adapters can be found HERE.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
