COMPATIBILITY

• 1993-1995 Mazda FD RX-7 (US)
• 1992-2002 Mazda FD RX-7 (JDM)

OVERVIEW

The OEM fuel filter on these vehicles is very difficult to service. This kit however, mounts the fuel filter in an easily accessible area on the rear subframe. The mounts feature cooling fins that benfit from the cool air flow in this area. This helps lower the heat generated by high current, high pressure fuel pump(s).

Because it is for custom setups, it requires the separate purchase of a Radium Fuel Filter, 10AN ORB fittings, and fuel feed hose.

PLUMBING

There are many variables for plumbing the fuel filter including. However, one thing that will be necessary are 90 degree fittings on both ends of the filter.

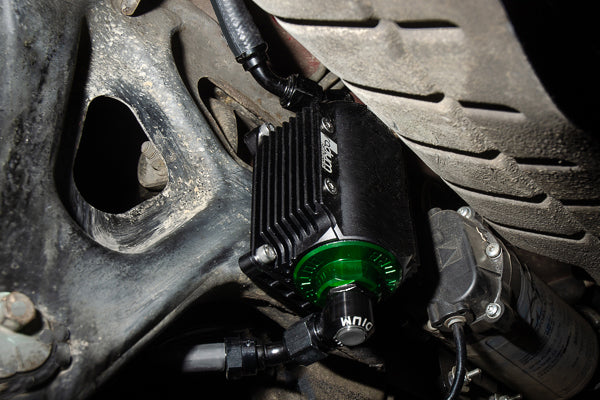

For reference, the following fittings shown in the example below are:

• 20-1000-1008 10AN ORB Swivel Banjo to 8AN Male
• 14-0207 PushLok Hose End, 8AN, 45Deg

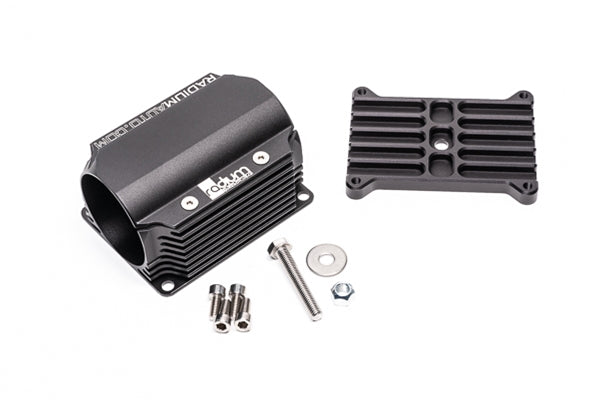

INCLUDES

• Anodized and Laser Engraved Heat Exchanger
• Anodized Aluminum FD RX7 Filter Mount
• Stainless Steel Hardware
