COMPATIBILITY
Safe for use in all fuel types, oil and engine coolant.

OVERVIEW

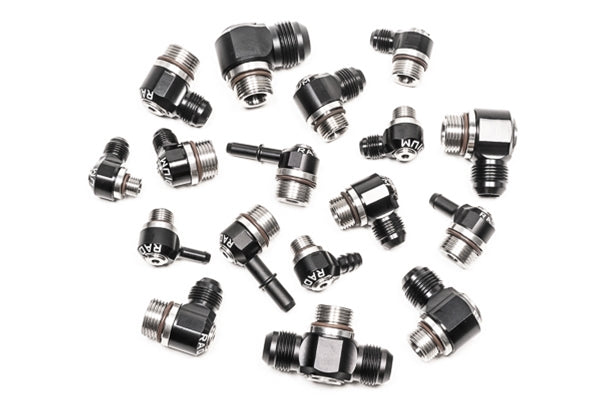

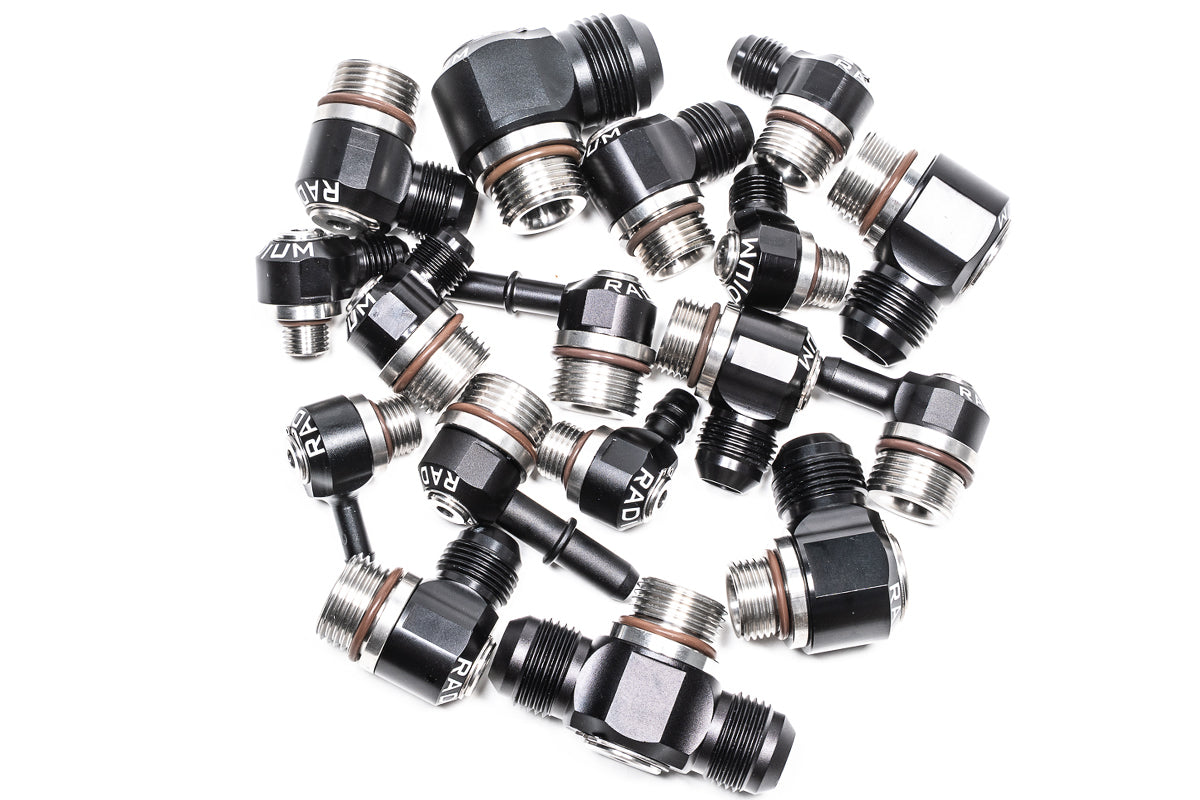

These swiveling fittings have the ability to rotate 360 degrees, even after installation. They are an excellent option for 90-degree connections and are very low profile. They are suitable for use in high pressure fuel and oil systems. Do not exceed 400 psi.

SPECS & FEATURES

4AN ORB Fittings

  • 20-1000-04xx Fittings Installed Height (bottom installed surface to top): 0.797in (20.2mm)

6AN ORB Fittings

  • 20-1000-06xx Fittings Installed Height (bottom installed surface to top): 0.797in (20.2mm)

Exceptions:

  • 20-1000-0612S Installed Height (bottom installed surface to top): 1.019in (25.9mm)
  • 20-1000-0608 Installed Height (bottom installed surface to top): 1.019in (25.9mm)

8AN ORB Fittings

  • 20-1000-08xx Fittings Installed Height (bottom installed surface to top): 0.797in (20.2mm)

Exceptions:

  • 20-1000-0808 Installed Height (bottom installed surface to top): 1.019in (25.9mm)
  • 20-1000-0812S Installed Height (bottom installed surface to top): 1.019in (25.9mm)
  • 20-1000-0810 Installed Height (bottom installed surface to top): 1.121in (28.5mm)
  • 20-1000-0816S Installed Height (bottom installed surface to top): 1.121in (28.5mm)

10AN ORB Fittings

  • 20-1000-1006 Installed Height (bottom installed surface to top): 0.797in (20.2mm)
  • 20-1000-1006F Installed Height (bottom installed surface to top): 0.797in (20.2mm)
  • 20-1000-1010B Installed Height (bottom installed surface to top): 0.797in (20.2mm)
  • 20-1000-1010S Installed Height (bottom installed surface to top): 0.797in (20.2mm)
  • 20-1000-1065 Installed Height (bottom installed surface to top): 0.797in (20.2mm)
  • 20-1000-1085 Installed Height (bottom installed surface to top): 0.797in (20.2mm)
  • 20-1000-10313 Installed Height (bottom installed surface to top): 0.797in (20.2mm)
  • 20-1000-10375 Installed Height (bottom installed surface to top): 0.797in (20.2mm)

  • 20-1000-1008 Installed Height (bottom installed surface to top): 1.019in (25.9mm)
  • 20-1000-1012S Installed Height (bottom installed surface to top): 1.019in (25.9mm)

  • 20-1000-1010 Installed Height (bottom installed surface to top): 1.121in (28.5mm)
  • 20-1000-101010 Installed Height (bottom installed surface to top): 1.121in (28.5mm)

  • 20-1000-1012 Installed Height (bottom installed surface to top): 1.286in (32.7mm)
  • 20-1000-1016S Installed Height (bottom installed surface to top): 1.286in (32.7mm)
  • 20-1000-10750 Installed Height (bottom installed surface to top): 1.286in (32.7mm)

12AN ORB Fittings

  • 20-1000-1212 Installed Height (bottom installed surface to top): 1.286in (32.7mm)
  • 20-1000-12750 Installed Height (bottom installed surface to top): 1.286in (32.7mm)

Metric Base Fittings

  • 20-1000-M1206 Installed Height (bottom installed surface to top): 0.797in (20.2mm)

INSTALLATION NOTES

When installing ORB fittings, be sure to lubricate the o-ring with o-ring lube, petroleum jelly, or oil to prevent any damage during assembly.

AN flare connections should be installed dry, clean and should be hand threaded until they fully engage. Tighten 1/4 to 1/2 turn after it is fully bottomed out by hand.

ADDITIONAL IMAGES

4AN ORB Fittings

20-1000-0406 20-1000-0406
20-1000-0465 20-1000-0465
20-1000-0485 20-1000-0485
20-1000-04313 20-1000-04313

6AN ORB Fittings

20-1000-0606 20-1000-0606
20-1000-0606F 20-1000-0606F

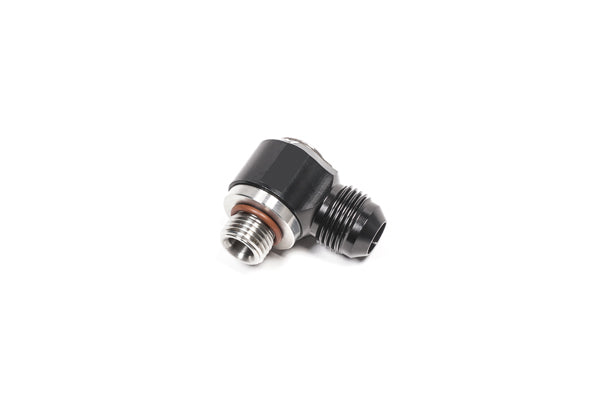

20-1000-0608 20-1000-0608

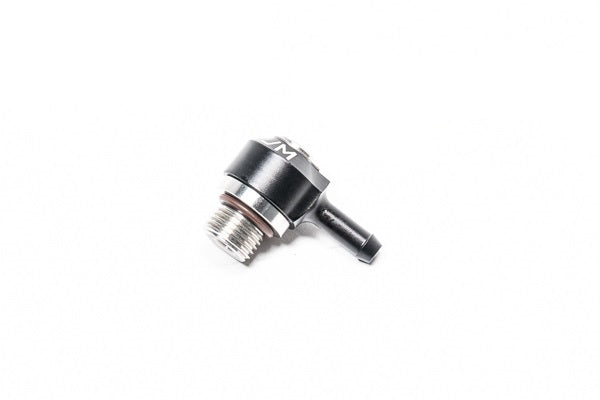

20-1000-0665 20-1000-0665

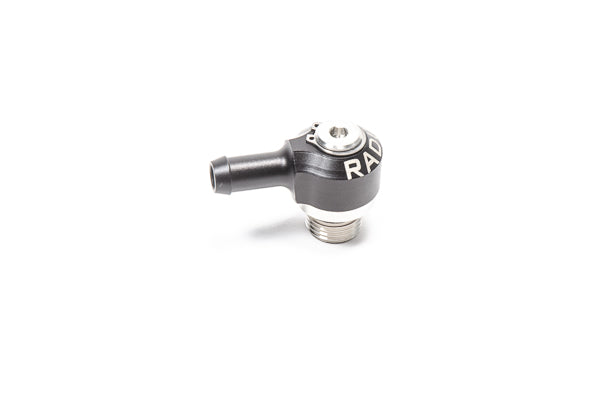

20-1000-0685 20-1000-0685

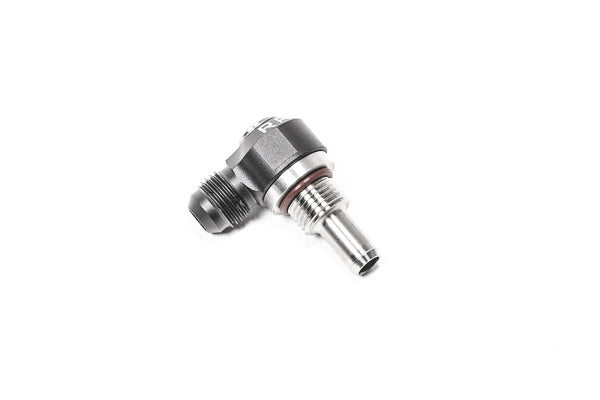

20-1000-0606-85 20-1000-0606-85

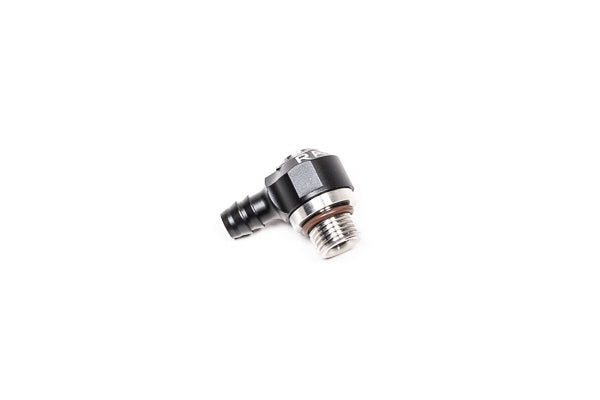

20-1000-0610B 20-1000-0610B

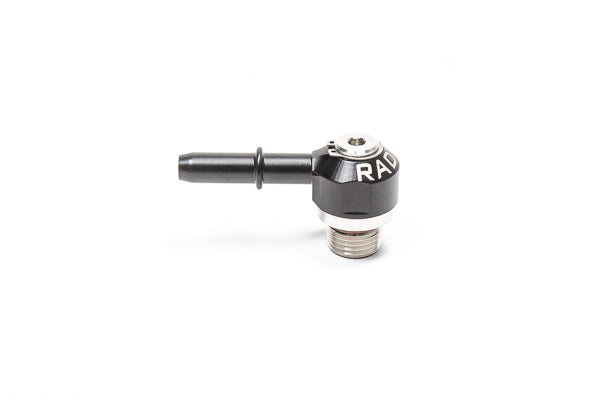

20-1000-06313 20-1000-06313

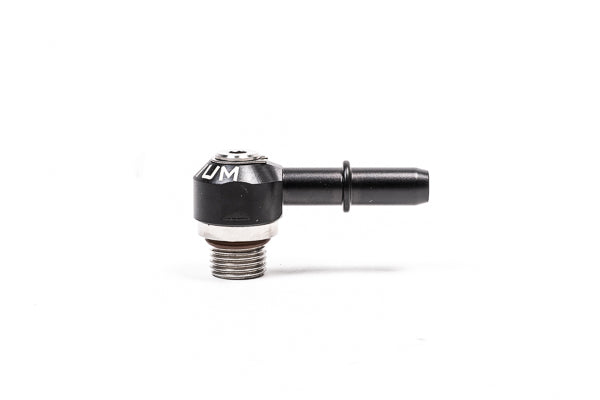

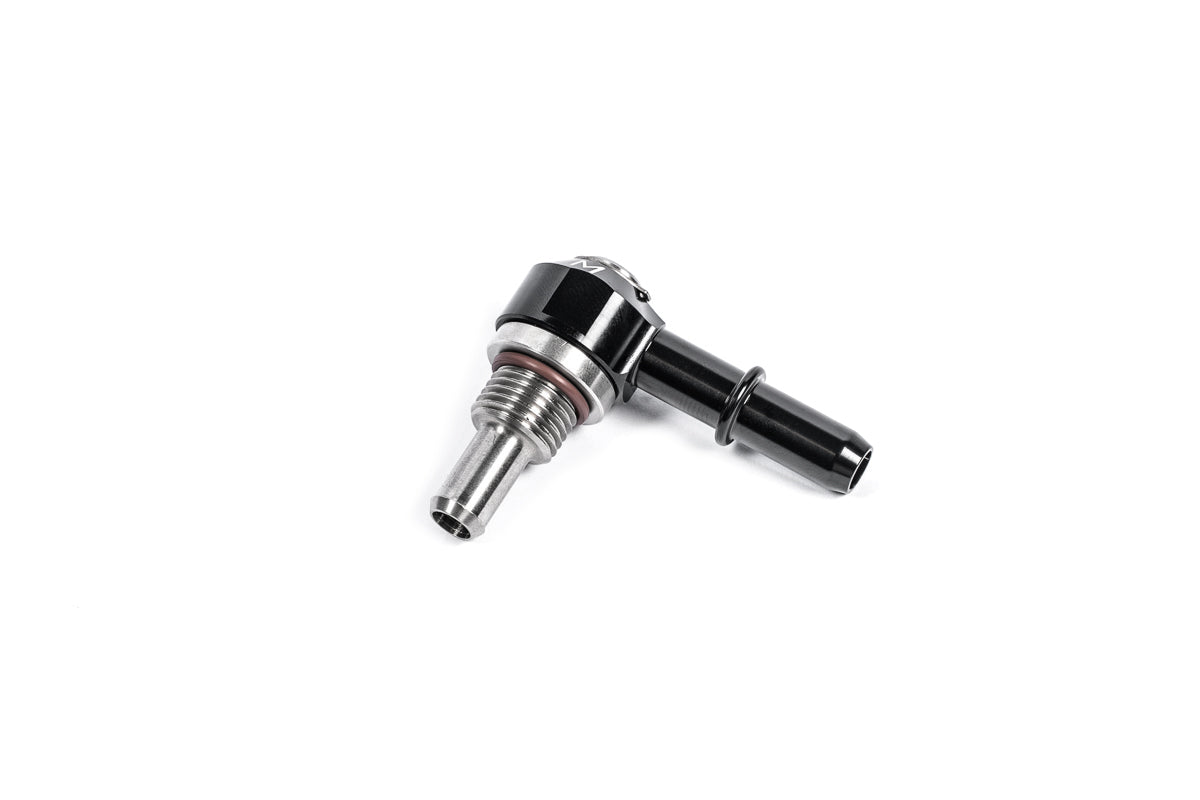

20-1000-06375 20-1000-06375
20-1000-0606-375 20-1000-0606-375

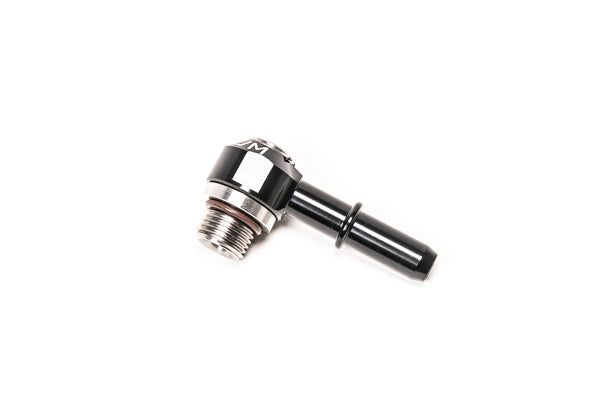

20-1000-0610S 20-1000-0610S

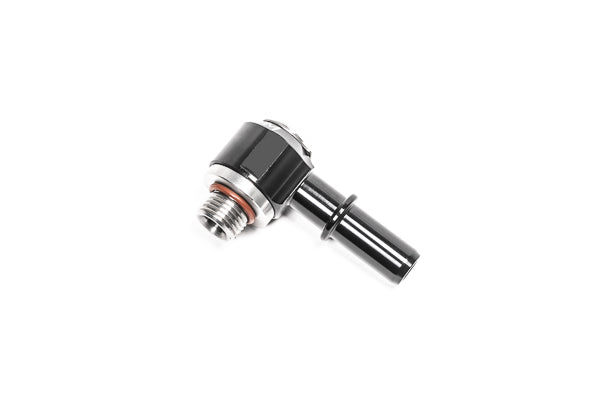

20-1000-0612S 20-1000-0612S

8AN ORB Fittings

20-1000-0806 20-1000-0806
20-1000-0806F 20-1000-0806F
20-1000-0808 20-1000-0808
20-1000-0810 20-1000-0810
20-1000-0865 20-1000-0865
20-1000-0885 20-1000-0885
20-1000-0810B 20-1000-0810B
20-1000-08313 20-1000-08313
20-1000-08375 20-1000-08375
20-1000-0810S 20-1000-0810S
20-1000-0812S 20-1000-0812S
20-1000-0816S 20-1000-0816S

10AN ORB Fittings

20-1000-1006 20-1000-1006
20-1000-1006F 20-1000-1006F
20-1000-1008 20-1000-1008

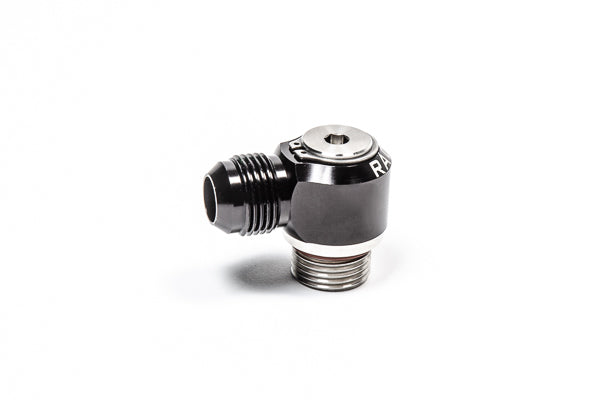

20-1000-1010 20-1000-1010

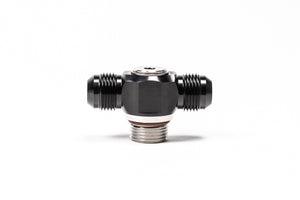

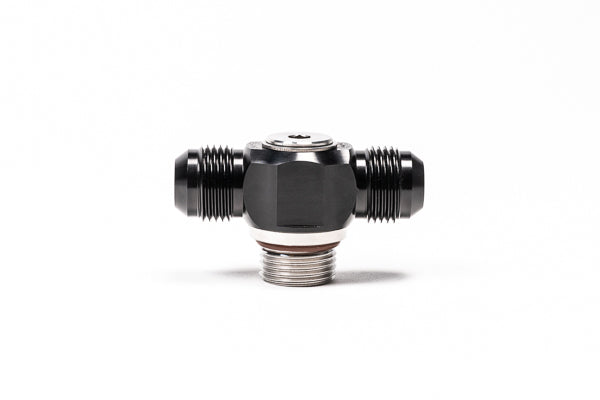

20-1000-101010 20-1000-101010
20-1000-1012 20-1000-1012
20-1000-1065 20-1000-1065
20-1000-1085 20-1000-1085
20-1000-1010B 20-1000-1010B
20-1000-10313 20-1000-10313
20-1000-10375 20-1000-10375
20-1000-10750 20-1000-10750
20-1000-1010S 20-1000-1010S
20-1000-1012S 20-1000-1012S
20-1000-1016S 20-1000-1016S

12AN ORB Fittings

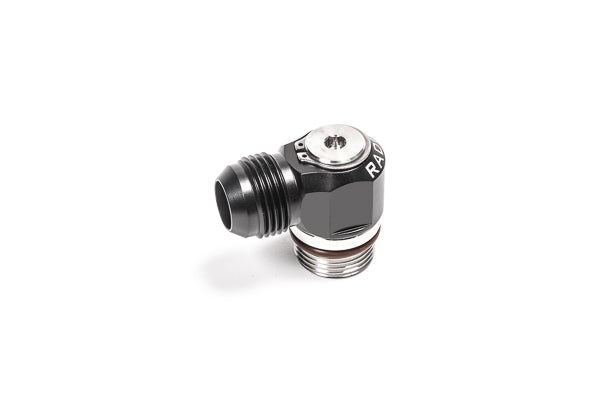

20-1000-1212 20-1000-1212

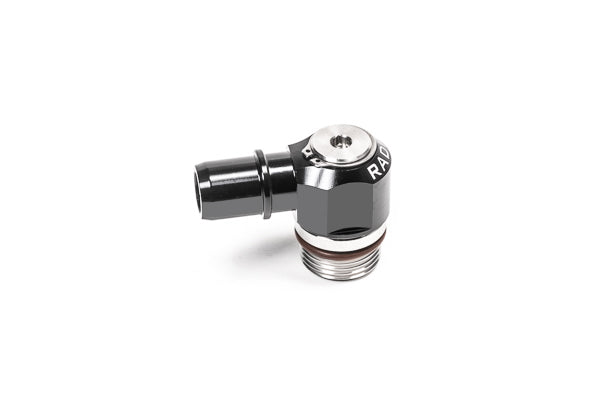

20-1000-12750 20-1000-12750

Metric Base Fittings

20-1000-M1206 20-1000-M1206
