COMPATIBILITY

Nissan Skyline R33 GT-R
Nissan Skyline R34 GT-R

OVERVIEW

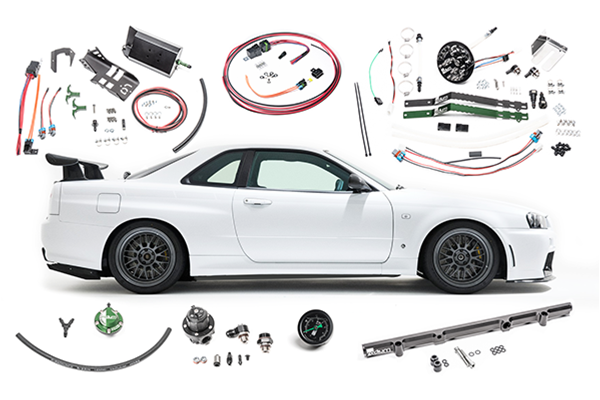

This comprehensive kit includes all the Radium Engineering components required to construct a high performance fuel delivery system for the Nissan R33/R34 Skyline GT-R.

The in-tank fuel hanger replaces the factory unit and can be configured with a variety of different fuel pump options. More details on the 20-063X-0X fuel hanger can be found HERE.

An optional fuel hanger surge tank add-on can be configured with a variety of different fuel pump options. More details on the 20-070X fuel hanger surge tank can be found HERE.

The fuel lines, a high flow fuel filter, AN fittings, and undercarriage hard line retainers replace all OEM components. More details on the 20-0702-0X fuel hanger plumbing kits can be found HERE.

Fuel enters the RB26DETT engine through a 8AN fitting on the inlet of a high flow RB26DETT fuel rail. More details on the 20-0217 fuel rail can be found HERE. NOTE: Fuel Injectors are required.

Unwanted pressure spikes are controlled through a fuel pulse damper. More details on the 20-0776 FPD-R can be found HERE.

The included FPR regulates fuel pressure with boost pressure at a 1:1 ratio. More details on the 20-1623-00 DMR can be found HERE.

The DMR is monitored and adjusted using a 0-100psi gauge. More details regarding the 20-0029 gauge can be found HERE.

HOW TO ORDER

Required items are preselected. If you already have any of the parts with check boxes next to them, you can uncheck them to remove them from the package
Select a fuel pump hanger that matches the part number of the fuel pump(s) you wish to install into it.
Select the fuel hanger plumbing kit by filter type. Stainless are 10 micron and Microglass are a finer 6 micron filtration. Stainless filters have elements that can be cleaned and reused.
Choose your fuel pumps, make sure that they match the hanger selected earlier. If using a pump not available from Radium, choose none to receive no pumps. Pumps will NOT come preinstalled into the hanger: assembly is required.
DIY fuel pump wiring kits are preselected. If you do not need both wiring kits, deselect the ones you do not want.
After all selections are made double check them for accuracy and add item to cart and proceed to checkout.

INSTALLATION NOTES

This system involves several different kits, each with their own instruction sheet. Refer to the installation instructions for each component to complete the full installation.
