COMPATIBILITY

• Nissan Skyline R32 GT-R

OVERVIEW

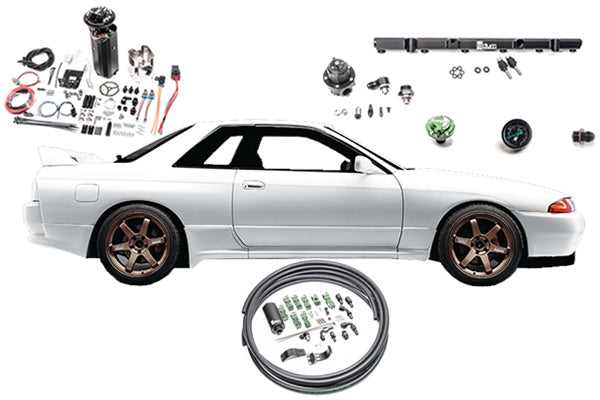

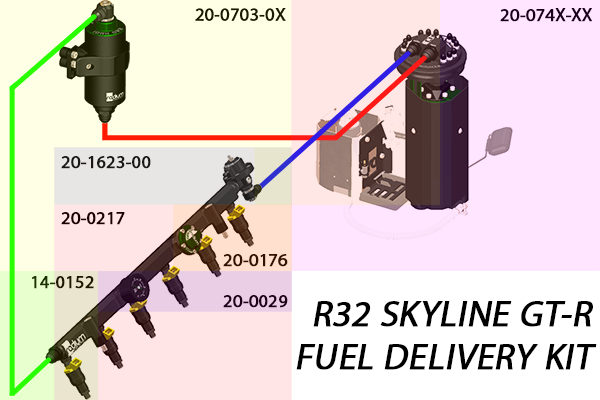

This comprehensive kit includes all the Radium Engineering components required to construct a high performance fuel delivery system for the Nissan R32 Skyline GT-R.

The in-tank fuel hanger surge tank replaces the factory unit and can be configured with a variety of different fuel pump options. More details on the 20-074X-0X fuel hanger can be found HERE.

The fuel lines, a high flow fuel filter, AN fittings, and undercarriage hard line retainers replace all OEM components. More details on the 20-0703-0X fuel hanger plumbing kits can be found HERE.

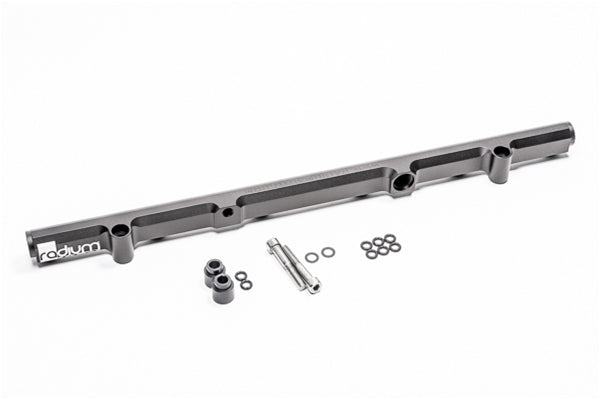

Fuel enters the RB26DETT engine through a 8AN fitting on the inlet of a high flow RB26DETT fuel rail. More details on the 20-0217 fuel rail can be found HERE. NOTE: Fuel Injectors are required.

Unwanted pressure spikes are controlled through a fuel pulse damper. More details on the 20-0776 FPD-R can be found HERE.

The included FPR regulates fuel pressure with boost pressure at a 1:1 ratio. More details on the 20-1623-00 DMR can be found HERE.

The DMR is monitored and adjusted using a 0-100psi gauge. More details regarding the 20-0029 gauge can be found HERE.

NOT INCLUDED

• Fuel injectors
• Some compatible fuel pumps not available from Radium directly

HOW TO ORDER

• Required items are preselected. If you already have any of the parts with check boxes next to them, you can uncheck them to remove them from the package
• Select a fuel pump hanger that matches the part number of the fuel pump(s) you wish to install into it.
• Select the fuel hanger plumbing kit by filter type. Stainless are 10 micron and Microglass are a finer 6 micron filtration. Stainless filters have elements that can be cleaned and reused.
• Choose your fuel pumps, make sure that they match the hanger selected earlier. If using a pump not available from Radium, choose none to receive no pumps. Pumps will NOT come preinstalled into the hanger: assembly is required.
• DIY fuel pump wiring kits are preselected. If you do not need both wiring kits, deselect the ones you do not want.
• After all selections are made double check them for accuracy and add item to cart and proceed to checkout.
