• 08-15 Cadillac CTS-V

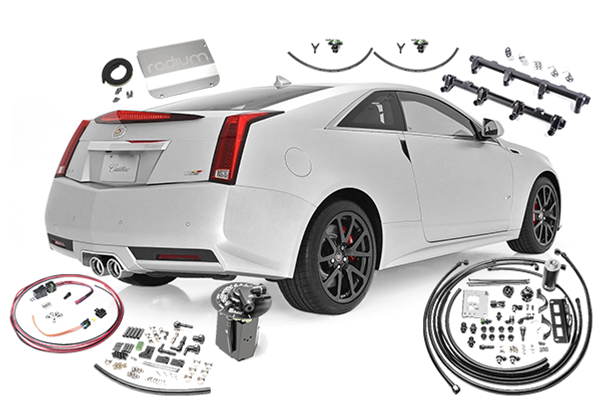

This comprehensive kit includes all the Radium Engineering components required to construct a high performance fuel delivery system for the second generation Cadillac CTS-V. Normally the CTS-V fuel tank would need to be dropped. With the supplied access cover and some sheet metal cutting the fuel pump can be easily serviced quickly. More details on 20-0835 can be found HERE.

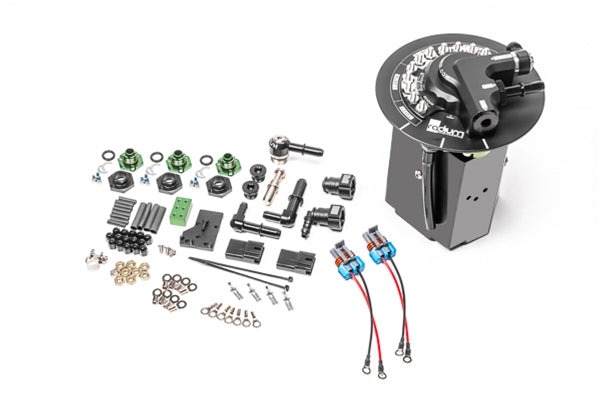

The in-tank fuel hanger surge tank replaces the factory unit and can be configured with a variety of different fuel pump options. More details on the 20-132X fuel hanger can be found HERE. While this fuel hanger will fit other vehicles, the components that make up the fuel delivery system are specific to the CTS-V

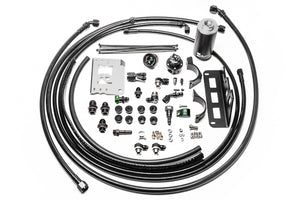

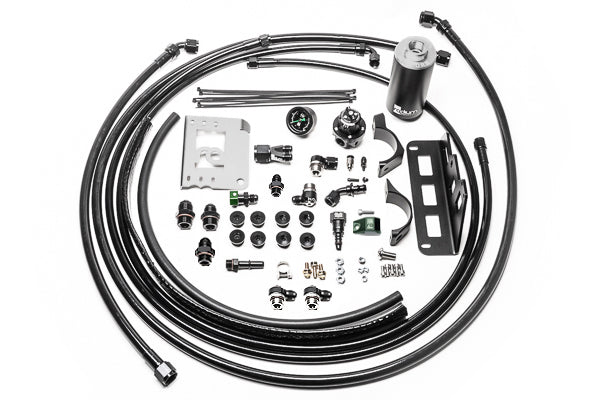

A new high flow fuel filter, fuel lines, AN fittings, and an undercarriage fuel line retainer replace all OEM components. More details on the 20-1325-0X fuel hanger plumbing kits can be found HERE.

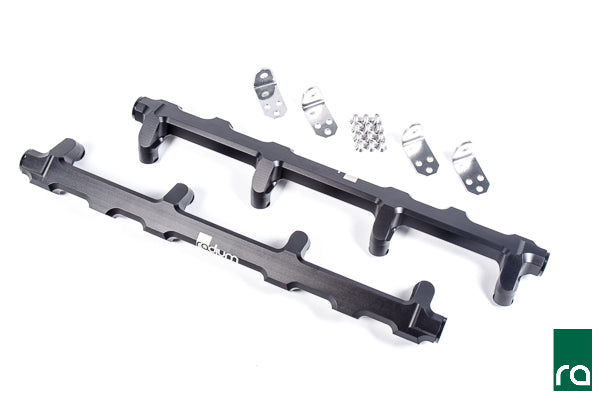

Fuel enters through a 8AN fitting on the inlet of a high flow LSA fuel rail. More details on the 20-0362 fuel rails can be found HERE. NOTE: Fuel Injectors are required.

Unwanted pressure spikes are controlled through fuel pulse dampers. More details on the 20-0776 FPD-R can be found HERE.

The included FPR regulates fuel pressure with boost pressure at a 1:1 ratio. More details on the 20-1623-00 DMR-RA can be found HERE.

The DMR-RA is monitored and adjusted using a 0-100psi gauge. More details regarding the 20-0029 gauge can be found HERE.

HOW TO ORDER

To order this kit from a dealer or distributor, copy all of the part numbers listed to the right and use this as a parts list to order. Each part will have to be ordered individually. To order directly from Radium, follow these guidelines:

• Required items are preselected. If you already have any of the parts with check boxes next to them, you can uncheck them to remove them from the package
• Select a fuel pump hanger that matches the part number of the fuel pump(s) you wish to install into it.
• Select the fuel hanger plumbing kit by filter type. Stainless are 10 micron and Microglass are a finer 6 micron filtration. Stainless filters have elements that can be cleaned and reused.
• Choose your fuel pumps, make sure that they match the hanger selected earlier. If using a pump not available from Radium, choose none to receive no pumps. Pumps will NOT come preinstalled into the hanger: assembly is required.
• DIY fuel pump wiring kits are preselected. If you do not need all 3 wiring kits, deselect the ones you do not want.
• After all selections are made double check them for accuracy and add item to cart and proceed to checkout.


This system involves several different kits, each with their own instruction sheet. Refer to the installation instructions for each component to complete the full installation.

• 20-0362 LS9/LSA Fuel Rail Kit
• 20-0835 Fuel Pump Access Cover Kit
• 20-0776 Pulse Damper Kit (x2)
• 20-1320 or 20-1322 Fuel Pump Hanger (select one)
• 20-1325-03 or 20-1325-05 Plumbing Kit (select one)
• Walbro F90000274 fuel pumps (optional for 20-1322 hanger)
• 17-0031 DIY wiring kits (optional)

NOT INCLUDED

• Fuel injectors (oem can be reused)
• Other compatible fuel pumps not available from Radium
