OVERVIEW

Ordering a fuel cell system and all of its required components can be complicated. To help better understand the different parts needed and the choices available, we recommend watching this overview video first.

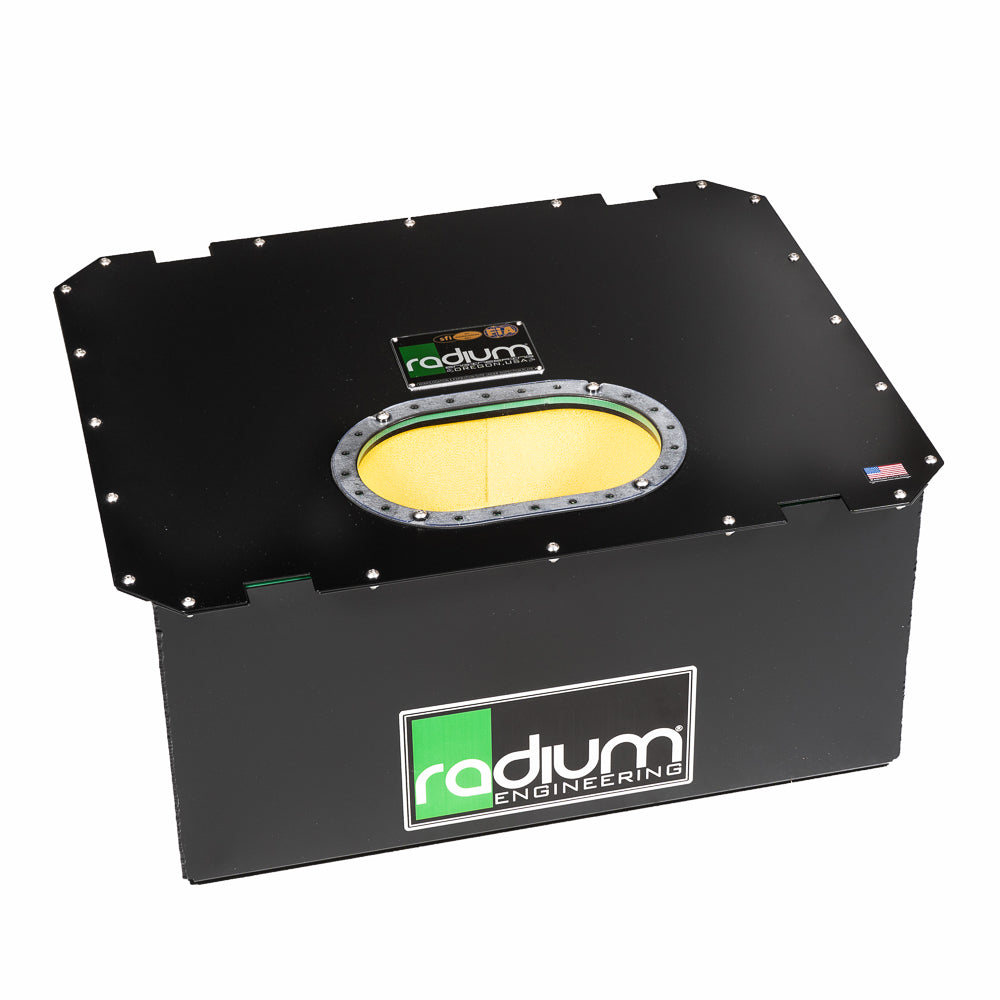

A competition grade fuel cell provides maximum performance and safety for high performance vehicles. RA-series fuel cells are designed and manufactured by Radium Engineering to meet top safety requirements set forth by the worldwide safety organizations FiA and SFI. To learn why a certified fuel cell is superior to a fabricated tank, CLICK HERE.

These fuel cells are excellent for all types of motorsports disciplines including road racing, time attack, drifting, rally, off-road racing, endurance, and many more.

ORDERING

Ordering a fuel cell system can be complex. Use the online tool below to configure a complete fuel cell. This will walk you through each piece step by step and allow you to add the choices to your cart at the end. You can then purchase, or use the part numbers as a reference.

NOTES

• Fuel cells are built to order and will ship in 4-7 business days when in-stock
• OUT OF STOCK fuel cells can take up to 8 weeks to ship

INDEPENDENT INSTALLATION VIDEO

CONSTRUCTION

The heart of the fuel cell is the bladder (shown below in green). This component undergoes thorough testing and carries the critical certifications. Radium RA-series bladders are made from a special polymer that is resistant to ALL fuel types (gasoline, diesel, AV gas, E15, E85, ethanol, methanol, etc).

CERTIFICATIONS

The RA-series fuel cells have been tested and approved by FIA and SFI. All RA-series fuel cells are serialized and come with both certifications and associated paperwork. Certifications are valid for 5 years from the date of manufacture. Radium does NOT sell fuel cells without certifications.

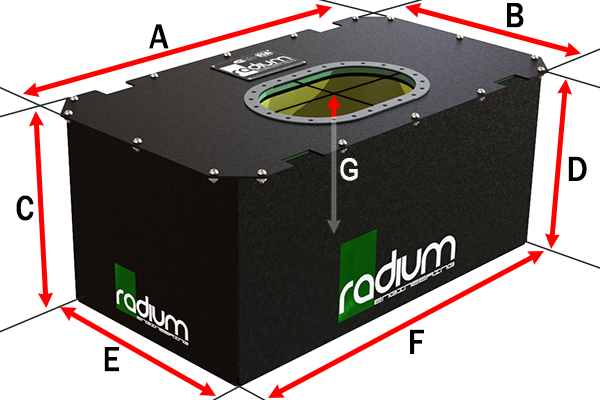

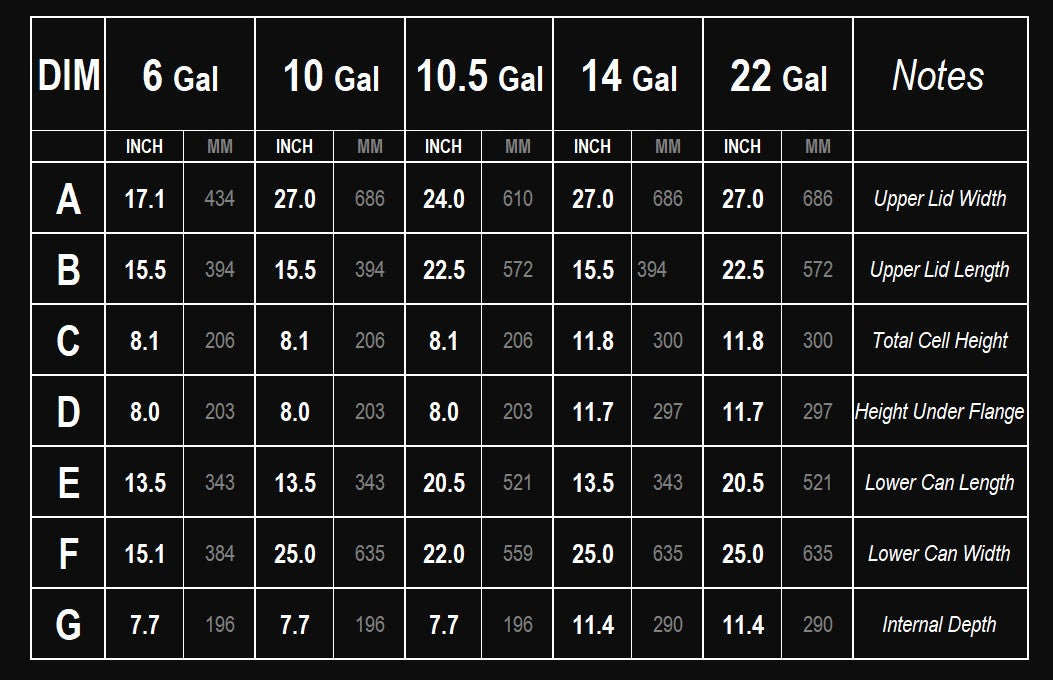

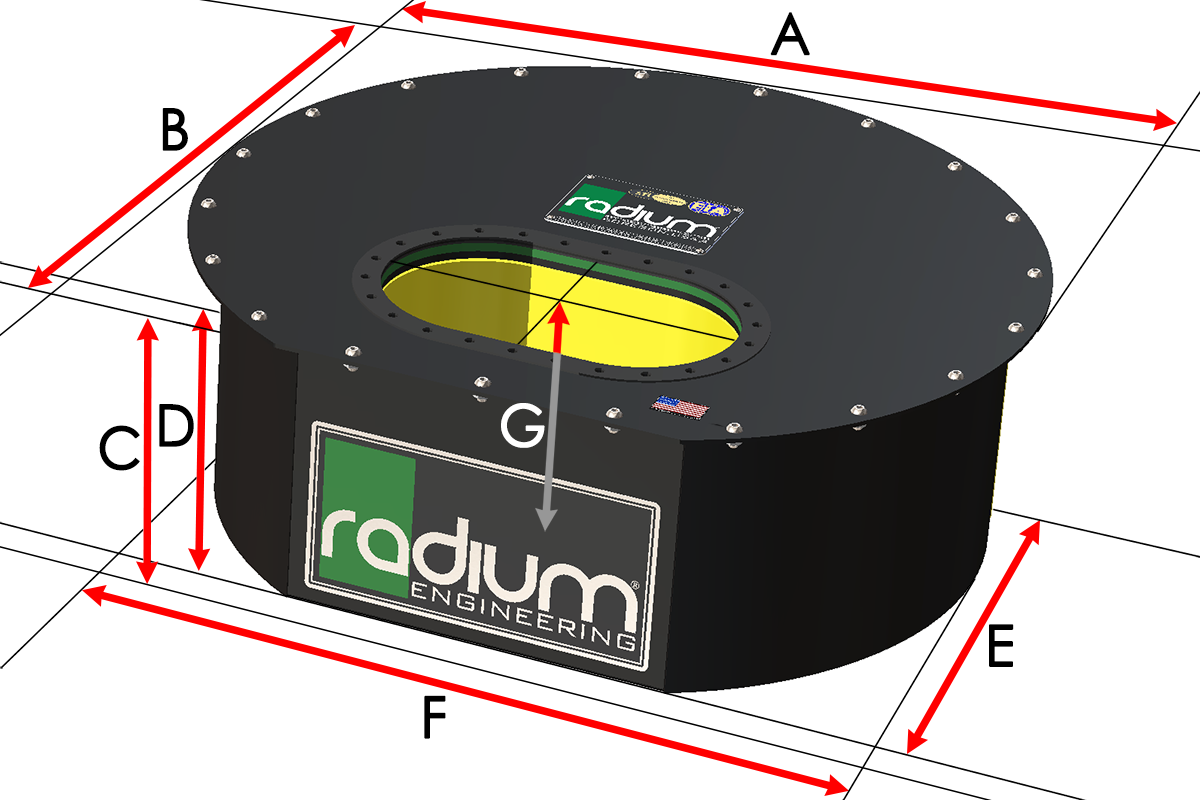

SIZES, DIMENSIONS & VOLUMES

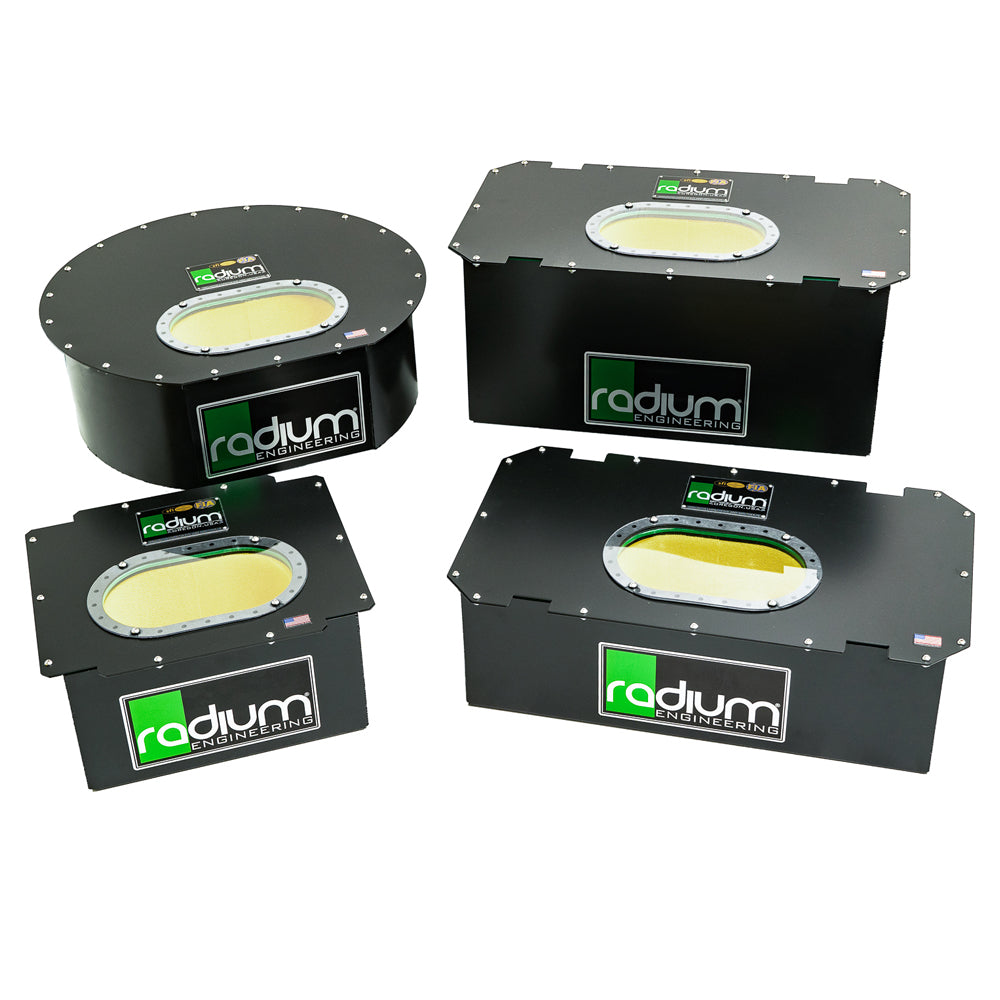

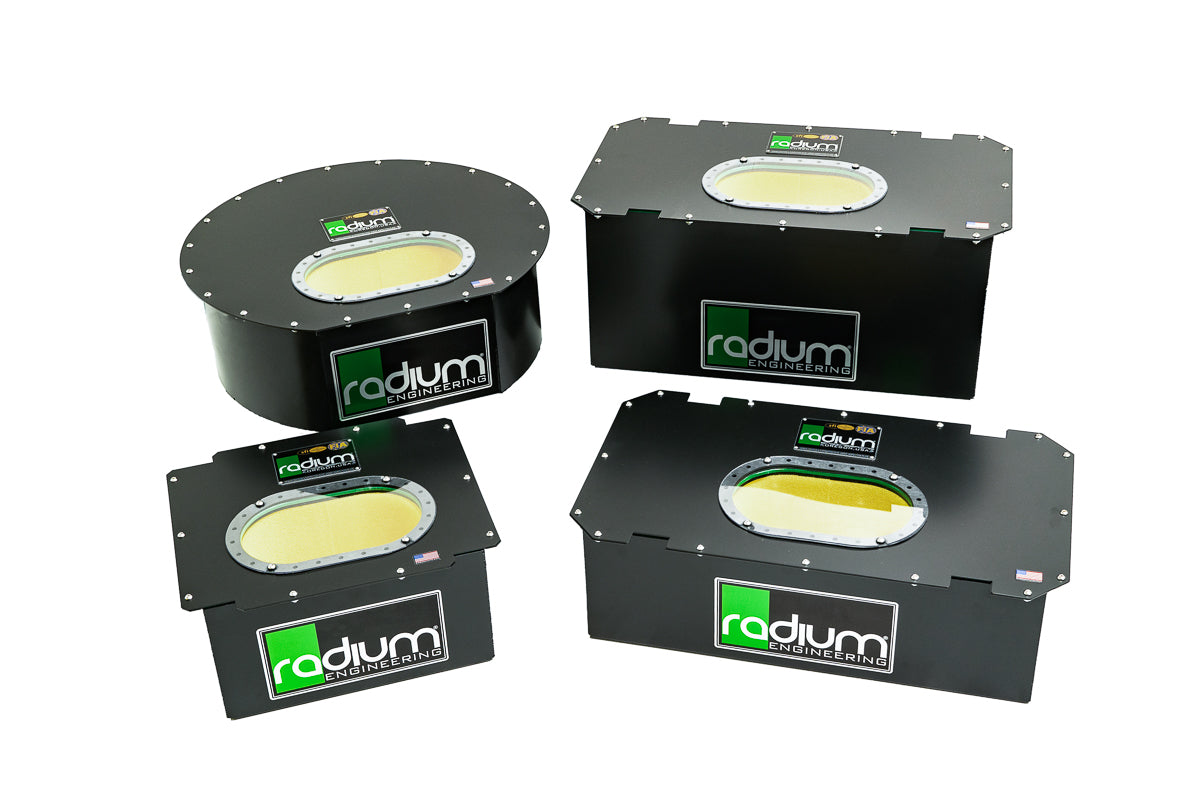

Radium currently offers five different sizes of fuel cells. Custom sizes are NOT available. Select the size that best fits your application, usage situation, and space allowed in the vehicle. The manufacturing process for these fuel cell bladders inherently require large tolerances creating a variance in physical size. The volumes listed below are the expected ranges for each bladder.

NOTES

• These measurements do not account for any objects inside the fuel cell
• All fuel cell sales are FINAL and cannot be returned or exchanged. Measure carefully prior to ordering

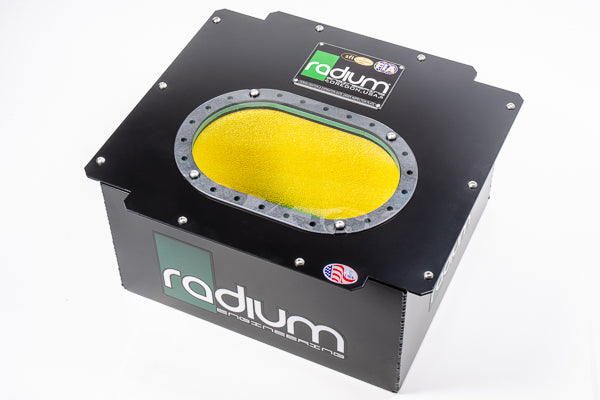

	20-0606 Gallons: 5.4 - 6.0 Liters: 20.3 - 22.7

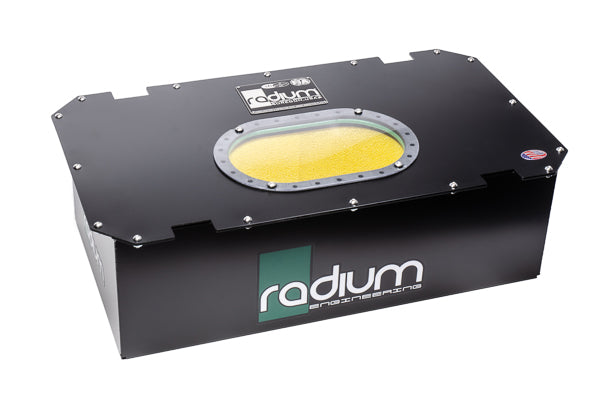

	20-0610 Gallons: 9.2 - 10.0 Liters: 34.8 - 37.9

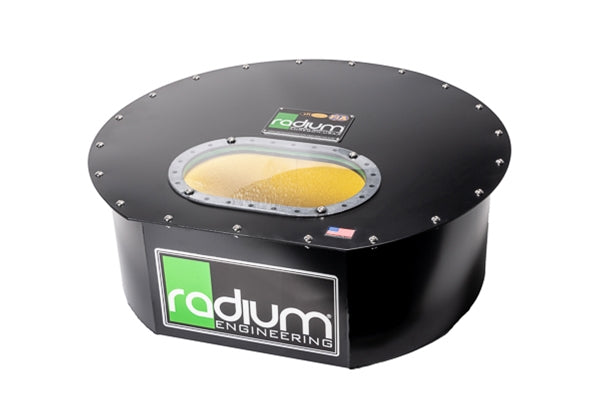

	20-0611 (Circular) Gallons: 10.3 - 10.5 Liters: 38.9 - 39.7

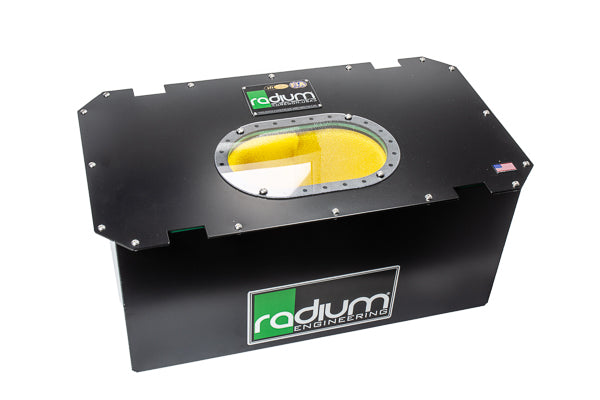

	20-0614 Gallons: 13.7 - 14.0 Liters: 51.9 - 53.0

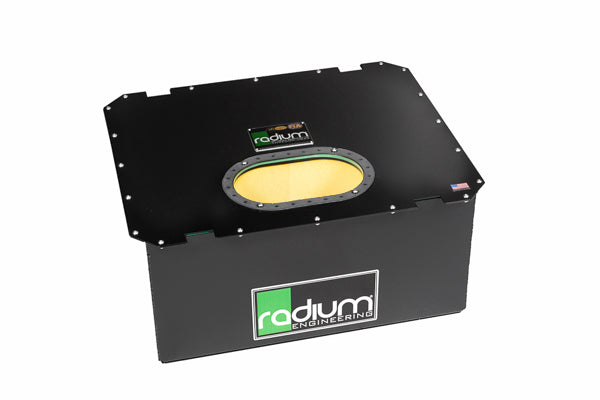

	20-0622 Gallons: 21.5 - 22.0 Liters: 81.5 - 83.3

INCLUDES

• Seamless Polymer Bladder (compatible with all popular fuels)
• Explosion Suppressing Anti-SloshFoam
• Powder Coated Aluminum Enclosure
• Anodized Aluminum Nut Ring
• Removable Inspection Plate
• FKM 6x10 24-bolt Gaskets, x2
• Stainless Steel Hardware
• Certification of Conformance

IMPORTANT!

Read Before Purchasing

• All fuel cell sales are final and cannot be returned or exchanged
• If ordering a fuel cell with an FCST-X, the products will be shipped assembled when ordered directly from RadiumAuto.com
• International Customers: Please contact sales@radiumauto.com for a shipping quote on fuel cells
• Fuel cells are built to order and take between 4 to 7 business days (if in stock) to build and ship
• Fuel Cell Surge Tanks pump systems and other accessories are sold separately
