COMPATIBILITY

• RADIUM ENGINEERING FCST-X (or FCST)

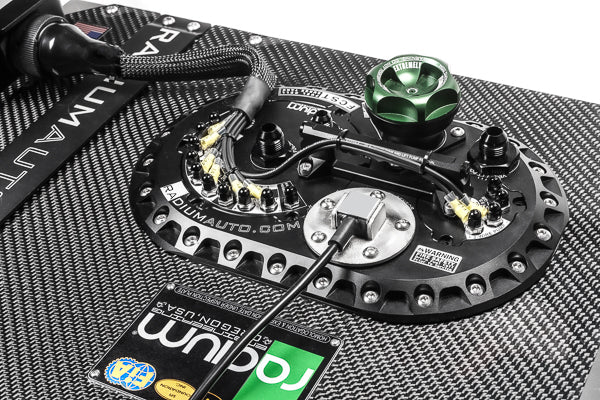

Each of the 26 pre-terminated 10awg wires has a unique identification labels associated with the FCST-X labeling. However, they can still be used with the older FCST that has slightly different labeling.

• RADIUM ENGINEERING RA-SERIES FUEL CELLS

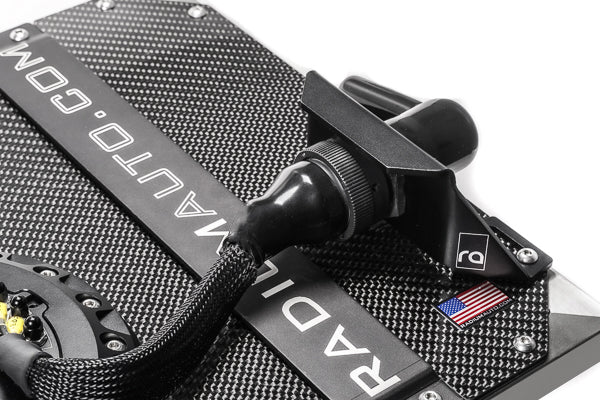

Designed specifically to mount on the perimeter of RA-Series Fuel Cells. For another fuel cell to be directly compatible, the bolt spacing must be 3.6'-5.7' (91-145mm). The bolt hole distance of the bulkhead mount is compatible with all Radium Engineering RA-series fuel cells. It can be mounted anywhere along the perimeter of the fuel cell. The mount can be rotated inwards or outwards for a 3in (76mm) location difference.

OVERVIEW

The fuel cell subharness kit is a great addition for quicker pit stops. It is common for racers to have a spare drop-in FCST-X fuel pump module in the pit in case there is an issue with a fuel pump, electrical wiring, etc. With a subharness on both FCST-X units, the entire pump assembly can be swapped quickly without any tools.

ABOUT ASSEMBLY

It is best to install this by first mounting each wire to its proper stud, then assemble your bulkhead connector into the mount and install the mount in your desired location. You can mock each wire into a desired routing, then cut and terminate them in place, populating your connector as you go.

Click the instructions link for more in-depth information.

WHAT IS NEEDED

• For the stamped contacts, an open barrel style crimper is required
• Although contacts are provided for the connector, wiring is not included for the chassis harness
• Although not required, wire loom (expandable sleeving, adhesive cloth tape, etc.) is not included

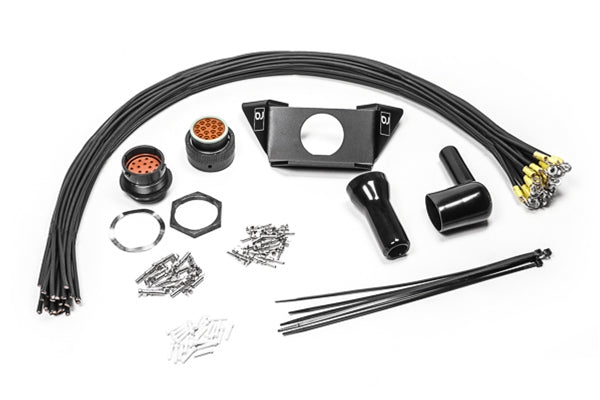

INCLUDES

• Anodized aluminum fuel cell mounting bracket
• Environmentally sealed female CPC bulkhead connector
• Environmentally sealed male CPC connector
• Stamped 14-10awg open barrel female contacts (x16)
• Stamped 14-10awg open barrel male contacts (x16)
• Black rubber boot, straight
• Black rubber boot, right angle
• Bulkhead panel hex nut
• Bulkhead locking wave washer
• Plugs for empty cavities (x25)
• Cable zip-ties (x5)
• Labeled 10awg wire with pre-terminated ring terminals (x26)
