• 17-23 Can-Am Maverick X3
• 19-23 Can-Am Maverick Sport
• 18-23 Can-Am Maverick Trail
• 16-25 Can-Am Defender
• 21-23 Can-Am Commander
• 08-12 Can-Am Spyder
• 16-22 Can-Am Traxter
• 2023 Ski-Doo Summit
• 2002 Sea Doo GTX
• 05-07 Sea Doo RXT
• 05-06 Sea Doo RXP
• 15-18 Sea Doo GTI
• 17-18 Sea Doo GTS

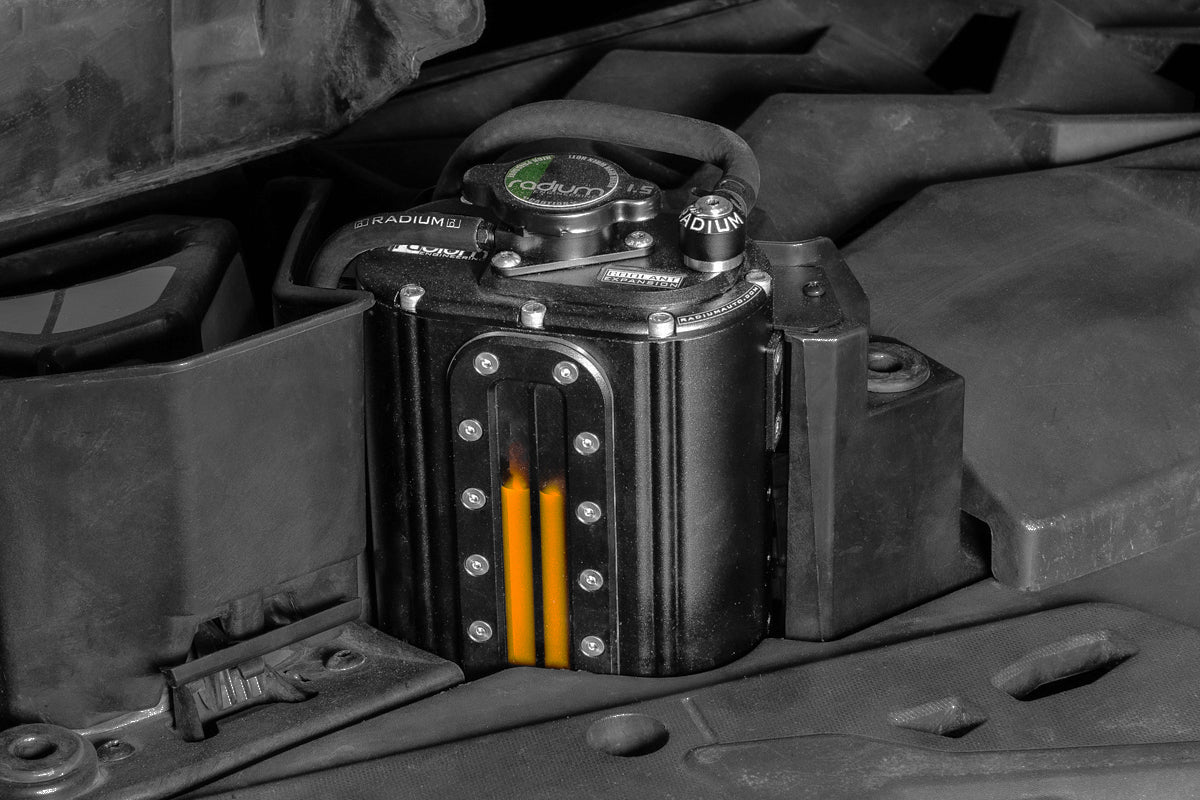

This Radium Coolant Expansion Tank holds 1240mL. It is a multi-piece design constructed of CNC billet 6061 aluminum.

The factory pressure cap can be reused. However, the CNC billet receiver is compatible with Type-A "radiator" caps, as shown HERE. Like factory, this tank features two internal chambers that are NOT isolated from each other. There are cross-over passages at the top and bottom.

PRESSURE CAPS

The optional Radium Engineering pressure caps (sold separately) allow the user to select a range of pressure. NOTE: The OEM pressure cap is 1.1bar. The purpose of a high pressure cap is to increase the boiling point in the cooling system providing improved cooling efficiency. Each cap is manufactured from stainless steel with a race proven high pressure valve. This is something to consider when tracking the vehicle in extreme conditions. For more information, go HERE.

Radium Pressure Cap - 1.1 Bar (110 kPA, 15.6 psi)
Radium Pressure Cap - 1.3 Bar (130 kPA, 18.9 psi)
Radium Pressure Cap - 1.5 Bar (150 kPA, 21.8 psi)

The Radium Engineering coolant tank is 240mL larger than the OEM coolant tank.

Threaded Port Information:

• The 6AN ORB (9/16"-18) top port is the inlet for incoming hot water and is an air bleed for the system. The 1/4" (6mm) low profile barbed fitting connects directly to the OEM hose.
• The 10AN ORB (7/8"-14) bottom port (opposite the inlet port) is the drain back outlet. The 3/4" (19mm) barbed fitting connects directly to the OEM hose.
• The other 10AN ORB (7/8"-14) bottom port (under the inlet port) is not used. A plug is provided.
• The 1/4" (6mm) barbed fitting on the receiver cap is for over pressure purging. The clear OEM hose or the new hose can be used.

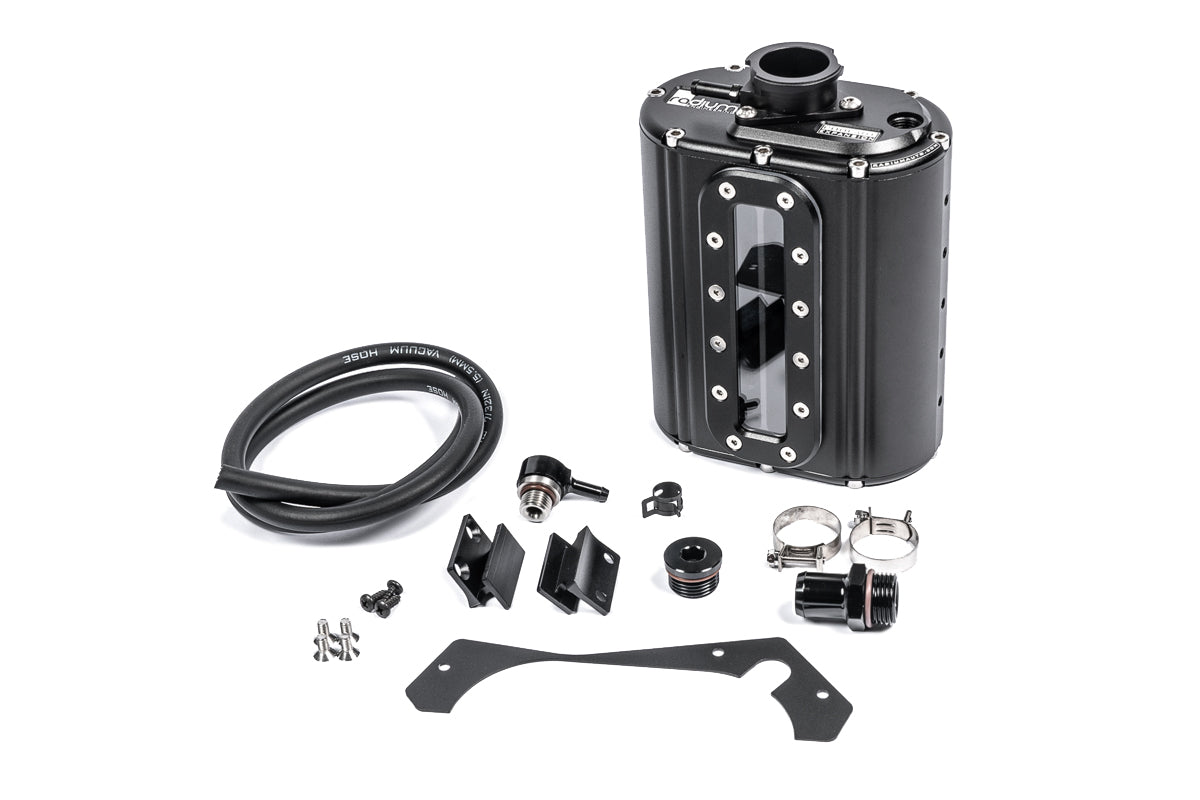

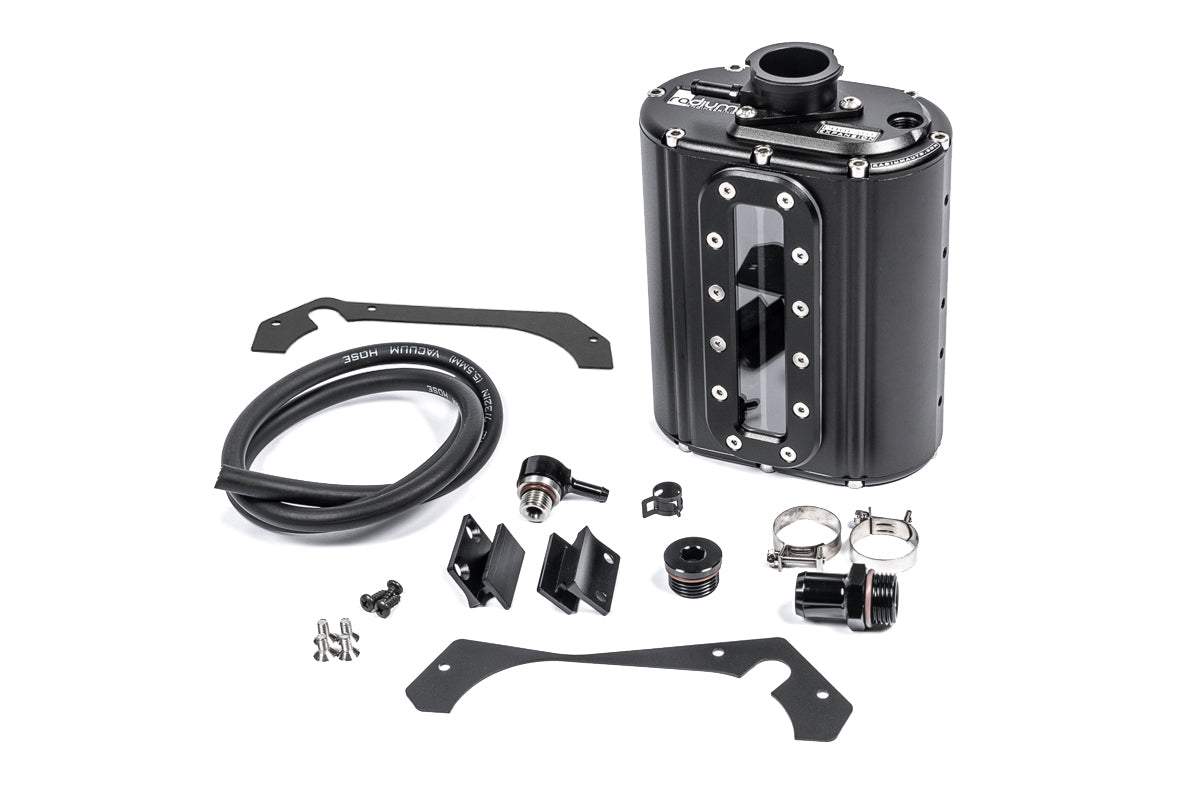

• Billet Aluminum Coolant Tank
• Anodized Aluminum Mounting Brackets
• Water Level Window, Height: 4.6" (118mm)
• Type-A Pressure Cap Receiver
• Aluminum Pressure Bleed 1/4" Barb
• Plug N' Play Adapter Fittings
• New Rubber Overflow Hose
• Stainless Steel Hardware
• Stainless Steel Clamps
