Description
COMPATIBILITY
05-23 Toyota Tacoma (V6 Models)

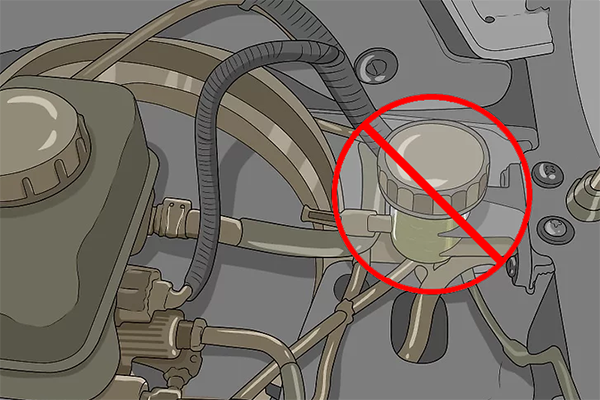

><br><strong><em>NOT COMPATIBLE WITH LHD M/T TRUCKS THAT HAVE THE REMOTE CLUTCH M/C RESERVOIR (shown above).</em></strong></em></strong><br> <hr>Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick. <br><img src=
These kits mount using factory holes and integrate perfectly with the surrounding components. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. No cutting, drilling or permanent modifications are required. For more information on Radium catch cans, CLICK HERE.

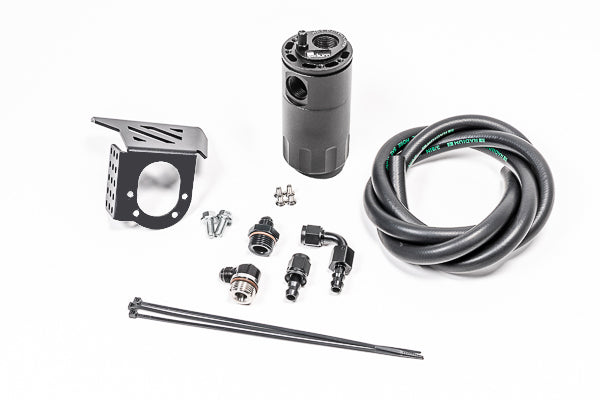

20-0838-FL CATCH CAN KIT, PCV, 05-23 TACOMA, FLUID LOCK
The PCV catch can kit runs inline between the PCV valve and the intake manifold. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV 'check' valves close and, thus, this hoses experience no flow. Conversely, the PCV hoses will experience 'metered' vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run. Note: No inline check valve is required since Radium catch cans are pressure sealed. This means a direct intake manifold connection is permitted.

The catch can mounts to threaded bosses in the engine bay on the inner fender.
><br>The PCV catch can promotes clean filtered air back into the intake manifold.<br><img src=
INCLUDES
-Baffled oil catch can
-Tacoma specific mounting bracket
-AN adapter fittings and hose ends
-Stainless steel hardware
-Radium PCV hose

NOTES
1. The PCV catch can kit is compatible and recommended to be used with the CCV catch can kit. See 20-0839-FL below.
2. No extra inline check valve is required since Radium catch cans are pressure sealed.

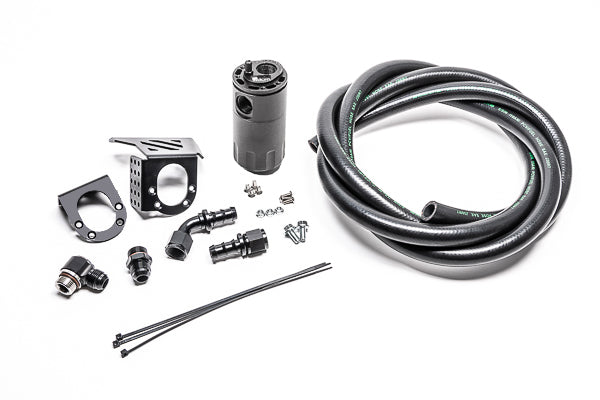

20-0839-FL CATCH CAN KIT, CCV, 05-23 TACOMA, FLUID LOCK
The CCV catch can mounts to threaded bosses in the engine bay on the inner fender with the provided supplementary bracket.
><br>To retain factory functionality, the CCV catch can runs inline between the crankcase vent (CCV) port and the intake pipe. At low loads, it experiences atmospheric pressure. However, when the engine is at high load (WOT), the line will experience high flow from the crankcase into the intake system. This would normally lead to oil and sludge accumulation in the air filter intake pipe. The CCV catch can captures this and promotes clean filtered air back into the intake.<br><img src=
INCLUDES
-Baffled oil catch can
-Tacoma specific mounting bracket
-AN adapter fittings and hose ends
-Stainless steel hardware
-Radium PCV hose

NOTES
1. The CCV catch can kit does NOT address blow-by from the PCV side of the crankcase.
2. The CCV catch can kit is compatible and recommended to be used with the PCV catch can kit. See 20-0838-FL above.

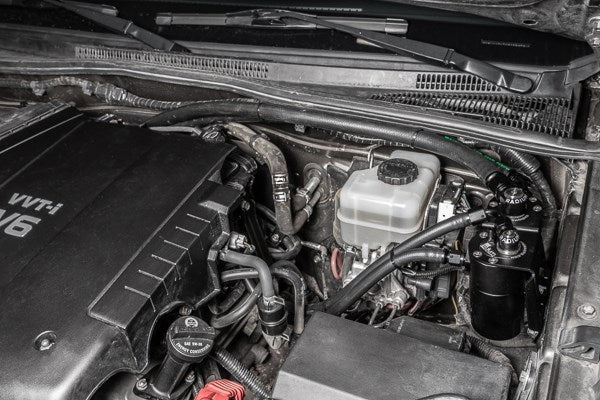

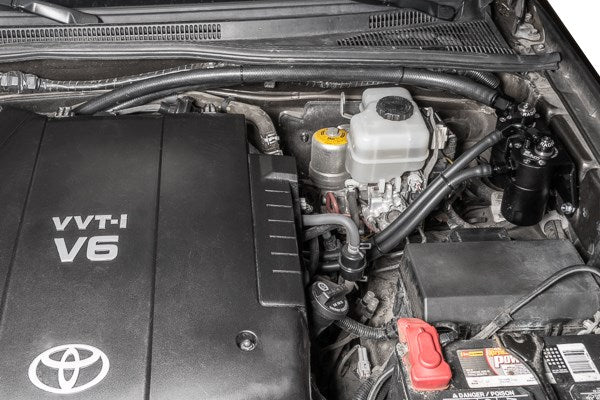

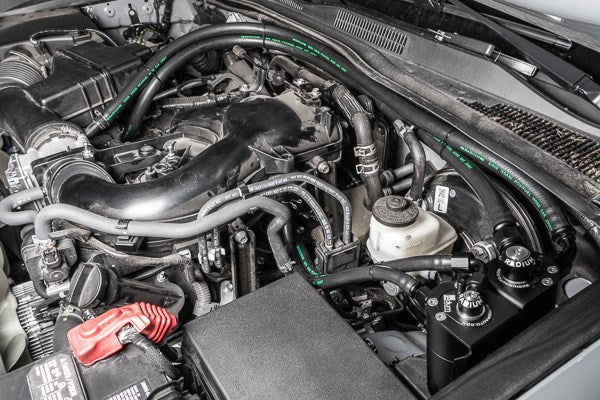

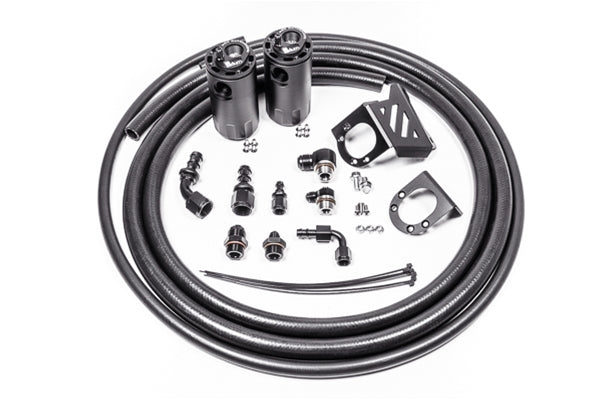

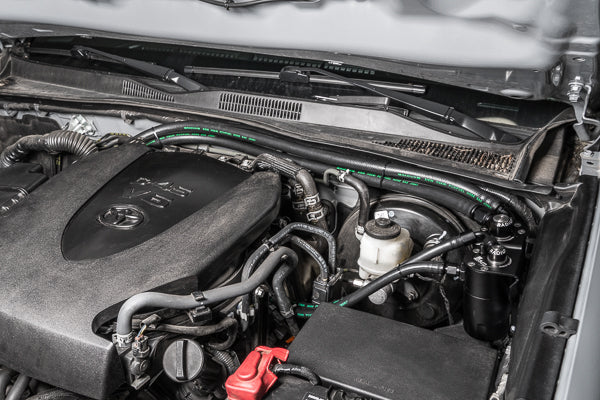

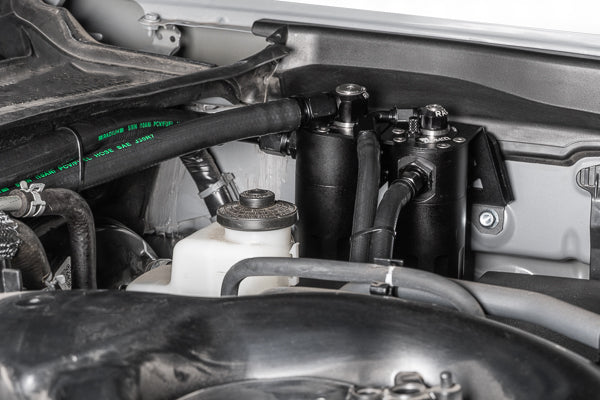

20-0840-FL DUAL CATCH CAN KIT, 05-23 TACOMA, FLUID LOCK
For the ultimate in engine protection, Radium recommends a dual catch can kit.
><br>This kit utilizes both the  width=

Catch Can Kits, 05-23 Toyota Tacoma

$0.00
Shipping calculated at checkout.

Install Instructions PDFs

Installation Instructions (PDF)
