• 00-06 GMC Yukon⁽¹⁾
• 99-06 GMC Sierra 1500⁽¹⁾
• 99-06 Chevrolet Silverado 1500⁽¹⁾
• 02-06 Chevrolet Avalanche⁽¹⁾
• 99-06 Chevrolet Silverado 2500HD/3500HD⁽¹⁾
• 99-06 Chevrolet Silverado 2500HD/3500HD⁽¹⁾
• 2007 Chevrolet Silverado 1500 Classic⁽¹⁾
• 2007 Chevrolet Silverado 2500HD/3500HD Classic⁽¹⁾
• 00-06 Chevrolet Tahoe
• 00-06 Chevrolet Suburban
• 02-06 Cadillac Escalade

⁽¹⁾ V8 models up to 6.0L

---

OVERVIEW

The catch can draws out oil and water condensation from the crankcase gasses that would otherwise be drawn into the intake manifold. This prevents oil buildup in the intake, intercooler system walls, throttle body, and intake manifold. This effectively raises the octane, can increase engine performance from cleaner inlet air, and can lower hydrocarbon emissions. The closed system prevents unwanted oil vapors from entering into the cabin. Catch can kits include everything needed for a complete installation.

---

FLUID LOCK® CATCH CANS

In 2022, Radium Engineering implemented a revolutionary design change to the 7 fluid ounce standard catch can. An inherent problem always existed with typical catch cans when not serviced regularly. The fluid contaminants will eventually leave the reservoir pouring into the air intake system causing poor engine performance. To resolve this issue, Radium created the Fluid Lock® Catch Can. This contains a patented mechanism that prevents the reservoir from overfilling and traps the collected fluids until it is emptied.

---

FEATURES

• Direct fitment with no drilling required
• Large 10AN ORB inlet and outlet ports
• 4AN ORB drain port
• 2-step oil separation baffling
• O-ring sealed dipstick
• 7 fluid ounce capacity
• Patented Fluid Lock® system

---

COLLECTION & EMPTYING

The rate that your catch cans will collect oil and moisture contaminants will vary from one individual vehicle to the next, so there is no set emptying interval. PCV catch cans tend to collect more than CCV catch cans. You should check the level of your catch can using the integrated dipstick starting at 3-4 weeks of driving and repeat as needed to determine how often they should be emptied based on what you see.

Catch cans can be emptied by unscrewing the lower reservoir and removing it from the vehicle to dump out, or in cases where there is available space under the catch can, the Petcock Drain Kit can be installed and used to drain them.

In cases where oil collection is excessive you may have to address an issue with the engine. The reasons a catch can will collect an excess of oil include

• Excessive blowby from engine damage
• Crankcase windage from an over-full oil level
• Poor placement of breather ports and/or poor baffling inside breather ports
• PCV valve not closing and leaking under heavy load

The GM truck catch can kit includes everything needed for a complete installation. There is no drilling or permanent modifications required.

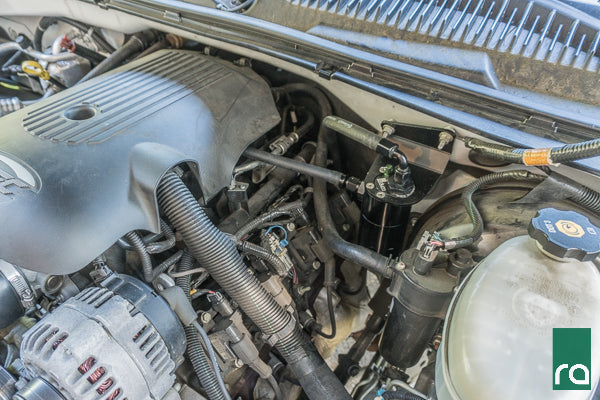

The catch can is plumbed in-line with the PCV tube and draws out oil and water condensation from the PCV gasses that would otherwise be drawn into the intake manifold. Furthermore, the closed system prevents unwanted oil vapors from entering into the cabin. The custom bracket mounts to the firewall near the brake booster. Make sure your vehicle has the necessary mounting studs on the firewall before ordering.

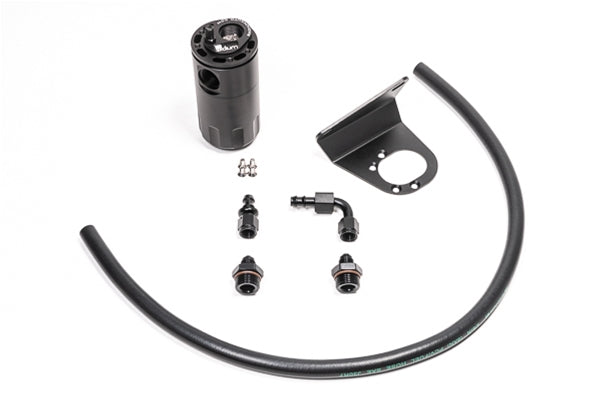

INCLUDES
-Radium billet oil catch can with integrated condenser and dipstick
-Radium GM-specific mounting bracket
-Black anodized aluminum 6AN hose ends
-Anodized 6AN adapter fittings
-Stainless steel mounting hardware
-3/8" PCV rubber hose
