COMPATIBILITY

• 15-19 Corvette Z06

OVERVIEW

The catch can draws out oil and water condensation from the crankcase gasses that would otherwise be drawn into the intake manifold. This prevents oil buildup in the intake, intercooler system walls, throttle body, and intake manifold. This effectively raises the octane, can increase engine performance from cleaner inlet air, and can lower hydrocarbon emissions. The closed system prevents unwanted oil vapors from entering into the cabin. Catch can kits include everything needed for a complete installation.

FLUID LOCK® CATCH CANS

In 2022, Radium Engineering implemented a revolutionary design change to the 7 fluid ounce standard catch can. An inherent problem always existed with typical catch cans when not serviced regularly. The fluid contaminants will eventually leave the reservoir pouring into the air intake system causing poor engine performance. To resolve this issue, Radium created the Fluid Lock® Catch Can. This contains a patented mechanism that prevents the reservoir from overfilling and traps the collected fluids until it is emptied.

FEATURES

• Direct fitment with no drilling required
• Large 10AN ORB inlet and outlet ports
• 4AN ORB drain port
• 2-step oil separation baffling
• O-ring sealed dipstick
• 7 fluid ounce capacity
• Patented Fluid Lock® system

COLLECTION & EMPTYING

The rate that your catch cans will collect oil and moisture contaminants will vary from one individual vehicle to the next, so there is no set emptying interval. PCV catch cans tend to collect more than CCV catch cans. You should check the level of your catch can using the integrated dipstick starting at 3-4 weeks of driving and repeat as needed to determine how often they should be emptied based on what you see.

Catch cans can be emptied by unscrewing the lower reservoir and removing it from the vehicle to dump out, or in cases where there is available space under the catch can, the Petcock Drain Kit can be installed and used to drain them.

In cases where oil collection is excessive you may have to address an issue with the engine. The reasons a catch can will collect an excess of oil include

• Excessive blowby from engine damage

• Crankcase windage from an over-full oil level
• Poor placement of breather ports and/or poor baffling inside breather ports

• PCV valve not closing and leaking under heavy load

20-1186-FL DUAL CATCH CAN KIT, 15-19 CORVETTE Z06, FLUID LOCK

This kit features 2 catch cans. One is used for the PCV valve and one is used on the CCV side of the crankcase. The anodized aluminum catch can bracket mounts near the front LH side of the engine. A polished billet plate secures to 3 OEM grounding points. Because this is manufactured from aluminum, it conducts electricity. The large anodized dual catch can bracket secures to the ground plate with aluminum spacers to clear the supercharger pulley.

Mounted at the front of the bracket is the CCV (crankcase vent) catch can. As shown below, it simply intercepts the dry sump vent line to the intake. At low loads, this catch can experiences atmospheric pressure. However, when the engine is at high load (WOT), these vents will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation in the air filter intake pipe.

The PCV catch can is secured at the rear of the mounting bracket. NOTE: The OEM PCV valve is integrated in the crankcase valley under the supercharger. Because the PCV valve is consolidated, it cannot be reused for a catch can. Fortunately, the OEM PCV valve is replaced with a billet bypass (shown below).

A PCV hose routes from this bypass to the PCV catch can. The outlet of the catch can features a Radium Engineering PCV valve which routes "clean air" to the intake manifold.

When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes and, thus, this hose experiences no flow. Conversely, the PCV hose will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the engine immediately after a high load run.

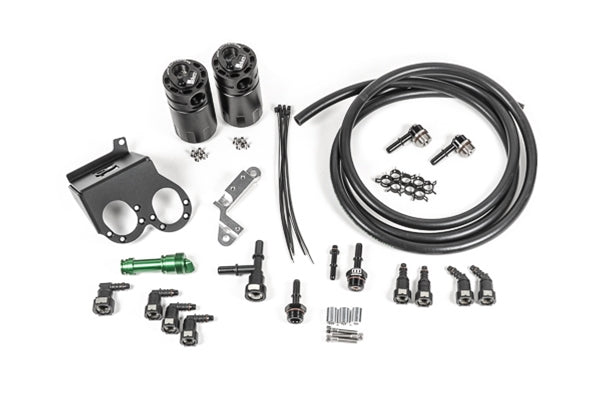

INCLUDES

• Baffled oil catch cans with integrated condenser and dipstick
• Anodized PCV valve bypass with SAE quick connect
• Billet aluminum ground plate and spacers
• Anodized aluminum catch can bracket
• SAE quick connect fittings
• Stainless steel hardwar
• 3/8" PCV rubber hose
• Spring clamps
