Description

COMPATIBILITY

98-05 Mazda MX-5 Miata

OVERVIEW

The catch can draws out oil and water condensation from the crankcase gasses that would otherwise be drawn into the intake manifold. This prevents oil buildup in the intake, intercooler system walls, throttle body, and intake manifold. This effectively raises the octane, can increase engine performance from cleaner inlet air, and can lower hydrocarbon emissions. The closed system prevents unwanted oil vapors from entering into the cabin. Catch can kits include everything needed for a complete installation.

Note: Excessive oil collection can be an indicator of a damaged engine.

CATCH CAN FEATURES

- Large 10AN ORB inlet and outlet ports
- 4AN ORB drain port
- 2-step oil separation baffling
- O-ring sealed dipstick
- 7 fluid ounce capacity
- Patented Fluid Lock® system

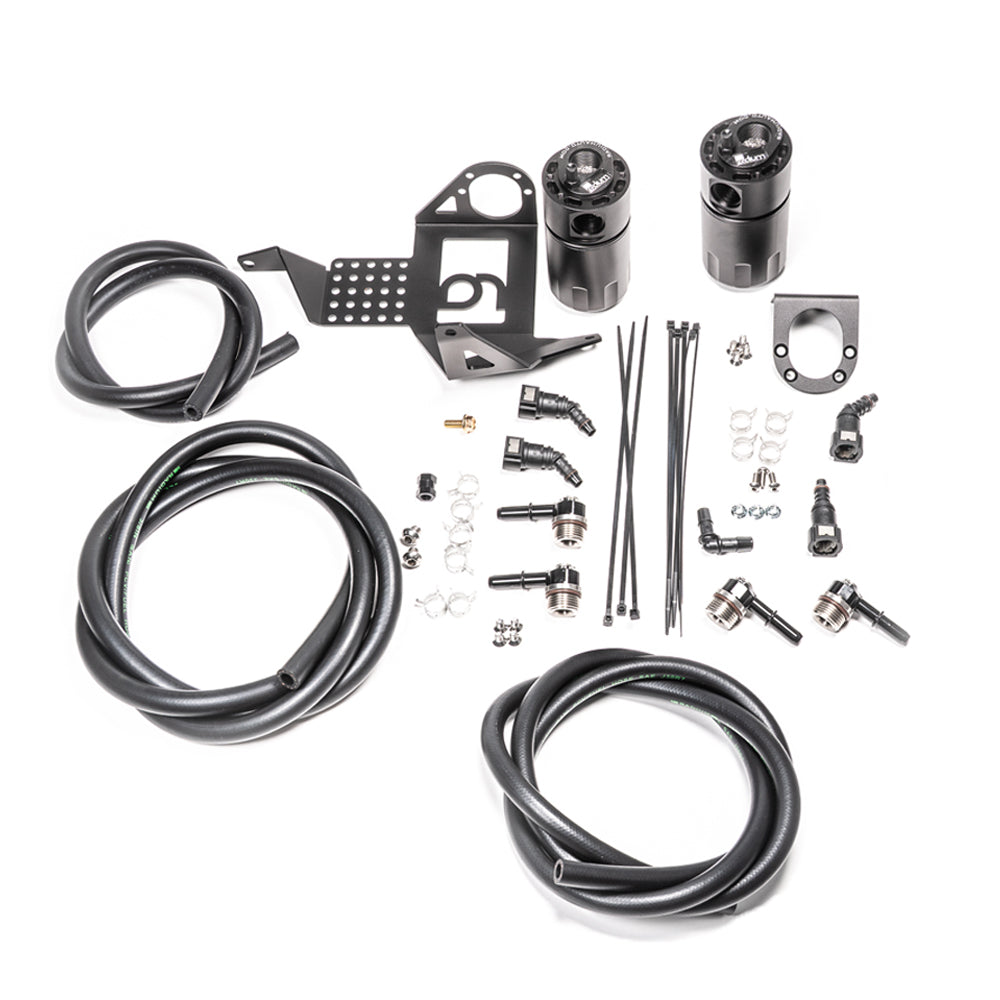

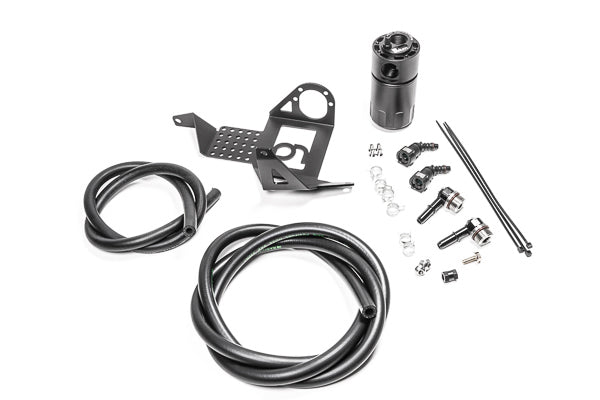

20-1336-FL CATCH CAN KIT, PCV, 98-05 MAZDA MX-5, FLUID LOCK

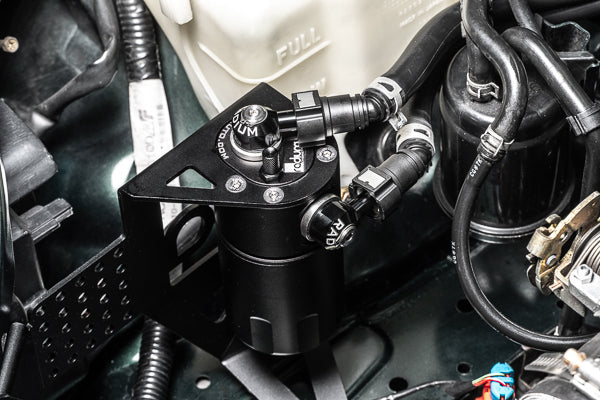

This catch can mounts using OEM holes and integrate perfectly with the surrounding components. The anodized aluminum catch can bracket mounts behind the RH headlight. NOTE: Because of the room needed for flip-up head lights, these kits are not compatible with the 89-97 MX-5 Miata or Eunos Roadsters.

As shown below, SAE quick connect fittings are provided for both catch can ports.

The PCV catch can kit improves the performance of the crankcase ventilation system. The catch can runs inline between the PCV valve and the intake manifold. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes and, thus, this hose experiences no flow. Conversely, the PCV hoses will experience 'metered' vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run.

INCLUDES
-Baffled Fluid-Lock® oil catch can
-Anodized aluminum bracket
-SAE quick connect hose ends
-SAE quick connect fittings
-Stainless mounting hardware
-3/8" PCV rubber hose
-5/16" heater hose
-Cable zip-ties
-Spring clamps

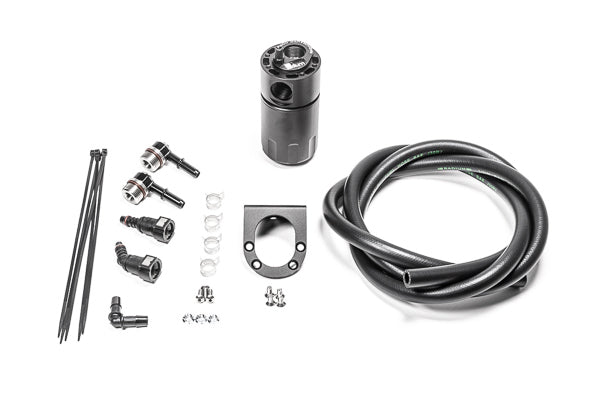

20-1337-FL CATCH CAN ADD-ON, CCV, 98-05 MAZDA MX-5, FLUID LOCK

To retain factory functionality, the CCV catch can runs inline between the crankcase vent (CCV) port and the intake pipe. At low loads, this catch can experiences atmospheric pressure. However, when the engine is at high load (WOT), the catch can will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation throughout the intake system.

NOTE: THIS ADD-ON CANNOT BE INSTALLED WITHOUT 20-1336-FL CATCH CAN KIT (LISTED ABOVE).

As shown below, the anodized aluminum catch can bracket mounts to the catch can bracket included with 20-1336-FL.

INCLUDES
-Baffled Fluid-Lock® oil catch can
-Anodized aluminum bracket
-SAE quick connect hose ends
-SAE quick connect fittings
-Stainless mounting hardware
-3/8" PCV rubber hose
-Cable zip-ties
-Spring clamps
