COMPATIBILITY

  • Compatible with all Radium Fuel Rail Kits that originally came with thermal spacers when needed.

OVERVIEW

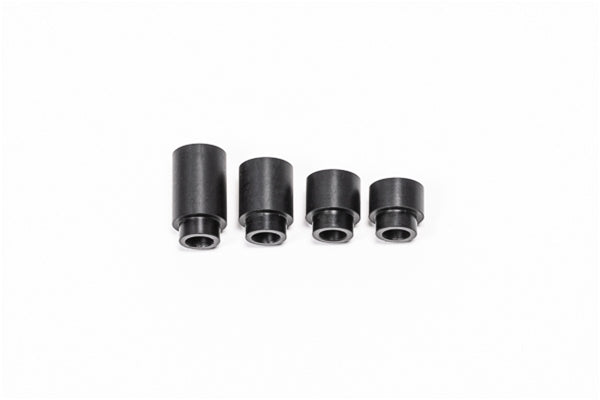

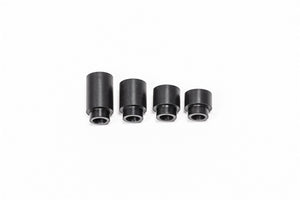

These press-fit spacers and washers are used with many Radium Engineering kits for thermally isolating the fuel rail from the engine.

  • These are sold individually. Double check how many are required prior to purchasing.
  • Spacer height measurement does not include press-fit insert length. Example: total height for 14-0711 Insulating Spacer, 11mm is 17.3mm.
  • These can be used as replacements for Radium Engineering fuel rails that use phenolic spacers.
  • Mounting hardware is not included. However, most bolts are common and can be sourced in local hardware stores.

SPECS & FEATURES

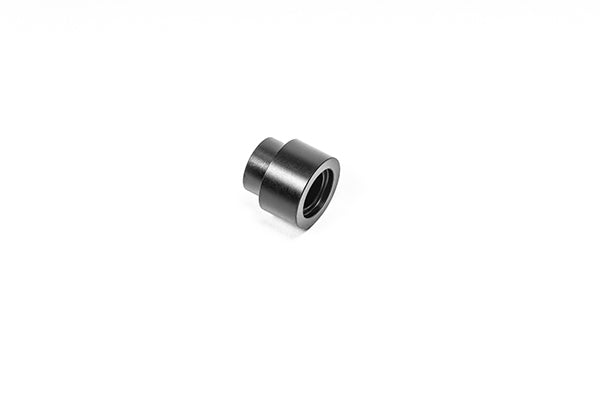

14-0711 INSULATING SPACER, 11MM

  • Outer Diameter: 19mm
  • Inner Hole Diameter: 9.6mm
  • Press-Fit Outer Diameter: 14.2mm
  • Press-Fit Insert Length: 6.4mm
  • Max Temperature: 210F
  • Tensile Strength: 17,000psi

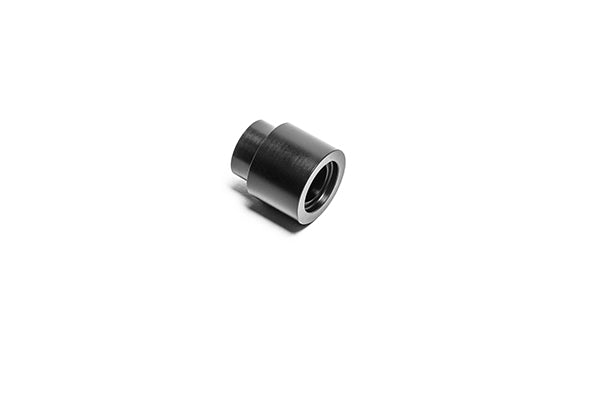

14-0715 INSULATING SPACER, 15MM

  • Outer Diameter: 19mm
  • Inner Hole Diameter: 9.6mm
  • Press-Fit Outer Diameter: 14.2mm
  • Press-Fit Insert Length: 6.4mm
  • Max Temperature: 210F
  • Tensile Strength: 17,000psi

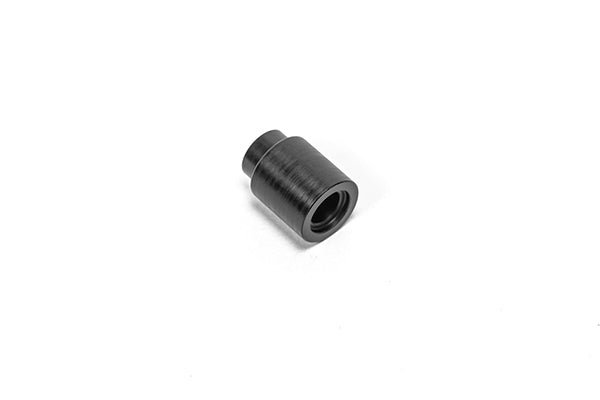

14-0720 INSULATING SPACER, 20MM

  • Outer Diameter: 19mm
  • Inner Hole Diameter: 9.6mm
  • Press-Fit Outer Diameter: 14.2mm
  • Press-Fit Insert Length: 6.4mm
  • Max Temperature: 210F
  • Tensile Strength: 17,000psi

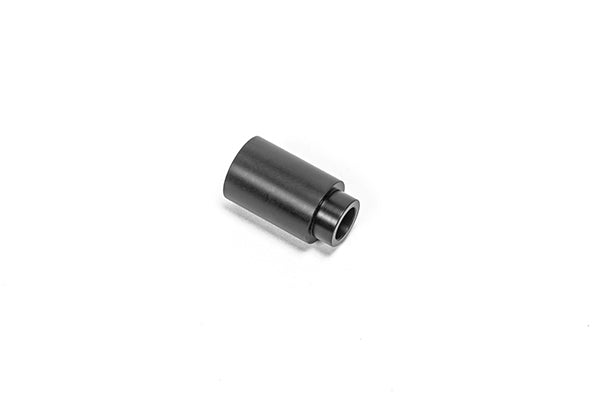

14-0727 INSULATING SPACER, 27MM

  • Outer Diameter: 19mm
  • Inner Hole Diameter: 9.6mm
  • Press-Fit Outer Diameter: 14.2mm
  • Press-Fit Insert Length: 6.4mm
  • Max Temperature: 210F
  • Tensile Strength: 17,000psi

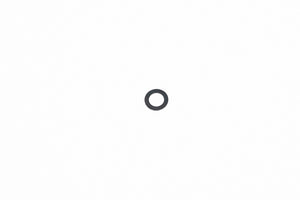

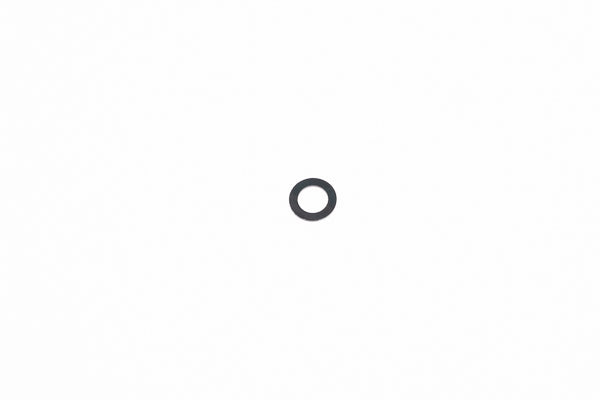

14-0701 INSULATING WASHER, M8

  • Outer Diameter: 12.7mm
  • Inner Hole Diameter: 7.9mm
  • Washer Thickness: 0.8mm
  • Max Temperature: 210F

ADDITIONAL IMAGES

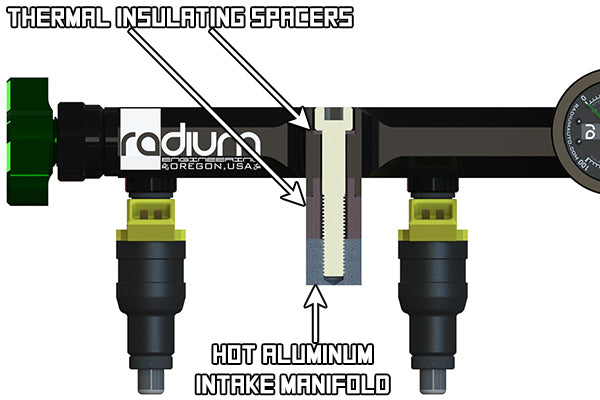

Section view Section view

Thermal Spacers and Washers
