Description

COMPATIBILITY

  • See the details below to choose the correct kit for your fitting.

OVERVIEW

IMPORTANT: Service Parts are only available on RadiumAuto.com and are not eligible for any wholesale discounts.

These kits contain the necessary parts to service a low profile swivel fitting. The lower stainless and upper anodized aluminum halves are held together with an external retaining ring ("snap-ring"). A set of external snap ring pliers are required to service these. Externally each fitting with have an o-ring on the lower threads (or crush washer for metric fittings). Internally each fitting will have two o-rings that the swivel seals and pivots on. These kits include parts to service one fitting.

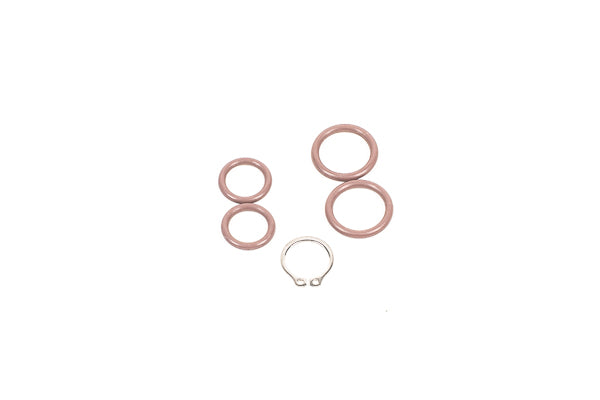

20-0723-01 SERVICE KIT, SWIVEL FITTING, 0406 & 0606 SIZES

INCLUDES

  • Replacement lower o-ring
  • Replacement inner o-rings
  • Replacement external retaining ring

COMPATIBILITY

  • 20-1000-0406 (4AN ORB to 6AN male)
  • 20-1000-04313 (4AN ORB to 5/16" SAE male)
  • 20-1000-0465 (4AN ORB to 6.5mm barb)
  • 20-1000-0485 (4AN ORB to 8.5mm barb)
  • 20-1000-0606 (6AN ORB to 6AN male)
  • 20-1000-0606-375 (6AN ORB 3/8" SAE to 6AN male bulkhead)
  • 20-1000-0606-85 (6AN ORB 8.5mm barb to 6AN male bulkhead)
  • 20-1000-0606F (6AN ORB to 6AN female)
  • 20-1000-0610B (6AN ORB to 10mm barb)
  • 20-1000-0610S (6AN ORB to 10mm SAE)
  • 20-1000-06313 (6AN ORB to 5/16" SAE)
  • 20-1000-06313-375 (6AN ORB 3/8" SAE bulkhead to 5/16" SAE male)
  • 20-1000-06375 (6AN ORB to 3/8" SAE male)
  • 20-1000-06375-85 (6AN ORB 8.5mm barb bulkhead to 3/8" SAE)
  • 20-1000-0665 (6AN ORB to 6.5mm barb)
  • 20-1000-0685 (6AN ORB to 8.5mm barb)
  • 20-1000-0685-85 (6AN ORB 8.5mm barb bulkhead to 8.5mm barb

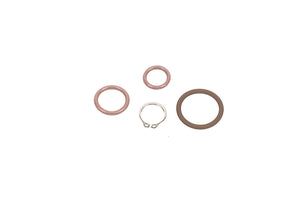

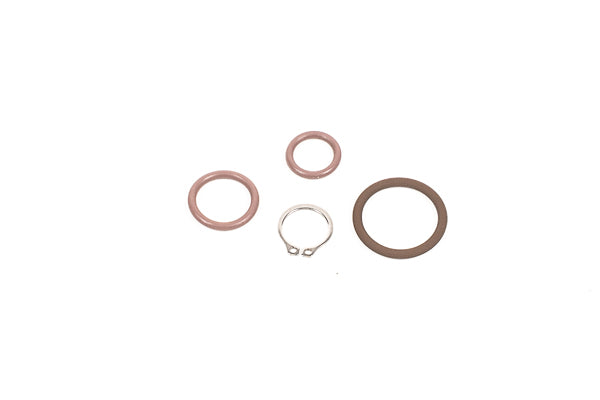

20-0723-02 SERVICE KIT, SWIVEL FITTING, 0806 SIZES

INCLUDES

  • Replacement lower o-ring
  • Replacement inner o-rings
  • Replacement external retaining ring

COMPATIBILITY

  • 20-1000-0806 (8AN ORB to 6AN male)
  • 20-1000-0806F (8AN ORB to 6AN  female)
  • 20-1000-0810B (8AN ORB to 10mm barb)
  • 20-1000-0810S (8AN ORB to 10mm SAE)
  • 20-1000-08313 (8AN ORB to 5/16" SAE male)
  • 20-1000-08375 (8AN ORB to 3/8" SAE male)
  • 20-1000-0865 (8AN ORB to 6.5mm barb)
  • 20-1000-0885 (8AN ORB to 8.5mm barb)

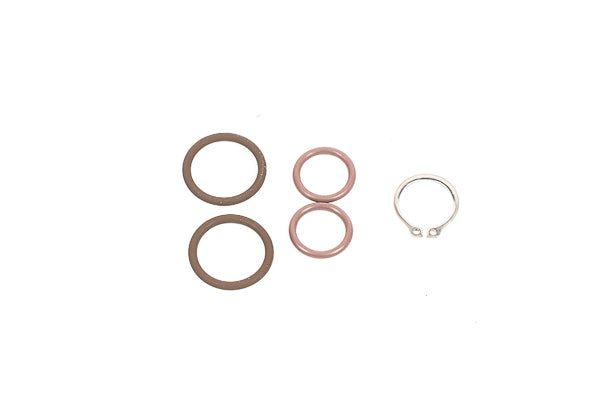

20-0732-03 SERVICE KIT, SWIVEL FITTING, 0608 & 0808 SIZES

INCLUDES

  • Replacement lower o-ring
  • Replacement inner o-rings
  • Replacement external retaining ring

COMPATIBILITY

  • 20-1000-0608 (6AN ORB to 8AN male)
  • 20-1000-0612S (6AN ORB to 12mm SAE)
  • 20-1000-0808 (8AN ORB to 8AN male)
  • 20-1000-0812S (8AN ORB to 12MM SAE)

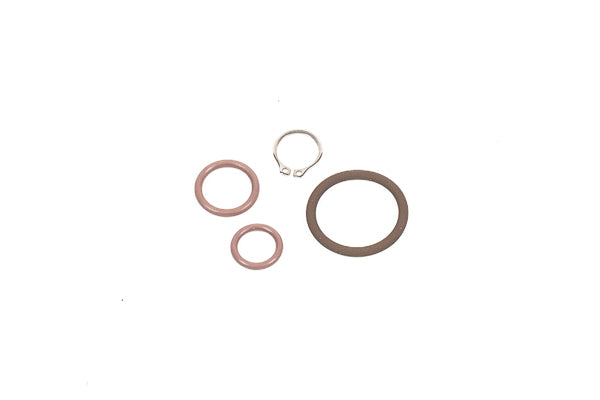

20-0732-04 SERVICE KIT, SWIVEL FITTING, 1006 SIZES

INCLUDES

  • Replacement lower o-ring
  • Replacement inner o-rings
  • Replacement external retaining ring

COMPATIBILITY

  • 20-1000-1006 (10AN ORB to 6AN male)
  • 20-1000-1006-PCV (10AN PCV VALVE to 6AN male)
  • 20-1000-1006F (10AN ORB to 6AN female)
  • 20-1000-1010B (10AN ORB to 10mm barb)
  • 20-1000-1010B-PCV (10AN PCV VALVE to 10mm barb)
  • 20-1000-1010S (10AN ORB to 10mm SAE)
  • 20-1000-1010S-PCV (10AN PCV VALVE to 10mm SAE)
  • 20-1000-10313 (10AN ORB to 5/16" SAE)
  • 20-1000-10313-PCV (10AN PCV VALVE to 5/16" SAE)
  • 20-1000-10375 10AN ORB to 3/8" SAE)
  • 20-1000-10375-PCV (10AN PCV VALVE to 3/8" SAE)
  • 20-1000-1065 (10AN ORB to 6.5mm barb)
  • 20-1000-1065-PCV (10AN PCV VALVE to 6.5mm barb)
  • 20-1000-1085 (10AN ORB to 8.5mm barb)
  • 20-1000-1085-PCV (10AN PCV VALVE to 8.5mm barb)

20-0732-05 SERVICE KIT, SWIVEL FITTING, 1008 SIZES

INCLUDES

  • Replacement lower o-ring
  • Replacement inner o-rings
  • Replacement external retaining ring

COMPATIBILITY

  • 20-1000-1008 (10AN ORB to 8AN male)
  • 20-1000-1012S (10AN ORB to 12mm SAE)

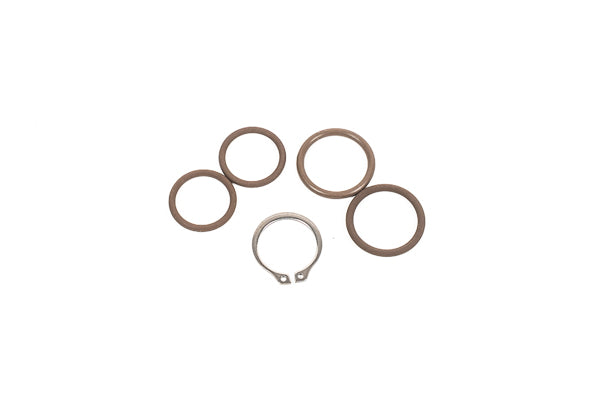

20-0732-06 SERVICE KIT, SWIVEL FITTING, 0810 & 1010 SIZES

INCLUDES

  • Replacement lower o-ring
  • Replacement inner o-rings
  • Replacement external retaining ring

COMPATIBILITY

  • 20-1000-0810 (8AN ORB to 10AN male)
  • 20-1000-0816S (8AN ORB to 16mm SAE)
  • 20-1000-1010 (10AN ORB to 10AN male)
  • 20-1000-101010 (10AN ORB to dual 10AN male)
  • 20-1000-1016S (10AN ORB to 16mm SAE)

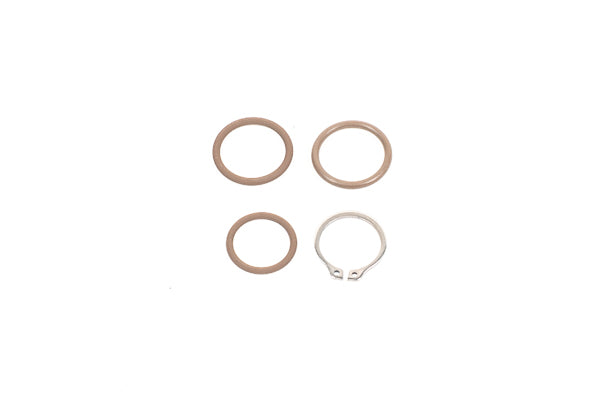

20-0732-07 SERVICE KIT, SWIVEL FITTING, 1012 SIZES

INCLUDES

  • Replacement lower o-ring
  • Replacement inner o-rings
  • Replacement external retaining ring

COMPATIBILITY

  • 20-1000-1012 (10AN ORB to 12AN male)
  • 20-1000-10750 (10AN ORB to 3/4" SAE)
  • 20-1000-10750-750 (10AN ORB 3/4" SAE bulkhead to 3/4" SAE)

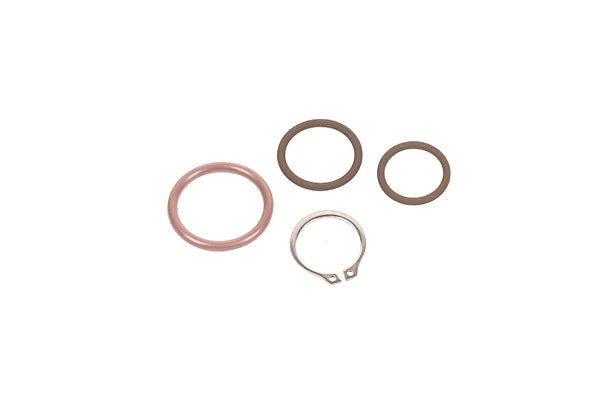

20-0732-08 SERVICE KIT, SWIVEL FITTING, 1212 SIZES

INCLUDES

  • Replacement lower o-ring
  • Replacement inner o-rings
  • Replacement external retaining ring

COMPATIBILITY

  • 20-1000-1212 (12AN ORB to 12AN male)
  • 20-1000-12750 (12AN ORB to 3/4" SAE)

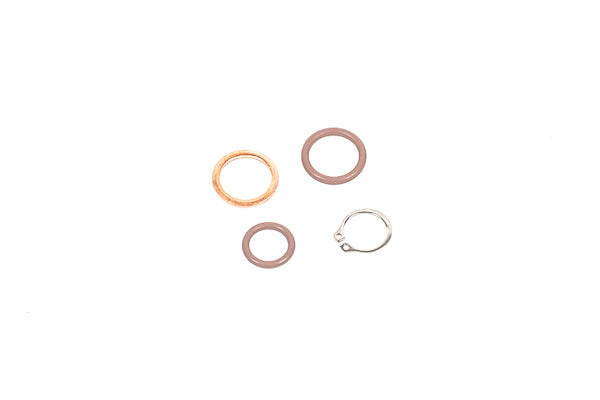

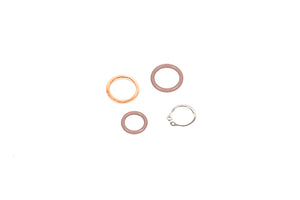

20-0732-09 SERVICE KIT, SWIVEL FITTING, M1206 SIZES

INCLUDES

  • Replacement lower crush washer
  • Replacement inner o-rings
  • Replacement external retaining ring

COMPATIBILITY

  • 20-1000-M1206 (M12X1.25 to 6AN male)
