COMPATIBILITY

• Fuel pressure regulators
• Fuel pulse dampers
• Any engine accessory requiring a vacuum signal from the intake manifold

This hose is also safe to use for any engine coolant line needs, such as overflow or expansion tanks.

OVERVIEW

This rubber vacuum tubing is used alongside all popular Radium fuel pressure regulators, dampers, and FST's with integrated regulators. It can be used as the vacuum signal source for many other components such as blow-off valves and any solenoid or sensor requiring a vacuum signal from the intake manifold. It is also safe for use with engine coolant and water, so it can be used for items such as overflow or expansion tanks as well.

SPECIFICATIONS

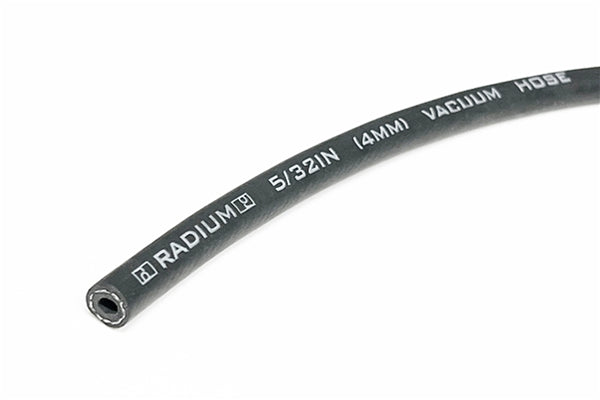

5/32" VACUUM HOSE

• Inside Diameter: 5/32" (4mm) ID
• Outside Diameter: 3/8" (9mm) OD
• Burst Pressure: 650psi (Radium Tested)
• Max Working Pressure: 325psi

7/32" VACUUM HOSE

• Inside Diameter: 7/32" (5.5mm) ID
• Outside Diameter: 13/32" (10.5mm) OD
• Burst Pressure: 650psi (Radium Tested)
• Max Working Pressure: 325psi

HOW TO ORDER

Enter the amount of "feet" required in the Quantity box. Round to the nearest foot (decimals not allowed).

Units Conversion: 1ft = 305mm

Note: Please allow +/- 2"(50 mm) tolerance. Order excess length if exact cut length is critical.

EXAMPLES

• Quantity 1: Radium Engineering will provide 1 foot of hose.
• Quantity 6: Radium Engineering will provide 6 continuous feet of hose.
