COMPATIBILITY

  • 20-0940 Fuel Hanger Toyota Chaser/Mark II/Cresta
  • 20-0980 Fuel Hanger, Mid 2003-2013 Corvette
  • 20-1010 Fuel Hanger 14-19 Corvette

Note: Only use these pump clamps installing a fuel pump with a 41-43mm outer body diameter.

COMPATIBLE PUMPS

  • Deatschwerks DW440
  • Deatschwerks DW810
  • Protec 11928
  • Fuelab 49614

Other 41-43mm bodied pumps not listed may be compatible, but are not confirmed.

OVERVIEW

Radium Engineering uses a 2-piece pump clamp that is specific to the fuel collector found in the following fuel pump hangers:

  • Chevrolet C5 Corvette
  • Chevrolet C6 Corvette
  • Chevrolet C7 Corvette
  • Toyota Chaser JZX90
  • Toyota Chaser JZX100
  • Toyota Cresta JZX90
  • Toyota Cresta JZX100
  • Toyota Mark II JZX90
  • Toyota Mark II JZX100

The original clamp provided with those products is for 38-39mm OD pumps. This 20-0441 fuel pump clamp permits the use of 41-43mm OD pumps.

SPECS & FEATURES

  • Machined from 6061 Aluminum
  • Clear Anodized Type-II Finish
  • Stainless Steel Hardware
  • FKM (Viton) O-ring

ADDITIONAL IMAGES

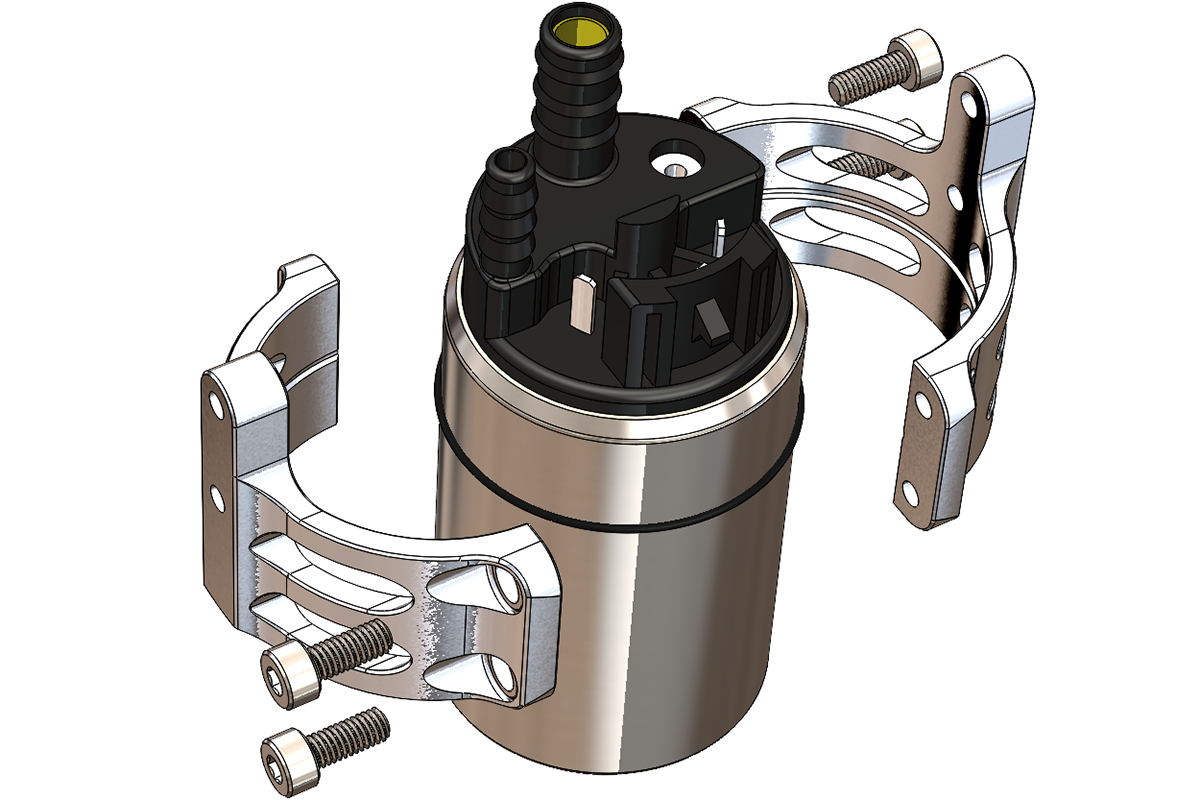

Assembly exploded view Assembly exploded view

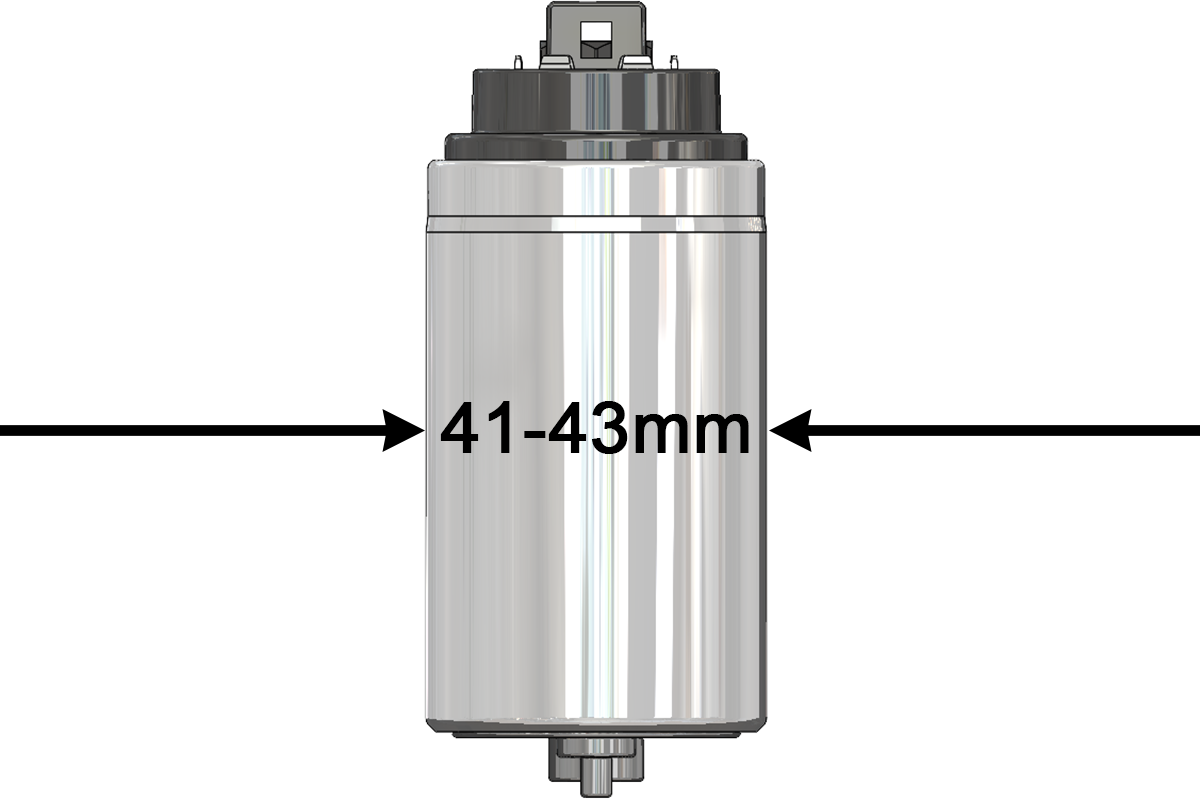

Outer Diameter Outer Diameter

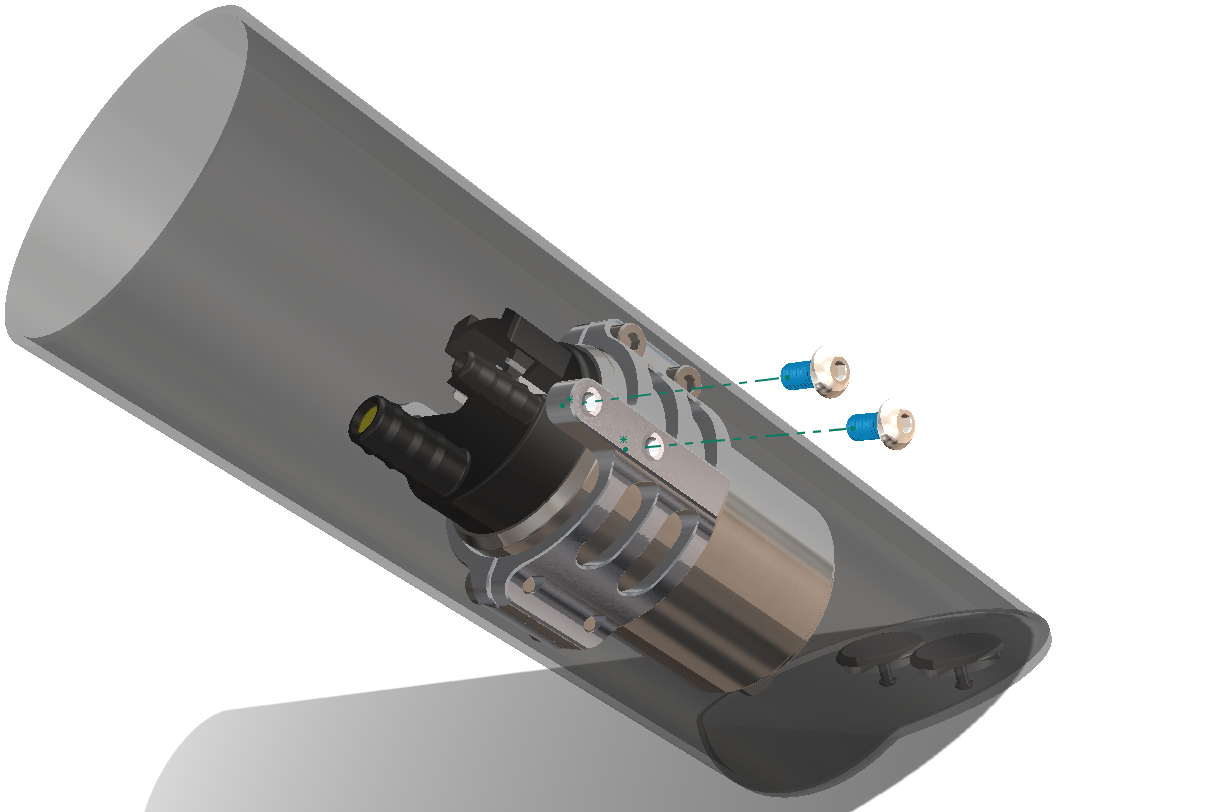

Pump & clamp inside collector Pump & clamp inside collector

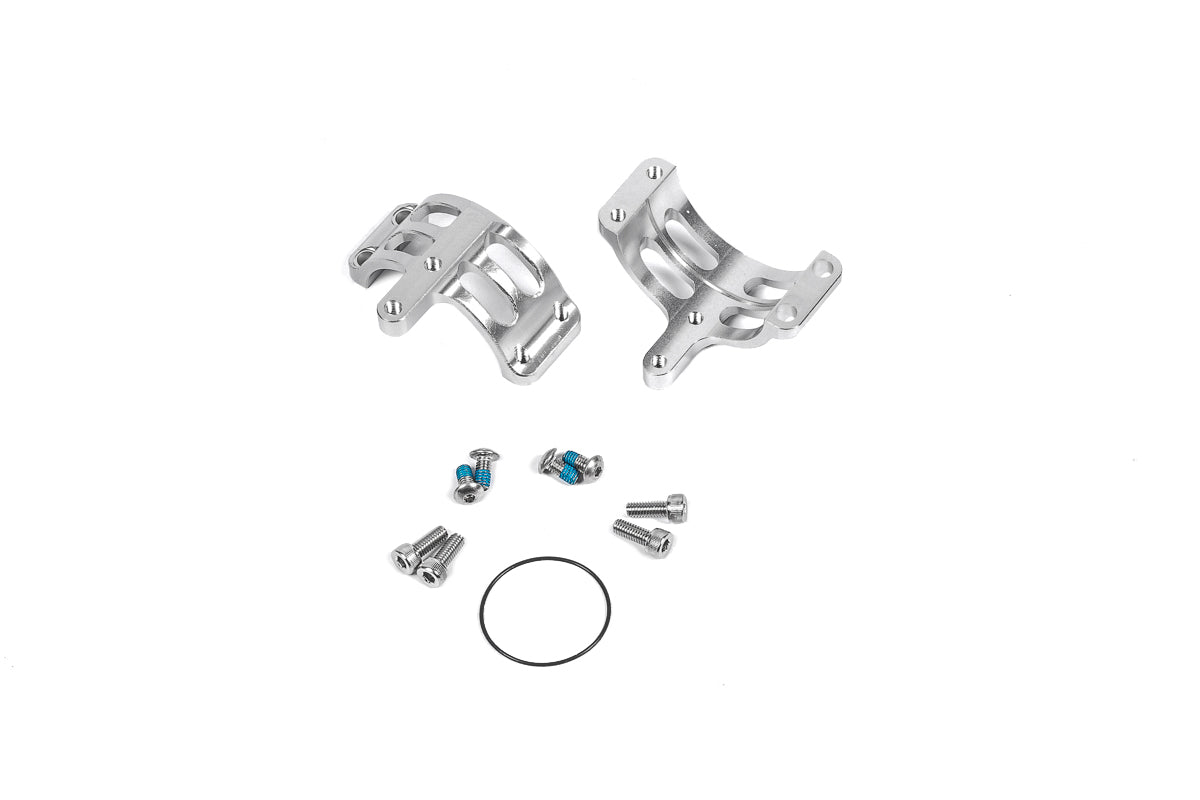

Pump Clamp for 41-43mm Bodies

Regular price
Sale price
$39.95
Regular price
Shipping calculated at checkout.

Install Instructions PDFs

Installation Instructions (PDF)
