COMPATIBILITY

20-0865 Port Injection Kit R8 Gallardo LP

06-15 Audi R8 Type42 (all GEN-1 V10 trims)
08-13 Lamborghini Gallardo LP550-2 (all trims)
08-13 Lamborghini Gallardo LP560-4 (all trims)
08-13 Lamborghini Gallardo LP570-4 (all trims)

Not compatible with the 1st generation Lamborghini Gallardo 5.0L engine
Not compatible with the 2nd generation Audi R8 Type-4S upper or lower intake manifold
Not compatible with the Lamborghini Huracan upper or lower intake manifold

20-0967-03 and 20-0967-05 PIK PLUMBING KIT, GALLARDO LP

08-13 Lamborghini Gallardo LP550-2 (all trims)
08-13 Lamborghini Gallardo LP560-4 (all trims)
08-13 Lamborghini Gallardo LP570-4 (all trims)

Not compatible with the Audi R8 or Lamborghini Huracan.

FUEL INJECTORS

This kit is designed for specific top feed fuel injectors with upper and lower O-ring spacing, as depicted left. The upper and lower injector O-rings must be 14mm diameter, and the height must be the short 34mm body.

Below are some of the many fuel injectors that are a direct fitment.

Injector Dynamics ID1050-XDS 1050.34.14.14
Injector Dynamics ID1300-XDS 1300.34.14.14
Injector Dynamics ID1700-XDS 1700.34.14.14
Injector Dynamics ID2600-XDS 2600.34.14.14

Radium Engineering does not sell fuel injectors.

OVERVIEW

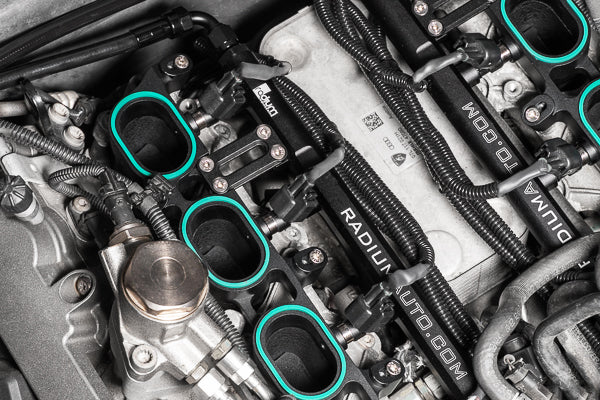

The Radium Engineering Port Injection Kit (PIK) installs between the intake manifold and the lower runners on the cylinder heads. It permits the use of port injectors for the additional fuel required for highly-modified 5.2L V10 engines. This does NOT replace the OEM direct injection system.

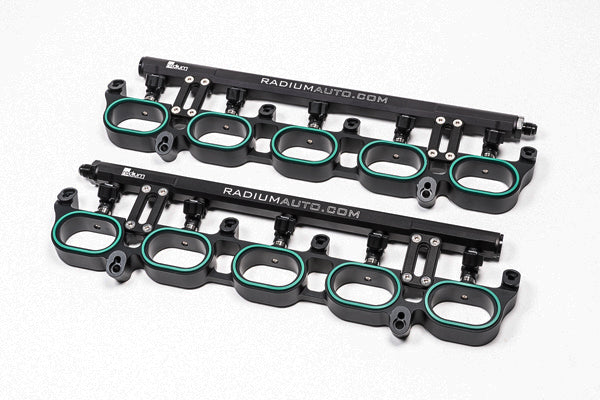

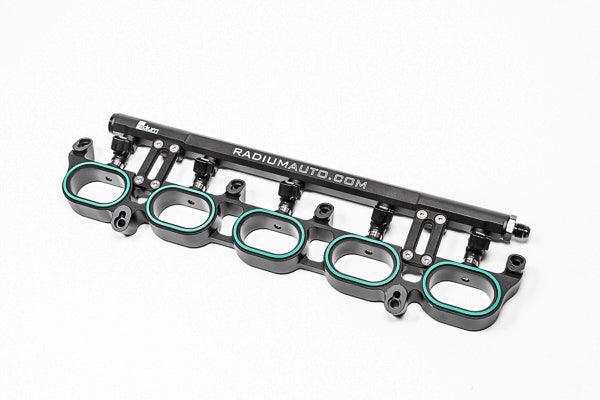

20-0865 Port Injection Kit R8 Gallardo LP

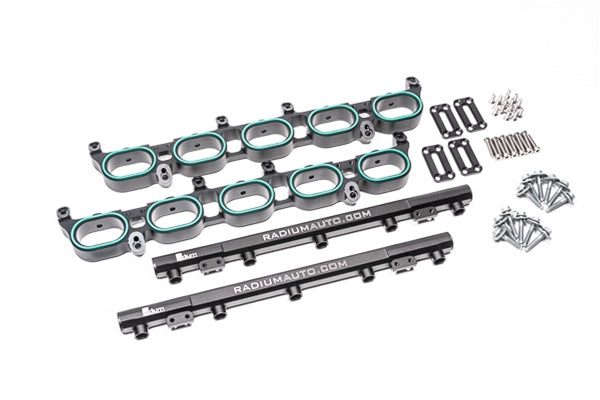

The PIK adapter plates can also be used as a simple intake manifold spacer without using the fuel rails. All that is required are 2AN ORB Plugs.

NOTES

Compatible with all fuel types including popular alcohol mixtures such as E85
Because the PIK will space up the intake manifold, a minor throttle body coupler adjustment may be required
Fuel injectors, port fittings, fuel hose, wiring, injector controller, charge pipe, etc. are NOT included in 20-0865
See the 20-0967-03 and 20-0967-05 (below) for plumbing that provides the necessary adapter fittings, fuel filter, regulator, pressure gauge, and hose
For a high horsepower port injection check out the Radium Engineering 20-0860 fuel hanger surge tank

20-0967-03 and 20-0967-05 PIK PLUMBING KIT, GALLARDO LP

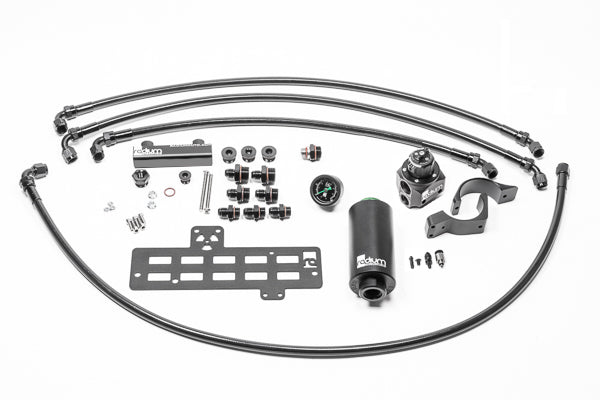

This kit permits an independant port injection fuel system. PTFE hoses, -AN adapter fittings, 1:1 pressure regulator, pressure gauge, and a fuel filter (stainless -03 or microglass -05) are all provided.

These components mount to the LH side of the engine using OEM threaded bosses on the frame rail. No drilling or permanent modifications are required. The Radium Engineering fuel hanger surge tank is recommended to feed this system.
