COMPATIBILITY

• See the details below for individual compatibility information

OVERVIEW

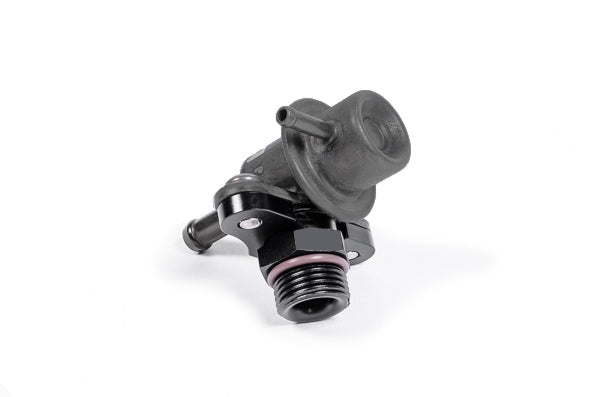

These anodized billet 6061 aluminum adapter fittings allow an OEM fuel pressure regulator (FPR) or fuel pulse damper (FPD) to be reused in an application other than the OEM fuel rail. All fittings permit the unit to be clocked into the proper position.

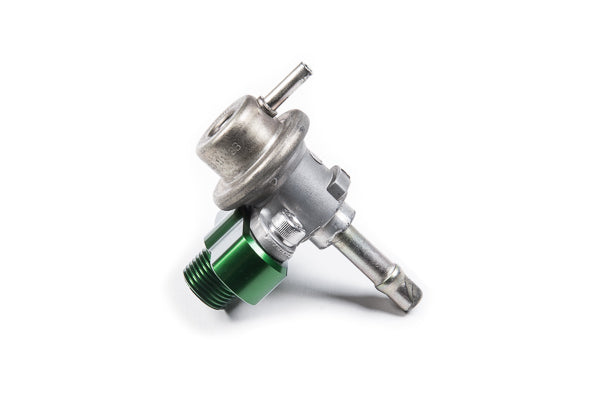

	14-0165 FPR Adapter 3/8NPT 11mm Bore 32mm Spacing M5 This fitting can adapt to virtually any fuel rail with a 3/8" NPT threaded port and the necessary space around it to allow the FPR to fit. It is threaded M5x0.8mm where is accepts the FPR and has a 32mm hole spacing. Compatible FPR must have an 11mm bore and 32mm mount hole spacing.  COMPATIBILITY Nissan RB26DETT Fuel Pressure Regulator Nissan RB25DET Fuel Pressure Regulator Nissan RB20DET Fuel Pressure Regulator Nissan SR20DET Fuel Pressure Regulator Nissan KA24DE Fuel Pressure Regulator Nissan CA18DET Fuel Pressure Regulator Saab 9-2X Aero 2.5L Fuel Pressure Regulator Subaru EJ20 GC8 WRX Fuel Pressure Regulator Subaru EJ25 GR WRX Fuel Pressure Regulator Mazda RX-7 13B-REW Fuel Pressure Regulator

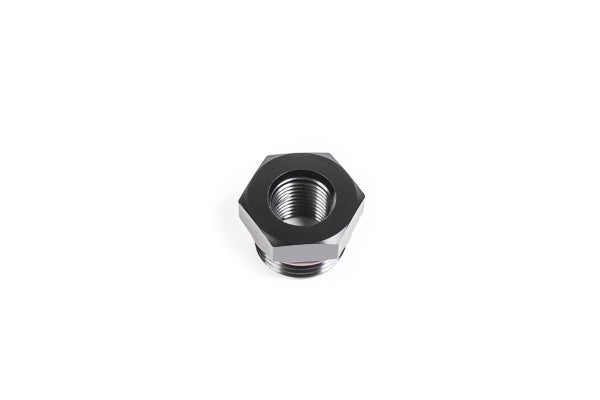

	14-0285 8AN ORB to M12x1.25 Female This fitting is used to adapt any FPR or sensor that is threaded M12x1.25 to an 8AN ORB female port. These metric FPR units should include a sealing washer to use when installing into the fitting. COMPATIBILITY Toyota 1JZ-GTE Non VVT-i Fuel Pressure Regulator Toyota 1JZ-GTE VVT-i Fuel Pressure Regulator Toyota 3S-GTE Fuel Pressure Regulator Toyota 1UZ-FE Fuel Pressure Regulator Mazda RX-7 FC Series 4 Fuel Pressure Regulator

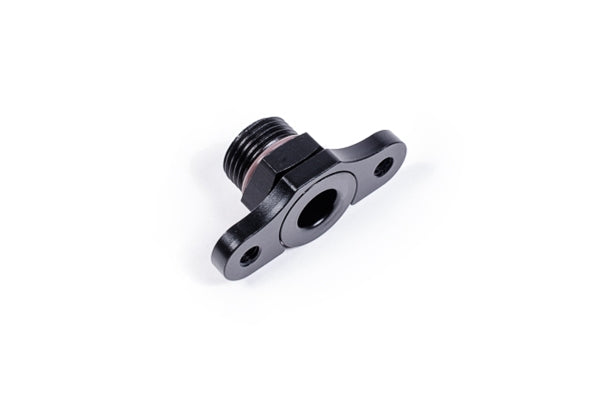

	20-0301 FPR Adapter 8AN ORB 11mm Bore 39mm Spacing M6 This fitting can adapt to virtually any fuel rail with an 8AN ORB female port and the necessary space around it to allow the FPR to fit. It is threaded M6x1.0mm where is accepts the FPR and has a 39mm hole spacing. Compatible FPR must have an 11mm bore and 39mm mount hole spacing. COMPATIBILITY Mazda MX-5 B6 Fuel Pressure Regulator Mazda MX-5 BP Fuel Pressure Regulator Mazda MX-5 BP Fuel Pulse Damper Mitsubishi EVOX 4B11T Fuel Pressure Regulator Toyota 1GR-FE Fuel Pressure Regulator Toyota 2JZ-GE Fuel Pressure Regulator Toyota 2JZ-GTE Fuel Pressure Regulator Toyota 2RZ-FE Fuel Pressure Regulator Toyota 2UZ-FE Fuel Pressure Regulator Toyota 3RZ-FE Fuel Pressure Regulator Toyota 3S-GTE Caldina Fuel Pressure Regulator Saab 9-2X Aero 2.0L Fuel Pressure Regulator Subaru EJ20 GDA WRX Fuel Pressure Regulator Subaru EJ221 Fuel Pressure Regulator Subaru EJ222 Fuel Pressure Regulator Subaru EJ223 Fuel Pressure Regulator Subaru EZ30 Phase-I Fuel Pressure Regulator Suzuki G16B Fuel Pressure Regulator

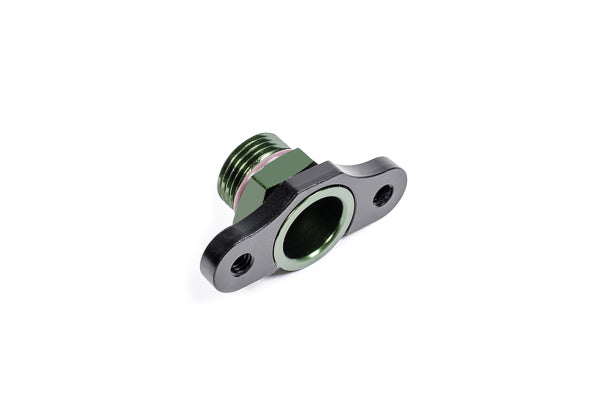

	20-0302 FPR Adapter 8AN ORB 16mm Bore 39mm Spacing M6 This fitting can adapt to virtually any fuel rail with an 8AN ORB female port and the necessary space around it to allow the FPR to fit. It is threaded M6x1.0mm where is accepts the FPR and has a 39mm hole spacing. Compatible FPR must have an 16mm bore and 39mm mount hole spacing. COMPATIBILITY Eagle Talon 4G63 (2G DSM) Fuel Pressure Regulator Mitsubishi Eclipse 4G63 (2G DSM) Fuel Pressure Regulator Mitsubishi EVO IV Fuel Pressure Regulator Mitsubishi EVO V Fuel Pressure Regulator Mitsubishi EVO VI Fuel Pressure Regulator Mitsubishi EVO VII Fuel Pressure Regulator Mitsubishi EVO VIII Fuel Pressure Regulator Mitsubishi EVO IX Fuel Pressure Regulator

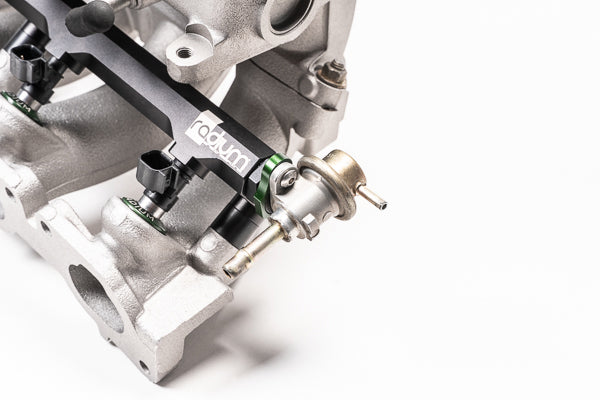

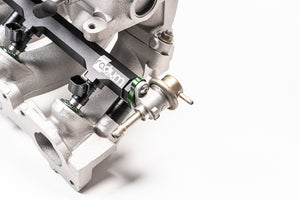

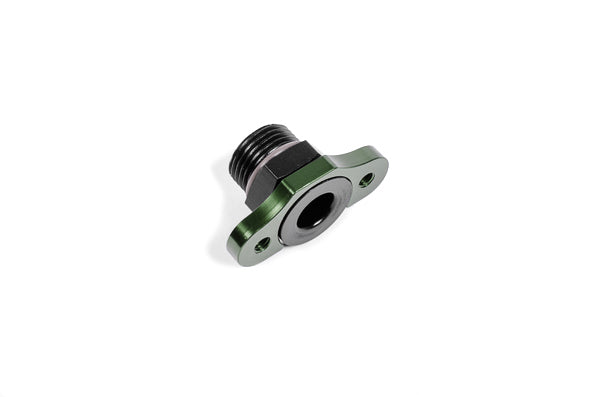

	20-0303 FPR Adapter 8AN ORB 11mm Bore 32mm Spacing M5 This fitting can adapt to virtually any fuel rail with an 8AN ORB female port and the necessary space around it to allow the FPR to fit. It is threaded M5x0.8mm where is accepts the FPR and has a 32mm hole spacing. Compatible FPR must have an 11mm bore and 32mm mount hole spacing. COMPATIBILITY Nissan RB26DETT Fuel Pressure Regulator Nissan RB25DET Fuel Pressure Regulator Nissan RB20DET Fuel Pressure Regulator Nissan SR20DET Fuel Pressure Regulator Nissan KA24DE Fuel Pressure Regulator Nissan CA18DET Fuel Pressure Regulator Saab 9-2X Aero 2.5L Fuel Pressure Regulator Subaru EJ20X GC8 WRX Fuel Pressure Regulator Subaru EJ22E Fuel Pressure Regulator Subaru EJ22T Fuel Pressure Regulator Subaru EJ251 Fuel Pressure Regulator Subaru EJ255 Fuel Pressure Regulator Mazda RX-7 13B-REW Fuel Pressure Regulator

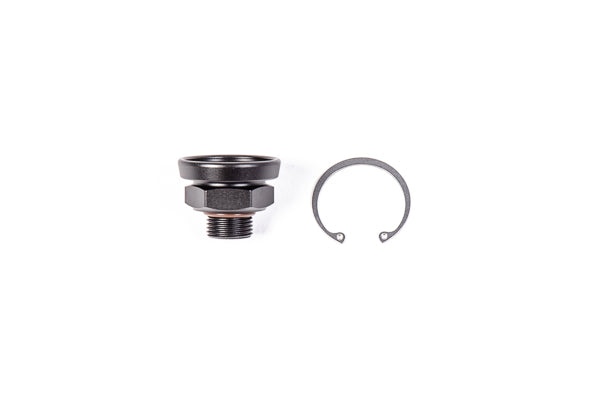

	20-0459 FPD Adapter 8AN ORB 27mm Bore This fitting will adapt OEM pulse dampers commonly used in Nissan applications to an 8AN male thread. This can be installed into any 8AN ORB female port. COMPATIBILITY Nissan VQ35HR Fuel Pulse Damper Nissan VQ37VHR Fuel Pulse Damper Nissan VQ40DE Fuel Pulse Damper Nissan VR38DETT Fuel Pulse Damper

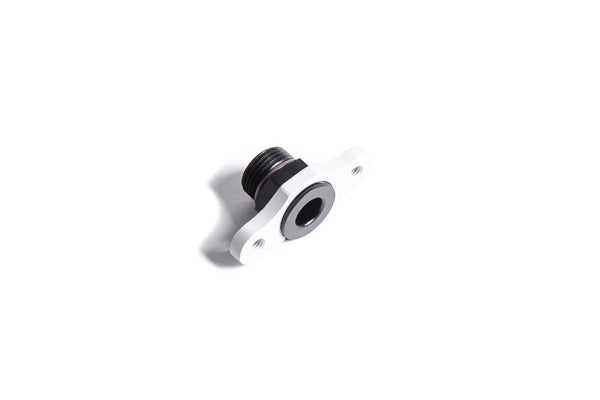

	20-0460 FPD Adapter 8AN ORB 11mm Bore 42mm Spacing M6 This fitting can adapt to virtually any fuel rail with an 8AN ORB female port and the necessary space around it to allow the FPR to fit. It is threaded M6x1.0mm where is accepts the FPR and has a 42mm hole spacing. Compatible FPR must have an 11mm bore and 42mm mount hole spacing. COMPATIBILITY Nissan VQ35DE Fuel Pulse Damper Nissan VR38DETT Fuel Pulse Damper Nissan VR38DETT Fuel Pressure Regulator

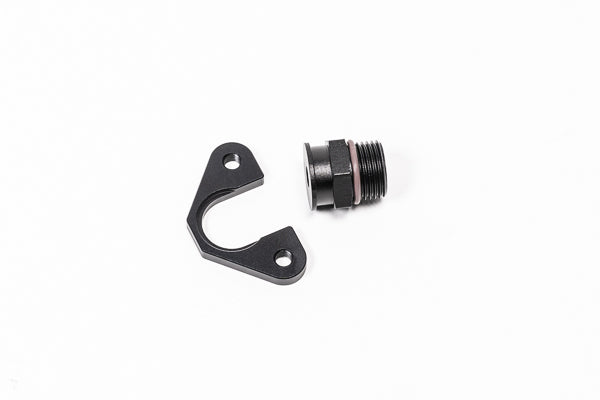

	20-0595 FPR Adapter 8AN ORB 7mm Bore 39mm Offset M6 This fitting can adapt to virtually any fuel rail with an 8AN ORB female port and the necessary space around it to allow the FPR to fit. It is threaded M6x1.0mm where is accepts the FPR and has an offset 39mm hole spacing. Compatible FPR must have an 7mm bore and 39mm mount hole spacing. COMPATIBILITY Honda D16Y7 Fuel Pressure Regulator Honda D16Y8 Fuel Pressure Regulator Honda B20 Fuel Pressure Regulator Honda F20A4 Fuel Pressure Regulator Honda F20B Fuel Pressure Regulator Honda F20C Fuel Pressure Regulator Honda F22C1 (04-05 Only) Fuel Pressure Regulator Honda F23A Fuel Pressure Regulator

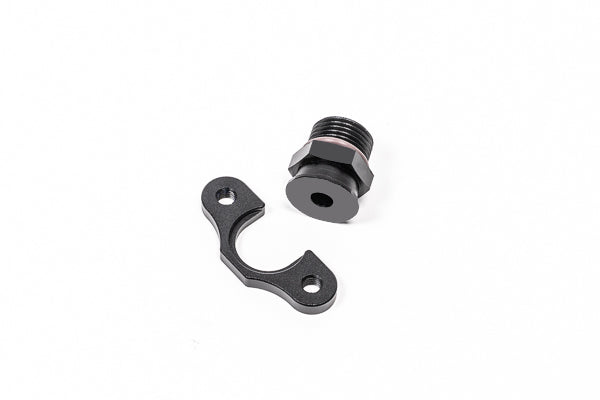

	20-0603 FPR Adapter 8AN ORB 7mm Bore 39mm Spacing M6 This fitting can adapt to virtually any fuel rail with an 8AN ORB female port and the necessary space around it to allow the FPR to fit. It is threaded M6x1.0mm where is accepts the FPR and has a 39mm hole spacing. Compatible FPR must have an 7mm bore and 39mm mount hole spacing. COMPATIBILITY Honda D16Z6 Fuel Pressure Regulator Honda B16 Fuel Pressure Regulator Honda B18B Fuel Pressure Regulator Honda F22A1 Fuel Pressure Regulator Honda F22A4 Fuel Pressure Regulator Honda F22A6 Fuel Pressure Regulator Honda H22A1 Fuel Pressure Regulator Honda H22A4 Fuel Pressure Regulator Honda H23 Fuel Pressure Regulator

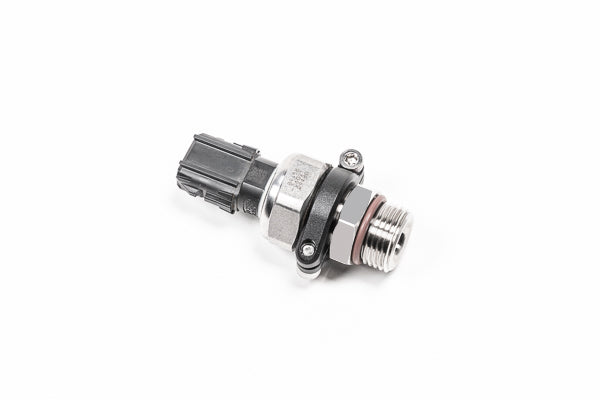

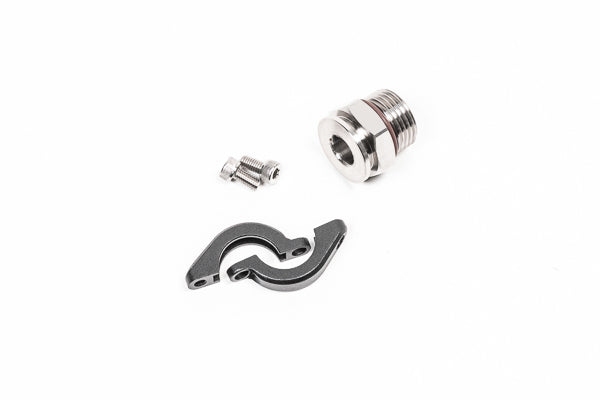

	20-0663 8AN ORB to Toyota Pressure Sensor Adapter Originally designed specifically for the 2022+ Toyota Corolla GR, this fitting can adapt to virtually any fuel rail with an 8AN ORB female port. This adapter clamps onto the OEM Toyota pressure sensor used in several Toyota applications with a 9.5mm bore. COMPATIBILITY 2022+ Toyota GR Corolla 2020+ Toyota GR Yaris 2018+ Toyota 2.0L Engines 2018+ Toyota 2.5L Engines

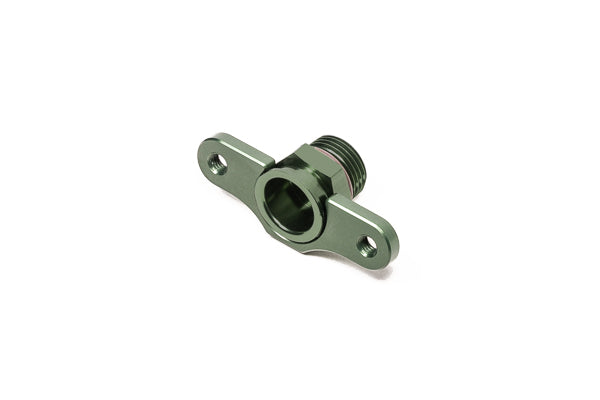

	20-0842 FPR Adapter 8AN ORB 16mm Bore 50mm Spacing M6 This fitting can adapt to virtually any fuel rail with an 8AN ORB female port and the necessary space around it to allow the FPR to fit. It is threaded M6x1.0mm where is accepts the FPR and has a 50mm hole spacing. Compatible FPR must have a 16mm bore and 50mm mount hole spacing. COMPATIBILITY Eagle Talon 4G63 (1G DSM) Fuel Pressure Regulator Plymouth Laser 4G63 (1G DSM) Fuel Pressure Regulator Mitsubishi Eclipse 4G63 (1G DSM) Fuel Pressure Regulator Mitsubishi Galant VR4 Fuel Pressure Regulator

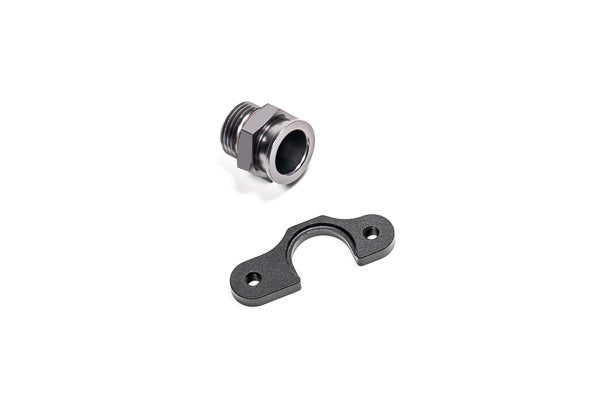

	20-1303 Ford Sensor Adapter 8AN ORB 16mm Bore 41mm Offset Spacing M5 This fitting can adapt to virtually any fuel rail with an 8AN ORB female port and the necessary space around it to allow the FPR to fit. It is threaded M56x0.8mm where is accepts the FPR and has an offset 41mm hole spacing. Compatible FPR must have a 16mm bore and 41mm mount hole spacing. COMPATIBILITY 05-10 Ford Mustang Fuel Pressure Sensor 04-10 Ford Explorer Fuel Pressure Sensor 05-09 Ford Focus Fuel Pressure Sensor 05-08 Ford F-150 Fuel Pressure Sensor 05-10 Ford F-250 Fuel Pressure Sensor 05-10 Ford F-350 Fuel Pressure Sensor 11-14 Shelby GT500 Fuel Pressure Sensor
