There may be other engines that are compatible with these injector seats that have never been tested or verified. Careful measurement of your injector bores and comparison to the seat dimensions may help to determine the likelihood of a fitment before ordering. All known engine fitments are listed below.

20-0216 TOYOTA INJECTOR SEAT

• 2JZ-GTE
• 2JZ-GTE VVT-i
• 1JZ-GTE (Non VVT-i)

20-0516 TOYOTA AIR ASSIST INJECTOR SEAT

• TOYOTA 2JZ-GE VVT-i
• TOYOTA 1UZ-FE VVT-i
• TOYOTA 3UZ-FE

20-0848 TOYOTA INJECTOR SEAT, 20MM

• 1990-1999 TOYOTA Celica 3S-GTE (2nd/3rd GEN)
• 1990-1999 TOYOTA MR-2 3S-GTE (2nd/3rd GEN)

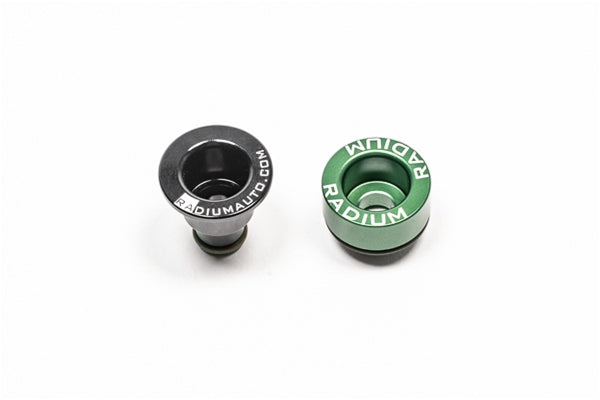

These are the same machined aluminum injector seats used in many Radium Engineering fuel rails. They are required when converting the OEM fuel injectors to aftermarket fuel injectors. They simply press-fit into the intake manifold injector ports with no modifications required. Using the included FKM O-ring, they seal into the machined injector counterbore preventing vacuum (or boost) leaks. The injector seat bores are designed to be used with a common 14mm lower injector O-ring.

NOTE: Because they are compatible with different cylinder engines, the injector seats are sold individually (not a set). Change quantity accordingly.

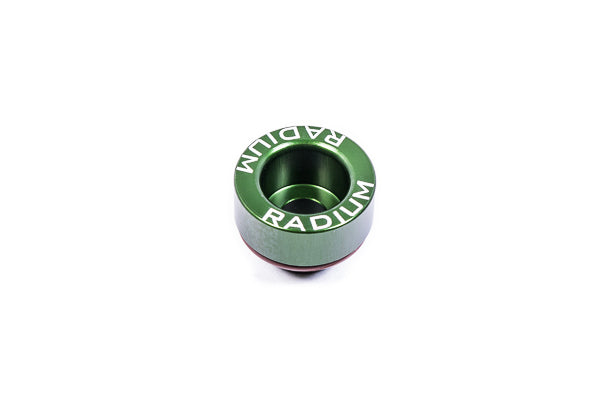

20-0216 TOYOTA INJECTOR SEAT

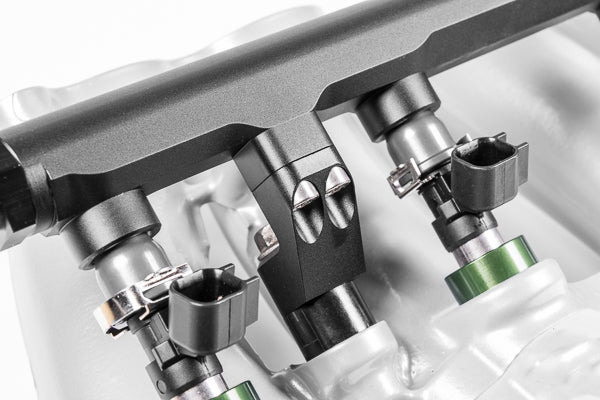

20-0216 is used to convert side feed injectors to top feed injectors. These seats are anodized green.

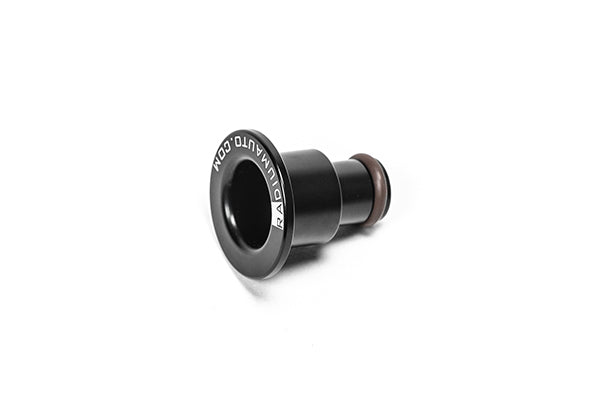

20-0516 TOYOTA AIR ASSIST INJECTOR SEAT

This seat is used to convert Toyota air-assist injectors to standard top feed injectors. The Toyota air assist injector seats are anodized black.

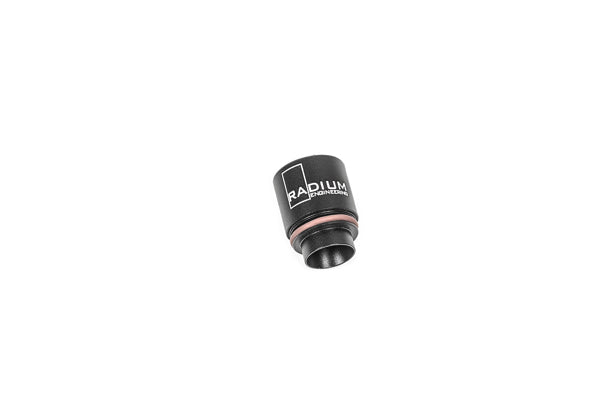

20-0848 TOYOTA INJECTOR SEAT, 20MM

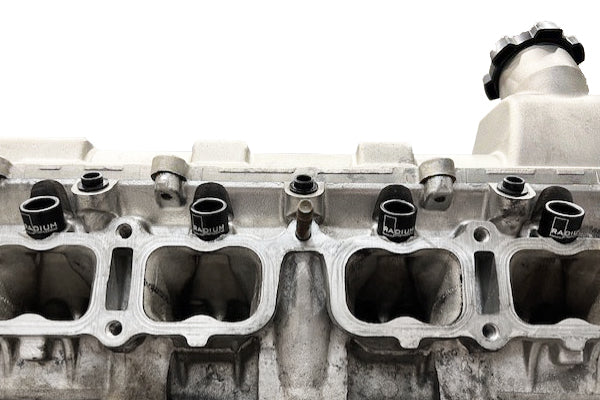

20-0848 is used to convert side feed injectors to top feed injectors. These injector seats are anodized black, as shown below.

• CNC machined 6061 aluminum
• Laser etched logo
• FKM O-rings
