Description

COMPATIBILITY

See the details below for individual compatibility

OVERVIEW

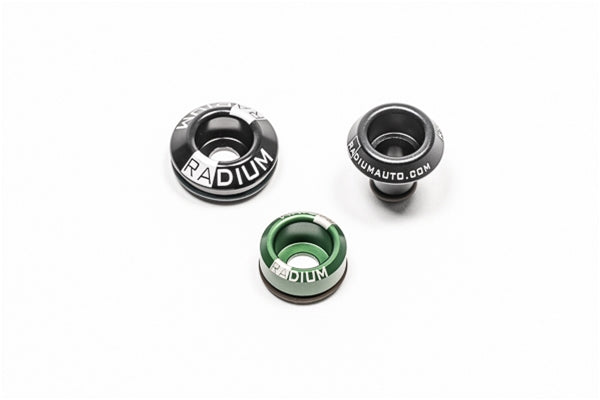

These are the same machined aluminum injector seats used in many Radium Engineering fuel rails. They are required when converting the OEM fuel injectors to aftermarket fuel injectors. They simply press-fit into the intake manifold/TGV injector ports with no modifications required. Using the included FKM O-ring, they seal into the machined injector counterbore preventing vacuum (or boost) leaks. The injector seat bores are designed to be used with a common 14mm lower injector O-ring.

NOTE: Because they are compatible with different cylinder engines, the injector seats are sold individually (not a set). Change quantity accordingly.

All injector seat styles use the following lower injector O-ring measurements shown. Measure before ordering.

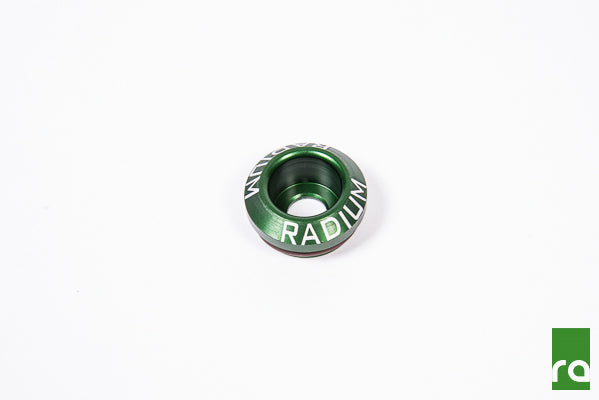

20-0171 Subaru Injector Seat 22mm

The same injector seat included in the Radium 20-0568-02 Top Feed conversion Rails for certain Subaru EJ engines. See the list below for applicable vehicles.

COMPATIBILITY

04-07 WRX STi (USDM)
04-05 Forester XT
05-06 Legacy GT
04-06 Legacy GT (JDM)
05-06 Outback XT

Always lubricate o-rings with o-ring lube, petroleum jelly, or oil before installation.

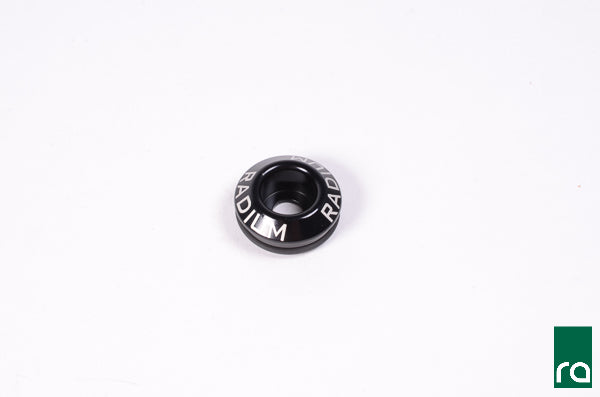

20-0305 Subaru Injector Seat 26mm

This injector seat is used in 3 applications of fuel rails. You will find this in parts 20-0569-02 and 20-0579-02 for the Subaru EJ engine as well as in the 20-0763-02 for the EG33. See the list below for applicable vehicles.

COMPATIBILITY
