COMPATIBILITY

20-0160 NISSAN INJECTOR SEAT, 30MM

NISSAN KA24DE S13
NISSAN KA24DE S14
NISSAN SR20DET S13

20-0161 NISSAN INJECTOR SEAT, 25MM

NISSAN RB25DET (Non NEO)
NISSAN SR20DET S14
NISSAN SR20DET S15
NISSAN SR20VE FWD

OVERVIEW

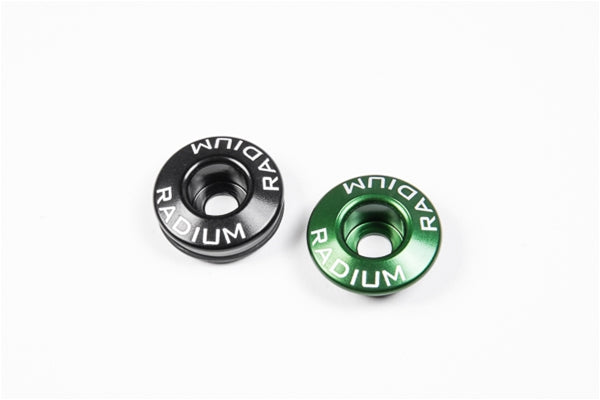

These are the same machined aluminum injector seats used in Radium fuel rail kits. They are required when converting an OEM side feed injector to a top feed injector that uses a 14mm lower O-ring. They simply 'pop' into the intake manifold (1 required per injector). They seal to the machined injector counterbore using the included FKM O-ring.

NOTE: Because they are compatible with different cylinder engines, the injector seats are sold individually (not a set). Change quantity accordingly.

20-0160 NISSAN INJECTOR SEAT, 30MM

All 30mm injector seats are black anodized.

The injector seats are CNC machined with a common 14mm bore for the lower injector O-ring.

20-0161 NISSAN INJECTOR SEAT, 25MM

All 25mm injector seats are Radium green anodized.

The injector seats are CNC machined with a common 14mm bore for the lower injector O-ring.

SPECS & FEATURES

CNC machined 6061 aluminum
Bright dipped anodized
Laser etched logo

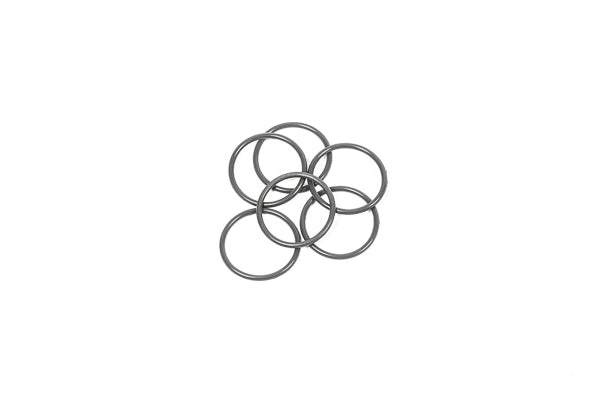

FKM O-rings

INSTALLATION NOTES

To install, thoroughly clean out any dirt or debris found in the intake manifold injector seat bores. Next, lubricate the Radium Engineering injector seat O-rings with o-ring lube, petroleum jelly, or motor oil. Press the injector seats down firmly into the intake manifold injector ports until fully seated. If necessary, use a small rubber mallet.
