OVERVIEW

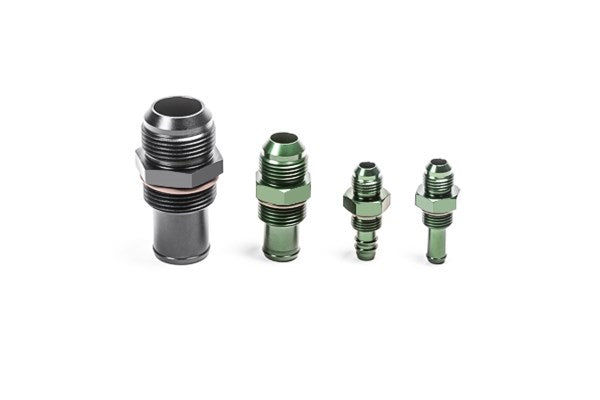

These anodized aluminum bulkhead fittings feature a barbed hose connection on the underside and a male AN flare connection on the top side. Threads are AN ORB (o-ring boss) for use in various Radium hangers, or any ORB threaded surface.

	14-0670 6AN ORB with 10mm Barb to 6AN Male Bulkhead This fitting was introduced in Radium Fuel Surge Tanks after 2021. It includes a preassembled FKM O-ring and requires a 6AN ORB (9/16-18 threaded hole) with SAE chamfer to be drilled into the mating part for sealing.
	20-0170 6AN ORB with 8.5mm Barb to 6AN Male Bulkhead This fitting was introduced in Radium Fuel Surge Tanks after 2014. It includes a preassembled FKM O-ring and requires a 6AN ORB (9/16-18 threaded hole) with SAE chamfer to be drilled into the mating part for sealing.

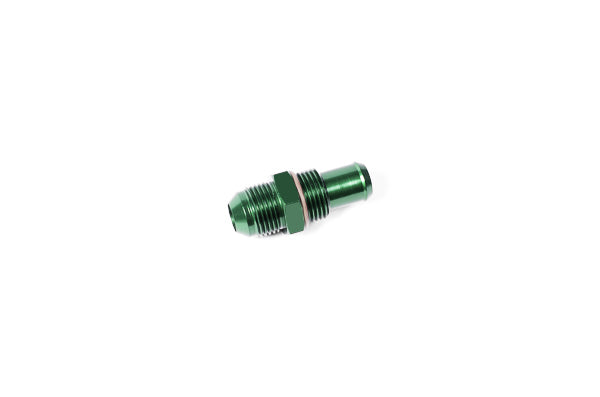

	20-0196 10AN ORB with 5/8in Barb to 10AN Male Bulkhead This fitting was introduced in Radium High Volume Fuel Surge Tanks in 2015. It includes a preassembled FKM O-ring and requires a 10AN ORB (7/8-14 threaded hole) with SAE chamfer to be drilled into the mating part for sealing.
	14-0699 16AN ORB with 1in Barb to 16AN Male Bulkhead This fitting was introduced in Radium Engineering FCST-X in 2023. It includes a preassembled FKM O-ring and requires a 16AN ORB (1-5/16-12 threaded hole) with SAE chamfer to be drilled into the mating part for sealing.
	14-0754 10AN ORB Bulkhead, 5/8" SAE Male to Male Mounts into a 10AN ORB female port and includes a preassembled FKM O-ring. 5/8" SAE Quick Connect male adapters protrude from both ends of the fitting.
	20-1000-0606-85 6AN ORB Swivel Banjo 8.5mm Barb to 6AN Male Bulkhead This fitting includes a preassembled FKM O-ring and requires a 6AN ORB (9/16-18 threaded hole) with SAE chamfer to be drilled into the mating part for sealing.
	20-1000-0606-375 6AN ORB Swivel Banjo 3/8in SAE to 6AN Male Bulkhead This fitting includes a preassembled FKM O-ring and requires a 6AN ORB (9/16-18 threaded hole) with SAE chamfer to be drilled into the mating part for sealing.
