COMPATIBILITY

• Porsche (996) 911 Turbo

OVERVIEW

This comprehensive installation kit includes everything needed to install a Radium fuel surge tank with a single 39mm fuel pump in a Porsche (996) 911 Turbo.

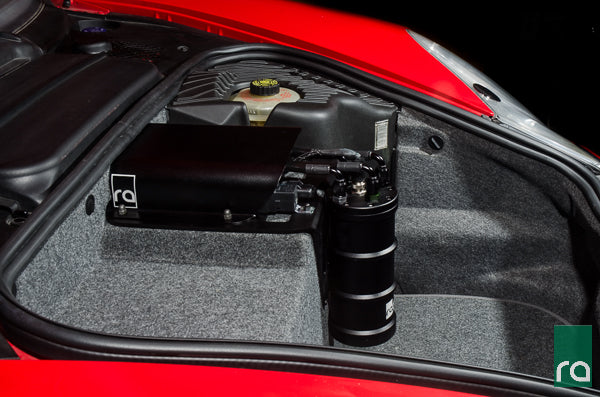

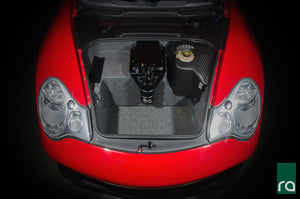

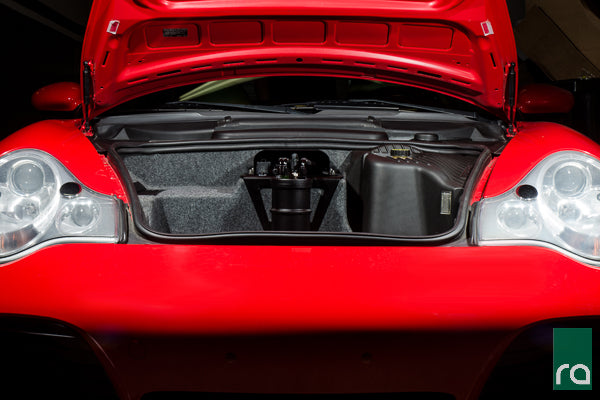

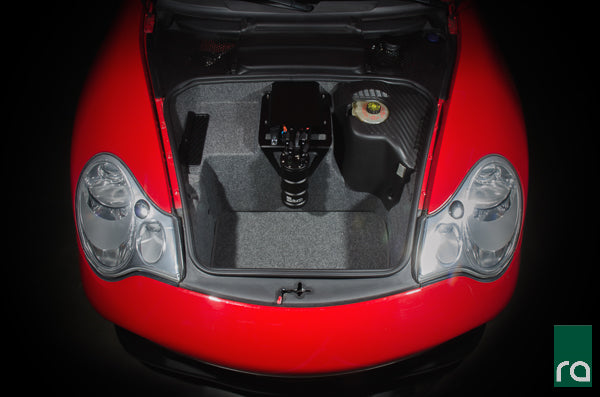

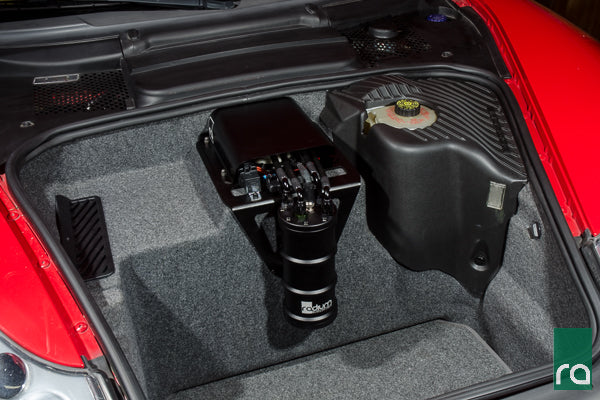

The Porsche 996 Turbo install kit locates the FST in a collision-safe area of the trunk, centered in front of the fuel tank allowing the majority of the trunk to be useable. The anodized aluminum bracket solidly mounts to the OEM fuel pump cover studs and an aluminum replacement fuel pump cover is included.

The OEM fuel pump hanger utilizes a sensitive dual venturi pump system that cannot be easily altered. This FST install kit includes a specifically designed FST orifice that keeps the necessary pressure in the OEM venturi system. For increased flow to the FST, this Porsche 996 fuel pump upgrade HERE, is recommended.

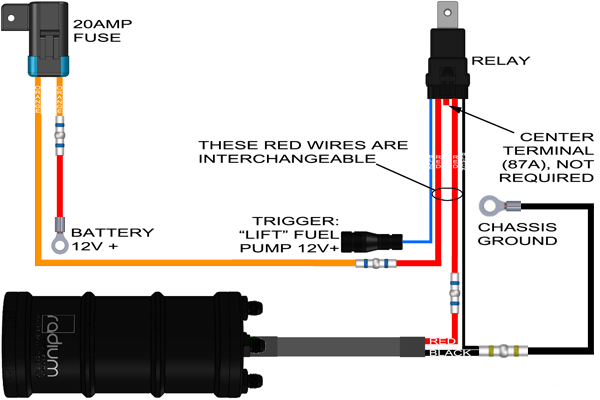

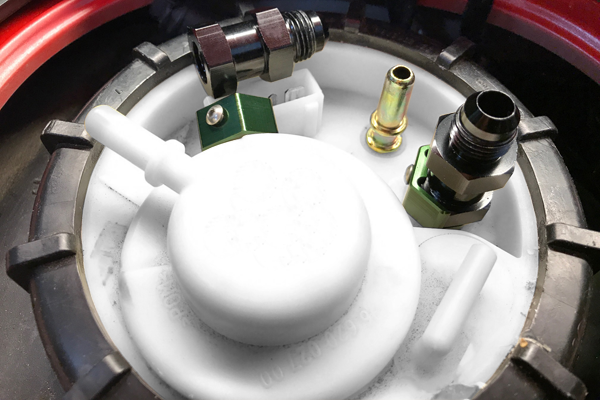

To adapt the PTFE hoses to the OEM Porsche lines, Radium has designed special low profile SAE quick disconnect fittings that are provided in the kit. Included are four PTFE hoses which are cut to length and preassembled. Also included are wiring components with flying leads featuring Raychem solderless butt splices, and a weatherproof fuse and relay to drive the FST's fuel pump. Wiring is very simple and takes less than 30 minutes to assemble. No soldering is required.

PRODUCT VIDEO

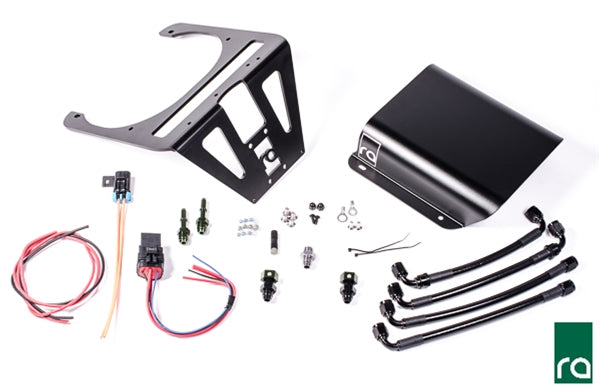

INCLUDES

• Preassembled 3/8' (-6AN) PTFE Hoses
• Aluminum Mounting Bracket
• Aluminum Pump Hanger Cover
• AN and OEM Style Adapter Fittings
• Stainless Steel Hardware
• Wiring Components with Relay and Fuse
• Solderless Heat Shrink Connectors

NOTES

• Depending on the flow rate of the fuel pump installed into the FST, a drop-in fuel pump upgrade may be required in the main tank. The main tank's pump is responsible for keeping the surge tank full, and requires a pump that flows around 40% to 50% of what the surge tank pump flows. This is an estimate and will vary.

ORDERING

This installation requires purchasing the install kit, the surge tank and the fuel pump for the surge tank separately. Many different fuel pumps can be installed into the surge tank and the available pump options from Radium directly are listed in the check boxes to the right.

To order a complete kit, select the install kit, the surge tank, and one fuel pump. To use a fuel pump other than what is listed, do not select a fuel pump from the checkboxes and order the desired fuel pump from another source.

To see a full list of fuel pumps compatible with the FST, click here.
