Description

COMPATIBILITY

02-04 Toyota 4Runner Non VVT-i
99-04 Toyota Tundra Non VVT-i
98-05 Toyota Land Cruiser Non VVT-i
00-04 Toyota Sequoia Non VVT-i
02-04 Lexus GX470 Non VVT-i
98-05 Lexus LX470 Non VVT-i

Because of cam sensor interference, these fuel rails are NOT compatible with VVT-i engines. For fuel rails compatible with UZ-FE VVT-i engines, click HERE

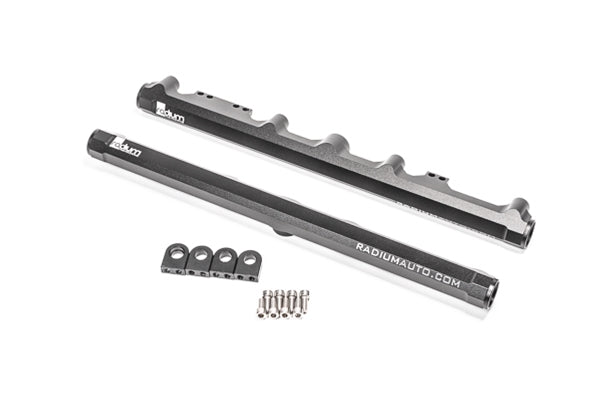

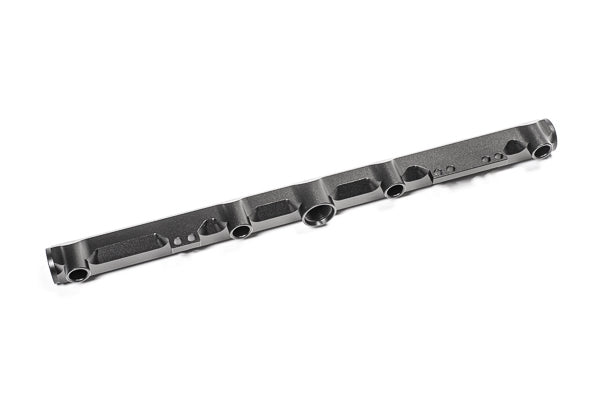

20-0962 Fuel Rails Toyota 2UZ-FE Non VVT-i

OVERVIEW

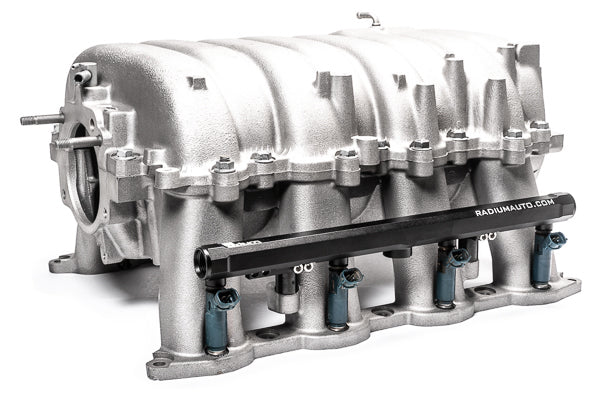

Manufactured with 0.7" large internal bores, the Radium Engineering fuel rails can support all necessary engine power requirements. The modular mounting feet make these fuel rails compatible with the early non VVT-i intake manifold.

FUEL INJECTOR COMPATIBILITY

The machined injector ports are compatible with 11mm upper injector O-rings. The fuel rails are compatible with OEM fuel injectors (or OEM equivalent). This means that the injectors being installed must match the OEM height and o-ring dimensions. Radium can not make fuel injector recommendations other than stating "OEM equivalent".

PORTS AND FITTINGS

The fuel rail ports are tapped for 8AN ORB fittings. Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

8AN ORB Adapter Fittings can be found HERE
8AN ORB Direct Mount Regulators can be found HERE
8AN ORB Fuel Pulse Dampers can be found HERE
Fuel Pressure Gauge Adapters can be found HERE

Each fuel rail has three 8AN ORB (3/4"-16) ports. Adapter fittings and fuel hose will need to be purchased separately.

FEATURES

Anodized surface finish for wear and corrosion resistance
Lightweight aluminum construction
Inner bore diameter: 0.7 inch
Reuses thermal insulating spacers
No special tools required for installation

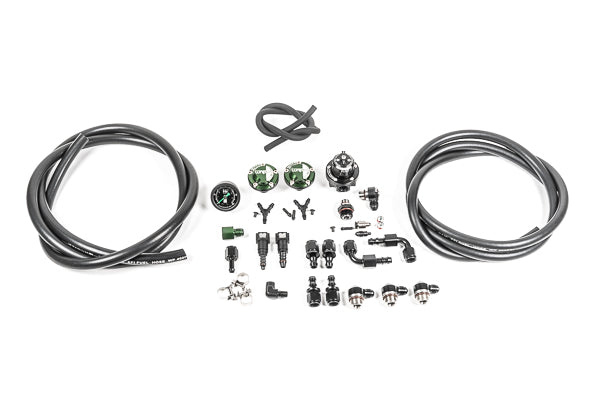

20-0964 Fuel Rail Plumbing Kit Toyota 2UZ-FE Non VVT-i

When used with the Radium Engineering fuel rails, this kit includes everything required to get the engine running.

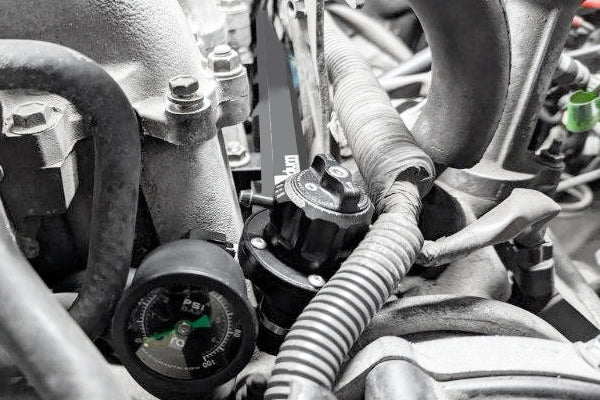

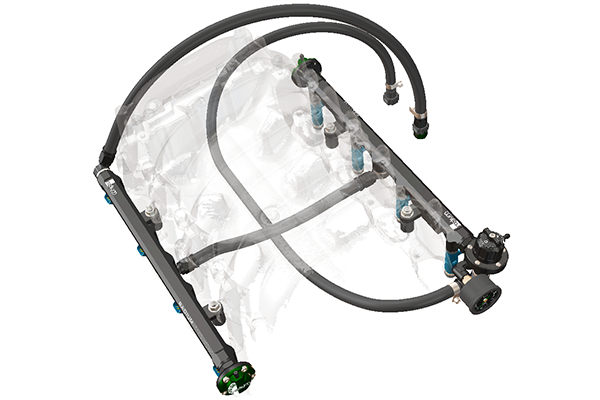

As shown below, an adjustable fuel pressure regulator and fuel gauge are included.

INCLUDES
