COMPATIBILITY

• 89-96 Lexus LS400
• 89-96 Toyota Celsior
• 89-96 Toyota Crown
• 89-97 Toyota Crown Majesta
• 89-97 Toyota HiAce HiMedic Ambulance
• 91-97 Lexus SC400
• 91-97 Toyota Soarer
• 92-97 Toyota Aristo
• 95-97 SARD MC8
• 95-97 SARD MC8-R

OVERVIEW

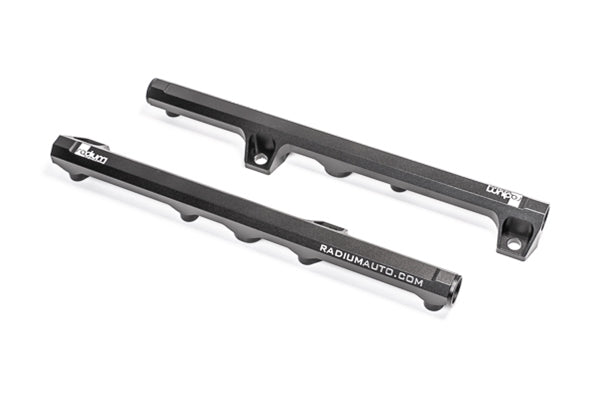

Manufactured with 0.7" large internal bores, the Radium Engineering fuel rails can support all necessary engine power requirements.

FUEL INJECTOR COMPATIBILITY

The machined injector ports are compatible with 11mm upper injector O-rings.
The fuel rails are compatible with OEM fuel injectors (or equivalent). This means that the injectors being installed must match the OEM height and o-ring dimensions. Radium can not make fuel injector recommendations other than stating "OEM equivalent".

PORTS AND FITTINGS

The fuel rail ports are tapped for 8AN ORB. Each fuel rail has three 8AN ORB (3/4"-16) ports. Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

• 8AN ORB Adapter Fittings can be found HERE
• 8AN ORB Direct Mount Regulators can be found HERE
• 8AN ORB Fuel Pulse Dampers can be found HERE
• Fuel Pressure Gauge Adapters can be found HERE

FEATURES

• Anodized surface finish for wear and corrosion resistance
• Lighweight aluminum construction
• Inner bore diameter: 0.7 inch
• Reuses thermal insulating spacers
• No special tools required for installation
